ISO 14084-2 發電廠製程流程圖符號（AutoCAD DWG）
ISO 14084-2 發電廠符號：475 個現成的 AutoCAD 圖塊（DWG），可免費下載並用於自己的專案，可整庫下載，也可單個下載。

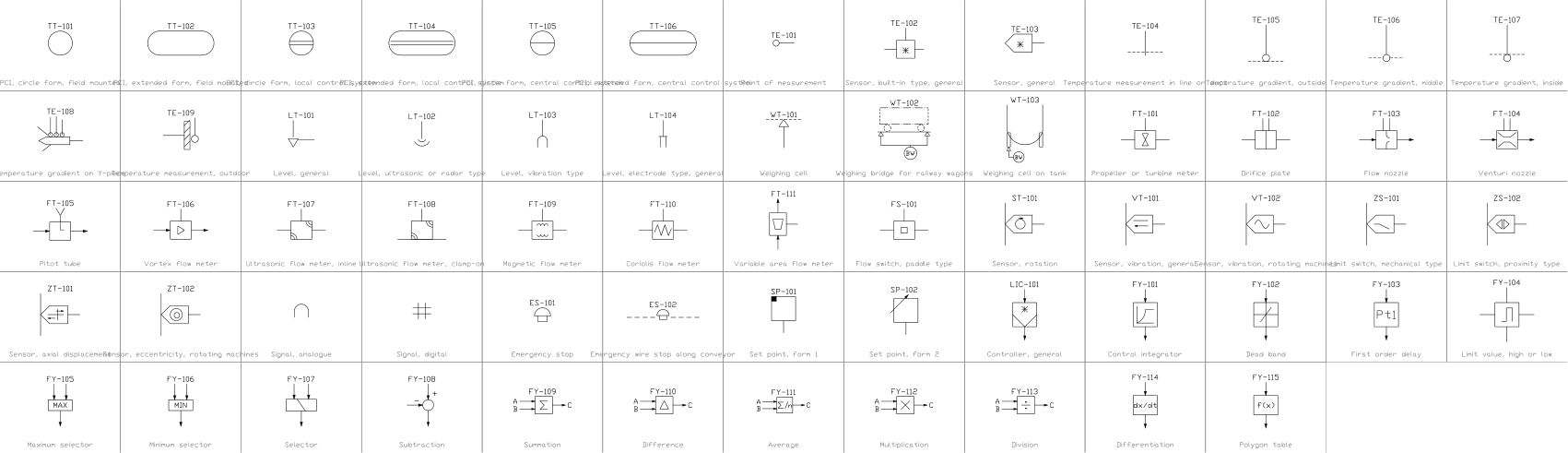

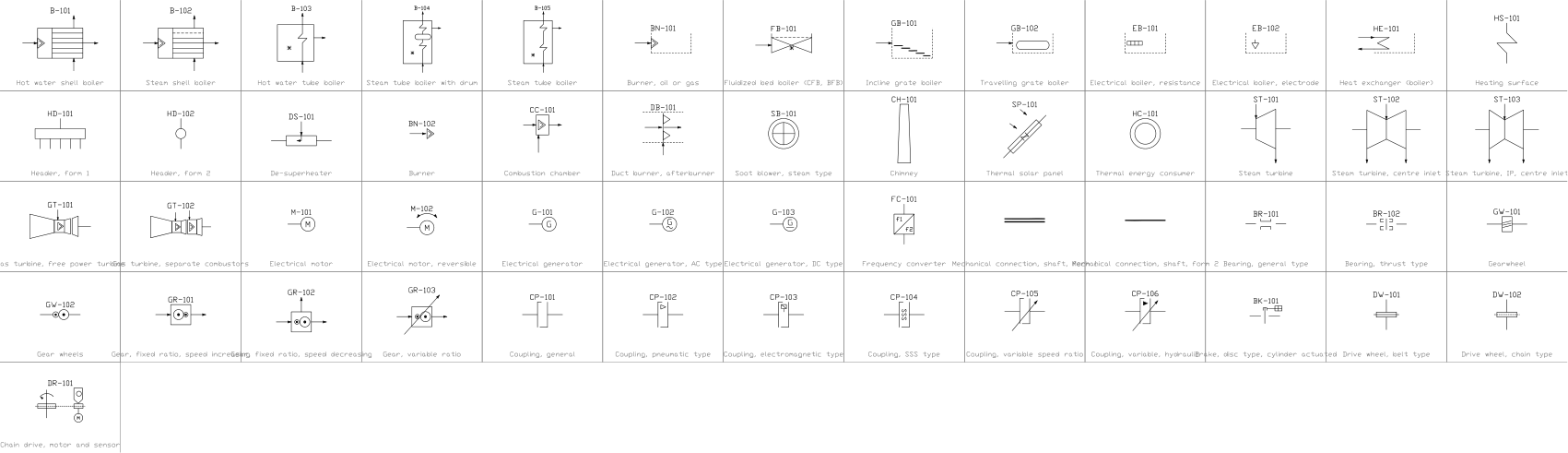

475 個依 ISO 14084-2《發電廠製程流程圖——圖形符號》條目繪製的 AutoCAD 圖塊：連接線和介質線、管件、閥門、風門和安全裝置、泵、風機和壓縮機、熱交換器和冷卻塔、流體處理、儲存、物料輸送和加工、鍋爐、汽輪機、發電機、齒輪和聯軸器，以及儀表與控制。庫依標準的章節組織，每一節是獨立的 DWG 和 ZIP，只下載圖面需要的部分。
可免費用於你自己的專案並可修改，包括商業專案。ZIP 裡是一個 AutoCAD 2018 格式的普通 DWG 檔案和一份 README，不需要任何外掛程式。按現狀提供，不作任何擔保。
下載之後
讓整套圖面使用同一批符號
符號唯有在每張圖用的都是同一個版本時才有價值。
- 開啟 DWG，把需要的圖塊複製到你的圖面，或從 DesignCenter 拖曳進來。以 1:1 比例插入；這個壓縮檔裡的 README 寫明了每組符號的圖形單位與插入點。
- 日後符號有修改時，用 BlockCopy 一次把所有圖面中的舊圖塊換成新圖塊，不必逐一開啟檔案。
- 要統計符號數量或彙整屬性，請用 BlockSync 匯出到 Excel，再建立樞紐分析表。
相關指南:ATTSYNC 清空了屬性值？如何安全地更新圖塊定義統計多張圖面中的圖塊數量 — 用整套圖面在 Excel 裡產生 BOM / 材料統計表
這些工具免費版每批最多處理 10 個檔案，Pro 版不限。

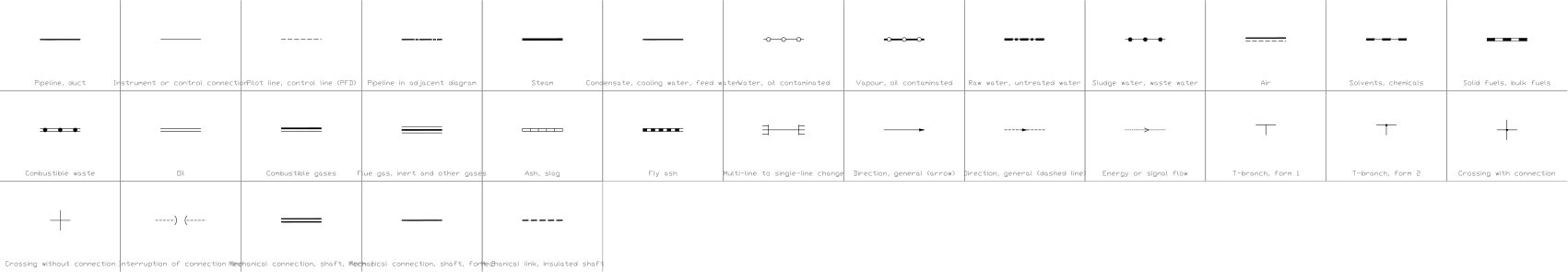

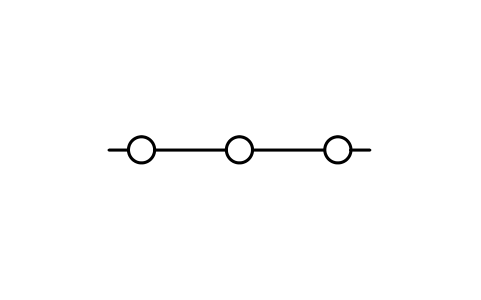

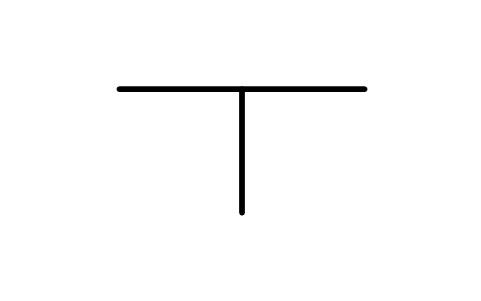

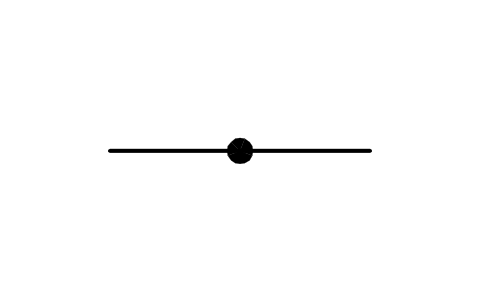

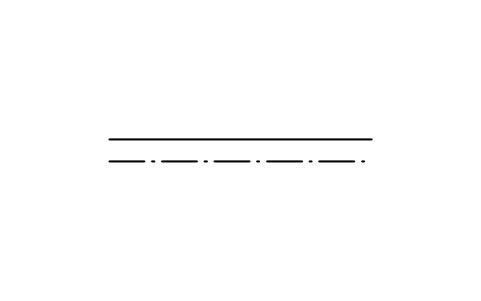

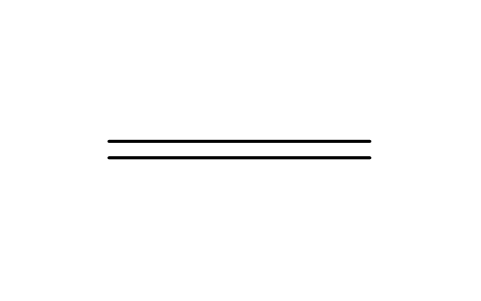

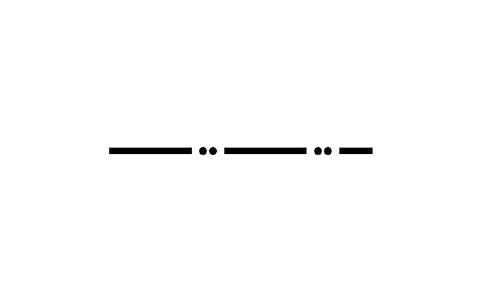

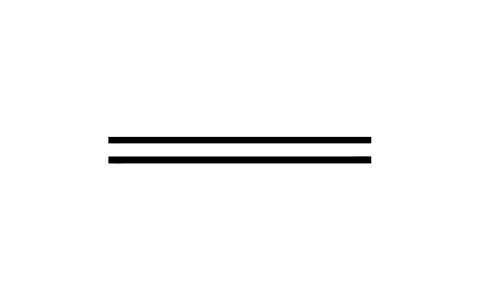

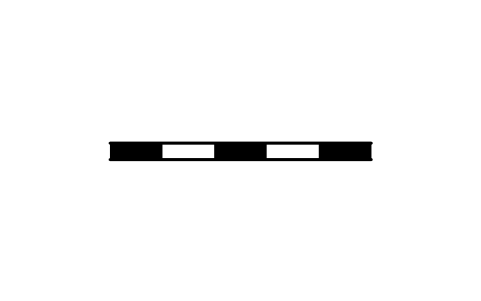

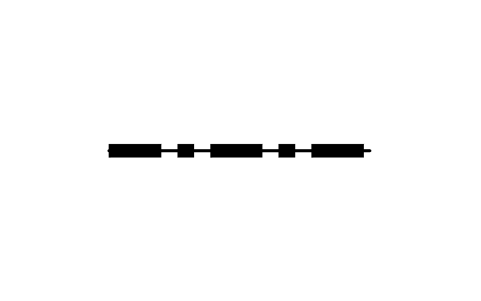

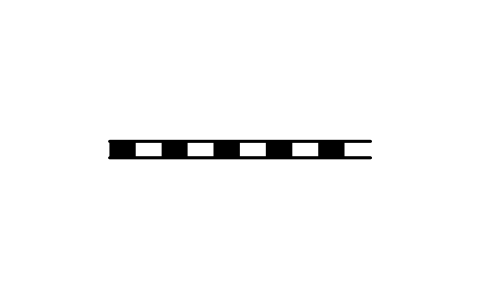

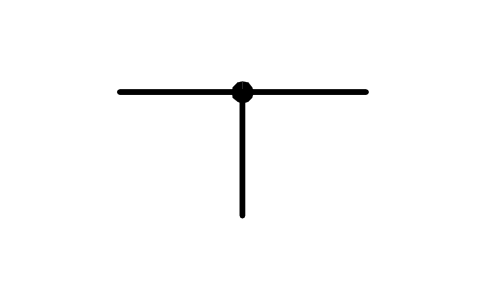

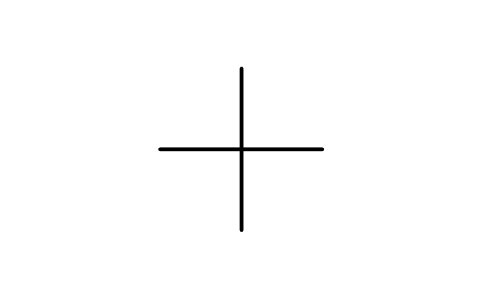

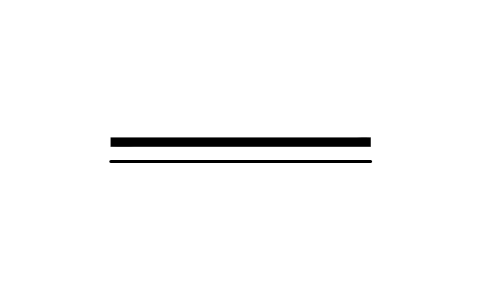

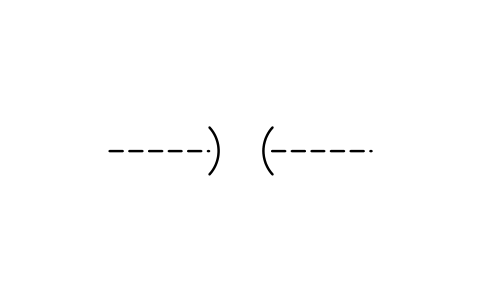

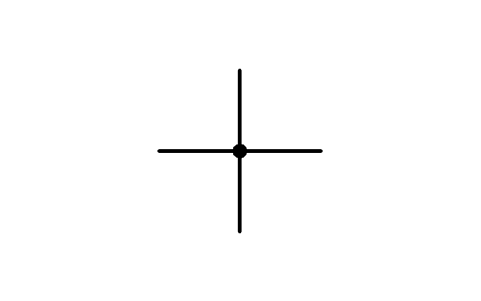

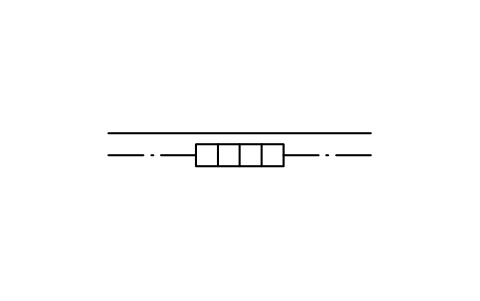

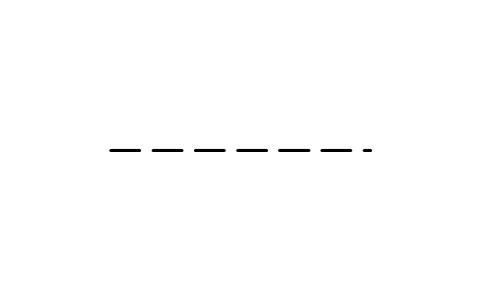

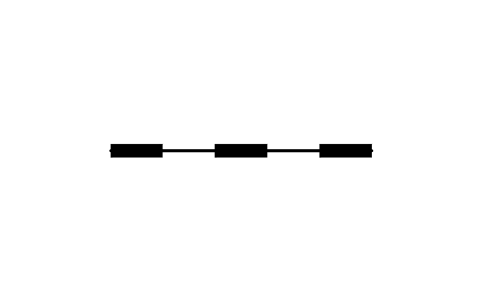

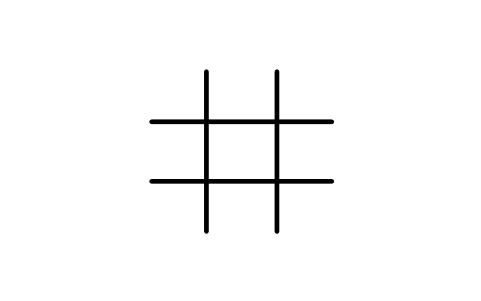

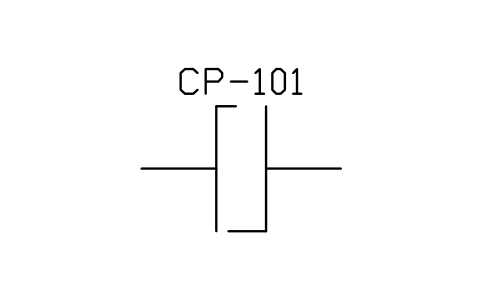

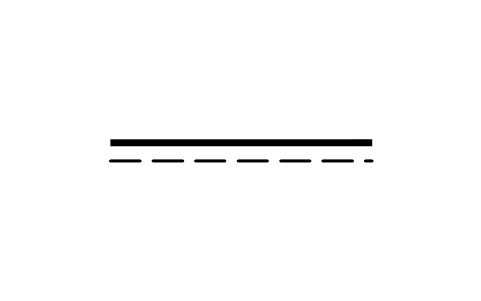

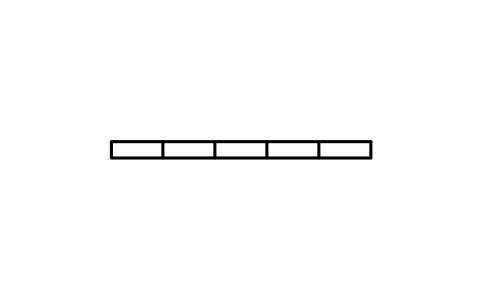

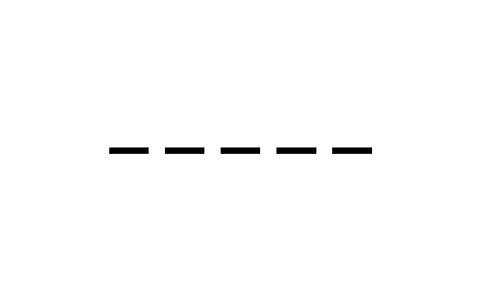

連接、介質線和連接件

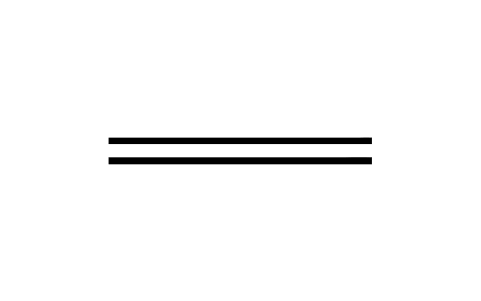

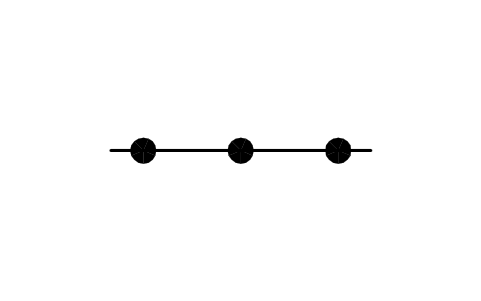

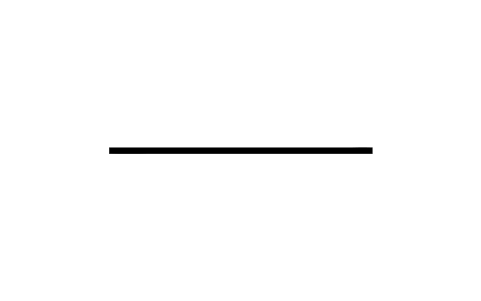

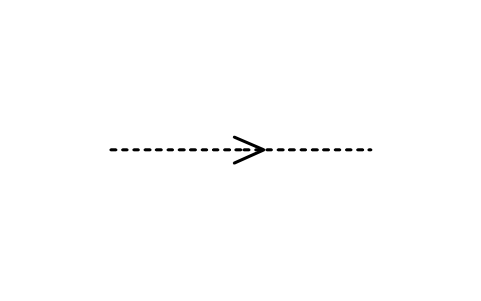

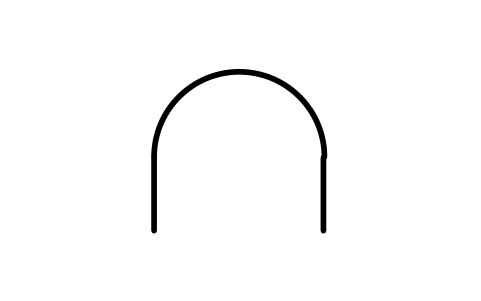

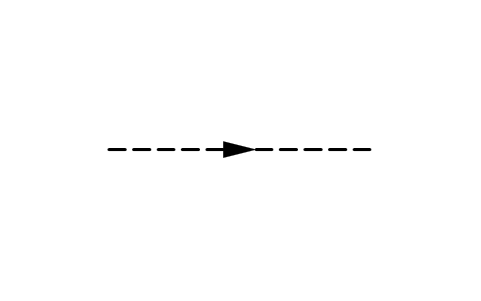

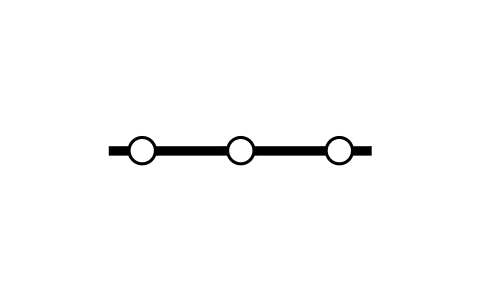

31 個圖塊，用於發電廠圖中的各種線：功能連接、各種製程介質線、方向、分支和交叉標記以及機械連接。
使用 AutoCAD 2017 或更早的版本？ 下載 2010 格式
共 31 個符號，顯示 31 個

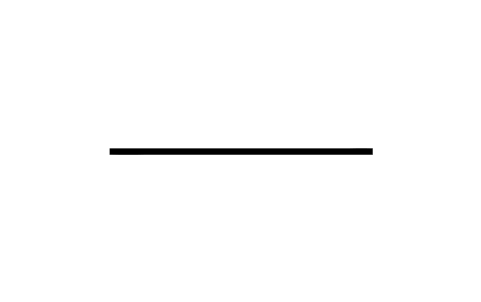

Instrument or control connection
PPD_X6002_INSTRUMENT_CONNECTION屬性
TAGREMARKSSTD_CLAUSESTD_REFDESC

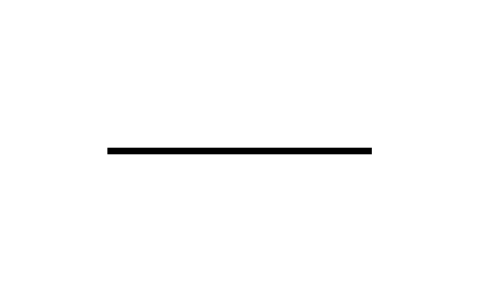

Condensate, cooling water, feed water
PPD_X6006_CONDENSATE_WATER屬性
TAGREMARKSSTD_CLAUSESTD_REFDESC

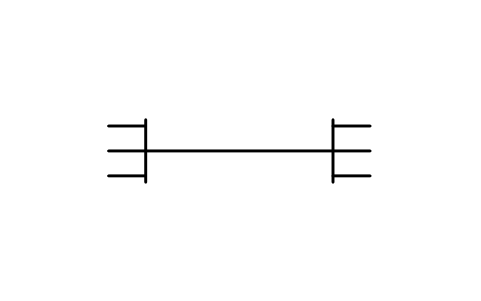

Multi-line to single-line change
PPD_X6030_MULTI_TO_SINGLE_LINE屬性
TAGREMARKSSTD_CLAUSESTD_REFDESC

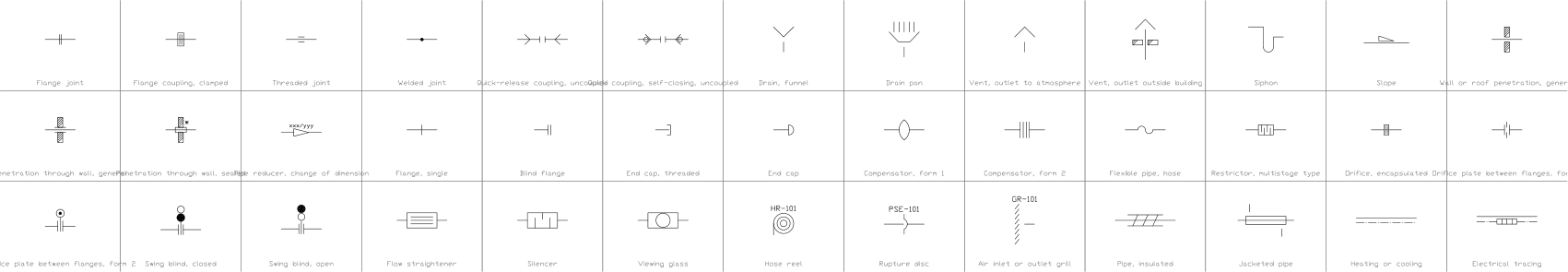

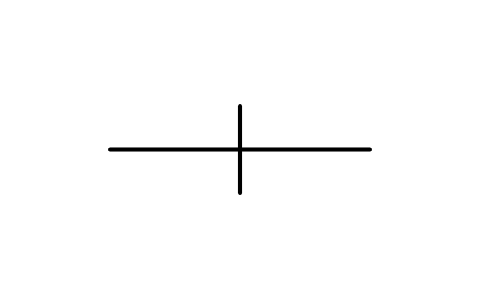

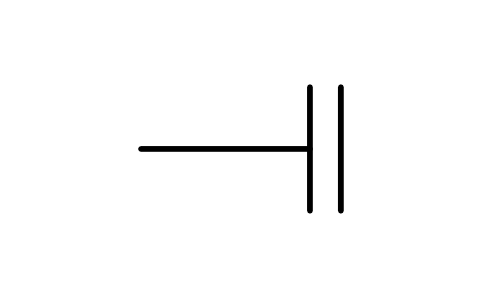

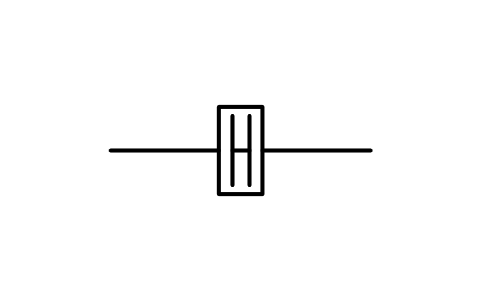

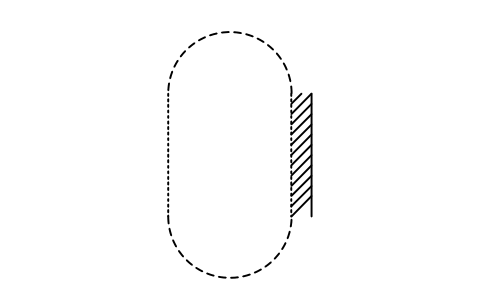

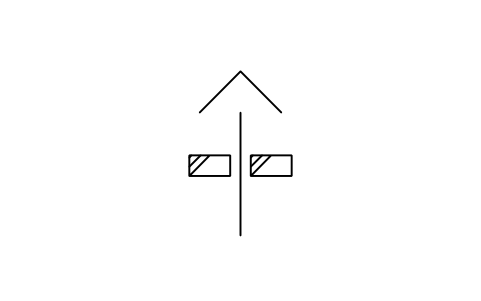

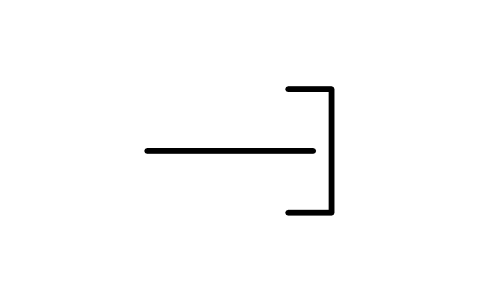

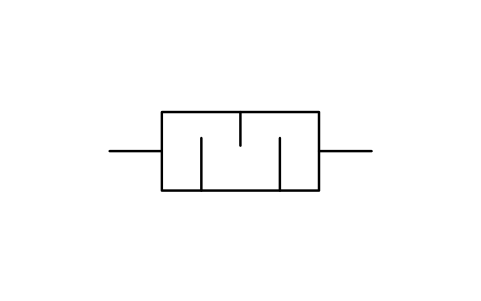

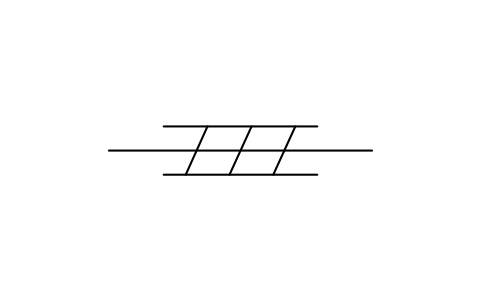

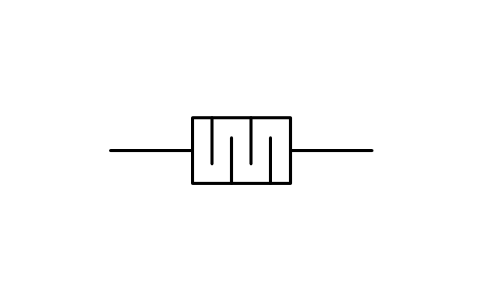

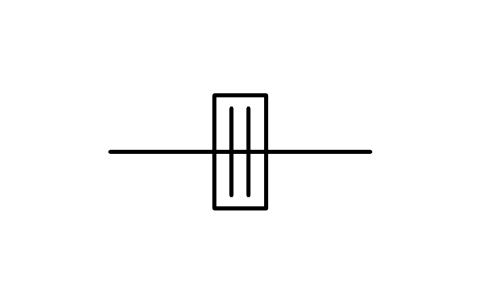

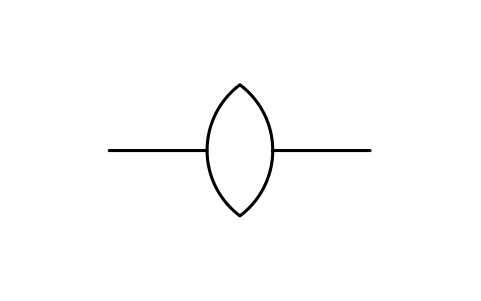

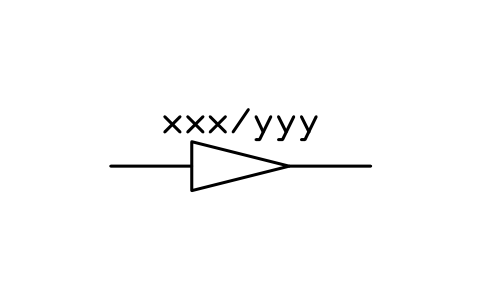

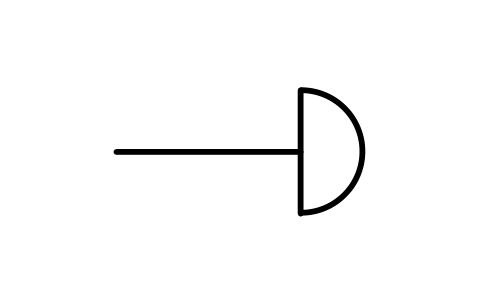

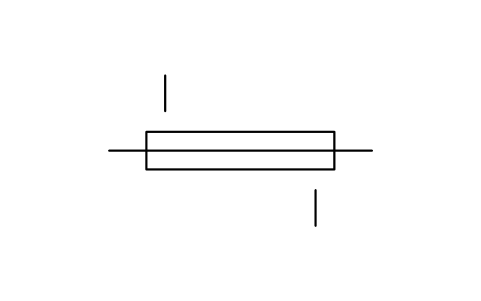

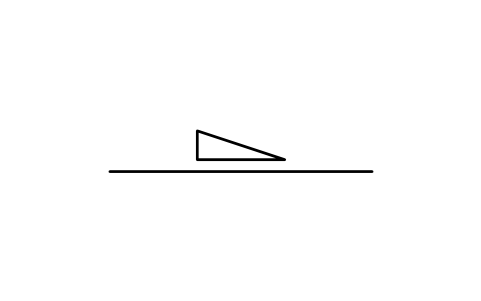

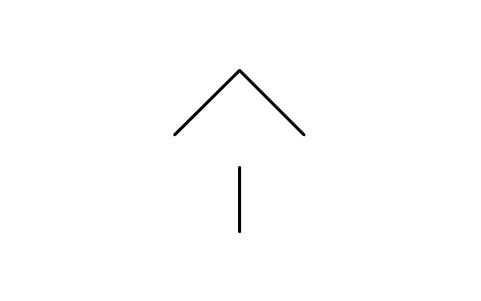

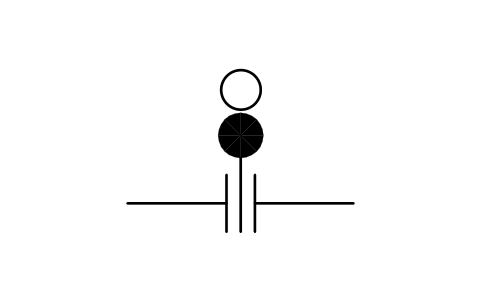

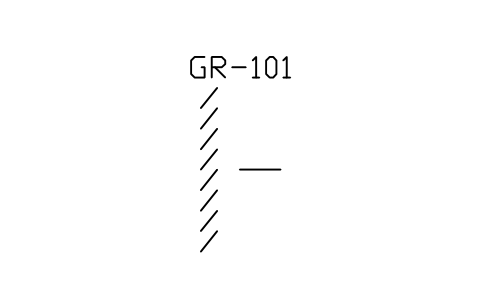

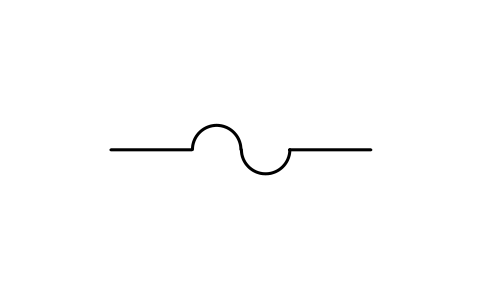

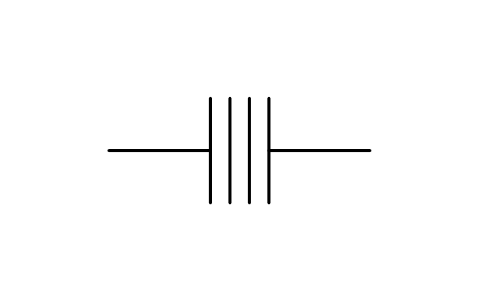

管道接頭和管件

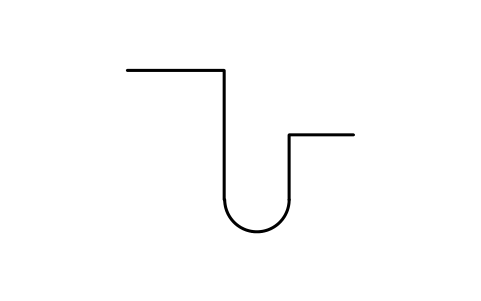

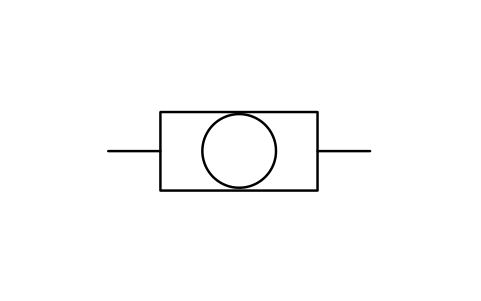

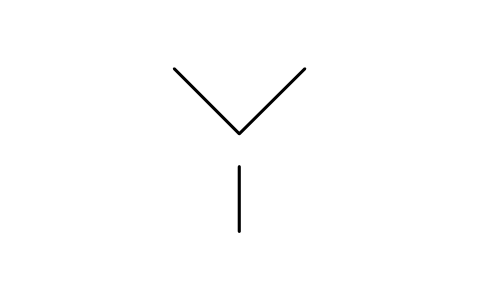

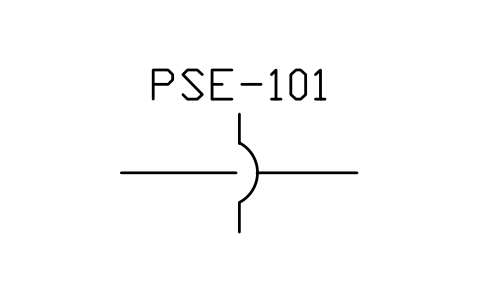

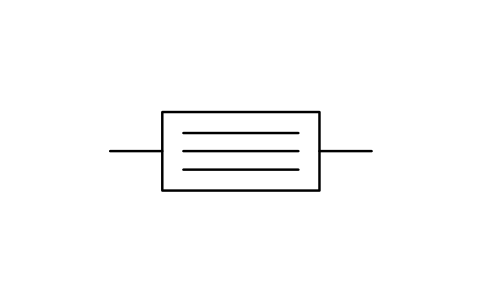

39 個圖塊，用於管道：異徑管、法蘭、盲板法蘭和封頭，補償器和軟管，節流件和孔板，整流器、消音器、視鏡和爆破片，以及疏水、放氣、穿牆、保溫、夾套和伴熱的標記。
使用 AutoCAD 2017 或更早的版本？ 下載 2010 格式
共 39 個符號，顯示 39 個

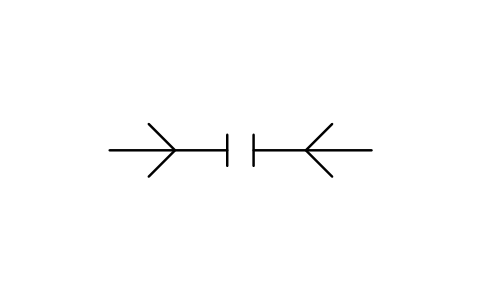

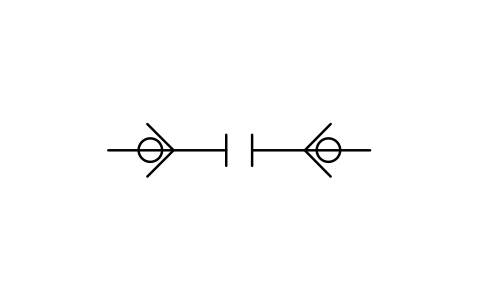

Quick coupling, self-closing, uncoupled
PPD_P033_QUICK_COUPLING_SHUTOFF屬性
TAGREMARKSSTD_CLAUSESTD_REFDESC

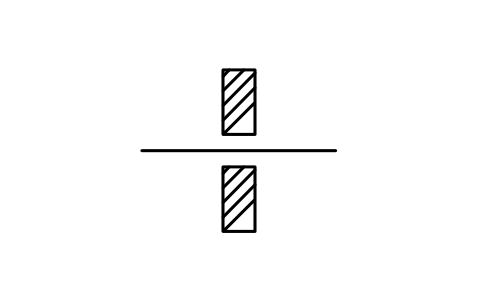

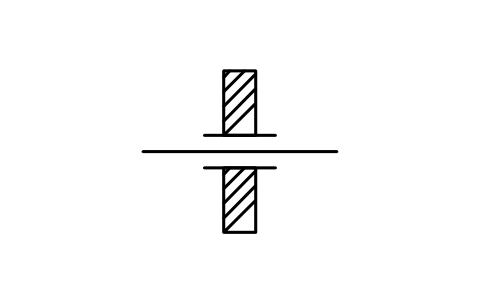

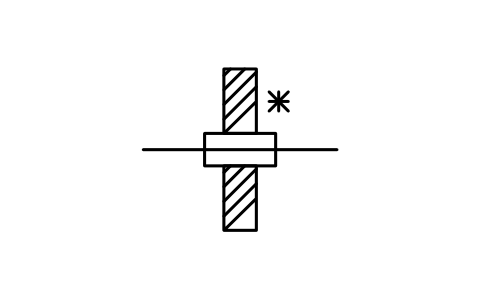

Penetration through wall, sealed
PPD_3002_WALL_PENETRATION_SEALED屬性
TAGREMARKSSTD_CLAUSESTD_REFDESC

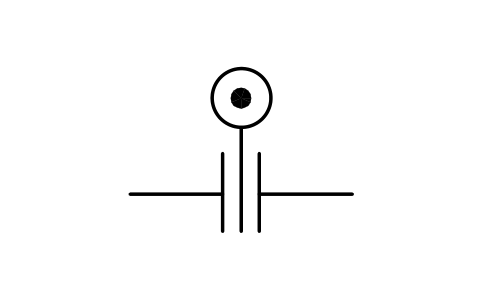

Orifice plate between flanges, form 2
PPD_P053_ORIFICE_PLATE_F2屬性
TAGREMARKSSTD_CLAUSESTD_REFDESC

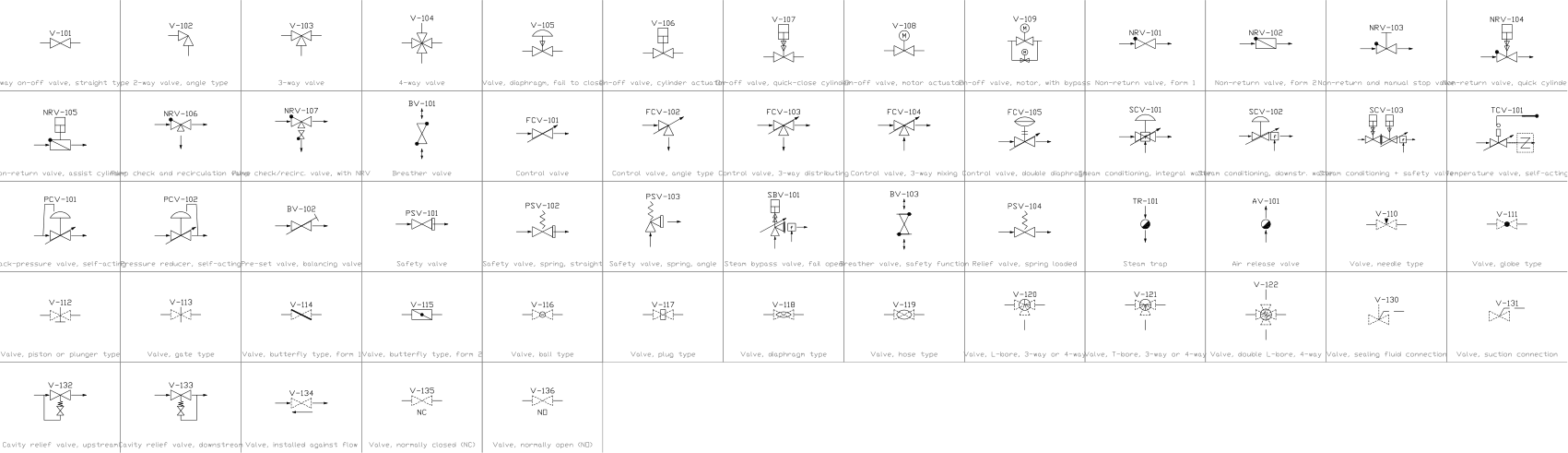

閥門
57 個圖塊，用於閥門：截止、止回、調節、安全和洩壓閥，特殊閥門，閥體符號以及可附加的特徵，例如常開或常閉、密封液和抽吸接口、閥腔洩壓。
使用 AutoCAD 2017 或更早的版本？ 下載 2010 格式
共 57 個符號，顯示 57 個

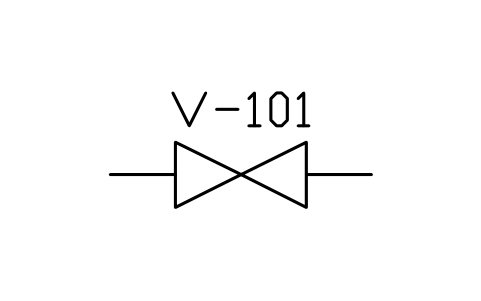

2-way on-off valve, straight type
PPD_2101_VALVE_2WAY屬性
TAGSERVICESIZEPRESSURE_RATINGDESIGN_TEMP_CMATERIALEND_CONNECTIONACTUATORMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

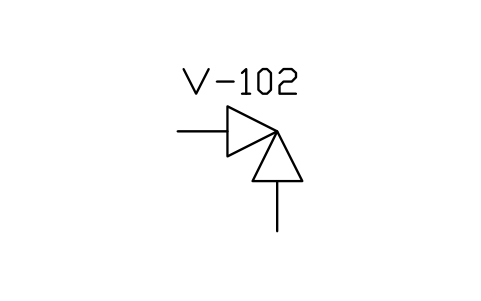

2-way valve, angle type
PPD_2102_VALVE_2WAY_ANGLE屬性
TAGSERVICESIZEPRESSURE_RATINGDESIGN_TEMP_CMATERIALEND_CONNECTIONACTUATORMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

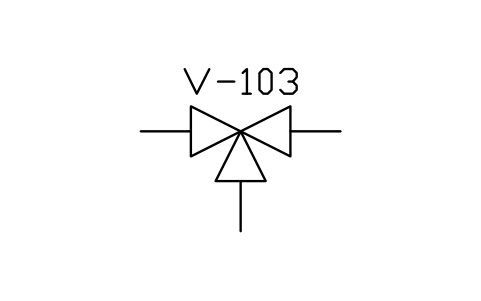

3-way valve
PPD_2103_VALVE_3WAY屬性
TAGSERVICESIZEPRESSURE_RATINGDESIGN_TEMP_CMATERIALEND_CONNECTIONACTUATORMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

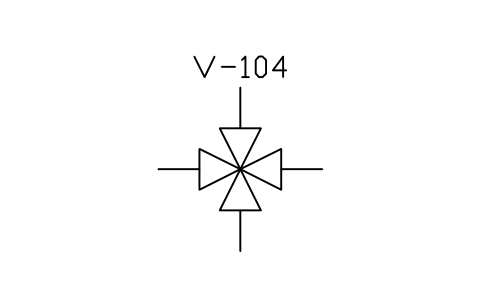

4-way valve
PPD_2104_VALVE_4WAY屬性
TAGSERVICESIZEPRESSURE_RATINGDESIGN_TEMP_CMATERIALEND_CONNECTIONACTUATORMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

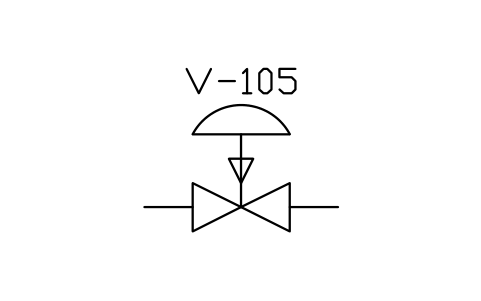

Valve, diaphragm, fail to close
PPD_X2101_VALVE_DIAPHRAGM_FC屬性
TAGSERVICESIZEPRESSURE_RATINGDESIGN_TEMP_CMATERIALEND_CONNECTIONACTUATORMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

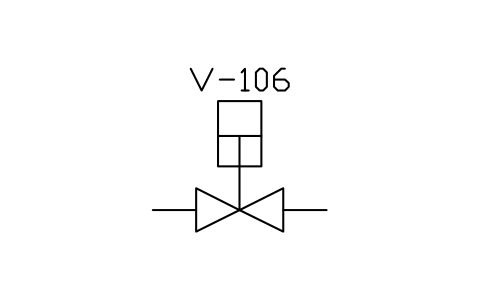

On-off valve, cylinder actuator
PPD_X6101_VALVE_CYLINDER屬性
TAGSERVICESIZEPRESSURE_RATINGDESIGN_TEMP_CMATERIALEND_CONNECTIONACTUATORMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

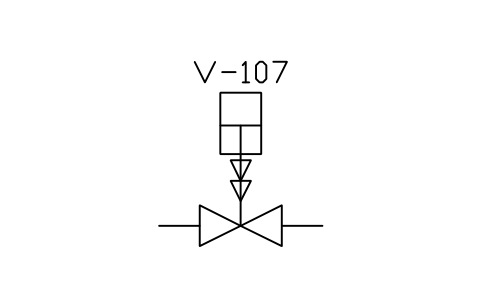

On-off valve, quick-close cylinder
PPD_X6102_VALVE_CYLINDER_QUICK屬性
TAGSERVICESIZEPRESSURE_RATINGDESIGN_TEMP_CMATERIALEND_CONNECTIONACTUATORMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

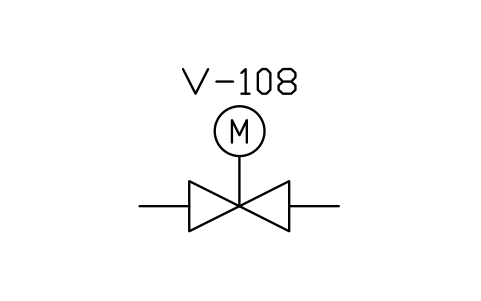

On-off valve, motor actuator
PPD_X2104_VALVE_MOTOR屬性
TAGSERVICESIZEPRESSURE_RATINGDESIGN_TEMP_CMATERIALEND_CONNECTIONACTUATORMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

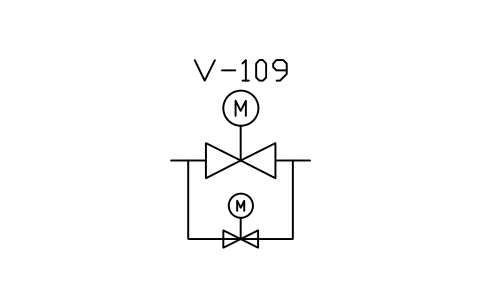

On-off valve, motor, with bypass
PPD_X6103_VALVE_BYPASS_MOTOR屬性
TAGSERVICESIZEPRESSURE_RATINGDESIGN_TEMP_CMATERIALEND_CONNECTIONACTUATORMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

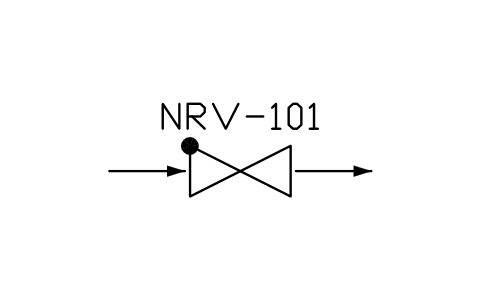

Non-return valve, form 1
PPD_X6105_CHECK_VALVE_F1屬性
TAGSERVICESIZEPRESSURE_RATINGDESIGN_TEMP_CMATERIALEND_CONNECTIONACTUATORMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

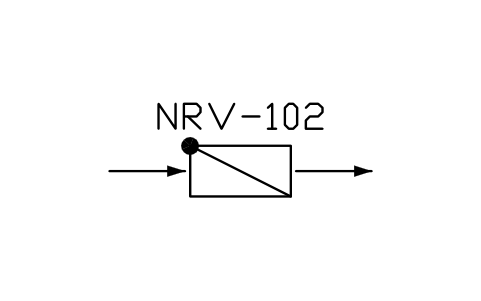

Non-return valve, form 2
PPD_P090_CHECK_VALVE_F2屬性
TAGSERVICESIZEPRESSURE_RATINGDESIGN_TEMP_CMATERIALEND_CONNECTIONACTUATORMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

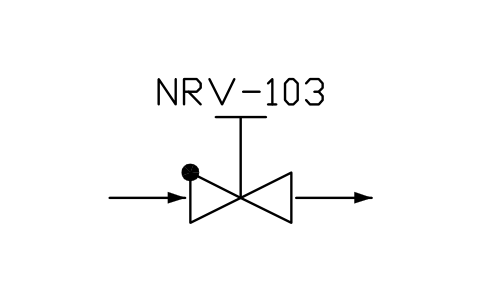

Non-return and manual stop valve
PPD_X2112_CHECK_STOP_VALVE屬性
TAGSERVICESIZEPRESSURE_RATINGDESIGN_TEMP_CMATERIALEND_CONNECTIONACTUATORMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

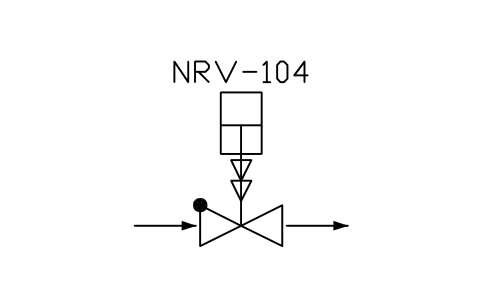

Non-return valve, quick cylinder
PPD_X6107_CHECK_VALVE_QUICK屬性
TAGSERVICESIZEPRESSURE_RATINGDESIGN_TEMP_CMATERIALEND_CONNECTIONACTUATORMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

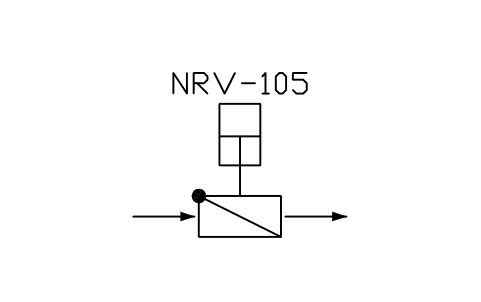

Non-return valve, assist cylinder
PPD_X6104_CHECK_VALVE_CYLINDER屬性
TAGSERVICESIZEPRESSURE_RATINGDESIGN_TEMP_CMATERIALEND_CONNECTIONACTUATORMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

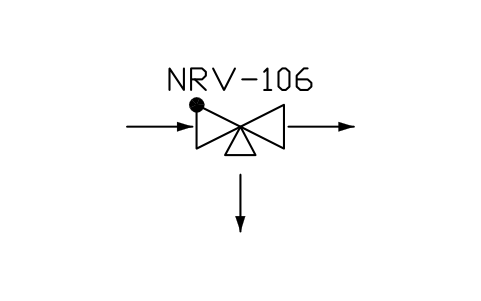

Pump check and recirculation valve
PPD_X6108_PUMP_CHECK_RECIRC屬性
TAGSERVICESIZEPRESSURE_RATINGDESIGN_TEMP_CMATERIALEND_CONNECTIONACTUATORMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

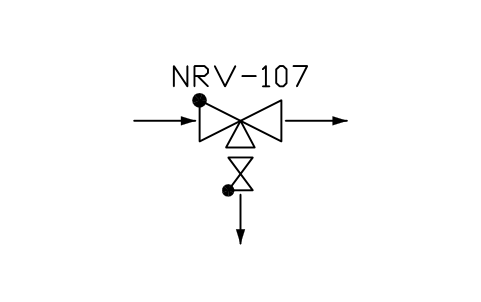

Pump check/recirc. valve, with NRV
PPD_X6126_PUMP_CHECK_RECIRC_NRV屬性
TAGSERVICESIZEPRESSURE_RATINGDESIGN_TEMP_CMATERIALEND_CONNECTIONACTUATORMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

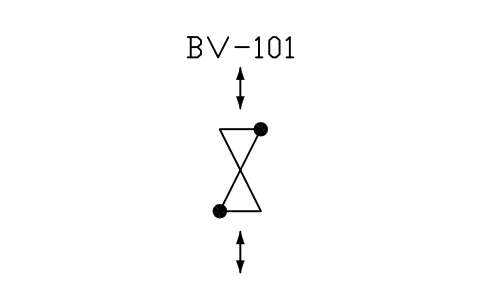

Breather valve
PPD_X6109_BREATHER_VALVE屬性
TAGSERVICESIZEPRESSURE_RATINGDESIGN_TEMP_CMATERIALEND_CONNECTIONACTUATORMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

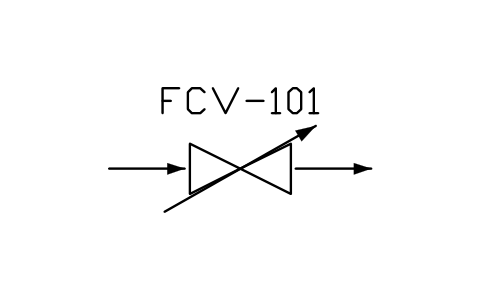

Control valve
PPD_X6110_CONTROL_VALVE屬性
TAGSERVICESIZEPRESSURE_RATINGDESIGN_TEMP_CCVFAIL_POSITIONMATERIALACTUATORMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

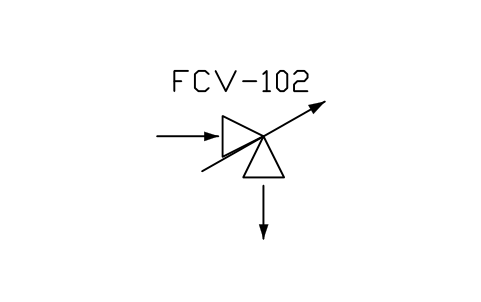

Control valve, angle type
PPD_X6111_CONTROL_VALVE_ANGLE屬性
TAGSERVICESIZEPRESSURE_RATINGDESIGN_TEMP_CCVFAIL_POSITIONMATERIALACTUATORMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

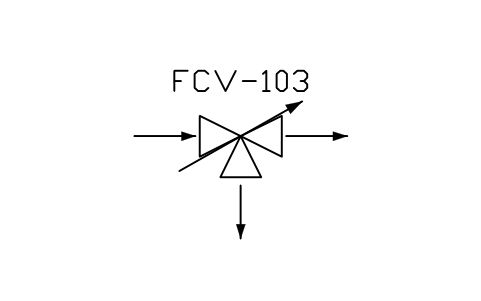

Control valve, 3-way distributing
PPD_X6112_CONTROL_VALVE_3WAY_DIST屬性
TAGSERVICESIZEPRESSURE_RATINGDESIGN_TEMP_CCVFAIL_POSITIONMATERIALACTUATORMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

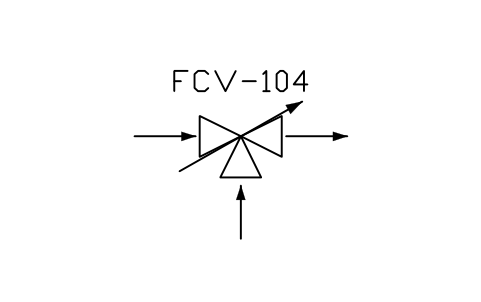

Control valve, 3-way mixing
PPD_X6113_CONTROL_VALVE_3WAY_MIX屬性
TAGSERVICESIZEPRESSURE_RATINGDESIGN_TEMP_CCVFAIL_POSITIONMATERIALACTUATORMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

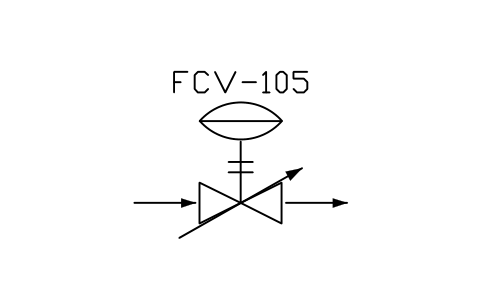

Control valve, double diaphragm
PPD_X6118_CONTROL_VALVE_DOUBLE_DIAPH屬性
TAGSERVICESIZEPRESSURE_RATINGDESIGN_TEMP_CCVFAIL_POSITIONMATERIALACTUATORMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

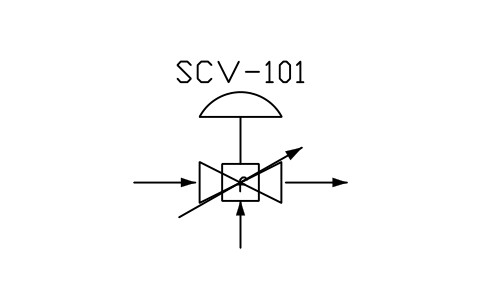

Steam conditioning, integral water
PPD_X6114_STEAM_CONDITIONING_INT屬性
TAGSERVICESIZEPRESSURE_RATINGDESIGN_TEMP_CCVFAIL_POSITIONMATERIALACTUATORMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

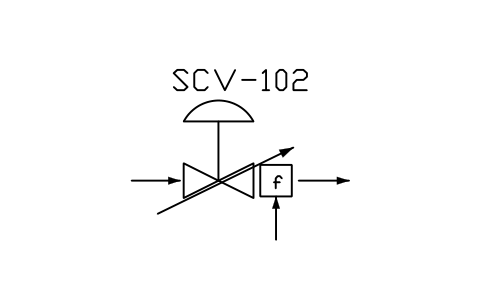

Steam conditioning, downstr. water
PPD_X6115_STEAM_CONDITIONING_DS屬性
TAGSERVICESIZEPRESSURE_RATINGDESIGN_TEMP_CCVFAIL_POSITIONMATERIALACTUATORMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

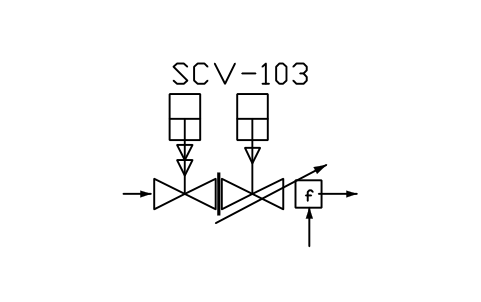

Steam conditioning + safety valve
PPD_X6116_STEAM_CONDITIONING_SAFETY屬性
TAGSERVICESIZEPRESSURE_RATINGDESIGN_TEMP_CCVFAIL_POSITIONMATERIALACTUATORMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

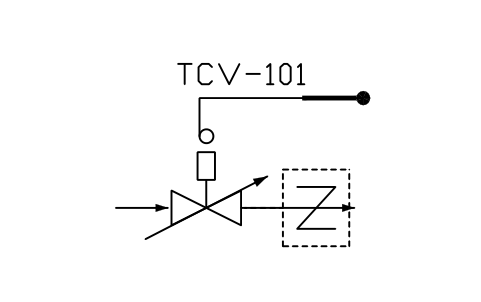

Temperature valve, self-acting
PPD_X6117_TEMP_CONTROL_SELF_ACTING屬性
TAGSERVICESIZEPRESSURE_RATINGDESIGN_TEMP_CCVFAIL_POSITIONMATERIALACTUATORMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

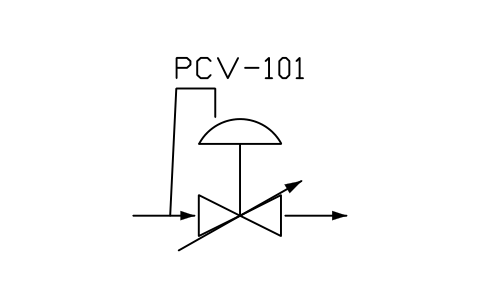

Back-pressure valve, self-acting
PPD_X2132_BACK_PRESSURE_VALVE屬性
TAGSERVICESIZEPRESSURE_RATINGDESIGN_TEMP_CCVFAIL_POSITIONMATERIALACTUATORMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

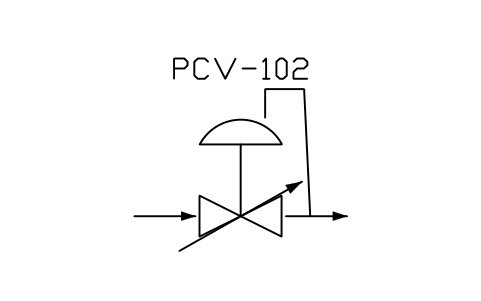

Pressure reducer, self-acting
PPD_X2133_PRESSURE_REDUCING_VALVE屬性
TAGSERVICESIZEPRESSURE_RATINGDESIGN_TEMP_CCVFAIL_POSITIONMATERIALACTUATORMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

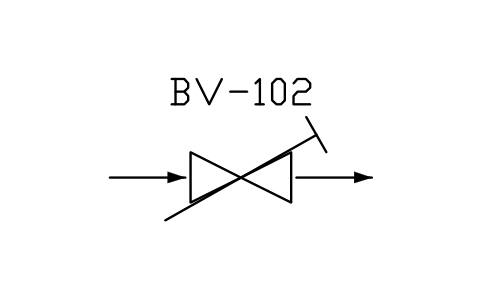

Pre-set valve, balancing valve
PPD_X6119_CONTROL_VALVE_PRESET屬性
TAGSERVICESIZEPRESSURE_RATINGDESIGN_TEMP_CCVFAIL_POSITIONMATERIALACTUATORMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

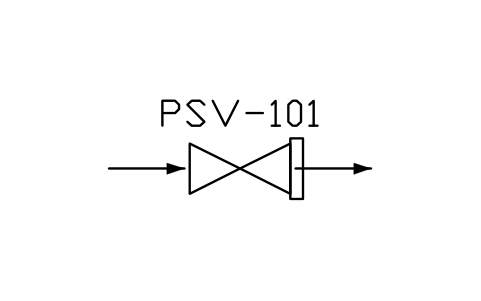

Safety valve
PPD_X6120_SAFETY_VALVE屬性
TAGSERVICESET_PRESSURE_BARSIZEORIFICE_AREA_MM2CAPACITY_KGHPRESSURE_RATINGMATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

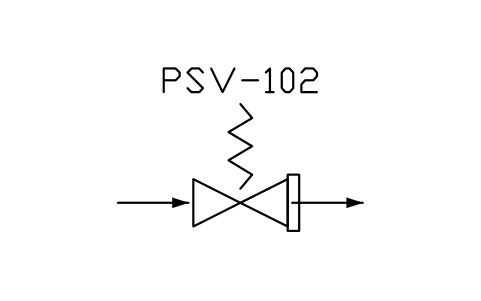

Safety valve, spring, straight
PPD_X6121_SAFETY_VALVE_SPRING屬性
TAGSERVICESET_PRESSURE_BARSIZEORIFICE_AREA_MM2CAPACITY_KGHPRESSURE_RATINGMATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

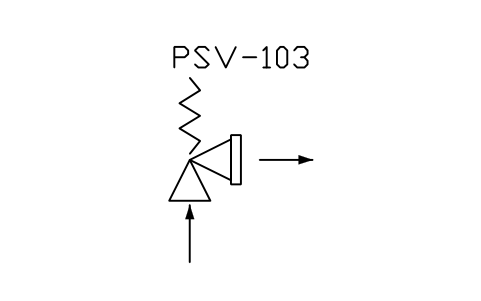

Safety valve, spring, angle
PPD_X6122_SAFETY_VALVE_ANGLE屬性
TAGSERVICESET_PRESSURE_BARSIZEORIFICE_AREA_MM2CAPACITY_KGHPRESSURE_RATINGMATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

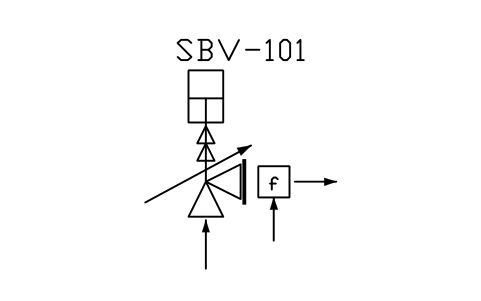

Steam bypass valve, fail open
PPD_X6123_STEAM_BYPASS_VALVE屬性
TAGSERVICESET_PRESSURE_BARSIZEORIFICE_AREA_MM2CAPACITY_KGHPRESSURE_RATINGMATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

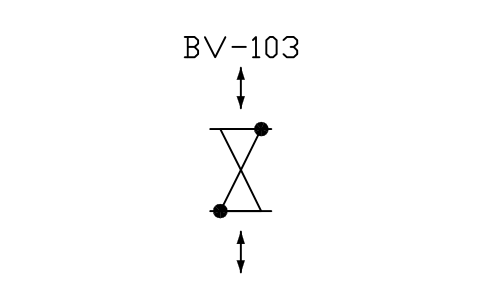

Breather valve, safety function
PPD_X6124_BREATHER_SAFETY_VALVE屬性
TAGSERVICESET_PRESSURE_BARSIZEORIFICE_AREA_MM2CAPACITY_KGHPRESSURE_RATINGMATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

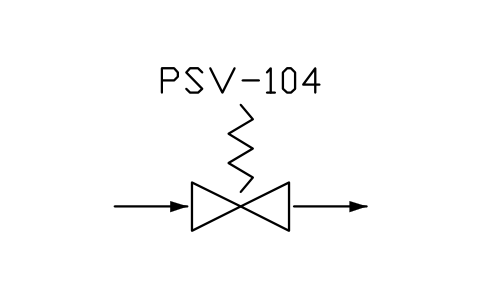

Relief valve, spring loaded
PPD_X6125_RELIEF_VALVE_SPRING屬性
TAGSERVICESET_PRESSURE_BARSIZEORIFICE_AREA_MM2CAPACITY_KGHPRESSURE_RATINGMATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

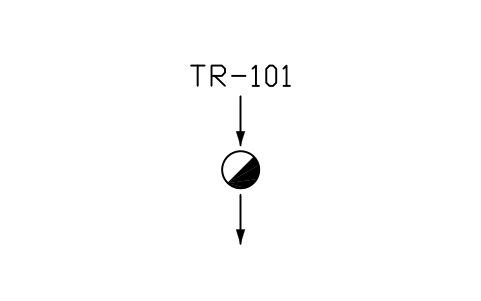

Steam trap
PPD_X6130_STEAM_TRAP屬性
TAGSERVICESIZEPRESSURE_RATINGDESIGN_TEMP_CMATERIALEND_CONNECTIONACTUATORMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

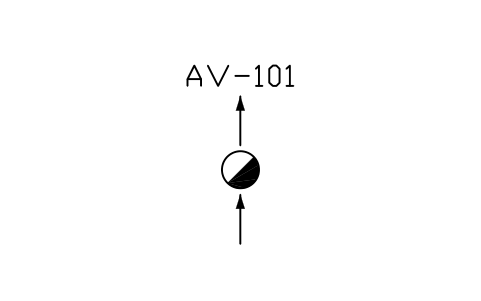

Air release valve
PPD_X6131_AIR_RELEASE_VALVE屬性
TAGSERVICESIZEPRESSURE_RATINGDESIGN_TEMP_CMATERIALEND_CONNECTIONACTUATORMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

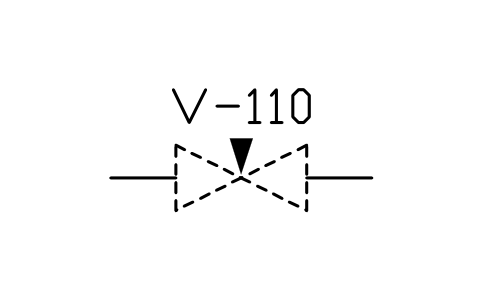

Valve, needle type
PPD_2125_VALVE_NEEDLE屬性
TAGSERVICESIZEPRESSURE_RATINGDESIGN_TEMP_CMATERIALEND_CONNECTIONACTUATORMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

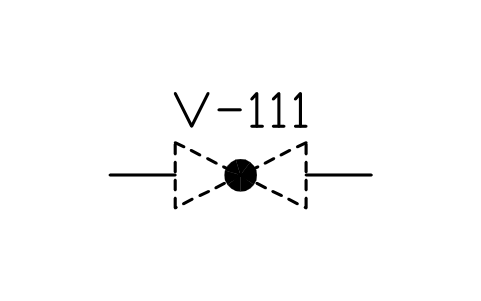

Valve, globe type
PPD_2121_VALVE_GLOBE屬性
TAGSERVICESIZEPRESSURE_RATINGDESIGN_TEMP_CMATERIALEND_CONNECTIONACTUATORMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

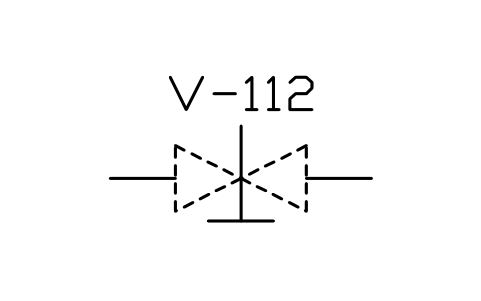

Valve, piston or plunger type
PPD_2127_VALVE_PISTON屬性
TAGSERVICESIZEPRESSURE_RATINGDESIGN_TEMP_CMATERIALEND_CONNECTIONACTUATORMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

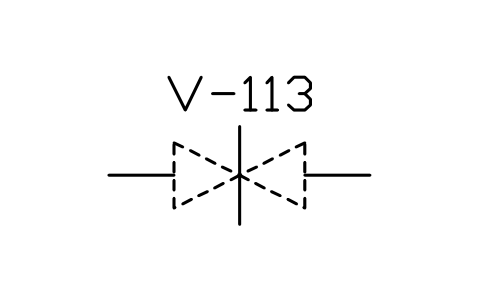

Valve, gate type
PPD_2124_VALVE_GATE屬性
TAGSERVICESIZEPRESSURE_RATINGDESIGN_TEMP_CMATERIALEND_CONNECTIONACTUATORMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

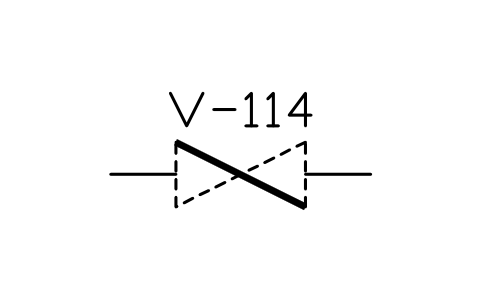

Valve, butterfly type, form 1
PPD_2126_VALVE_BUTTERFLY_F1屬性
TAGSERVICESIZEPRESSURE_RATINGDESIGN_TEMP_CMATERIALEND_CONNECTIONACTUATORMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

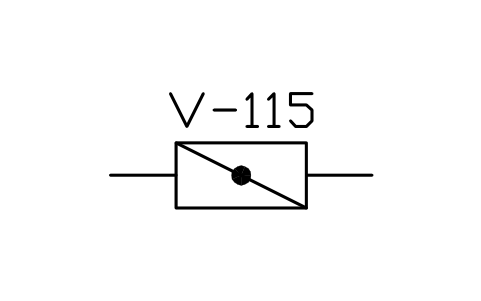

Valve, butterfly type, form 2
PPD_P089_VALVE_BUTTERFLY_F2屬性
TAGSERVICESIZEPRESSURE_RATINGDESIGN_TEMP_CMATERIALEND_CONNECTIONACTUATORMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

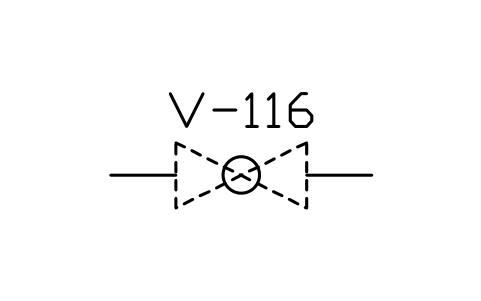

Valve, ball type
PPD_2122_VALVE_BALL屬性
TAGSERVICESIZEPRESSURE_RATINGDESIGN_TEMP_CMATERIALEND_CONNECTIONACTUATORMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

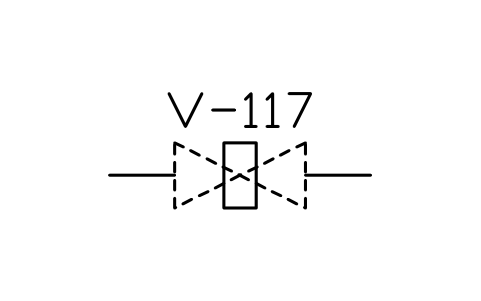

Valve, plug type
PPD_2123_VALVE_PLUG屬性
TAGSERVICESIZEPRESSURE_RATINGDESIGN_TEMP_CMATERIALEND_CONNECTIONACTUATORMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

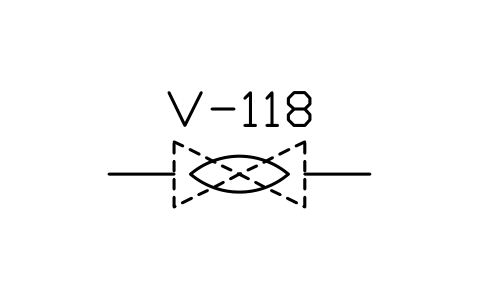

Valve, diaphragm type
PPD_2128_VALVE_DIAPHRAGM屬性
TAGSERVICESIZEPRESSURE_RATINGDESIGN_TEMP_CMATERIALEND_CONNECTIONACTUATORMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

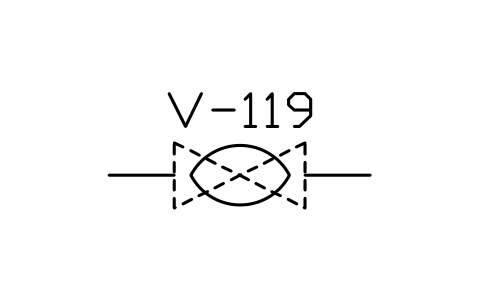

Valve, hose type
PPD_2129_VALVE_HOSE屬性
TAGSERVICESIZEPRESSURE_RATINGDESIGN_TEMP_CMATERIALEND_CONNECTIONACTUATORMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

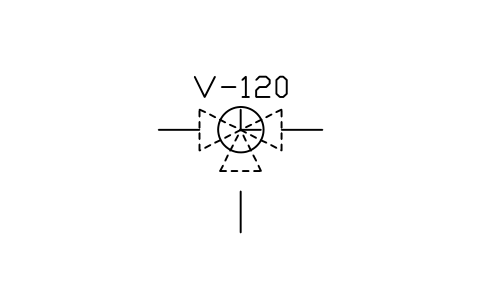

Valve, L-bore, 3-way or 4-way
PPD_2113_VALVE_L_BORE屬性
TAGSERVICESIZEPRESSURE_RATINGDESIGN_TEMP_CMATERIALEND_CONNECTIONACTUATORMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

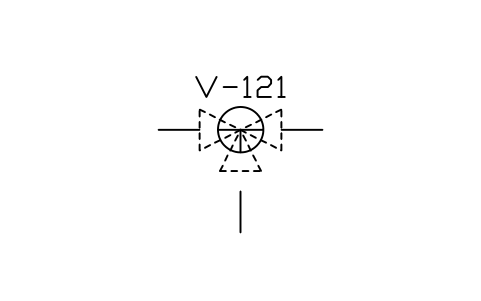

Valve, T-bore, 3-way or 4-way
PPD_2114_VALVE_T_BORE屬性
TAGSERVICESIZEPRESSURE_RATINGDESIGN_TEMP_CMATERIALEND_CONNECTIONACTUATORMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

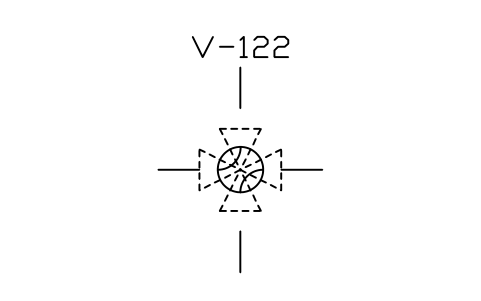

Valve, double L-bore, 4-way
PPD_2115_VALVE_DOUBLE_L_BORE屬性
TAGSERVICESIZEPRESSURE_RATINGDESIGN_TEMP_CMATERIALEND_CONNECTIONACTUATORMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

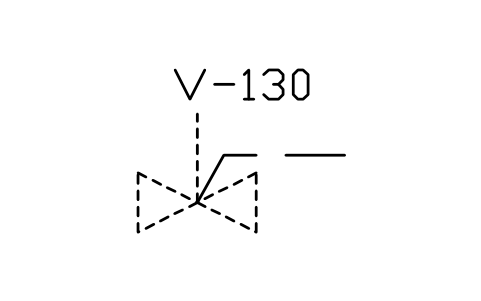

Valve, sealing fluid connection
PPD_P058_VALVE_SEAL_FLUID屬性
TAGSERVICESIZEPRESSURE_RATINGDESIGN_TEMP_CMATERIALEND_CONNECTIONACTUATORMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

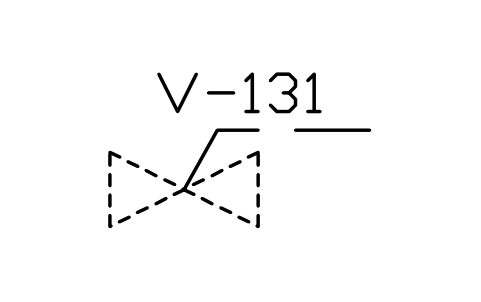

Valve, suction connection
PPD_P059_VALVE_SUCTION屬性
TAGSERVICESIZEPRESSURE_RATINGDESIGN_TEMP_CMATERIALEND_CONNECTIONACTUATORMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

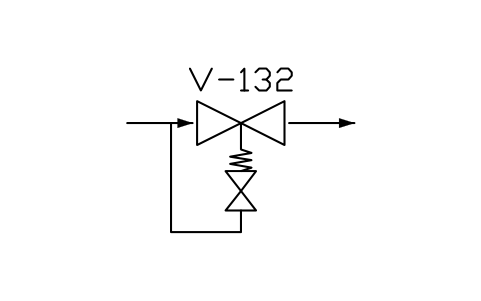

Cavity relief valve, upstream
PPD_X6140_VALVE_CAVITY_RELIEF_UP屬性
TAGSERVICESIZEPRESSURE_RATINGDESIGN_TEMP_CMATERIALEND_CONNECTIONACTUATORMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

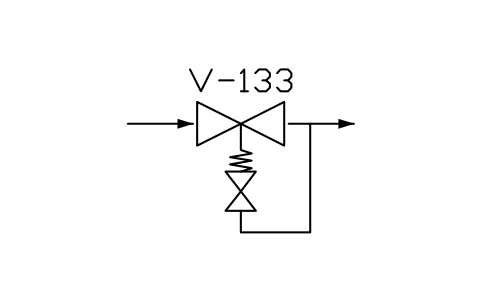

Cavity relief valve, downstream
PPD_X6141_VALVE_CAVITY_RELIEF_DOWN屬性
TAGSERVICESIZEPRESSURE_RATINGDESIGN_TEMP_CMATERIALEND_CONNECTIONACTUATORMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

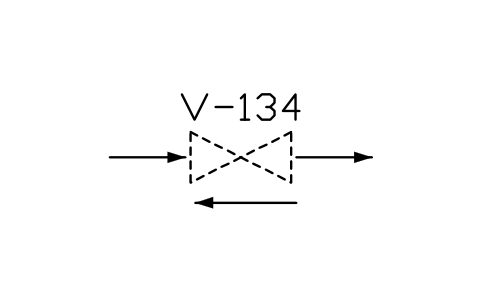

Valve, installed against flow
PPD_X6142_VALVE_OPPOSITE_FLOW屬性
TAGSERVICESIZEPRESSURE_RATINGDESIGN_TEMP_CMATERIALEND_CONNECTIONACTUATORMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

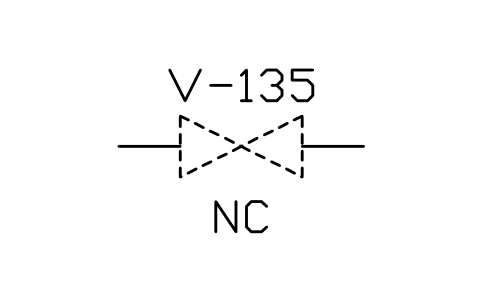

Valve, normally closed (NC)
PPD_X6143_VALVE_NORMALLY_CLOSED屬性
TAGSERVICESIZEPRESSURE_RATINGDESIGN_TEMP_CMATERIALEND_CONNECTIONACTUATORMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

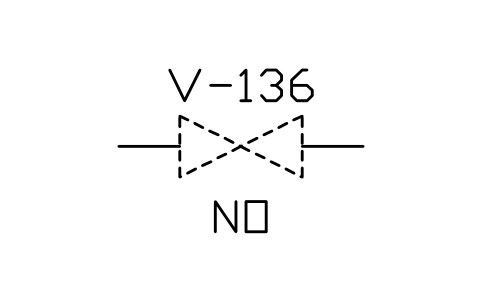

Valve, normally open (NO)
PPD_X6144_VALVE_NORMALLY_OPEN屬性
TAGSERVICESIZEPRESSURE_RATINGDESIGN_TEMP_CMATERIALEND_CONNECTIONACTUATORMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

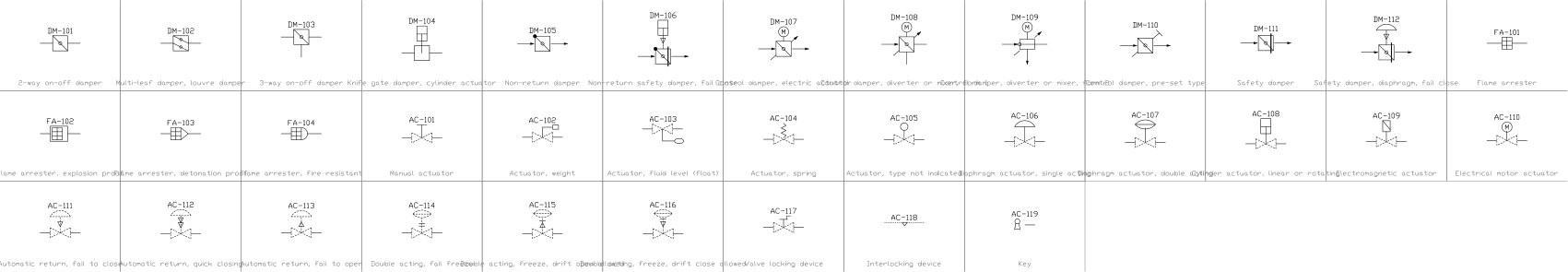

風門和致動器
35 個圖塊，用於風道和煙道：風門、阻火器、常見驅動方式的致動器，以及表示故障安全動作、鎖定和聯鎖的補充符號。
使用 AutoCAD 2017 或更早的版本？ 下載 2010 格式
共 35 個符號，顯示 35 個

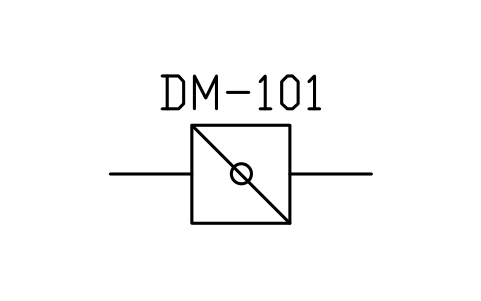

2-way on-off damper
PPD_X6150_DAMPER_2WAY屬性
TAGSERVICESIZE_MMDESIGN_PRESSURE_BARDESIGN_TEMP_CMATERIALLEAKAGE_CLASSACTUATORFAIL_POSITIONMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

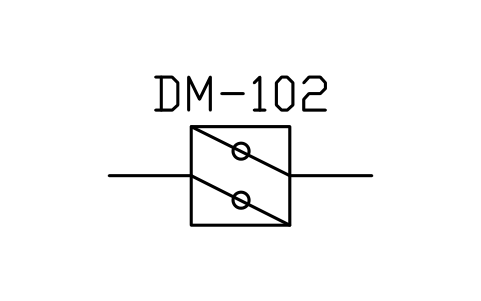

Multi-leaf damper, louvre damper
PPD_X2151_DAMPER_MULTILEAF屬性
TAGSERVICESIZE_MMDESIGN_PRESSURE_BARDESIGN_TEMP_CMATERIALLEAKAGE_CLASSACTUATORFAIL_POSITIONMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

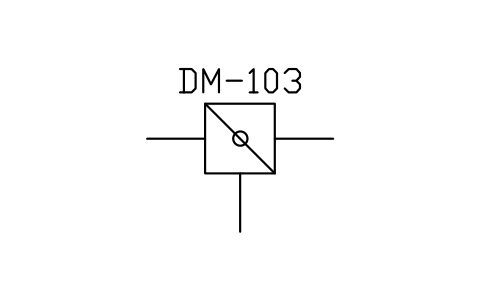

3-way on-off damper
PPD_X6151_DAMPER_3WAY屬性
TAGSERVICESIZE_MMDESIGN_PRESSURE_BARDESIGN_TEMP_CMATERIALLEAKAGE_CLASSACTUATORFAIL_POSITIONMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

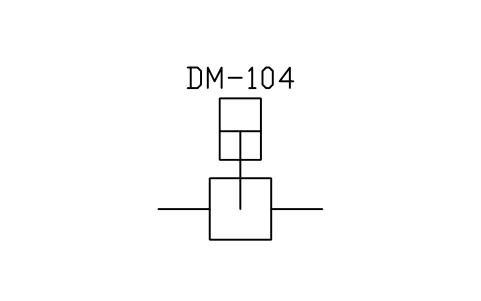

Knife gate damper, cylinder actuator
PPD_X6153_DAMPER_KNIFE_GATE屬性
TAGSERVICESIZE_MMDESIGN_PRESSURE_BARDESIGN_TEMP_CMATERIALLEAKAGE_CLASSACTUATORFAIL_POSITIONMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

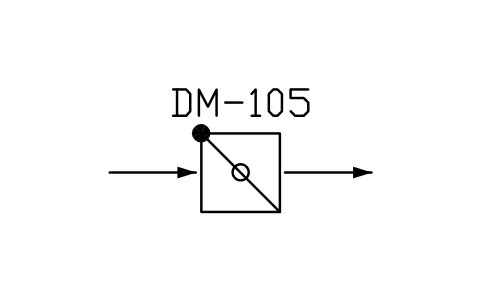

Non-return damper
PPD_X6160_DAMPER_NON_RETURN屬性
TAGSERVICESIZE_MMDESIGN_PRESSURE_BARDESIGN_TEMP_CMATERIALLEAKAGE_CLASSACTUATORFAIL_POSITIONMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

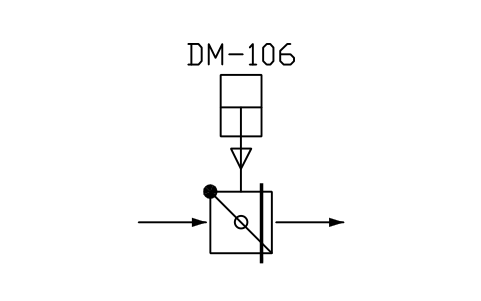

Non-return safety damper, fail close
PPD_X6161_DAMPER_NON_RETURN_SAFETY屬性
TAGSERVICESIZE_MMDESIGN_PRESSURE_BARDESIGN_TEMP_CMATERIALLEAKAGE_CLASSACTUATORFAIL_POSITIONMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

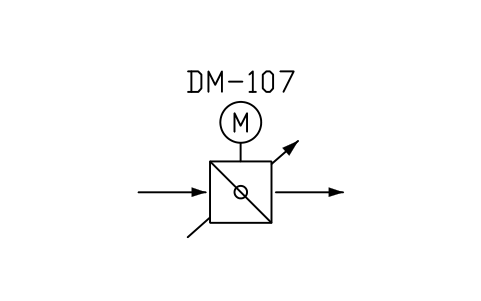

Control damper, electric actuator
PPD_X6165_DAMPER_CONTROL_MOTOR屬性
TAGSERVICESIZE_MMDESIGN_PRESSURE_BARDESIGN_TEMP_CMATERIALLEAKAGE_CLASSACTUATORFAIL_POSITIONMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

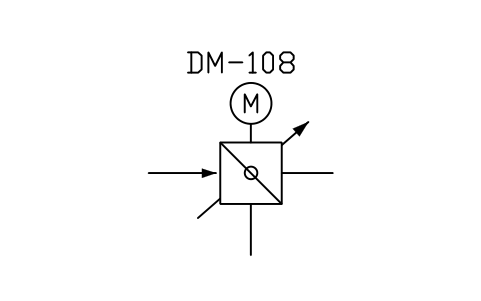

Control damper, diverter or mixer, form 1
PPD_X6166_DAMPER_DIVERTER_F1屬性
TAGSERVICESIZE_MMDESIGN_PRESSURE_BARDESIGN_TEMP_CMATERIALLEAKAGE_CLASSACTUATORFAIL_POSITIONMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

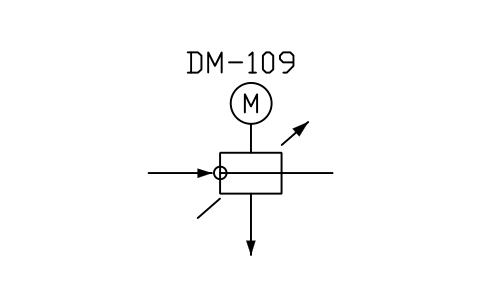

Control damper, diverter or mixer, form 2
PPD_X6167_DAMPER_DIVERTER_F2屬性
TAGSERVICESIZE_MMDESIGN_PRESSURE_BARDESIGN_TEMP_CMATERIALLEAKAGE_CLASSACTUATORFAIL_POSITIONMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

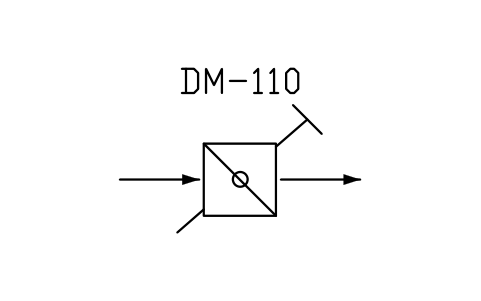

Control damper, pre-set type
PPD_X6168_DAMPER_PRESET屬性
TAGSERVICESIZE_MMDESIGN_PRESSURE_BARDESIGN_TEMP_CMATERIALLEAKAGE_CLASSACTUATORFAIL_POSITIONMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

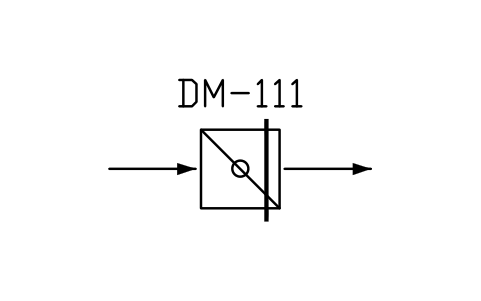

Safety damper
PPD_X6170_DAMPER_SAFETY屬性
TAGSERVICESIZE_MMDESIGN_PRESSURE_BARDESIGN_TEMP_CMATERIALLEAKAGE_CLASSACTUATORFAIL_POSITIONMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

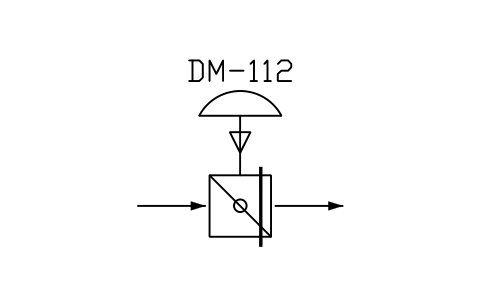

Safety damper, diaphragm, fail close
PPD_X6171_DAMPER_SAFETY_DIAPHRAGM屬性
TAGSERVICESIZE_MMDESIGN_PRESSURE_BARDESIGN_TEMP_CMATERIALLEAKAGE_CLASSACTUATORFAIL_POSITIONMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

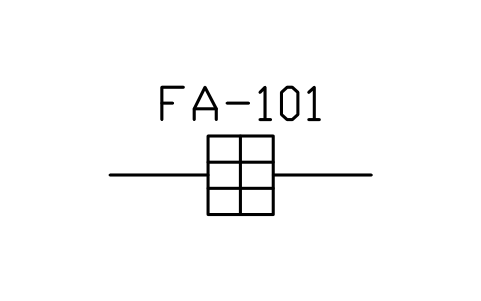

Flame arrester
PPD_2036_FLAME_ARRESTER屬性
TAGSERVICESIZEMEDIUMDESIGN_PRESSURE_BARDESIGN_TEMP_CMATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

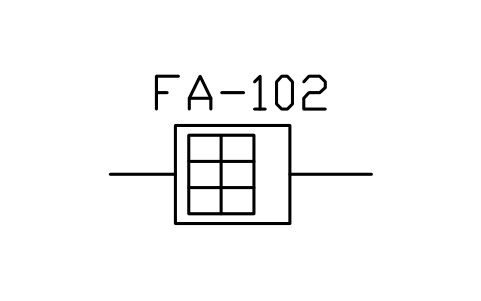

Flame arrester, explosion proof
PPD_P016_FLAME_ARRESTER_EXPLOSION屬性
TAGSERVICESIZEMEDIUMDESIGN_PRESSURE_BARDESIGN_TEMP_CMATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC
Flame arrester, detonation proof
PPD_P017_FLAME_ARRESTER_DETONATION屬性
TAGSERVICESIZEMEDIUMDESIGN_PRESSURE_BARDESIGN_TEMP_CMATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

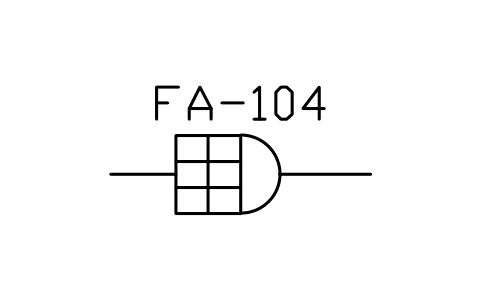

Flame arrester, fire resistant
PPD_P018_FLAME_ARRESTER_FIRE屬性
TAGSERVICESIZEMEDIUMDESIGN_PRESSURE_BARDESIGN_TEMP_CMATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

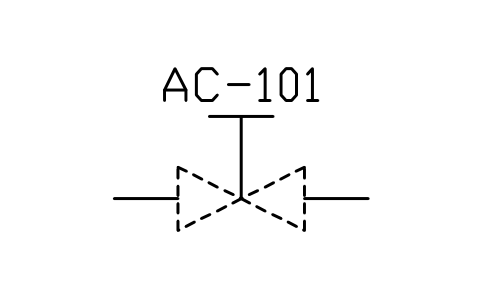

Manual actuator
PPD_681_ACTUATOR_MANUAL屬性
TAGSERVICEACTUATOR_TYPETHRUST_NSUPPLYFAIL_POSITIONMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

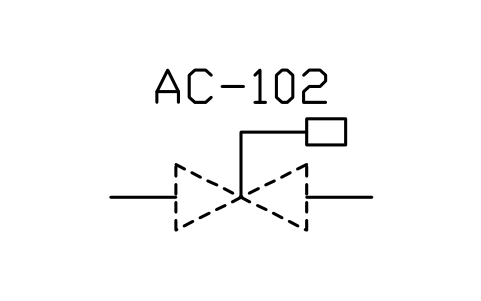

Actuator, weight
PPD_2001_ACTUATOR_WEIGHT屬性
TAGSERVICEACTUATOR_TYPETHRUST_NSUPPLYFAIL_POSITIONMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

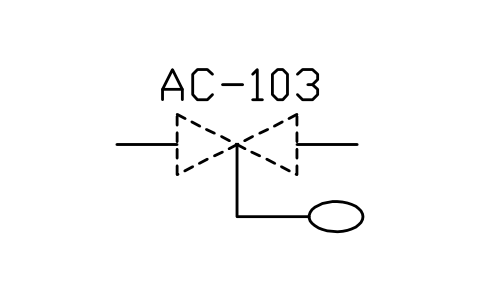

Actuator, fluid level (float)
PPD_715_ACTUATOR_FLOAT屬性
TAGSERVICEACTUATOR_TYPETHRUST_NSUPPLYFAIL_POSITIONMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

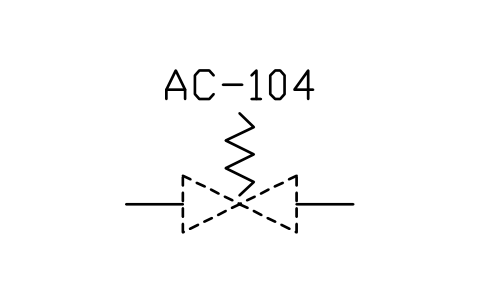

Actuator, spring
PPD_2002V1_ACTUATOR_SPRING屬性
TAGSERVICEACTUATOR_TYPETHRUST_NSUPPLYFAIL_POSITIONMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

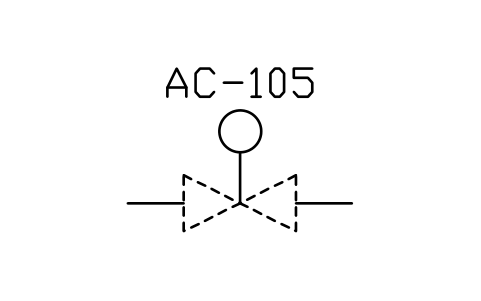

Actuator, type not indicated
PPD_P050_ACTUATOR_GENERAL屬性
TAGSERVICEACTUATOR_TYPETHRUST_NSUPPLYFAIL_POSITIONMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

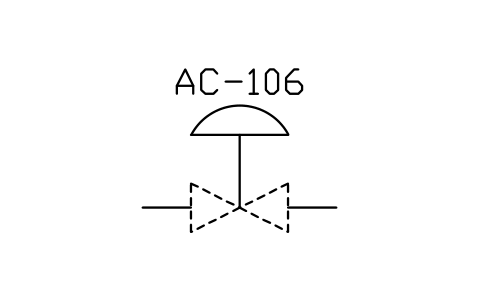

Diaphragm actuator, single acting
PPD_725_ACTUATOR_DIAPHRAGM_SINGLE屬性
TAGSERVICEACTUATOR_TYPETHRUST_NSUPPLYFAIL_POSITIONMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

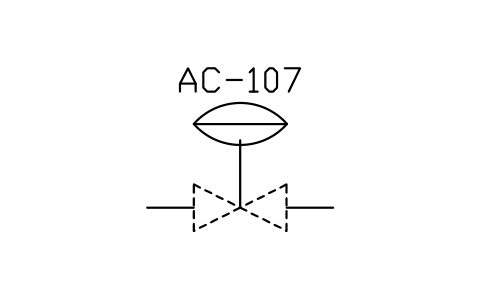

Diaphragm actuator, double acting
PPD_726_ACTUATOR_DIAPHRAGM_DOUBLE屬性
TAGSERVICEACTUATOR_TYPETHRUST_NSUPPLYFAIL_POSITIONMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

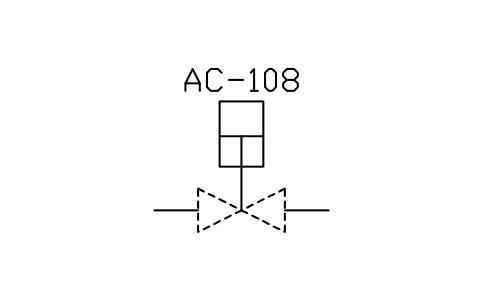

Cylinder actuator, linear or rotating
PPD_P051_ACTUATOR_CYLINDER屬性
TAGSERVICEACTUATOR_TYPETHRUST_NSUPPLYFAIL_POSITIONMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

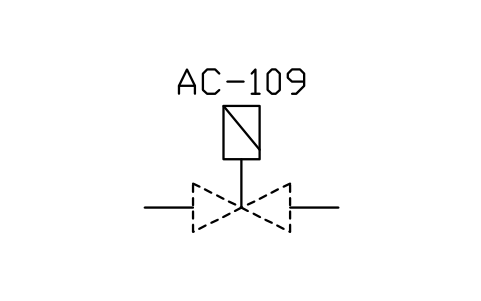

Electromagnetic actuator
PPD_P001_ACTUATOR_ELECTROMAGNETIC屬性
TAGSERVICEACTUATOR_TYPETHRUST_NSUPPLYFAIL_POSITIONMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

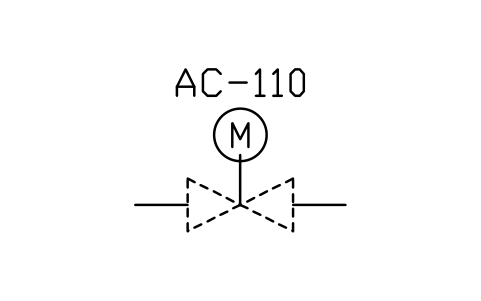

Electrical motor actuator
PPD_P002_ACTUATOR_MOTOR屬性
TAGSERVICEACTUATOR_TYPETHRUST_NSUPPLYFAIL_POSITIONMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

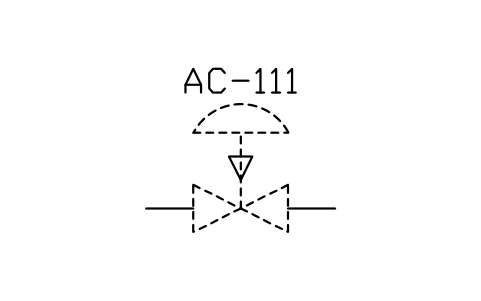

Automatic return, fail to close
PPD_X6201_AUTO_RETURN_CLOSE屬性
TAGSERVICEACTUATOR_TYPETHRUST_NSUPPLYFAIL_POSITIONMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

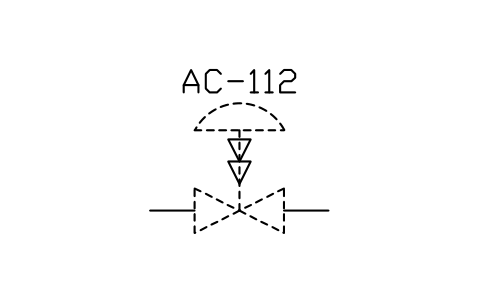

Automatic return, quick closing
PPD_X6202_AUTO_RETURN_QUICK_CLOSE屬性
TAGSERVICEACTUATOR_TYPETHRUST_NSUPPLYFAIL_POSITIONMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

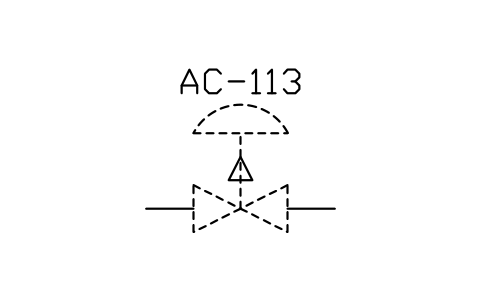

Automatic return, fail to open
PPD_X6203_AUTO_RETURN_OPEN屬性
TAGSERVICEACTUATOR_TYPETHRUST_NSUPPLYFAIL_POSITIONMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

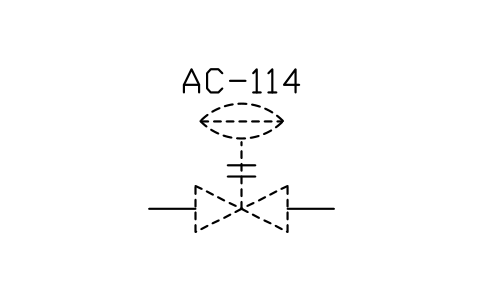

Double acting, fail freeze
PPD_X6204_DOUBLE_ACTING_FREEZE屬性
TAGSERVICEACTUATOR_TYPETHRUST_NSUPPLYFAIL_POSITIONMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

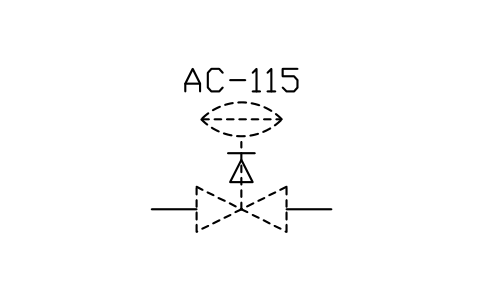

Double acting, freeze, drift open allowed
PPD_X6205_DOUBLE_ACTING_FREEZE_OPEN屬性
TAGSERVICEACTUATOR_TYPETHRUST_NSUPPLYFAIL_POSITIONMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

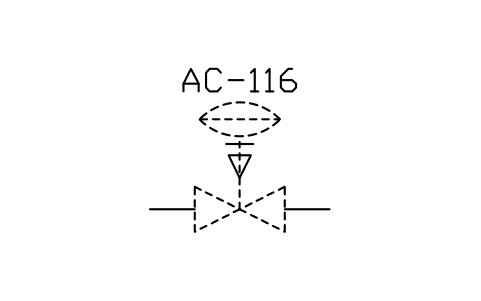

Double acting, freeze, drift close allowed
PPD_X6206_DOUBLE_ACTING_FREEZE_CLOSE屬性
TAGSERVICEACTUATOR_TYPETHRUST_NSUPPLYFAIL_POSITIONMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

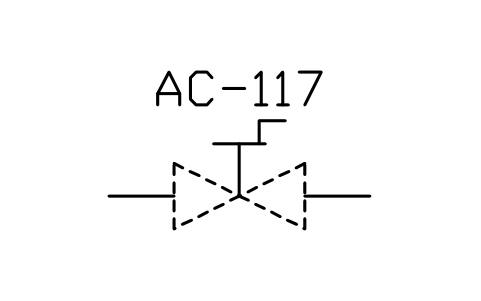

Valve locking device
PPD_P088_VALVE_LOCKING屬性
TAGSERVICEACTUATOR_TYPETHRUST_NSUPPLYFAIL_POSITIONMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

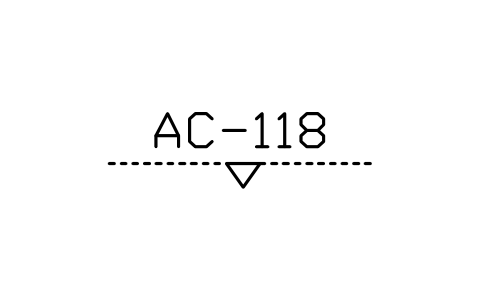

Interlocking device
PPD_666_INTERLOCKING屬性
TAGSERVICEACTUATOR_TYPETHRUST_NSUPPLYFAIL_POSITIONMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

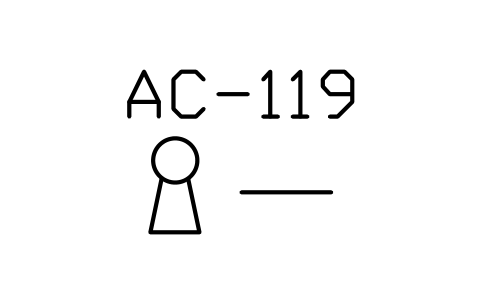

Key
PPD_687_KEY屬性
TAGSERVICEACTUATOR_TYPETHRUST_NSUPPLYFAIL_POSITIONMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

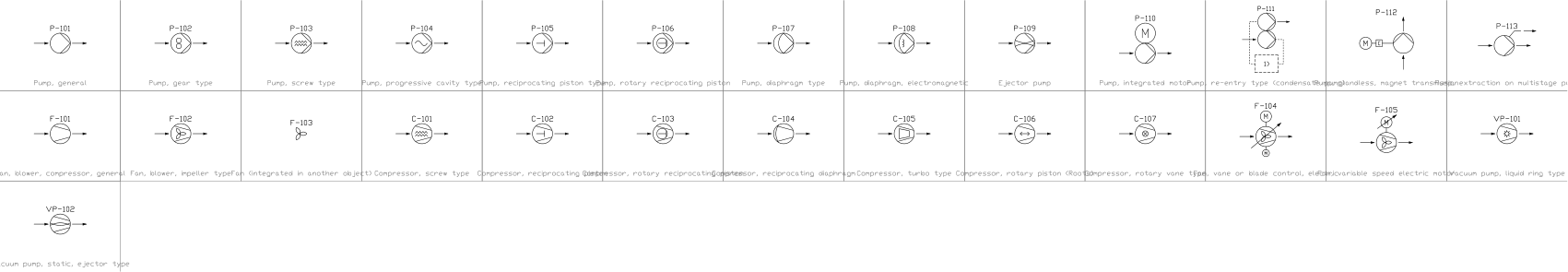

泵、風機和壓縮機
27 個圖塊，用於輸送液體和氣體的機械：常見類型的泵、風機、鼓風機、壓縮機和真空泵。
使用 AutoCAD 2017 或更早的版本？ 下載 2010 格式
共 27 個符號，顯示 27 個

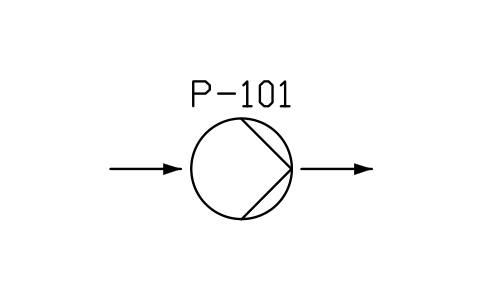

Pump, general
PPD_2301_PUMP屬性
TAGSERVICEMEDIUMFLOW_M3HHEAD_MPOWER_KWSPEED_RPMMATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

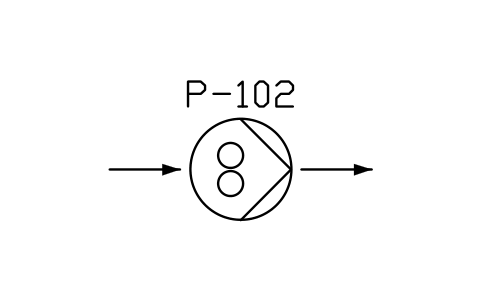

Pump, gear type
PPD_X6301_PUMP_GEAR屬性
TAGSERVICEMEDIUMFLOW_M3HHEAD_MPOWER_KWSPEED_RPMMATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

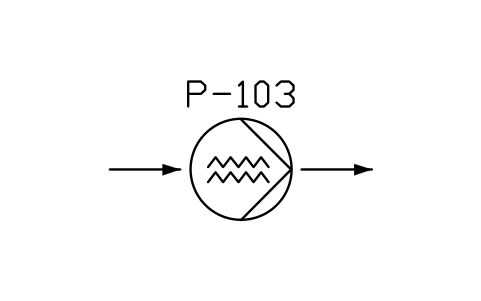

Pump, screw type
PPD_X6302_PUMP_SCREW屬性
TAGSERVICEMEDIUMFLOW_M3HHEAD_MPOWER_KWSPEED_RPMMATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

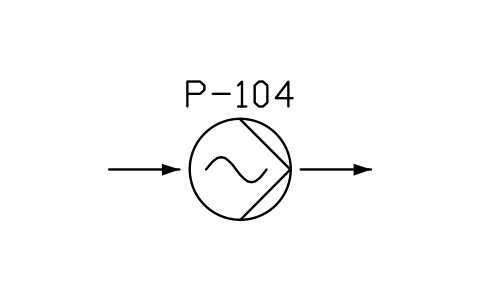

Pump, progressive cavity type
PPD_X6303_PUMP_PROG_CAVITY屬性
TAGSERVICEMEDIUMFLOW_M3HHEAD_MPOWER_KWSPEED_RPMMATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

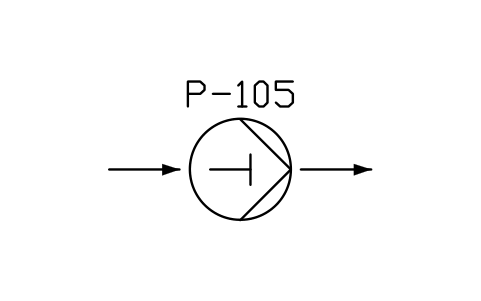

Pump, reciprocating piston type
PPD_X6304_PUMP_PISTON屬性
TAGSERVICEMEDIUMFLOW_M3HHEAD_MPOWER_KWSPEED_RPMMATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

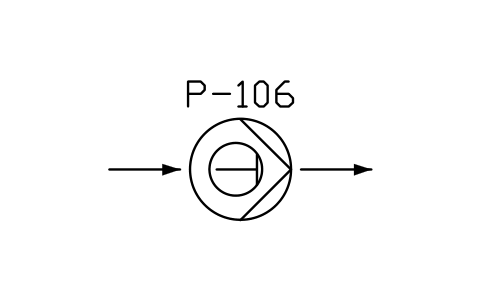

Pump, rotary reciprocating piston
PPD_X6305_PUMP_ROTARY_PISTON屬性
TAGSERVICEMEDIUMFLOW_M3HHEAD_MPOWER_KWSPEED_RPMMATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

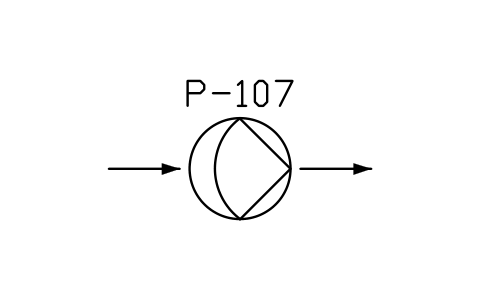

Pump, diaphragm type
PPD_X6306_PUMP_DIAPHRAGM屬性
TAGSERVICEMEDIUMFLOW_M3HHEAD_MPOWER_KWSPEED_RPMMATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

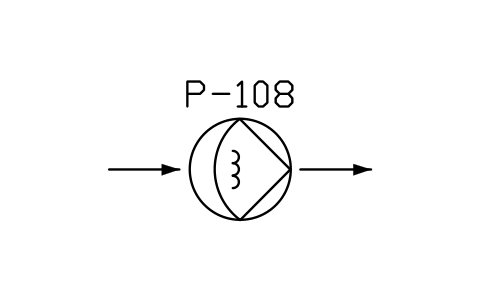

Pump, diaphragm, electromagnetic
PPD_X6309_PUMP_DIAPHRAGM_EM屬性
TAGSERVICEMEDIUMFLOW_M3HHEAD_MPOWER_KWSPEED_RPMMATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

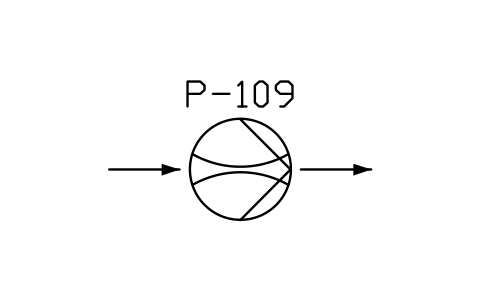

Ejector pump
PPD_X6312_PUMP_EJECTOR屬性
TAGSERVICEMEDIUMFLOW_M3HHEAD_MPOWER_KWSPEED_RPMMATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

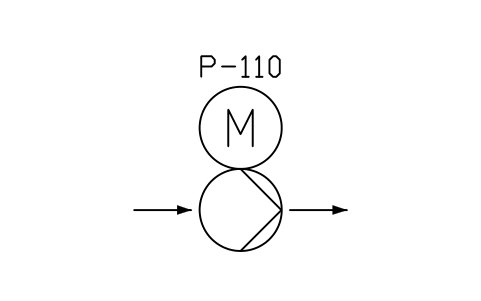

Pump, integrated motor
PPD_X2311_PUMP_INTEGRATED_MOTOR屬性
TAGSERVICEMEDIUMFLOW_M3HHEAD_MPOWER_KWSPEED_RPMMATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

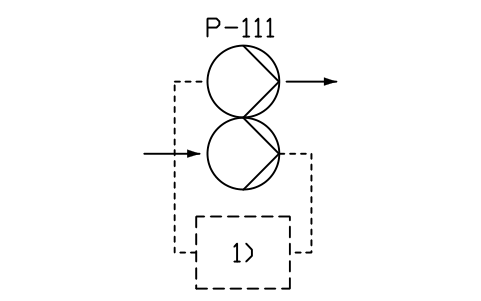

Pump, re-entry type (condensate pump)
PPD_X6310_PUMP_RE_ENTRY屬性
TAGSERVICEMEDIUMFLOW_M3HHEAD_MPOWER_KWSPEED_RPMMATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

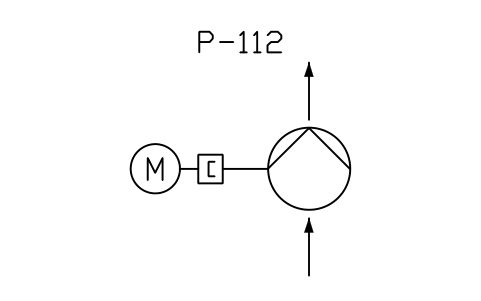

Pump, glandless, magnet transmission
PPD_X6307_PUMP_GLANDLESS_MAGNET屬性
TAGSERVICEMEDIUMFLOW_M3HHEAD_MPOWER_KWSPEED_RPMMATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

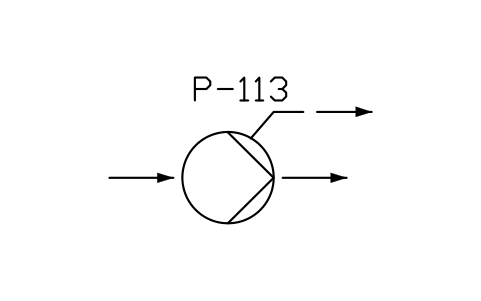

Pump, extraction on multistage pump
PPD_X6311_PUMP_EXTRACTION屬性
TAGSERVICEMEDIUMFLOW_M3HHEAD_MPOWER_KWSPEED_RPMMATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

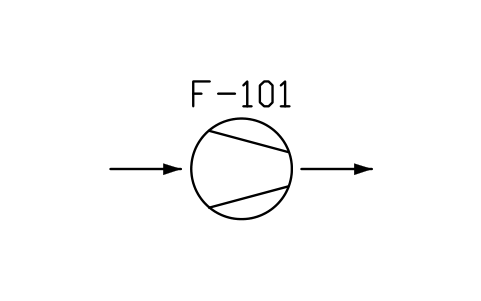

Fan, blower, compressor, general
PPD_2302_FAN_COMPRESSOR屬性
TAGSERVICEMEDIUMFLOW_M3HPRESSURE_RISE_KPAPOWER_KWSPEED_RPMMATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

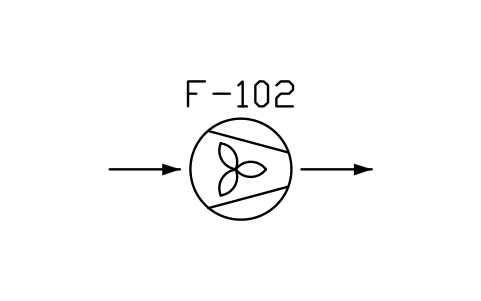

Fan, blower, impeller type
PPD_X8164_FAN_IMPELLER屬性
TAGSERVICEMEDIUMFLOW_M3HPRESSURE_RISE_KPAPOWER_KWSPEED_RPMMATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

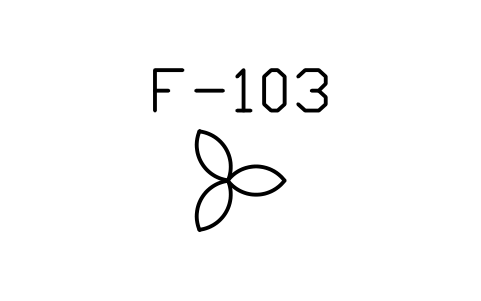

Fan (integrated in another object)
PPD_P070_FAN_INTEGRATED屬性
TAGSERVICEMEDIUMFLOW_M3HPRESSURE_RISE_KPAPOWER_KWSPEED_RPMMATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

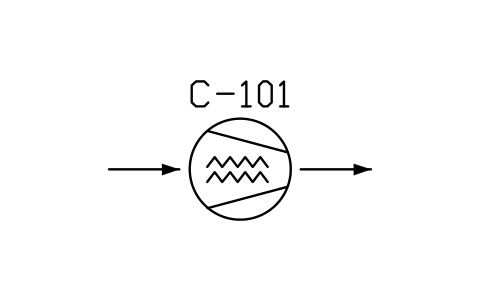

Compressor, screw type
PPD_X8161_COMPRESSOR_SCREW屬性
TAGSERVICEMEDIUMFLOW_M3HPRESSURE_RISE_KPAPOWER_KWSPEED_RPMMATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

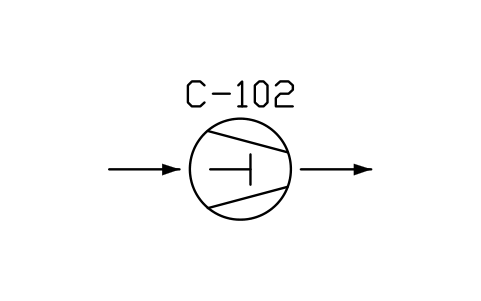

Compressor, reciprocating piston
PPD_X6327_COMPRESSOR_PISTON屬性
TAGSERVICEMEDIUMFLOW_M3HPRESSURE_RISE_KPAPOWER_KWSPEED_RPMMATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

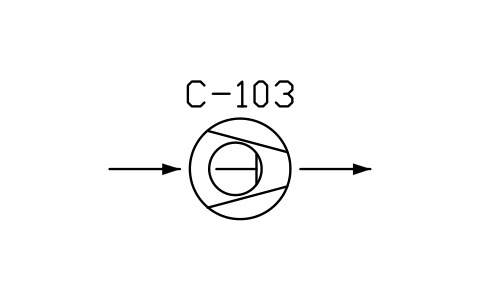

Compressor, rotary reciprocating piston
PPD_X6328_COMPRESSOR_ROTARY_PISTON屬性
TAGSERVICEMEDIUMFLOW_M3HPRESSURE_RISE_KPAPOWER_KWSPEED_RPMMATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

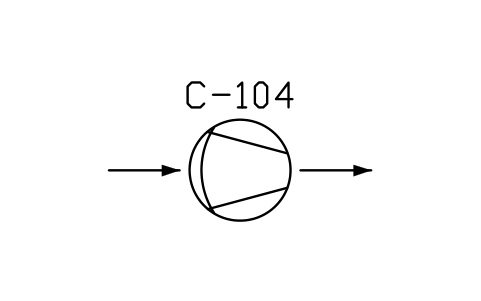

Compressor, reciprocating diaphragm
PPD_X6329_COMPRESSOR_DIAPHRAGM屬性
TAGSERVICEMEDIUMFLOW_M3HPRESSURE_RISE_KPAPOWER_KWSPEED_RPMMATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

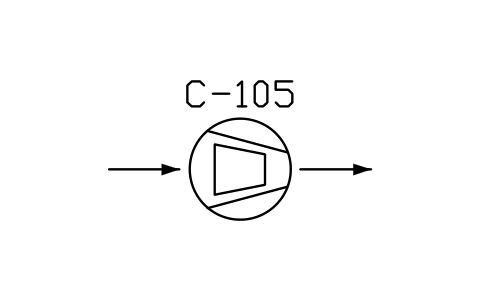

Compressor, turbo type
PPD_X6330_COMPRESSOR_TURBO屬性
TAGSERVICEMEDIUMFLOW_M3HPRESSURE_RISE_KPAPOWER_KWSPEED_RPMMATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

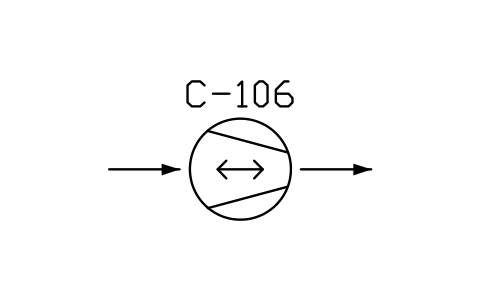

Compressor, rotary piston (Roots)
PPD_X6331_COMPRESSOR_ROOTS屬性
TAGSERVICEMEDIUMFLOW_M3HPRESSURE_RISE_KPAPOWER_KWSPEED_RPMMATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

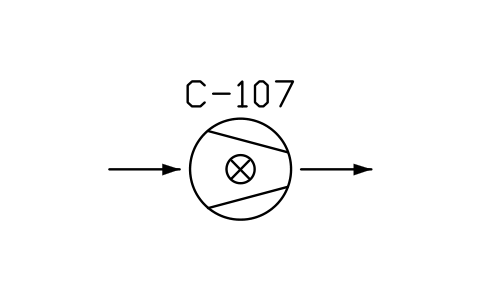

Compressor, rotary vane type
PPD_X6334_COMPRESSOR_ROTARY_VANE屬性
TAGSERVICEMEDIUMFLOW_M3HPRESSURE_RISE_KPAPOWER_KWSPEED_RPMMATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

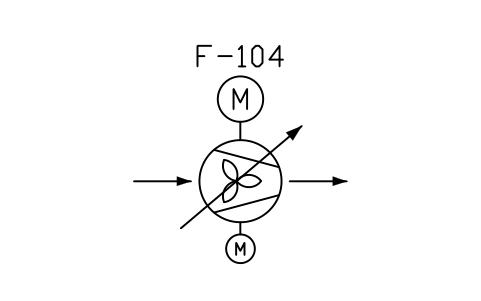

Fan, vane or blade control, electric
PPD_X6332_FAN_VANE_ACTUATOR屬性
TAGSERVICEMEDIUMFLOW_M3HPRESSURE_RISE_KPAPOWER_KWSPEED_RPMMATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

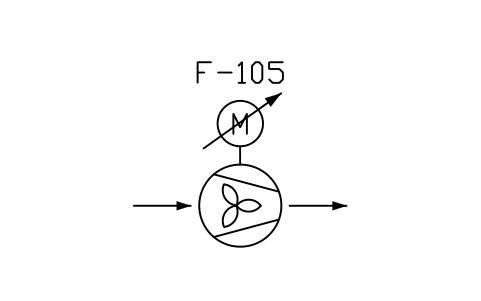

Fan, variable speed electric motor
PPD_X6333_FAN_VARIABLE_SPEED屬性
TAGSERVICEMEDIUMFLOW_M3HPRESSURE_RISE_KPAPOWER_KWSPEED_RPMMATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

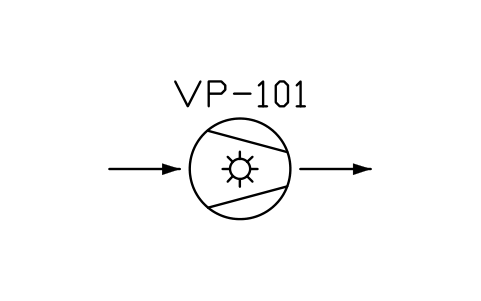

Vacuum pump, liquid ring type
PPD_X6350_VACUUM_PUMP_LIQUID_RING屬性
TAGSERVICEMEDIUMFLOW_M3HPRESSURE_RISE_KPAPOWER_KWSPEED_RPMMATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

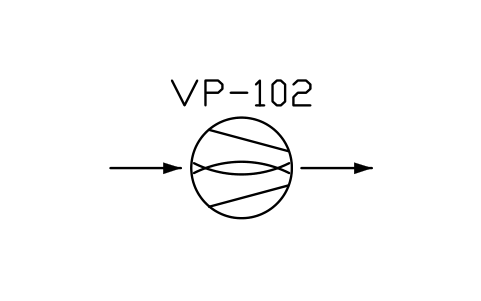

Vacuum pump, static, ejector type
PPD_X6351_VACUUM_PUMP_EJECTOR屬性
TAGSERVICEMEDIUMFLOW_M3HPRESSURE_RISE_KPAPOWER_KWSPEED_RPMMATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

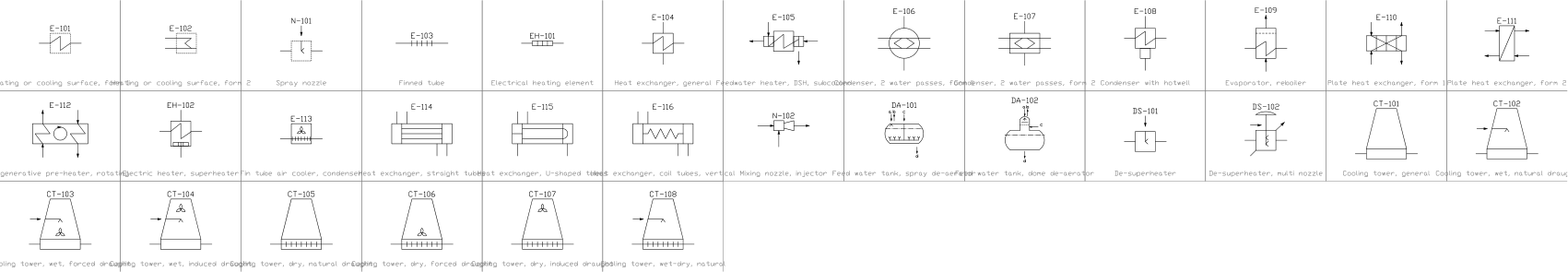

換熱和冷卻塔
32 個圖塊，用於熱量傳遞：各種常見形式的熱交換器，透過混合傳熱的噴嘴、噴射器、除氧給水箱和減溫器，以及冷卻塔。
使用 AutoCAD 2017 或更早的版本？ 下載 2010 格式
共 32 個符號，顯示 32 個

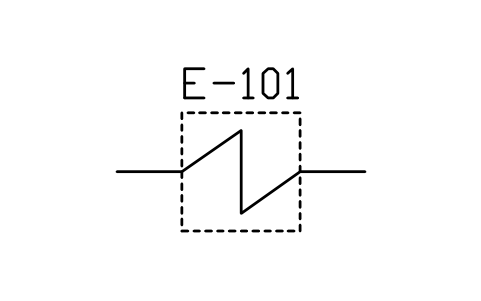

Heating or cooling surface, form 1
PPD_2501_HEATING_SURFACE_F1屬性
TAGSERVICESHELL_MEDIUMTUBE_MEDIUMDUTY_MWAREA_M2DESIGN_PRESSURE_BARDESIGN_TEMP_CMATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

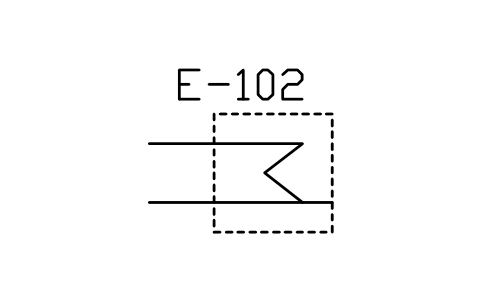

Heating or cooling surface, form 2
PPD_P014_HEATING_SURFACE_F2屬性
TAGSERVICESHELL_MEDIUMTUBE_MEDIUMDUTY_MWAREA_M2DESIGN_PRESSURE_BARDESIGN_TEMP_CMATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

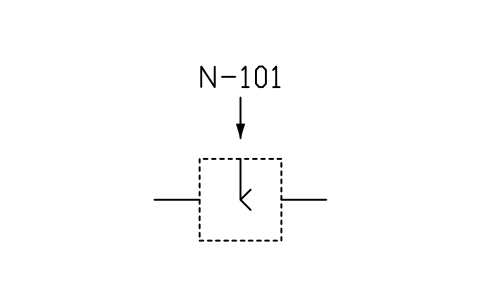

Spray nozzle
PPD_2037_SPRAY_NOZZLE屬性
TAGSERVICEMEDIUMDESIGN_PRESSURE_BARDESIGN_TEMP_CAREA_M2MATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

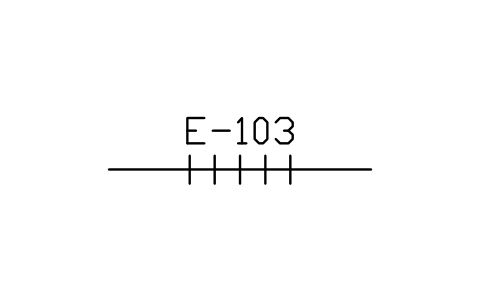

Finned tube
PPD_2502_FINNED_TUBE屬性
TAGSERVICESHELL_MEDIUMTUBE_MEDIUMDUTY_MWAREA_M2DESIGN_PRESSURE_BARDESIGN_TEMP_CMATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

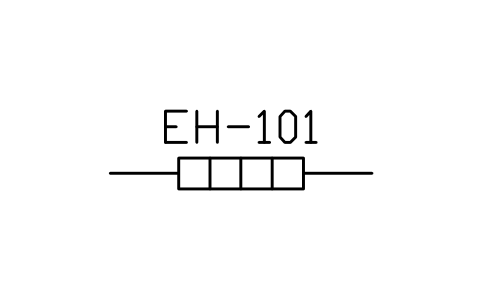

Electrical heating element
PPD_2542_ELECTRIC_HEATING_ELEMENT屬性
TAGSERVICESHELL_MEDIUMTUBE_MEDIUMDUTY_MWAREA_M2DESIGN_PRESSURE_BARDESIGN_TEMP_CMATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

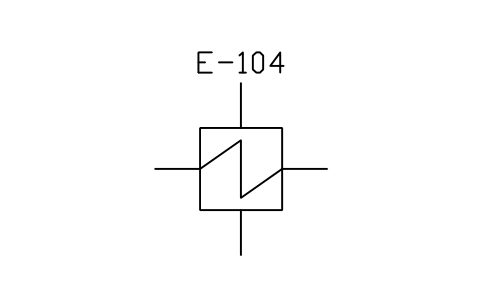

Heat exchanger, general
PPD_X2501_HEAT_EXCHANGER屬性
TAGSERVICESHELL_MEDIUMTUBE_MEDIUMDUTY_MWAREA_M2DESIGN_PRESSURE_BARDESIGN_TEMP_CMATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

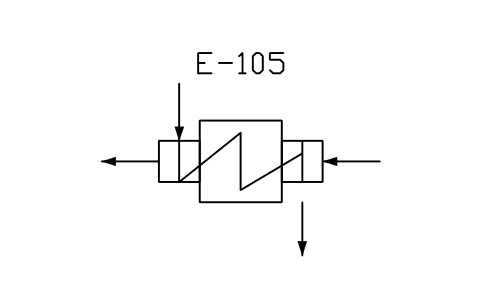

Feedwater heater, DSH, subcooler
PPD_X6401_FEEDWATER_HEATER屬性
TAGSERVICESHELL_MEDIUMTUBE_MEDIUMDUTY_MWAREA_M2DESIGN_PRESSURE_BARDESIGN_TEMP_CMATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

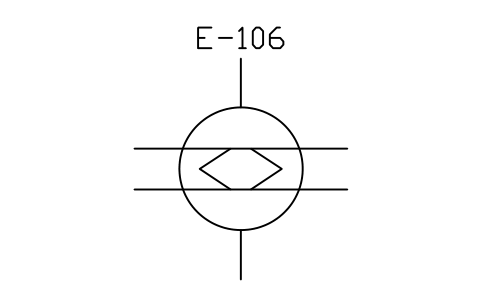

Condenser, 2 water passes, form 1
PPD_X6402_CONDENSER_2PASS_F1屬性
TAGSERVICESHELL_MEDIUMTUBE_MEDIUMDUTY_MWAREA_M2DESIGN_PRESSURE_BARDESIGN_TEMP_CMATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

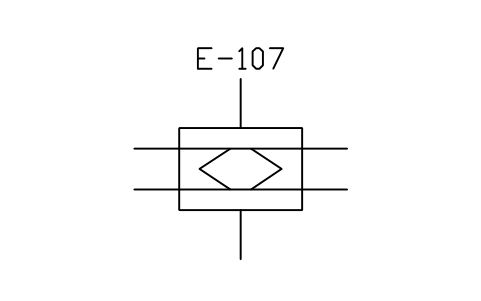

Condenser, 2 water passes, form 2
PPD_X6409_CONDENSER_2PASS_F2屬性
TAGSERVICESHELL_MEDIUMTUBE_MEDIUMDUTY_MWAREA_M2DESIGN_PRESSURE_BARDESIGN_TEMP_CMATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

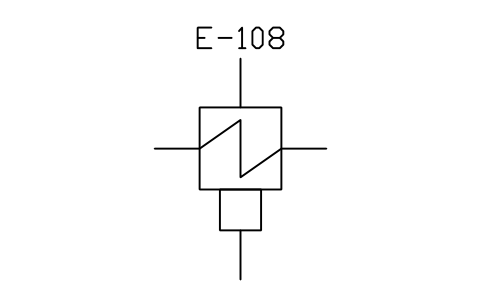

Condenser with hotwell
PPD_X6403_CONDENSER_HOTWELL屬性
TAGSERVICESHELL_MEDIUMTUBE_MEDIUMDUTY_MWAREA_M2DESIGN_PRESSURE_BARDESIGN_TEMP_CMATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

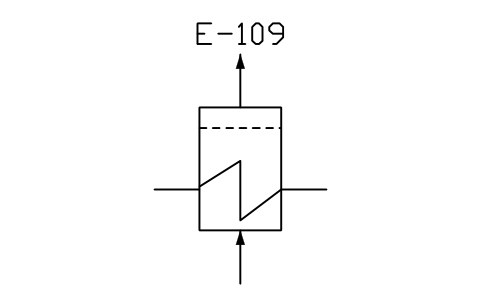

Evaporator, reboiler
PPD_X6404_EVAPORATOR屬性
TAGSERVICESHELL_MEDIUMTUBE_MEDIUMDUTY_MWAREA_M2DESIGN_PRESSURE_BARDESIGN_TEMP_CMATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

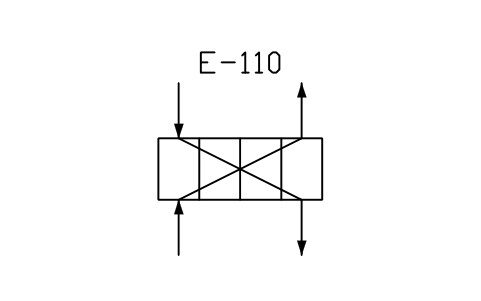

Plate heat exchanger, form 1
PPD_2516_PLATE_HX_F1屬性
TAGSERVICESHELL_MEDIUMTUBE_MEDIUMDUTY_MWAREA_M2DESIGN_PRESSURE_BARDESIGN_TEMP_CMATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

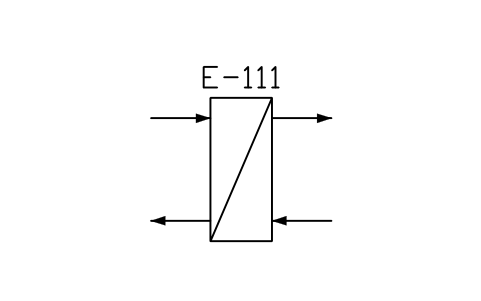

Plate heat exchanger, form 2
PPD_P081_PLATE_HX_F2屬性
TAGSERVICESHELL_MEDIUMTUBE_MEDIUMDUTY_MWAREA_M2DESIGN_PRESSURE_BARDESIGN_TEMP_CMATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

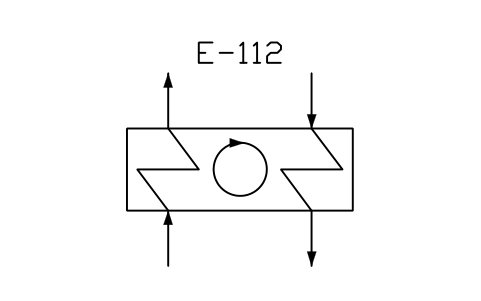

Regenerative pre-heater, rotating
PPD_P083_REGENERATIVE_HX屬性
TAGSERVICESHELL_MEDIUMTUBE_MEDIUMDUTY_MWAREA_M2DESIGN_PRESSURE_BARDESIGN_TEMP_CMATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

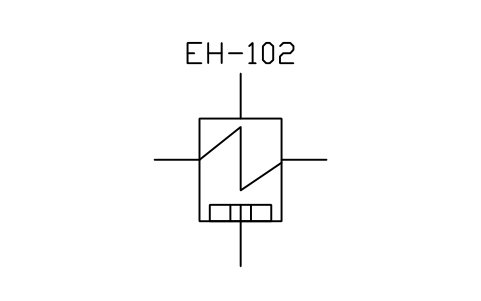

Electric heater, superheater
PPD_X6405_ELECTRIC_HEATER屬性
TAGSERVICESHELL_MEDIUMTUBE_MEDIUMDUTY_MWAREA_M2DESIGN_PRESSURE_BARDESIGN_TEMP_CMATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

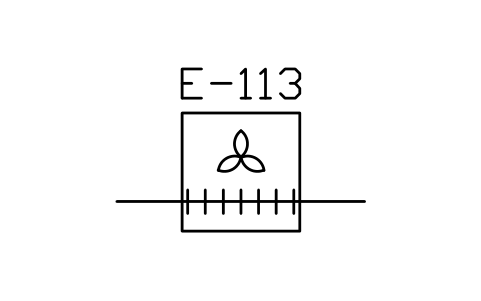

Fin tube air cooler, condenser
PPD_X6408_AIR_COOLER屬性
TAGSERVICESHELL_MEDIUMTUBE_MEDIUMDUTY_MWAREA_M2DESIGN_PRESSURE_BARDESIGN_TEMP_CMATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

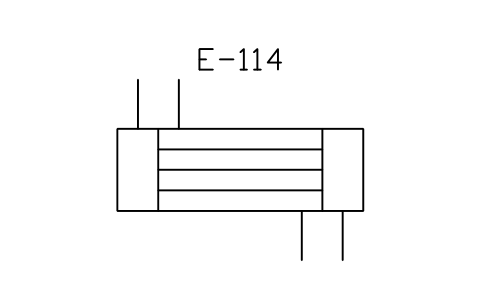

Heat exchanger, straight tubes
PPD_2511_HX_STRAIGHT_TUBES屬性
TAGSERVICESHELL_MEDIUMTUBE_MEDIUMDUTY_MWAREA_M2DESIGN_PRESSURE_BARDESIGN_TEMP_CMATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

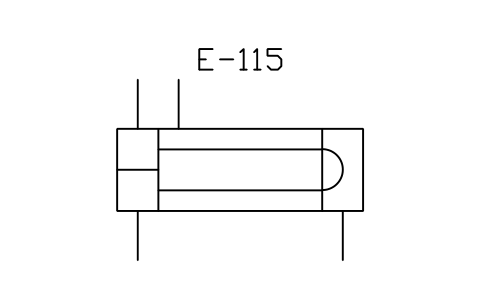

Heat exchanger, U-shaped tubes
PPD_2513_HX_U_TUBES屬性
TAGSERVICESHELL_MEDIUMTUBE_MEDIUMDUTY_MWAREA_M2DESIGN_PRESSURE_BARDESIGN_TEMP_CMATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

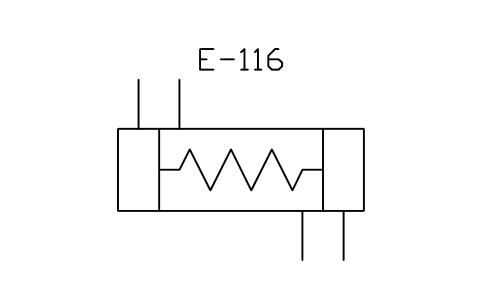

Heat exchanger, coil tubes, vertical
PPD_2514_HX_COIL_TUBES屬性
TAGSERVICESHELL_MEDIUMTUBE_MEDIUMDUTY_MWAREA_M2DESIGN_PRESSURE_BARDESIGN_TEMP_CMATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

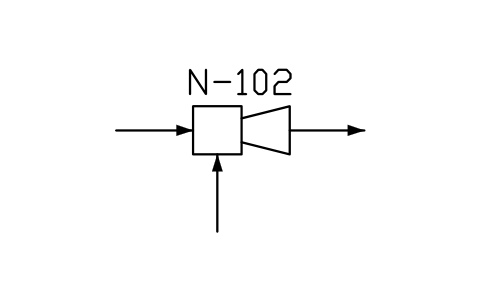

Mixing nozzle, injector
PPD_P013_MIXING_NOZZLE屬性
TAGSERVICEMEDIUMDESIGN_PRESSURE_BARDESIGN_TEMP_CAREA_M2MATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC
Feed water tank, spray de-aerator
PPD_X6410_DEAERATOR_SPRAY屬性
TAGSERVICECAPACITY_THVOLUME_M3DESIGN_PRESSURE_BARDESIGN_TEMP_CMATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC
Feed water tank, dome de-aerator
PPD_X6411_DEAERATOR_DOME屬性
TAGSERVICECAPACITY_THVOLUME_M3DESIGN_PRESSURE_BARDESIGN_TEMP_CMATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

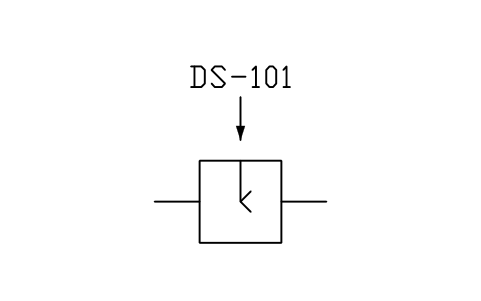

De-superheater
PPD_X2503_DESUPERHEATER屬性
TAGSERVICEMEDIUMDESIGN_PRESSURE_BARDESIGN_TEMP_CAREA_M2MATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

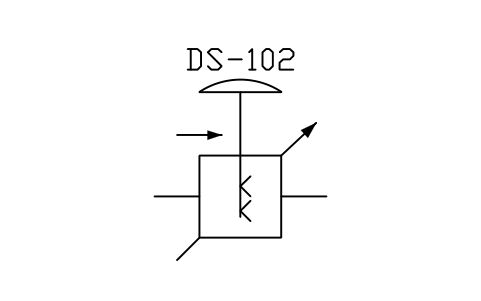

De-superheater, multi nozzle
PPD_X6412_DESUPERHEATER_MULTI屬性
TAGSERVICEMEDIUMDESIGN_PRESSURE_BARDESIGN_TEMP_CAREA_M2MATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

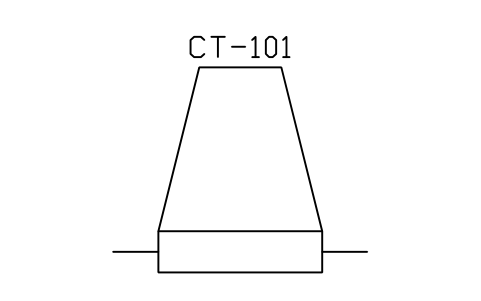

Cooling tower, general
PPD_2521_COOLING_TOWER屬性
TAGSERVICEWATER_FLOW_M3HINLET_TEMP_COUTLET_TEMP_CWET_BULB_CFAN_POWER_KWMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

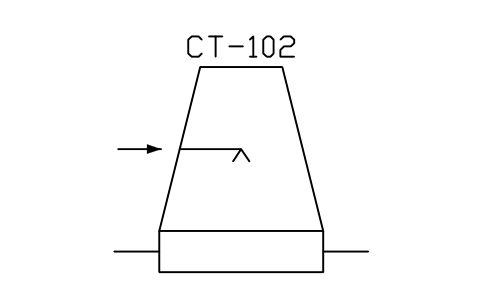

Cooling tower, wet, natural draught
PPD_X2521_COOLING_TOWER_WET_NAT屬性
TAGSERVICEWATER_FLOW_M3HINLET_TEMP_COUTLET_TEMP_CWET_BULB_CFAN_POWER_KWMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

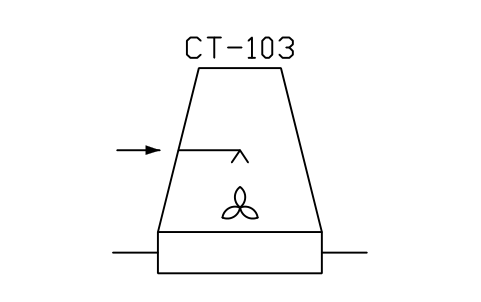

Cooling tower, wet, forced draught
PPD_X6421_COOLING_TOWER_WET_FORCED屬性
TAGSERVICEWATER_FLOW_M3HINLET_TEMP_COUTLET_TEMP_CWET_BULB_CFAN_POWER_KWMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

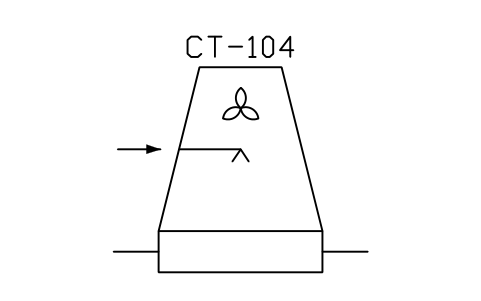

Cooling tower, wet, induced draught
PPD_X6422_COOLING_TOWER_WET_INDUCED屬性
TAGSERVICEWATER_FLOW_M3HINLET_TEMP_COUTLET_TEMP_CWET_BULB_CFAN_POWER_KWMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

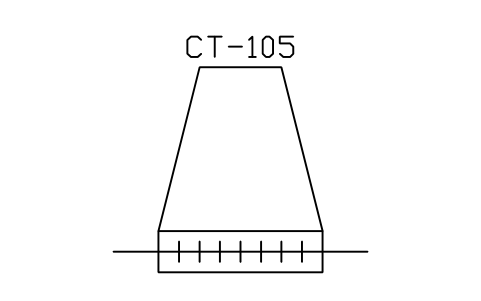

Cooling tower, dry, natural draught
PPD_X6423_COOLING_TOWER_DRY_NAT屬性
TAGSERVICEWATER_FLOW_M3HINLET_TEMP_COUTLET_TEMP_CWET_BULB_CFAN_POWER_KWMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

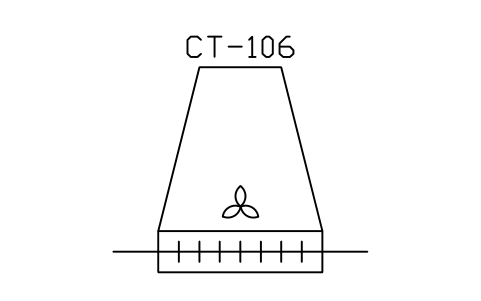

Cooling tower, dry, forced draught
PPD_X6424_COOLING_TOWER_DRY_FORCED屬性
TAGSERVICEWATER_FLOW_M3HINLET_TEMP_COUTLET_TEMP_CWET_BULB_CFAN_POWER_KWMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

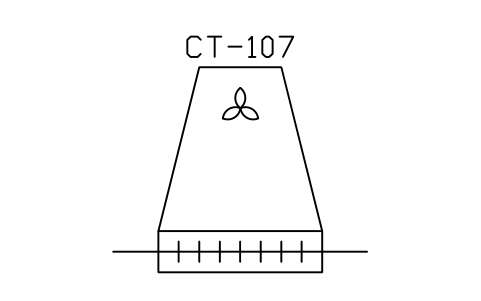

Cooling tower, dry, induced draught
PPD_X6425_COOLING_TOWER_DRY_INDUCED屬性
TAGSERVICEWATER_FLOW_M3HINLET_TEMP_COUTLET_TEMP_CWET_BULB_CFAN_POWER_KWMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

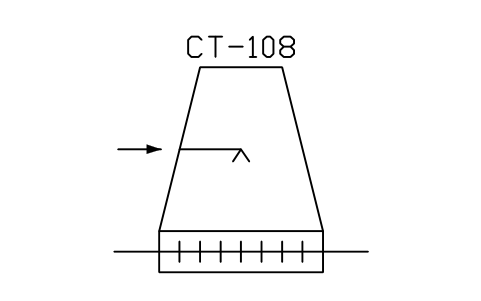

Cooling tower, wet-dry, natural
PPD_X6426_COOLING_TOWER_WET_DRY屬性
TAGSERVICEWATER_FLOW_M3HINLET_TEMP_COUTLET_TEMP_CWET_BULB_CFAN_POWER_KWMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

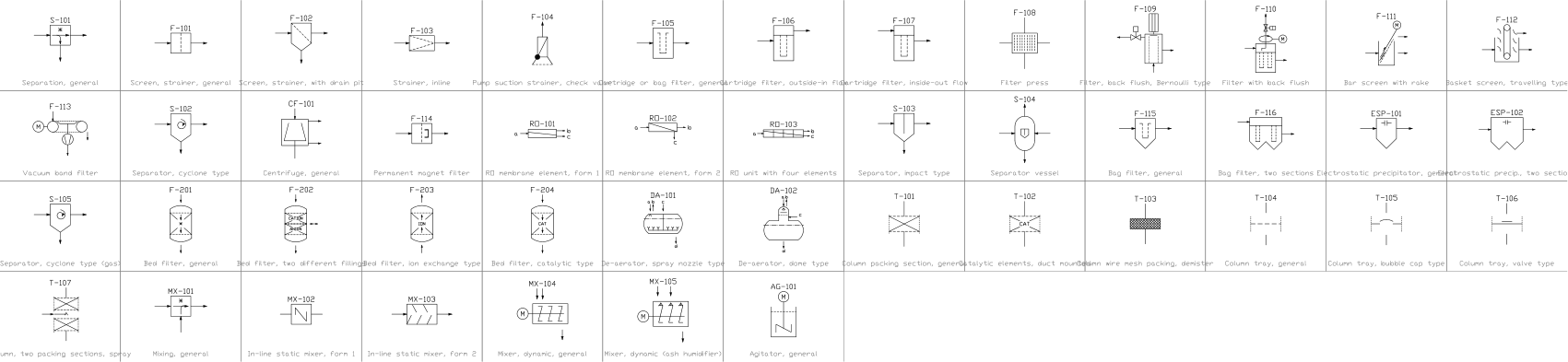

流體處理
46 個圖塊，用於液體和氣體的處理：過濾器和濾網、膜分離、氣體中固體的分離、床層過濾器、除氧器、帶填料和塔盤的塔，以及混合器和攪拌器。
使用 AutoCAD 2017 或更早的版本？ 下載 2010 格式
共 46 個符號，顯示 46 個

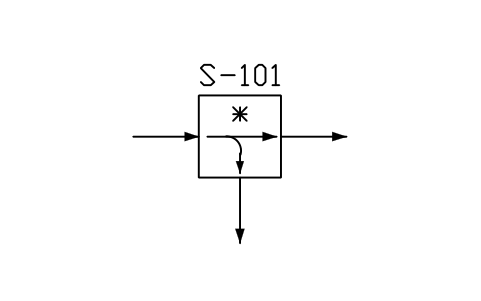

Separation, general
PPD_2601_M_SEPARATION屬性
TAGSERVICEMEDIUMFLOW_M3HDESIGN_PRESSURE_BARDESIGN_TEMP_CFILTER_RATING_UMMATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

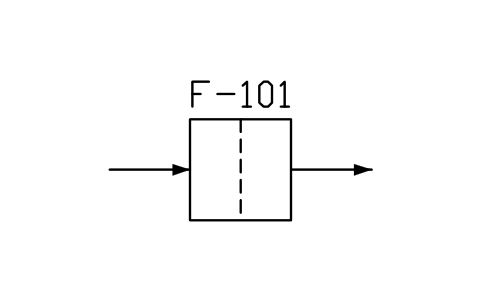

Screen, strainer, general
PPD_X2601_SCREEN_STRAINER屬性
TAGSERVICEMEDIUMFLOW_M3HDESIGN_PRESSURE_BARDESIGN_TEMP_CFILTER_RATING_UMMATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

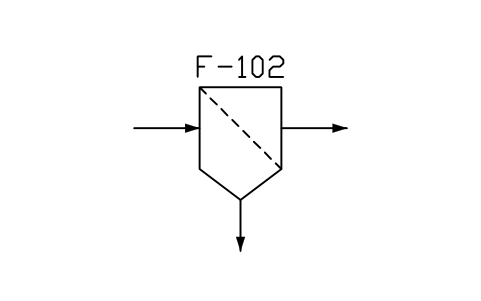

Screen, strainer, with drain pit
PPD_X6501_STRAINER_PIT屬性
TAGSERVICEMEDIUMFLOW_M3HDESIGN_PRESSURE_BARDESIGN_TEMP_CFILTER_RATING_UMMATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

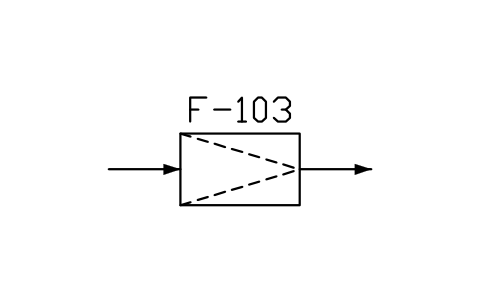

Strainer, inline
PPD_X6502_STRAINER_INLINE屬性
TAGSERVICEMEDIUMFLOW_M3HDESIGN_PRESSURE_BARDESIGN_TEMP_CFILTER_RATING_UMMATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

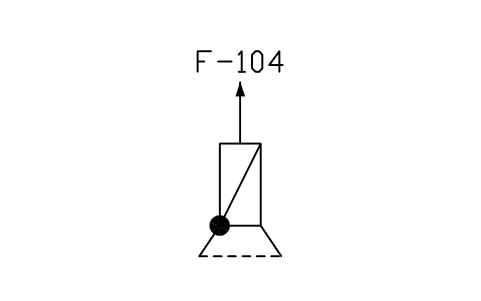

Pump suction strainer, check valve
PPD_X6506_SUCTION_STRAINER_NRV屬性
TAGSERVICEMEDIUMFLOW_M3HDESIGN_PRESSURE_BARDESIGN_TEMP_CFILTER_RATING_UMMATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

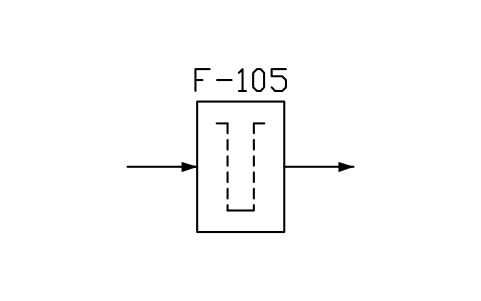

Cartridge or bag filter, general
PPD_X6503_CARTRIDGE_FILTER屬性
TAGSERVICEMEDIUMFLOW_M3HDESIGN_PRESSURE_BARDESIGN_TEMP_CFILTER_RATING_UMMATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

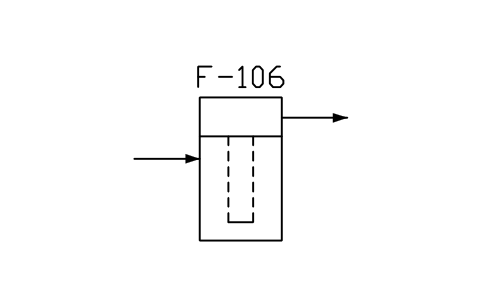

Cartridge filter, outside-in flow
PPD_X6504_CARTRIDGE_OUTSIDE_IN屬性
TAGSERVICEMEDIUMFLOW_M3HDESIGN_PRESSURE_BARDESIGN_TEMP_CFILTER_RATING_UMMATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

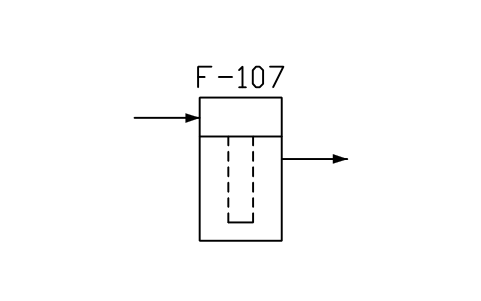

Cartridge filter, inside-out flow
PPD_X6505_CARTRIDGE_INSIDE_OUT屬性
TAGSERVICEMEDIUMFLOW_M3HDESIGN_PRESSURE_BARDESIGN_TEMP_CFILTER_RATING_UMMATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

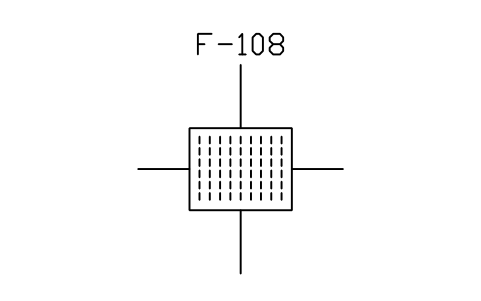

Filter press
PPD_X2611_FILTER_PRESS屬性
TAGSERVICEMEDIUMFLOW_M3HDESIGN_PRESSURE_BARDESIGN_TEMP_CFILTER_RATING_UMMATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

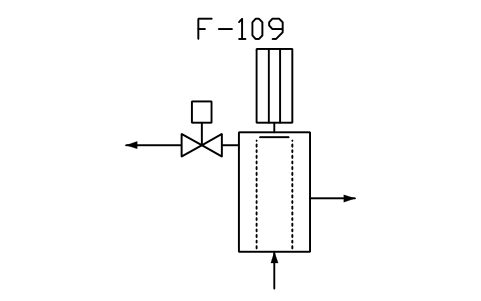

Filter, back flush, Bernoulli type
PPD_X6509_FILTER_BACKFLUSH_BERNOULLI屬性
TAGSERVICEMEDIUMFLOW_M3HDESIGN_PRESSURE_BARDESIGN_TEMP_CFILTER_RATING_UMMATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

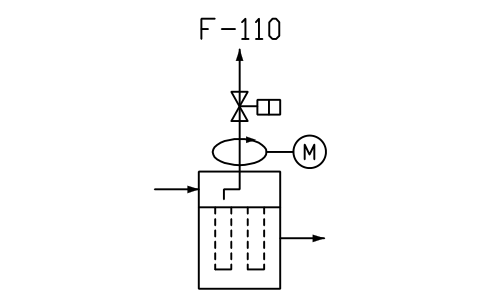

Filter with back flush
PPD_X6510_FILTER_BACKFLUSH屬性
TAGSERVICEMEDIUMFLOW_M3HDESIGN_PRESSURE_BARDESIGN_TEMP_CFILTER_RATING_UMMATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

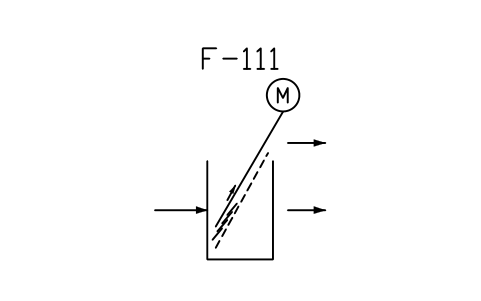

Bar screen with rake
PPD_X6511_BAR_SCREEN_RAKE屬性
TAGSERVICEMEDIUMFLOW_M3HDESIGN_PRESSURE_BARDESIGN_TEMP_CFILTER_RATING_UMMATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

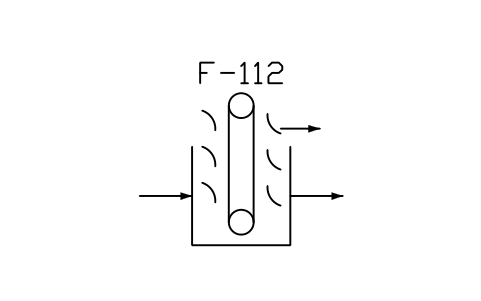

Basket screen, travelling type
PPD_X6512_BASKET_SCREEN_TRAVELLING屬性
TAGSERVICEMEDIUMFLOW_M3HDESIGN_PRESSURE_BARDESIGN_TEMP_CFILTER_RATING_UMMATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

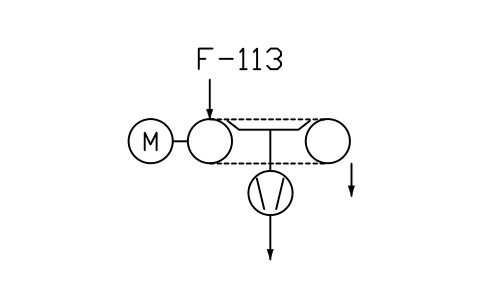

Vacuum band filter
PPD_X6513_VACUUM_BAND_FILTER屬性
TAGSERVICEMEDIUMFLOW_M3HDESIGN_PRESSURE_BARDESIGN_TEMP_CFILTER_RATING_UMMATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC
Separator, cyclone type
PPD_X2618_SEPARATOR_CYCLONE屬性
TAGSERVICEMEDIUMFLOW_M3HDESIGN_PRESSURE_BARDESIGN_TEMP_CFILTER_RATING_UMMATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

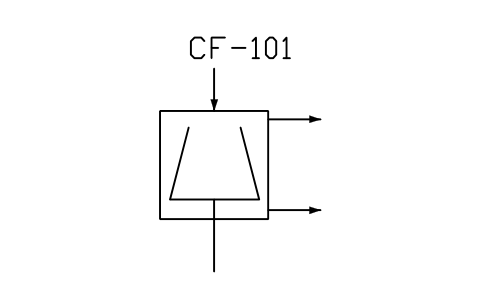

Centrifuge, general
PPD_X2619_CENTRIFUGE屬性
TAGSERVICEMEDIUMFLOW_M3HDESIGN_PRESSURE_BARDESIGN_TEMP_CFILTER_RATING_UMMATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

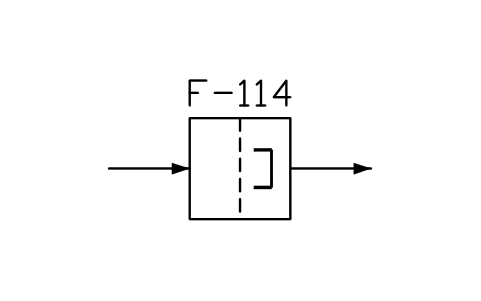

Permanent magnet filter
PPD_X6515_PERMANENT_MAGNET_FILTER屬性
TAGSERVICEMEDIUMFLOW_M3HDESIGN_PRESSURE_BARDESIGN_TEMP_CFILTER_RATING_UMMATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

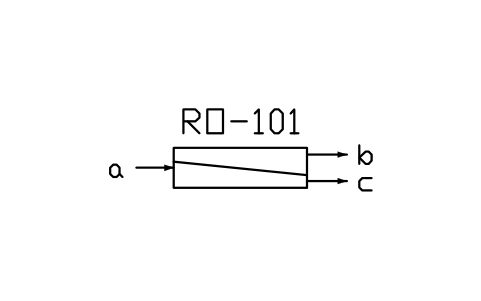

RO membrane element, form 1
PPD_P091_RO_ELEMENT_F1屬性
TAGSERVICEMEDIUMFLOW_M3HDESIGN_PRESSURE_BARDESIGN_TEMP_CFILTER_RATING_UMMATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

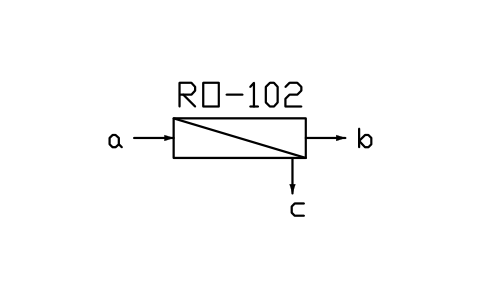

RO membrane element, form 2
PPD_P093_RO_ELEMENT_F2屬性
TAGSERVICEMEDIUMFLOW_M3HDESIGN_PRESSURE_BARDESIGN_TEMP_CFILTER_RATING_UMMATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

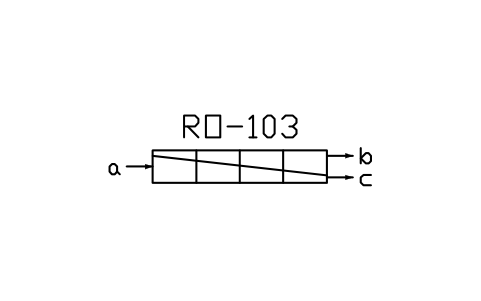

RO unit with four elements
PPD_X6516_RO_UNIT_4_ELEMENTS屬性
TAGSERVICEMEDIUMFLOW_M3HDESIGN_PRESSURE_BARDESIGN_TEMP_CFILTER_RATING_UMMATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

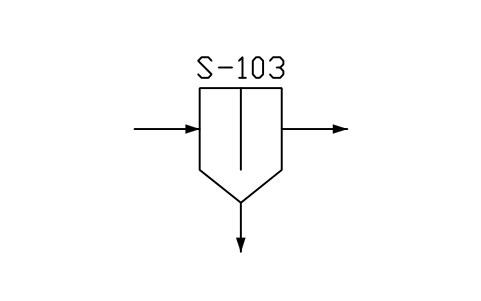

Separator, impact type
PPD_X6520_SEPARATOR_IMPACT屬性
TAGSERVICEGAS_FLOW_NM3HDUST_IN_MGNM3DUST_OUT_MGNM3DESIGN_TEMP_CMATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

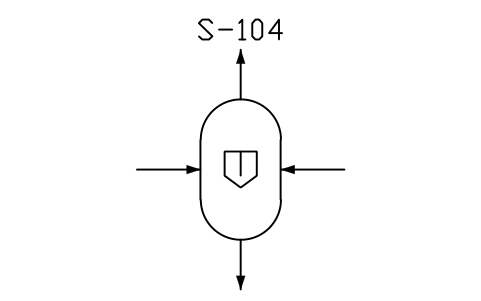

Separator vessel
PPD_X6525_SEPARATOR_VESSEL屬性
TAGSERVICEGAS_FLOW_NM3HDUST_IN_MGNM3DUST_OUT_MGNM3DESIGN_TEMP_CMATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

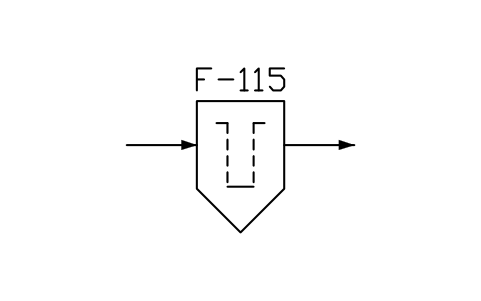

Bag filter, general
PPD_X6521_BAG_FILTER屬性
TAGSERVICEGAS_FLOW_NM3HDUST_IN_MGNM3DUST_OUT_MGNM3DESIGN_TEMP_CMATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

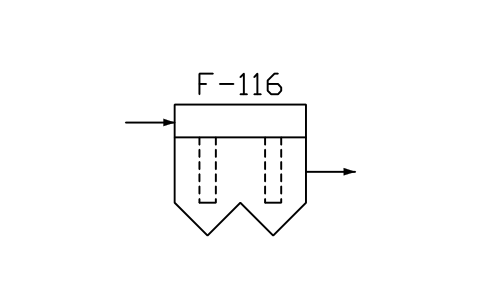

Bag filter, two sections
PPD_X6522_BAG_FILTER_2SECTIONS屬性
TAGSERVICEGAS_FLOW_NM3HDUST_IN_MGNM3DUST_OUT_MGNM3DESIGN_TEMP_CMATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

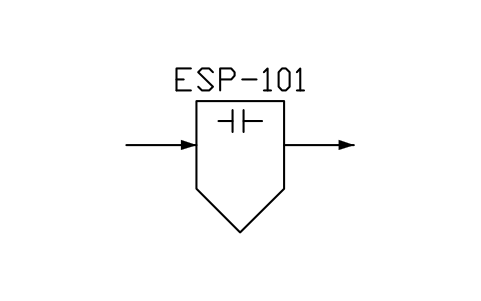

Electrostatic precipitator, general
PPD_X6523_PRECIPITATOR屬性
TAGSERVICEGAS_FLOW_NM3HDUST_IN_MGNM3DUST_OUT_MGNM3DESIGN_TEMP_CMATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

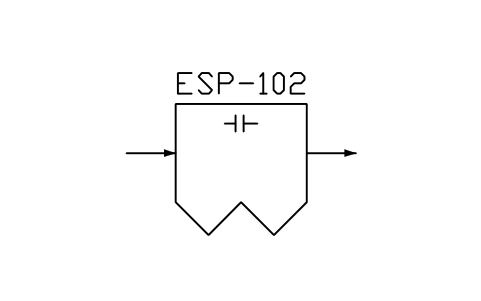

Electrostatic precip., two sections
PPD_X6524_PRECIPITATOR_2SECTIONS屬性
TAGSERVICEGAS_FLOW_NM3HDUST_IN_MGNM3DUST_OUT_MGNM3DESIGN_TEMP_CMATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

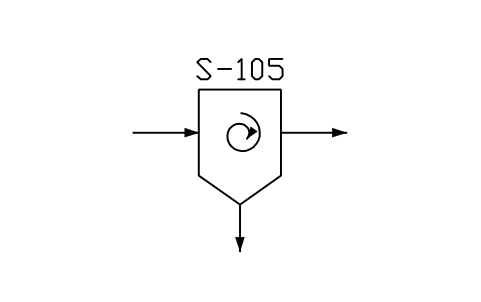

Separator, cyclone type (gas)
PPD_X2618_SEPARATOR_CYCLONE_GAS屬性
TAGSERVICEGAS_FLOW_NM3HDUST_IN_MGNM3DUST_OUT_MGNM3DESIGN_TEMP_CMATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

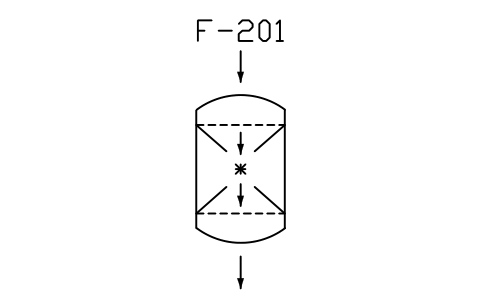

Bed filter, general
PPD_X6528_BED_FILTER屬性
TAGSERVICEFILL_MEDIABED_VOLUME_M3FLOW_M3HDESIGN_PRESSURE_BARDESIGN_TEMP_CMATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC
Bed filter, two different fillings
PPD_X6529_BED_FILTER_2_FILLINGS屬性
TAGSERVICEFILL_MEDIABED_VOLUME_M3FLOW_M3HDESIGN_PRESSURE_BARDESIGN_TEMP_CMATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

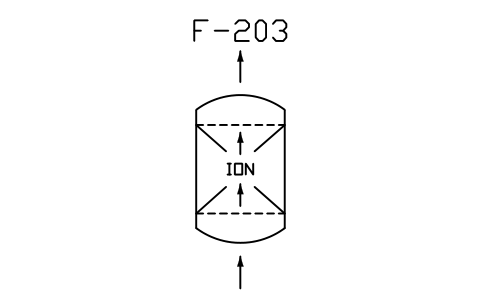

Bed filter, ion exchange type
PPD_X6530_BED_FILTER_ION屬性
TAGSERVICEFILL_MEDIABED_VOLUME_M3FLOW_M3HDESIGN_PRESSURE_BARDESIGN_TEMP_CMATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

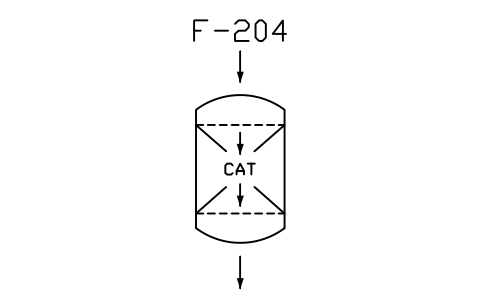

Bed filter, catalytic type
PPD_X6531_BED_FILTER_CATALYTIC屬性
TAGSERVICEFILL_MEDIABED_VOLUME_M3FLOW_M3HDESIGN_PRESSURE_BARDESIGN_TEMP_CMATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

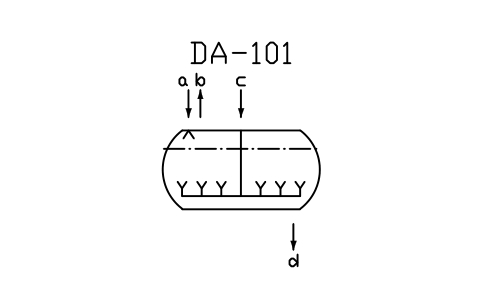

De-aerator, spray nozzle type
PPD_X6410_DEAERATOR_SPRAY_FW屬性
TAGSERVICECAPACITY_THVOLUME_M3DESIGN_PRESSURE_BARDESIGN_TEMP_CMATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

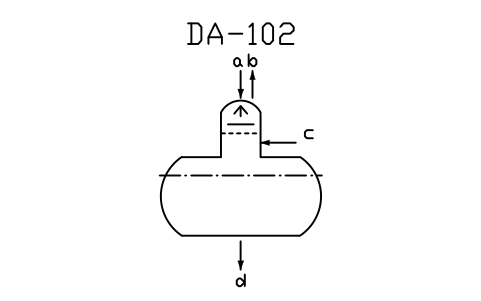

De-aerator, dome type
PPD_X6411_DEAERATOR_DOME_FW屬性
TAGSERVICECAPACITY_THVOLUME_M3DESIGN_PRESSURE_BARDESIGN_TEMP_CMATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC
Column packing section, general
PPD_P060_COLUMN_PACKING屬性
TAGSERVICEPACKING_TYPEHEIGHT_MDIAMETER_MDESIGN_PRESSURE_BARDESIGN_TEMP_CMATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

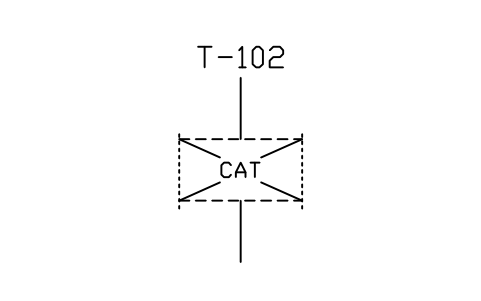

Catalytic elements, duct mounted
PPD_X6532_COLUMN_CATALYTIC屬性
TAGSERVICEPACKING_TYPEHEIGHT_MDIAMETER_MDESIGN_PRESSURE_BARDESIGN_TEMP_CMATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

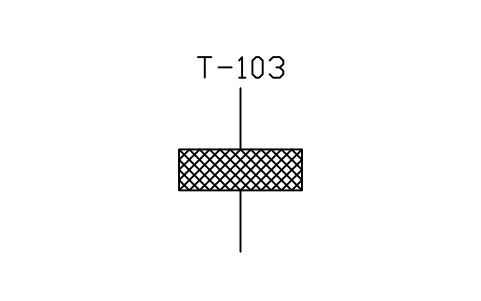

Column wire mesh packing, demister
PPD_P092_COLUMN_DEMISTER屬性
TAGSERVICEPACKING_TYPEHEIGHT_MDIAMETER_MDESIGN_PRESSURE_BARDESIGN_TEMP_CMATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

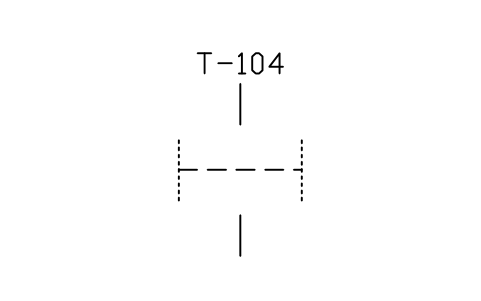

Column tray, general
PPD_2602V1_COLUMN_TRAY屬性
TAGSERVICEPACKING_TYPEHEIGHT_MDIAMETER_MDESIGN_PRESSURE_BARDESIGN_TEMP_CMATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

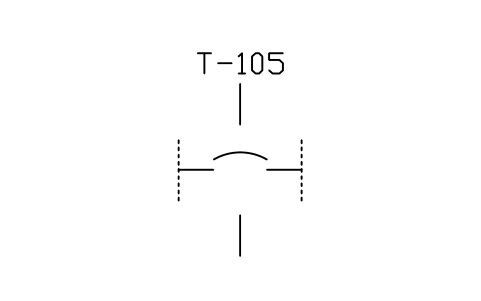

Column tray, bubble cap type
PPD_P061_COLUMN_TRAY_BUBBLE_CAP屬性
TAGSERVICEPACKING_TYPEHEIGHT_MDIAMETER_MDESIGN_PRESSURE_BARDESIGN_TEMP_CMATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

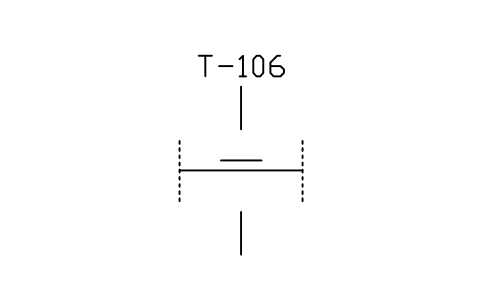

Column tray, valve type
PPD_P062_COLUMN_TRAY_VALVE屬性
TAGSERVICEPACKING_TYPEHEIGHT_MDIAMETER_MDESIGN_PRESSURE_BARDESIGN_TEMP_CMATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

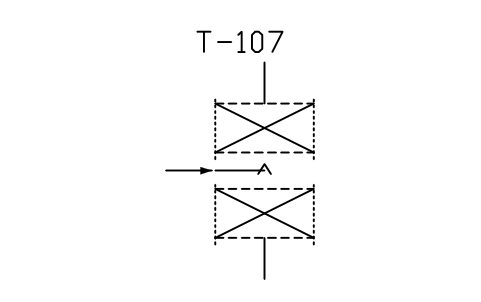

Column, two packing sections, spray
PPD_X6555_COLUMN_2_PACKINGS_SPRAY屬性
TAGSERVICEPACKING_TYPEHEIGHT_MDIAMETER_MDESIGN_PRESSURE_BARDESIGN_TEMP_CMATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

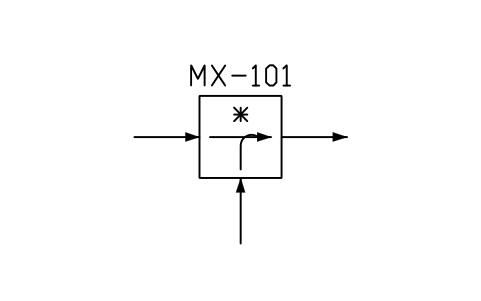

Mixing, general
PPD_2671_M_MIXING屬性
TAGSERVICEPOWER_KWSPEED_RPMVOLUME_M3DESIGN_PRESSURE_BARMATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

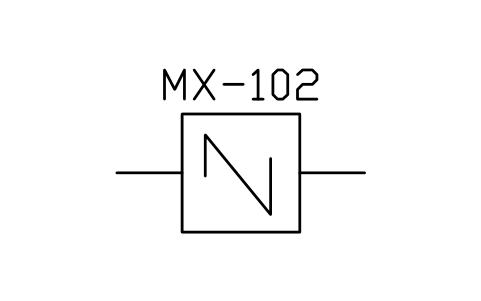

In-line static mixer, form 1
PPD_X2673_STATIC_MIXER_F1屬性
TAGSERVICEPOWER_KWSPEED_RPMVOLUME_M3DESIGN_PRESSURE_BARMATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

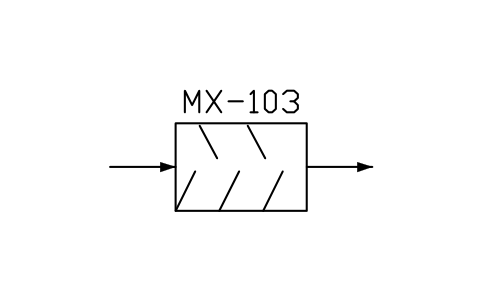

In-line static mixer, form 2
PPD_X6570_STATIC_MIXER_F2屬性
TAGSERVICEPOWER_KWSPEED_RPMVOLUME_M3DESIGN_PRESSURE_BARMATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

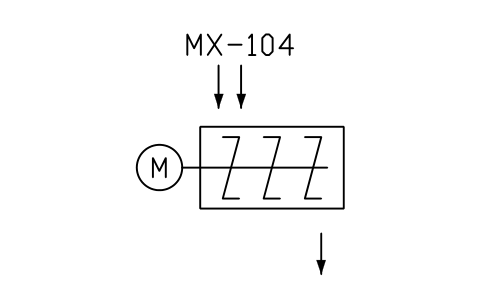

Mixer, dynamic, general
PPD_X6571_MIXER_DYNAMIC屬性
TAGSERVICEPOWER_KWSPEED_RPMVOLUME_M3DESIGN_PRESSURE_BARMATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

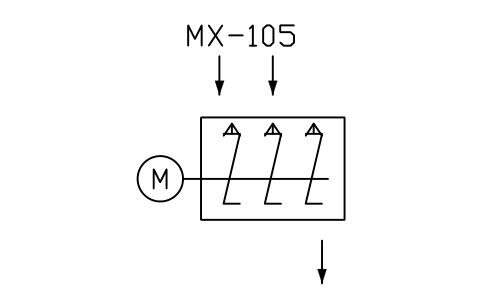

Mixer, dynamic (ash humidifier)
PPD_X6572_MIXER_DYNAMIC_HUMIDIFIER屬性
TAGSERVICEPOWER_KWSPEED_RPMVOLUME_M3DESIGN_PRESSURE_BARMATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

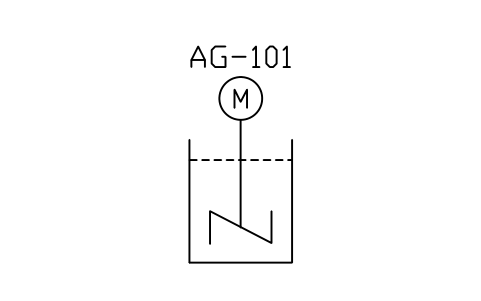

Agitator, general
PPD_X2671_AGITATOR屬性
TAGSERVICEPOWER_KWSPEED_RPMVOLUME_M3DESIGN_PRESSURE_BARMATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

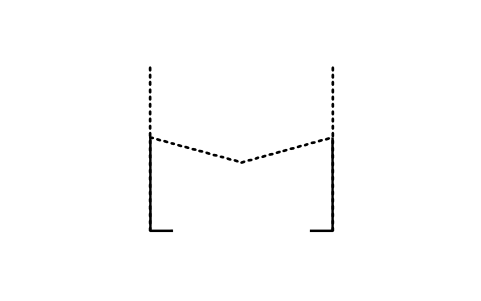

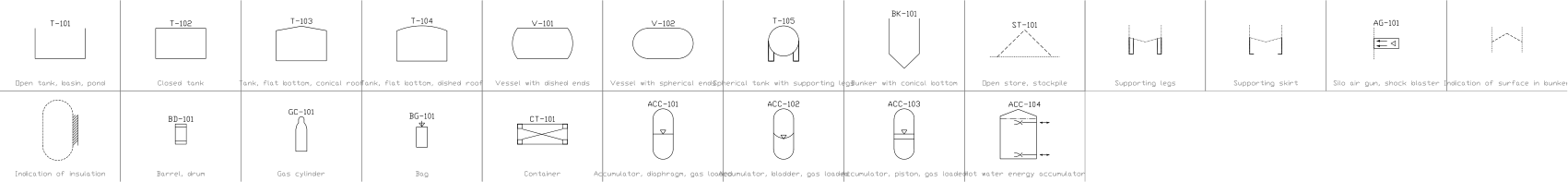

儲存

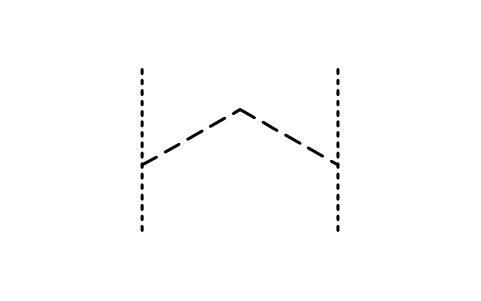

22 個圖塊，用於儲存：儲槽、容器、筒倉和煤倉，料位和表面指示，移動式儲存設備，以及隔膜式、膠囊式和活塞式蓄能器和熱水蓄能器。
使用 AutoCAD 2017 或更早的版本？ 下載 2010 格式
共 22 個符號，顯示 22 個

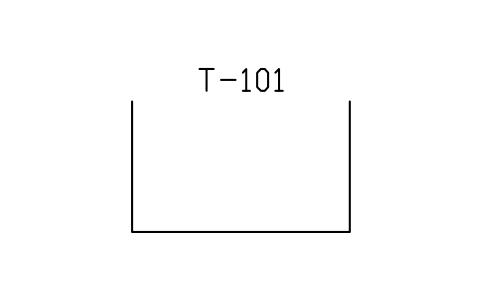

Open tank, basin, pond
PPD_2061_TANK_OPEN屬性
TAGSERVICEMEDIUMVOLUME_M3DIAMETER_MHEIGHT_MDESIGN_PRESSURE_BARDESIGN_TEMP_CMATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

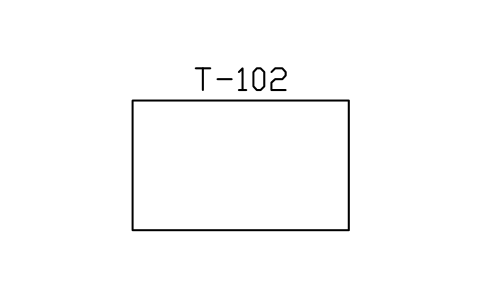

Closed tank
PPD_X2061_TANK_CLOSED屬性
TAGSERVICEMEDIUMVOLUME_M3DIAMETER_MHEIGHT_MDESIGN_PRESSURE_BARDESIGN_TEMP_CMATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC
Tank, flat bottom, conical roof
PPD_X2063_TANK_CONICAL_ROOF屬性
TAGSERVICEMEDIUMVOLUME_M3DIAMETER_MHEIGHT_MDESIGN_PRESSURE_BARDESIGN_TEMP_CMATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

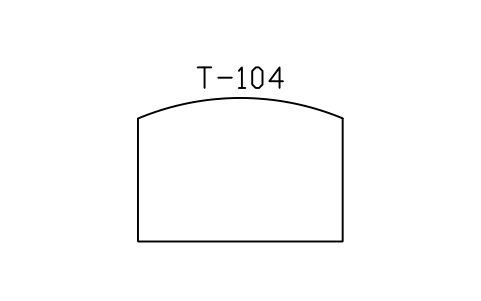

Tank, flat bottom, dished roof
PPD_X2064_TANK_DISHED_ROOF屬性
TAGSERVICEMEDIUMVOLUME_M3DIAMETER_MHEIGHT_MDESIGN_PRESSURE_BARDESIGN_TEMP_CMATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

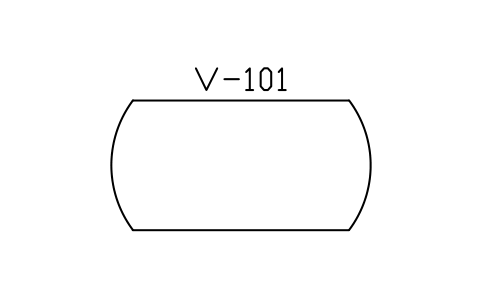

Vessel with dished ends
PPD_2062_VESSEL_DISHED_ENDS屬性
TAGSERVICEMEDIUMVOLUME_M3DIAMETER_MHEIGHT_MDESIGN_PRESSURE_BARDESIGN_TEMP_CMATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

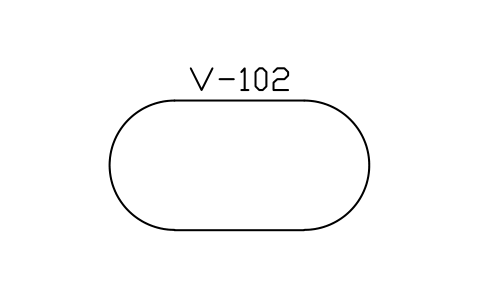

Vessel with spherical ends
PPD_X6603_VESSEL_SPHERICAL_ENDS屬性
TAGSERVICEMEDIUMVOLUME_M3DIAMETER_MHEIGHT_MDESIGN_PRESSURE_BARDESIGN_TEMP_CMATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

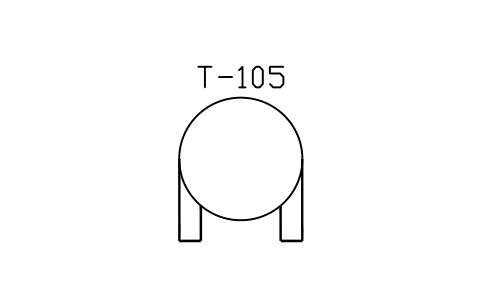

Spherical tank with supporting legs
PPD_X6601_SPHERE_LEGS屬性
TAGSERVICEMEDIUMVOLUME_M3DIAMETER_MHEIGHT_MDESIGN_PRESSURE_BARDESIGN_TEMP_CMATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

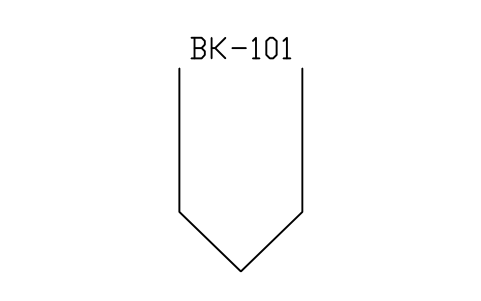

Bunker with conical bottom
PPD_2064_BUNKER_CONICAL屬性
TAGSERVICEMEDIUMVOLUME_M3DIAMETER_MHEIGHT_MDESIGN_PRESSURE_BARDESIGN_TEMP_CMATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

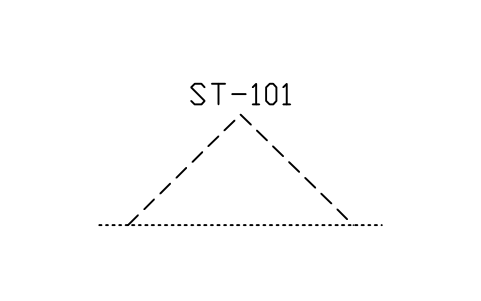

Open store, stockpile
PPD_2065_STOCKPILE屬性
TAGSERVICEMEDIUMVOLUME_M3DIAMETER_MHEIGHT_MDESIGN_PRESSURE_BARDESIGN_TEMP_CMATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

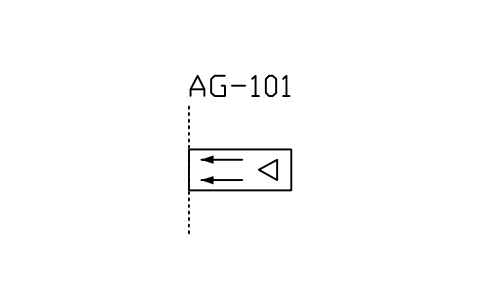

Silo air gun, shock blaster
PPD_P022_SILO_AIR_GUN屬性
TAGSERVICECONTENTVOLUME_LMATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

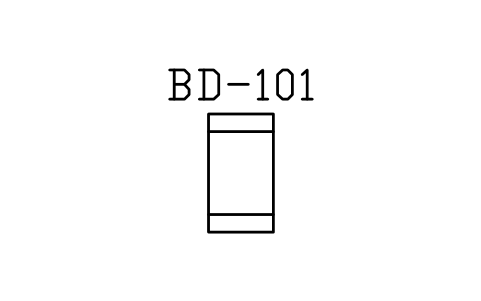

Barrel, drum
PPD_2067_BARREL_DRUM屬性
TAGSERVICECONTENTVOLUME_LMATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

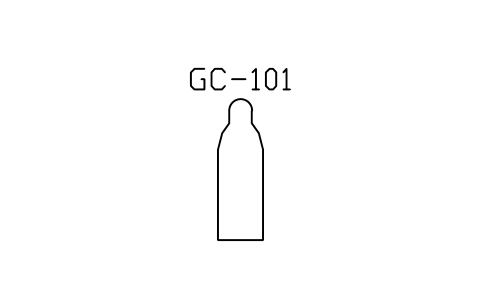

Gas cylinder
PPD_P046_GAS_CYLINDER屬性
TAGSERVICECONTENTVOLUME_LMATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

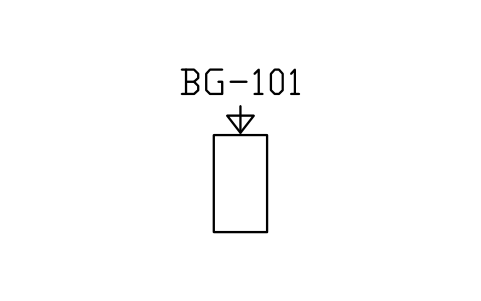

Bag
PPD_2068_BAG屬性
TAGSERVICECONTENTVOLUME_LMATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

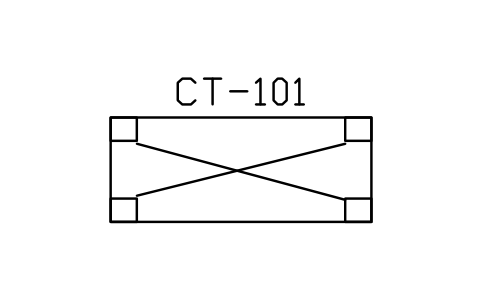

Container
PPD_P047_CONTAINER屬性
TAGSERVICECONTENTVOLUME_LMATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

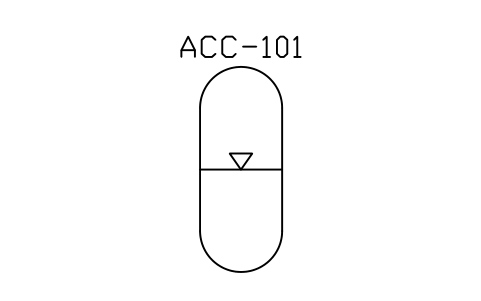

Accumulator, diaphragm, gas loaded
PPD_X2073_ACC_DIAPHRAGM屬性
TAGSERVICEVOLUME_LPRECHARGE_BARDESIGN_PRESSURE_BARDESIGN_TEMP_CMATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

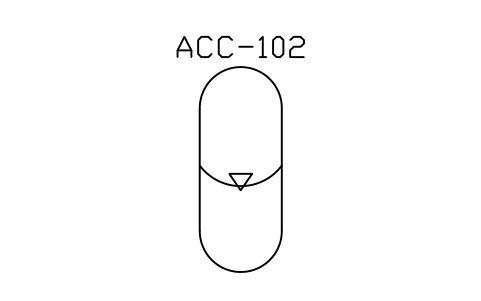

Accumulator, bladder, gas loaded
PPD_X6650_ACC_BLADDER屬性
TAGSERVICEVOLUME_LPRECHARGE_BARDESIGN_PRESSURE_BARDESIGN_TEMP_CMATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

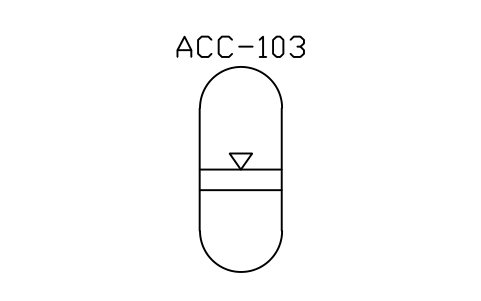

Accumulator, piston, gas loaded
PPD_X6651_ACC_PISTON屬性
TAGSERVICEVOLUME_LPRECHARGE_BARDESIGN_PRESSURE_BARDESIGN_TEMP_CMATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

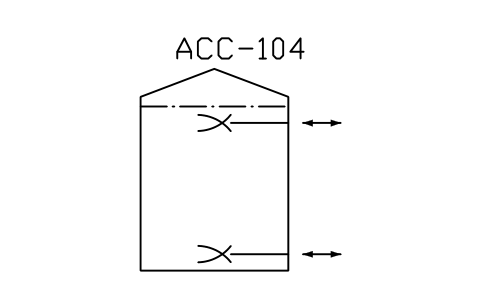

Hot water energy accumulator
PPD_X6652_HOT_WATER_ACCUMULATOR屬性
TAGSERVICEMEDIUMVOLUME_M3DIAMETER_MHEIGHT_MDESIGN_PRESSURE_BARDESIGN_TEMP_CMATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

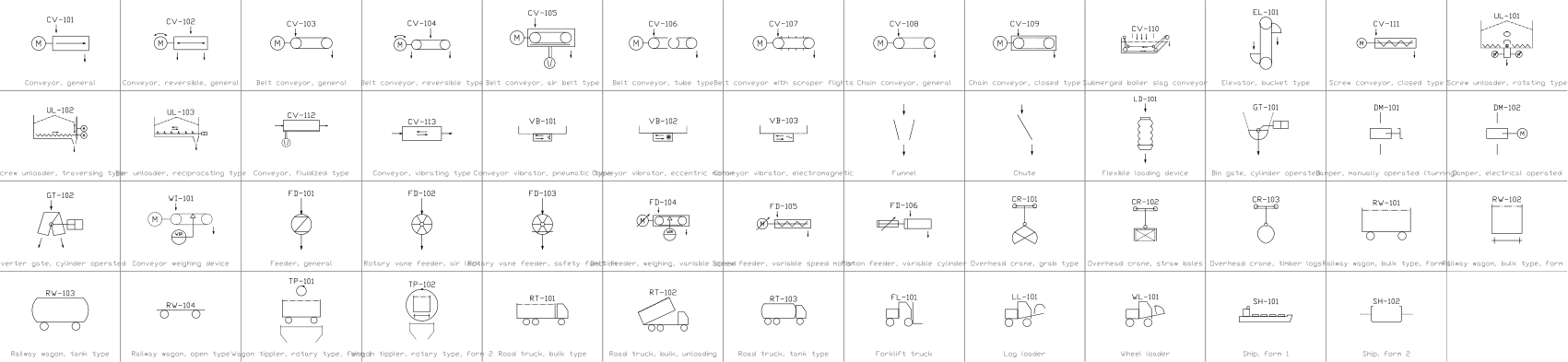

物料輸送
51 個圖塊，用於散料輸送：輸送機和提升機、卸料設備、閘門、擋板和流量控制、給料機、裝卸設備，以及車輛、卡車和起重機等移動運輸設備。
使用 AutoCAD 2017 或更早的版本？ 下載 2010 格式
共 51 個符號，顯示 51 個

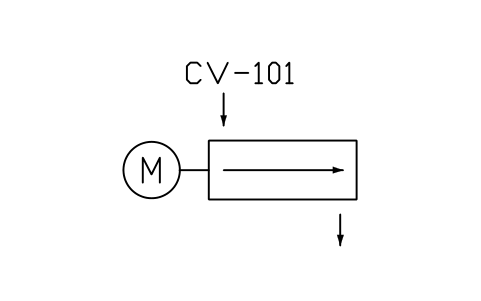

Conveyor, general
PPD_X6701_CONVEYOR屬性
TAGSERVICEMATERIALCAPACITY_THLENGTH_MPOWER_KWSPEED_MSMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

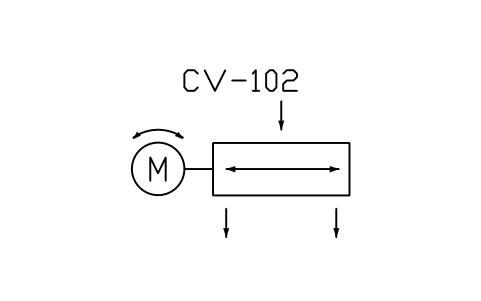

Conveyor, reversible, general
PPD_X6702_CONVEYOR_REVERSIBLE屬性
TAGSERVICEMATERIALCAPACITY_THLENGTH_MPOWER_KWSPEED_MSMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

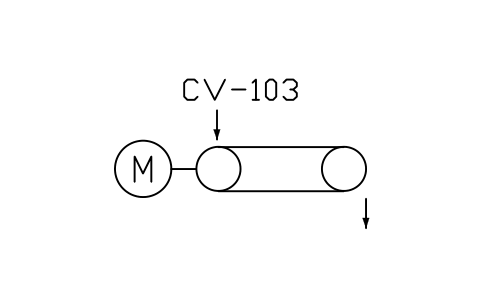

Belt conveyor, general
PPD_X6703_BELT_CONVEYOR屬性
TAGSERVICEMATERIALCAPACITY_THLENGTH_MPOWER_KWSPEED_MSMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

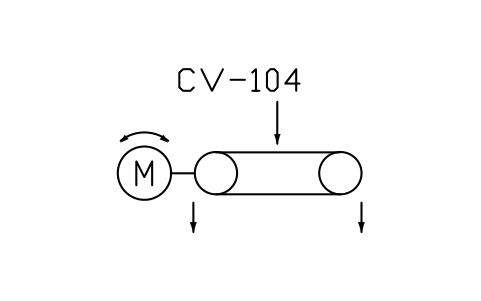

Belt conveyor, reversible type
PPD_X6704_BELT_CONVEYOR_REVERSIBLE屬性
TAGSERVICEMATERIALCAPACITY_THLENGTH_MPOWER_KWSPEED_MSMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

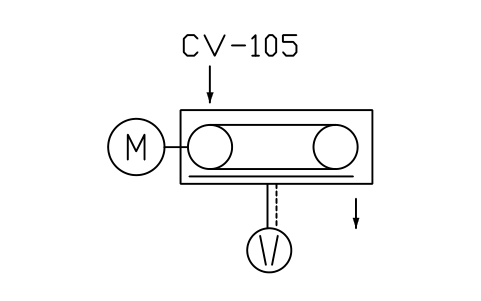

Belt conveyor, air belt type
PPD_X6708_BELT_CONVEYOR_AIR屬性
TAGSERVICEMATERIALCAPACITY_THLENGTH_MPOWER_KWSPEED_MSMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

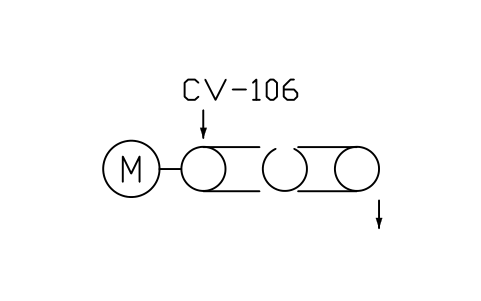

Belt conveyor, tube type
PPD_X6717_BELT_CONVEYOR_TUBE屬性
TAGSERVICEMATERIALCAPACITY_THLENGTH_MPOWER_KWSPEED_MSMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

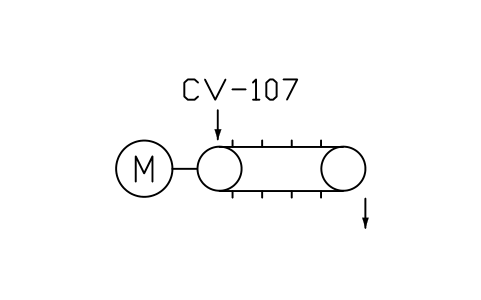

Belt conveyor with scraper flights
PPD_X6705_BELT_CONVEYOR_SCRAPER屬性
TAGSERVICEMATERIALCAPACITY_THLENGTH_MPOWER_KWSPEED_MSMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

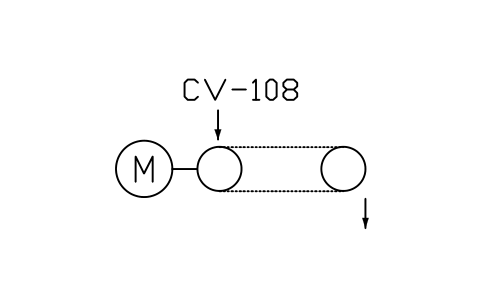

Chain conveyor, general
PPD_X6706_CHAIN_CONVEYOR屬性
TAGSERVICEMATERIALCAPACITY_THLENGTH_MPOWER_KWSPEED_MSMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

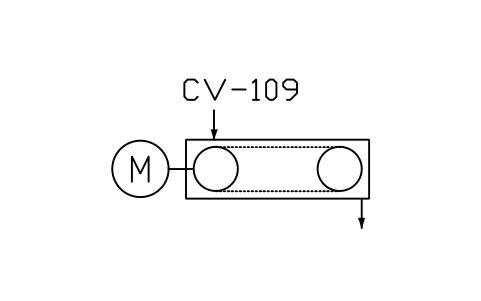

Chain conveyor, closed type
PPD_X6707_CHAIN_CONVEYOR_CLOSED屬性
TAGSERVICEMATERIALCAPACITY_THLENGTH_MPOWER_KWSPEED_MSMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

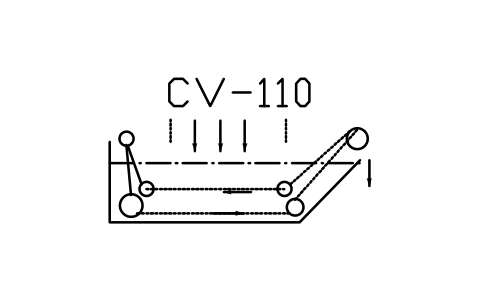

Submerged boiler slag conveyor
PPD_X6709_SLAG_CONVEYOR_SUBMERGED屬性
TAGSERVICEMATERIALCAPACITY_THLENGTH_MPOWER_KWSPEED_MSMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

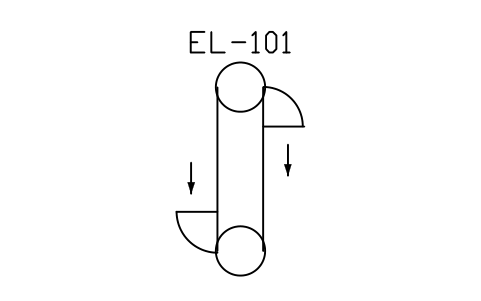

Elevator, bucket type
PPD_X6710_ELEVATOR_BUCKET屬性
TAGSERVICEMATERIALCAPACITY_THLENGTH_MPOWER_KWSPEED_MSMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

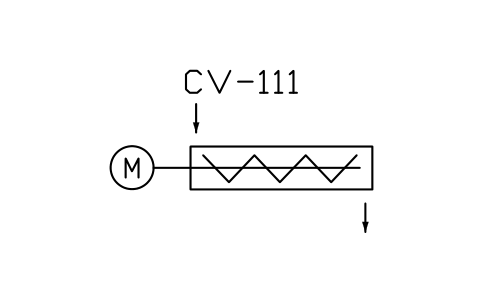

Screw conveyor, closed type
PPD_X6711_SCREW_CONVEYOR_CLOSED屬性
TAGSERVICEMATERIALCAPACITY_THLENGTH_MPOWER_KWSPEED_MSMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

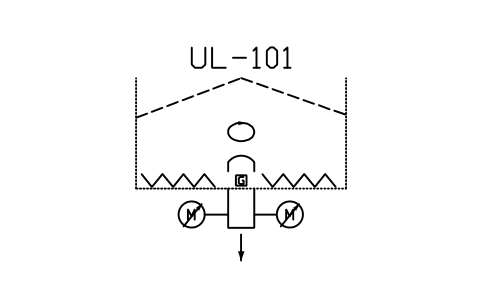

Screw unloader, rotating type
PPD_X6712_SCREW_UNLOADER_ROTATING屬性
TAGSERVICEMATERIALCAPACITY_THLENGTH_MPOWER_KWSPEED_MSMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

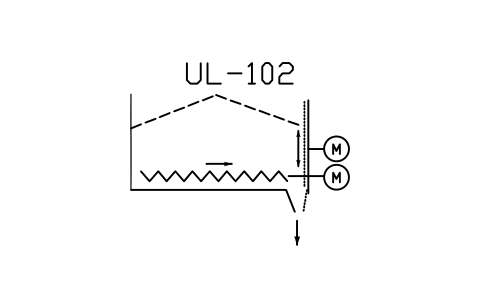

Screw unloader, traversing type
PPD_X6713_SCREW_UNLOADER_TRAVERSING屬性
TAGSERVICEMATERIALCAPACITY_THLENGTH_MPOWER_KWSPEED_MSMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

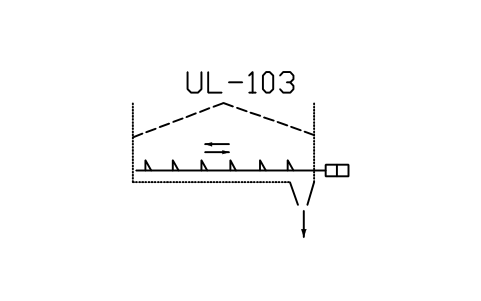

Bar unloader, reciprocating type
PPD_X6714_BAR_UNLOADER_RECIPROCATING屬性
TAGSERVICEMATERIALCAPACITY_THLENGTH_MPOWER_KWSPEED_MSMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

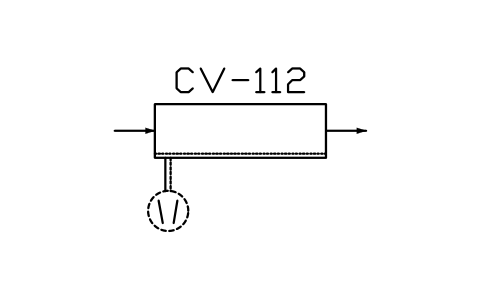

Conveyor, fluidized type
PPD_X6715_CONVEYOR_FLUIDIZED屬性
TAGSERVICEMATERIALCAPACITY_THLENGTH_MPOWER_KWSPEED_MSMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

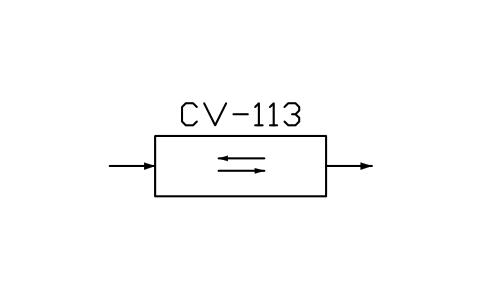

Conveyor, vibrating type
PPD_X6716_CONVEYOR_VIBRATING屬性
TAGSERVICEMATERIALCAPACITY_THLENGTH_MPOWER_KWSPEED_MSMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

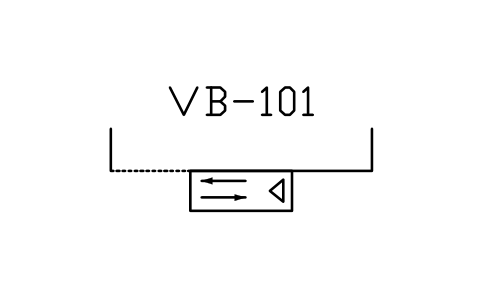

Conveyor vibrator, pneumatic type
PPD_X6727_VIBRATOR_PNEUMATIC屬性
TAGSERVICEMATERIALCAPACITY_THLENGTH_MPOWER_KWSPEED_MSMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

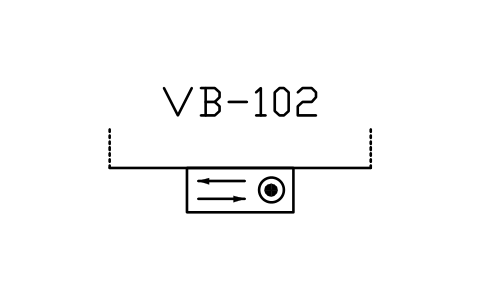

Conveyor vibrator, eccentric motor
PPD_X6728_VIBRATOR_ECCENTRIC屬性
TAGSERVICEMATERIALCAPACITY_THLENGTH_MPOWER_KWSPEED_MSMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

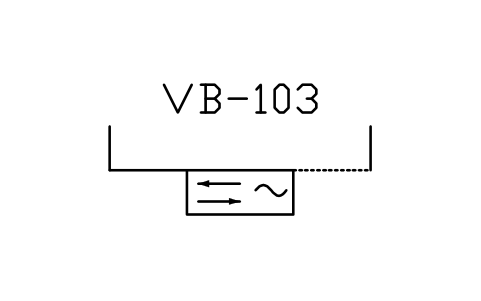

Conveyor vibrator, electromagnetic
PPD_X6729_VIBRATOR_ELECTROMAGNETIC屬性
TAGSERVICEMATERIALCAPACITY_THLENGTH_MPOWER_KWSPEED_MSMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

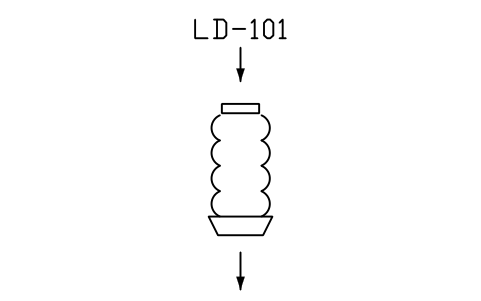

Flexible loading device
PPD_P049_FLEXIBLE_LOADING屬性
TAGSERVICEMATERIALCAPACITY_THLENGTH_MPOWER_KWSPEED_MSMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

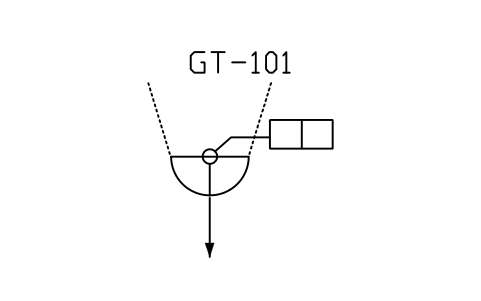

Bin gate, cylinder operated
PPD_X6720_BIN_GATE_CYLINDER屬性
TAGSERVICEMATERIALCAPACITY_THLENGTH_MPOWER_KWSPEED_MSMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

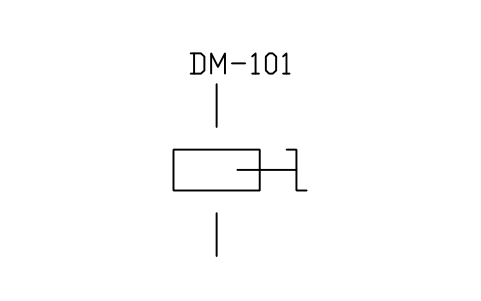

Damper, manually operated (turning)
PPD_X6730_DAMPER_MANUAL_TURN屬性
TAGSERVICEMATERIALCAPACITY_THLENGTH_MPOWER_KWSPEED_MSMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

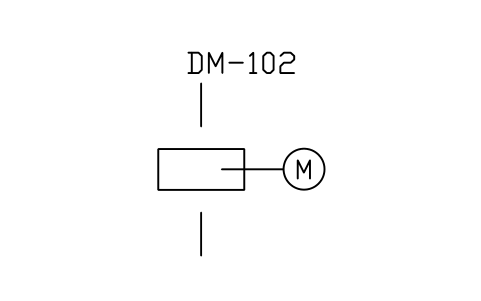

Damper, electrical operated
PPD_X6731_DAMPER_ELECTRIC屬性
TAGSERVICEMATERIALCAPACITY_THLENGTH_MPOWER_KWSPEED_MSMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

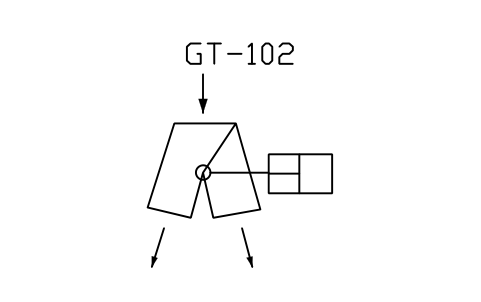

Diverter gate, cylinder operated
PPD_X6721_DIVERTER_GATE_CYLINDER屬性
TAGSERVICEMATERIALCAPACITY_THLENGTH_MPOWER_KWSPEED_MSMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

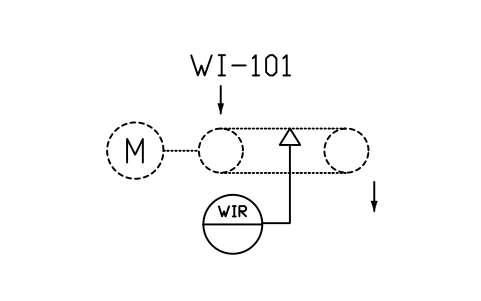

Conveyor weighing device
PPD_X6722_CONVEYOR_WEIGHING屬性
TAGSERVICEMATERIALCAPACITY_THLENGTH_MPOWER_KWSPEED_MSMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

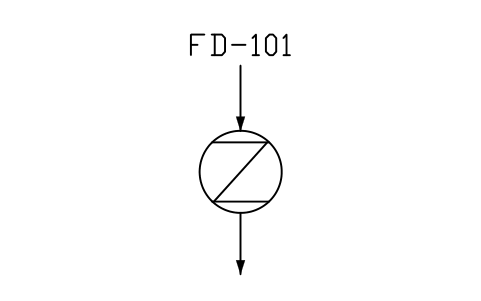

Feeder, general
PPD_P077_FEEDER屬性
TAGSERVICEMATERIALCAPACITY_THLENGTH_MPOWER_KWSPEED_MSMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

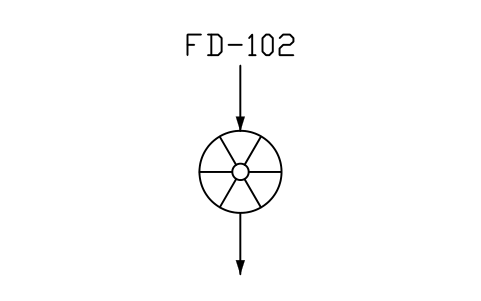

Rotary vane feeder, air lock
PPD_X6723_ROTARY_VANE_FEEDER屬性
TAGSERVICEMATERIALCAPACITY_THLENGTH_MPOWER_KWSPEED_MSMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

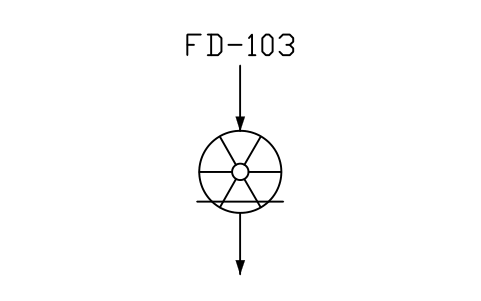

Rotary vane feeder, safety function
PPD_X6732_ROTARY_VANE_FEEDER_SAFE屬性
TAGSERVICEMATERIALCAPACITY_THLENGTH_MPOWER_KWSPEED_MSMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

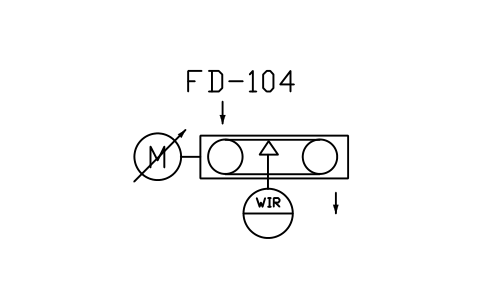

Belt feeder, weighing, variable speed
PPD_X6724_BELT_FEEDER_WEIGHING屬性
TAGSERVICEMATERIALCAPACITY_THLENGTH_MPOWER_KWSPEED_MSMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

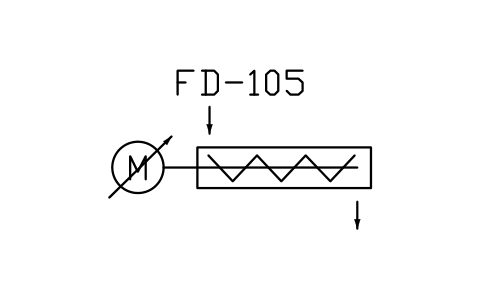

Screw feeder, variable speed motor
PPD_X6725_SCREW_FEEDER_VARIABLE屬性
TAGSERVICEMATERIALCAPACITY_THLENGTH_MPOWER_KWSPEED_MSMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

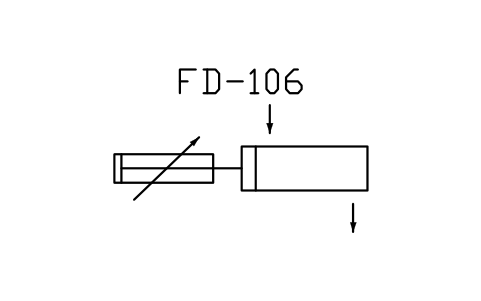

Piston feeder, variable cylinder
PPD_X6726_PISTON_FEEDER屬性
TAGSERVICEMATERIALCAPACITY_THLENGTH_MPOWER_KWSPEED_MSMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

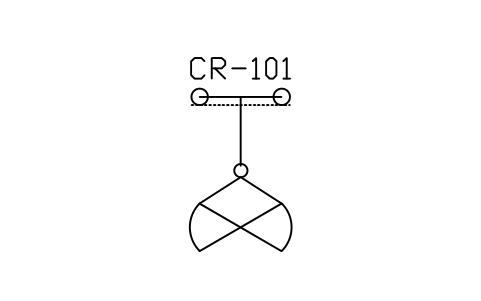

Overhead crane, grab type
PPD_X6750_CRANE_GRAB屬性
TAGSERVICELOAD_TSPAN_MLIFT_MPOWER_KWMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

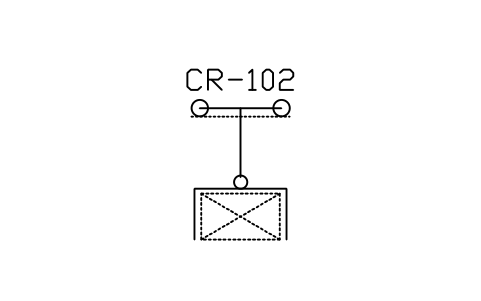

Overhead crane, straw bales
PPD_X6751_CRANE_STRAW屬性
TAGSERVICELOAD_TSPAN_MLIFT_MPOWER_KWMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

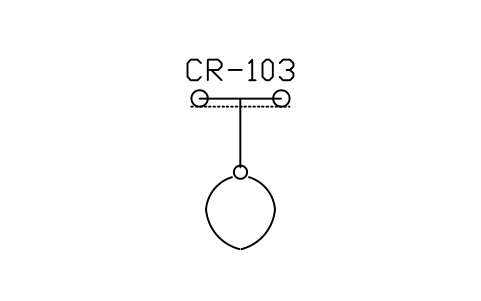

Overhead crane, timber logs
PPD_X6752_CRANE_TIMBER屬性
TAGSERVICELOAD_TSPAN_MLIFT_MPOWER_KWMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

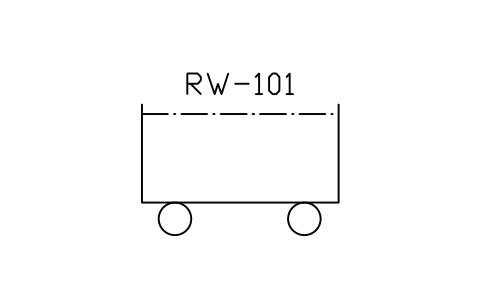

Railway wagon, bulk type, form 1
PPD_X6770_WAGON_BULK_F1屬性
TAGSERVICECAPACITY_TVOLUME_M3MANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

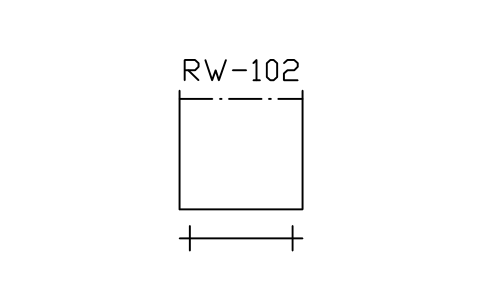

Railway wagon, bulk type, form 2
PPD_X6771_WAGON_BULK_F2屬性
TAGSERVICECAPACITY_TVOLUME_M3MANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

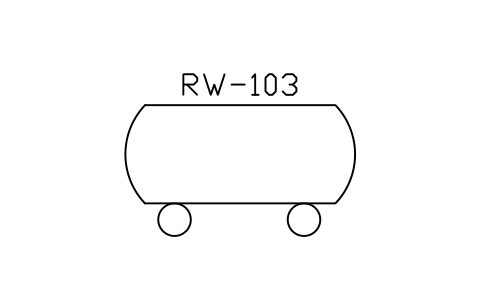

Railway wagon, tank type
PPD_X6772_WAGON_TANK屬性
TAGSERVICECAPACITY_TVOLUME_M3MANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

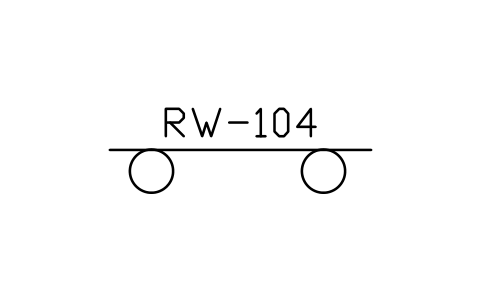

Railway wagon, open type
PPD_X6773_WAGON_OPEN屬性
TAGSERVICECAPACITY_TVOLUME_M3MANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

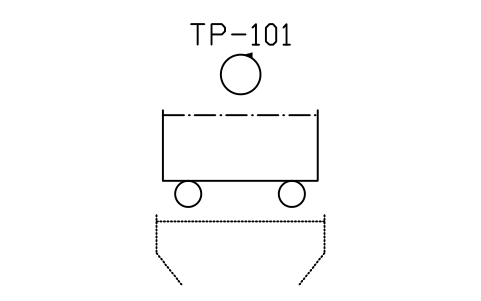

Wagon tippler, rotary type, form 1
PPD_X6775_WAGON_TIPPLER_F1屬性
TAGSERVICECAPACITY_TVOLUME_M3MANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

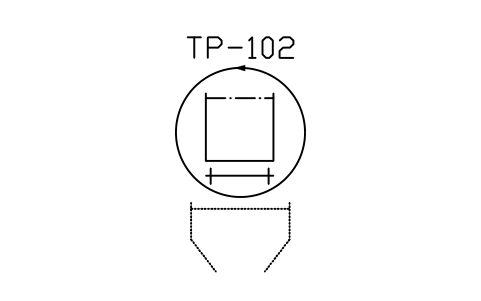

Wagon tippler, rotary type, form 2
PPD_X6776_WAGON_TIPPLER_F2屬性
TAGSERVICECAPACITY_TVOLUME_M3MANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

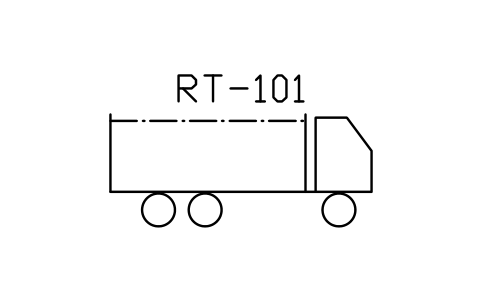

Road truck, bulk type
PPD_X6780_TRUCK_BULK屬性
TAGSERVICECAPACITY_TVOLUME_M3MANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

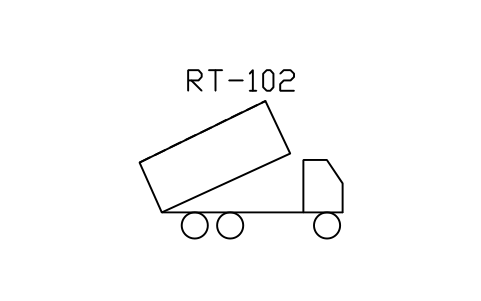

Road truck, bulk, unloading
PPD_X6781_TRUCK_BULK_UNLOADING屬性
TAGSERVICECAPACITY_TVOLUME_M3MANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

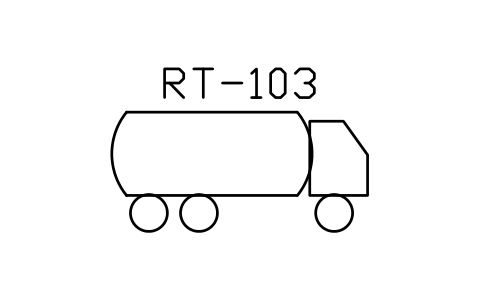

Road truck, tank type
PPD_X6782_TRUCK_TANK屬性
TAGSERVICECAPACITY_TVOLUME_M3MANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

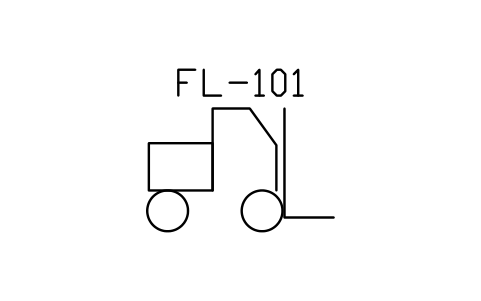

Forklift truck
PPD_X6783_FORKLIFT屬性
TAGSERVICECAPACITY_TVOLUME_M3MANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

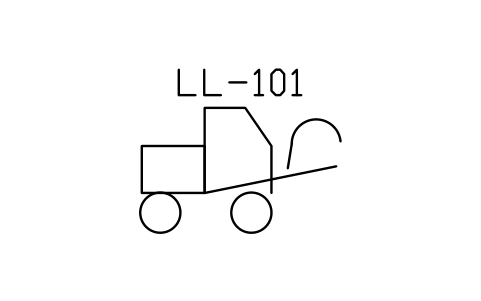

Log loader
PPD_X6784_LOG_LOADER屬性
TAGSERVICECAPACITY_TVOLUME_M3MANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

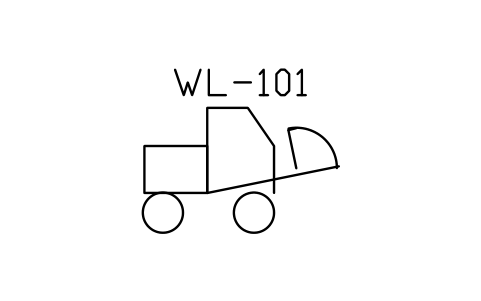

Wheel loader
PPD_X6785_WHEEL_LOADER屬性
TAGSERVICECAPACITY_TVOLUME_M3MANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

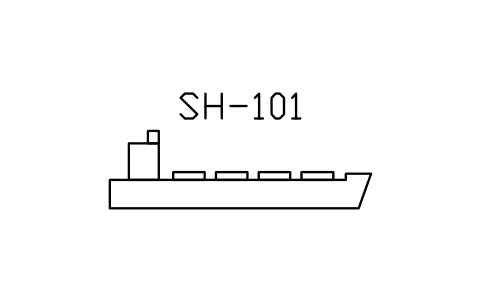

Ship, form 1
PPD_X6790_SHIP_F1屬性
TAGSERVICECAPACITY_TVOLUME_M3MANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

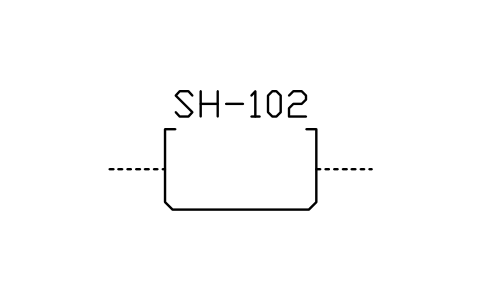

Ship, form 2
PPD_X6791_SHIP_F2屬性
TAGSERVICECAPACITY_TVOLUME_M3MANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

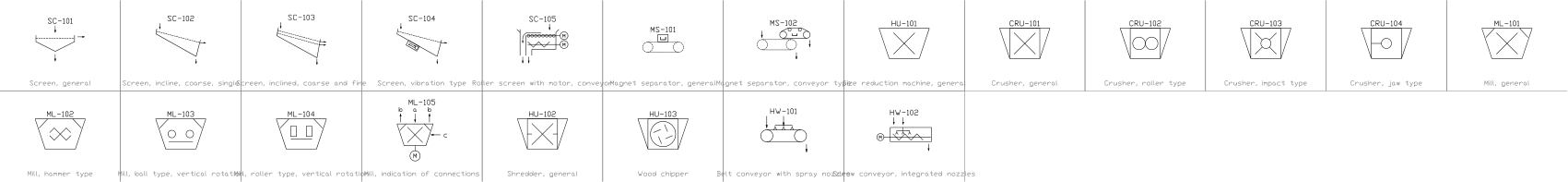

物料處理
21 個圖塊，用於固體物料處理：篩分機和磁選機、破碎機、磨機和撕碎機，以及加濕。
使用 AutoCAD 2017 或更早的版本？ 下載 2010 格式
共 21 個符號，顯示 21 個

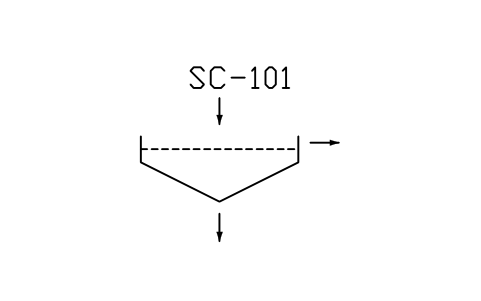

Screen, general
PPD_X6801_SCREEN屬性
TAGSERVICEMATERIALCAPACITY_THPOWER_KWFEED_SIZE_MMPRODUCT_SIZE_MMMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

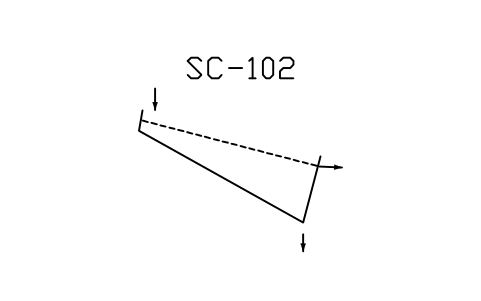

Screen, incline, coarse, single
PPD_X6802_SCREEN_INCLINE_SINGLE屬性
TAGSERVICEMATERIALCAPACITY_THPOWER_KWFEED_SIZE_MMPRODUCT_SIZE_MMMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

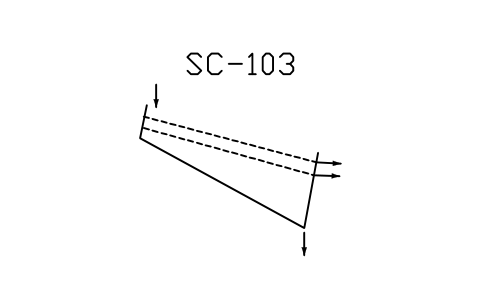

Screen, inclined, coarse and fine
PPD_X6803_SCREEN_INCLINED_DUAL屬性
TAGSERVICEMATERIALCAPACITY_THPOWER_KWFEED_SIZE_MMPRODUCT_SIZE_MMMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

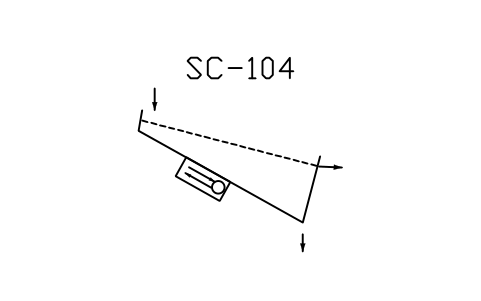

Screen, vibration type
PPD_X6804_SCREEN_VIBRATING屬性
TAGSERVICEMATERIALCAPACITY_THPOWER_KWFEED_SIZE_MMPRODUCT_SIZE_MMMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

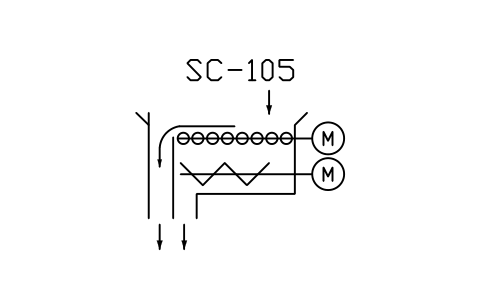

Roller screen with motor, conveyor
PPD_X6805_ROLLER_SCREEN屬性
TAGSERVICEMATERIALCAPACITY_THPOWER_KWFEED_SIZE_MMPRODUCT_SIZE_MMMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

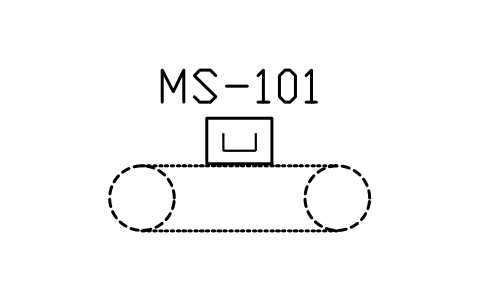

Magnet separator, general
PPD_X6811_MAGNET_SEPARATOR屬性
TAGSERVICEMATERIALCAPACITY_THPOWER_KWFEED_SIZE_MMPRODUCT_SIZE_MMMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

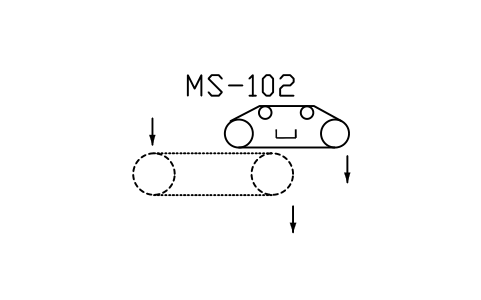

Magnet separator, conveyor type
PPD_X6812_MAGNET_SEPARATOR_CONVEYOR屬性
TAGSERVICEMATERIALCAPACITY_THPOWER_KWFEED_SIZE_MMPRODUCT_SIZE_MMMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

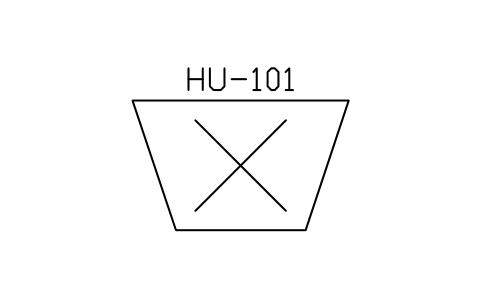

Size reduction machine, general
PPD_X6820_SIZE_REDUCTION屬性
TAGSERVICEMATERIALCAPACITY_THPOWER_KWFEED_SIZE_MMPRODUCT_SIZE_MMMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

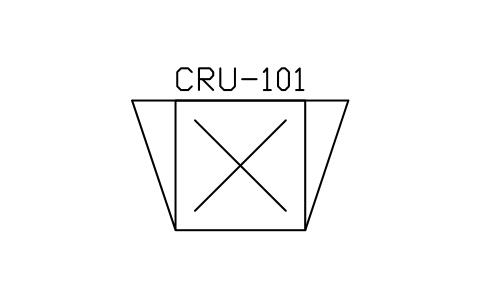

Crusher, general
PPD_X6821_CRUSHER屬性
TAGSERVICEMATERIALCAPACITY_THPOWER_KWFEED_SIZE_MMPRODUCT_SIZE_MMMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

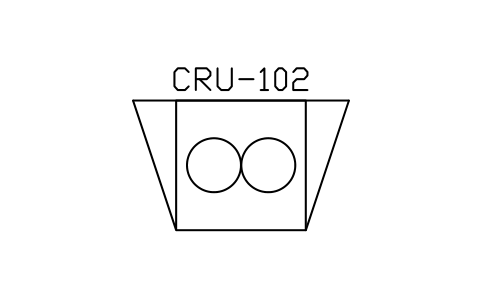

Crusher, roller type
PPD_P6822_CRUSHER_ROLLER屬性
TAGSERVICEMATERIALCAPACITY_THPOWER_KWFEED_SIZE_MMPRODUCT_SIZE_MMMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

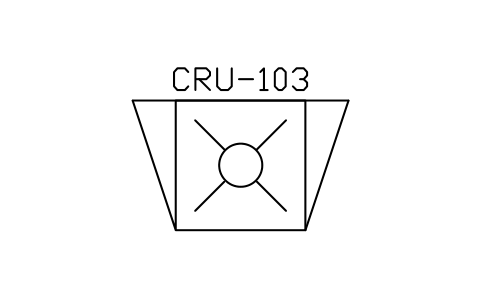

Crusher, impact type
PPD_X6823_CRUSHER_IMPACT屬性
TAGSERVICEMATERIALCAPACITY_THPOWER_KWFEED_SIZE_MMPRODUCT_SIZE_MMMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

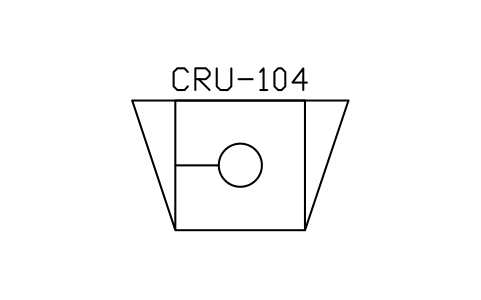

Crusher, jaw type
PPD_X6824_CRUSHER_JAW屬性
TAGSERVICEMATERIALCAPACITY_THPOWER_KWFEED_SIZE_MMPRODUCT_SIZE_MMMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

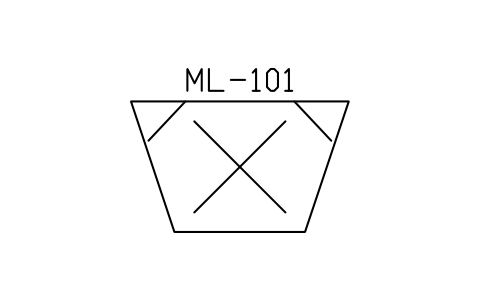

Mill, general
PPD_X6830_MILL屬性
TAGSERVICEMATERIALCAPACITY_THPOWER_KWFEED_SIZE_MMPRODUCT_SIZE_MMMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

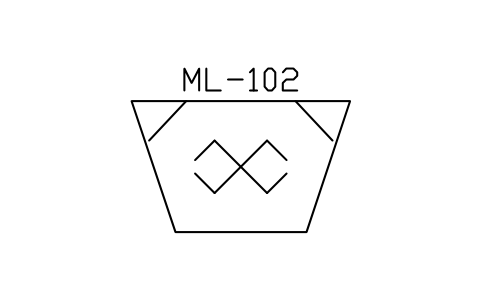

Mill, hammer type
PPD_X6831_MILL_HAMMER屬性
TAGSERVICEMATERIALCAPACITY_THPOWER_KWFEED_SIZE_MMPRODUCT_SIZE_MMMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

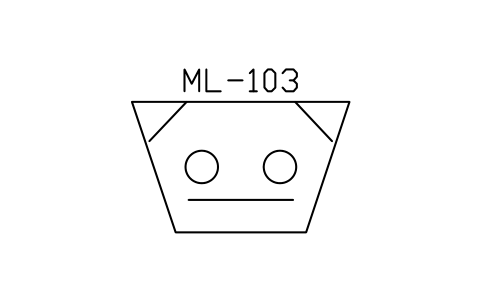

Mill, ball type, vertical rotation
PPD_X6832_MILL_BALL_VERTICAL屬性
TAGSERVICEMATERIALCAPACITY_THPOWER_KWFEED_SIZE_MMPRODUCT_SIZE_MMMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

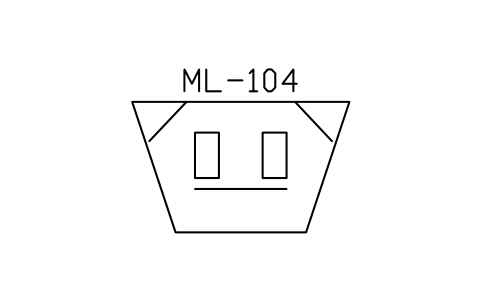

Mill, roller type, vertical rotation
PPD_X6833_MILL_ROLLER_VERTICAL屬性
TAGSERVICEMATERIALCAPACITY_THPOWER_KWFEED_SIZE_MMPRODUCT_SIZE_MMMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

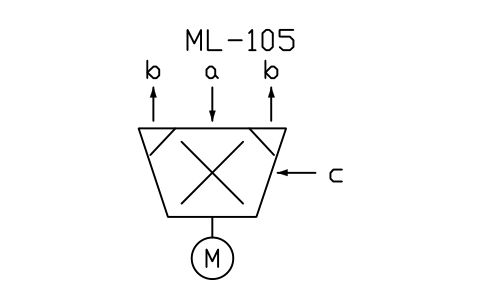

Mill, indication of connections
PPD_X6834_MILL_CONNECTIONS屬性
TAGSERVICEMATERIALCAPACITY_THPOWER_KWFEED_SIZE_MMPRODUCT_SIZE_MMMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

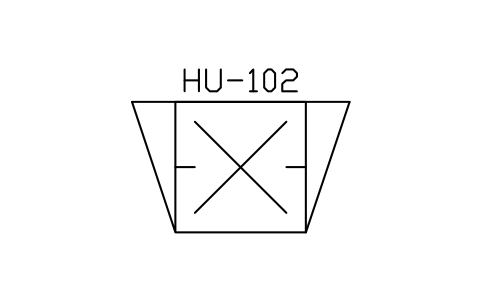

Shredder, general
PPD_X6840_SHREDDER屬性
TAGSERVICEMATERIALCAPACITY_THPOWER_KWFEED_SIZE_MMPRODUCT_SIZE_MMMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

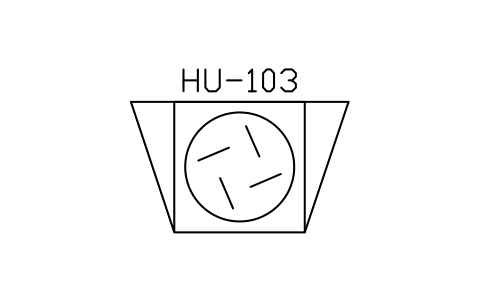

Wood chipper
PPD_X6841_WOOD_CHIPPER屬性
TAGSERVICEMATERIALCAPACITY_THPOWER_KWFEED_SIZE_MMPRODUCT_SIZE_MMMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

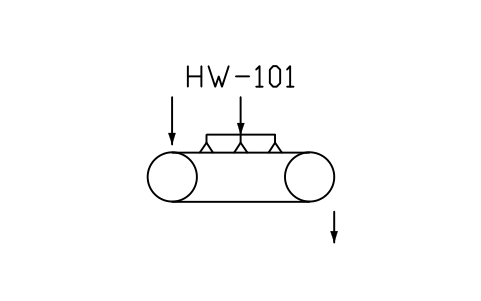

Belt conveyor with spray nozzles
PPD_X6850_BELT_SPRAY屬性
TAGSERVICEMATERIALCAPACITY_THPOWER_KWFEED_SIZE_MMPRODUCT_SIZE_MMMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

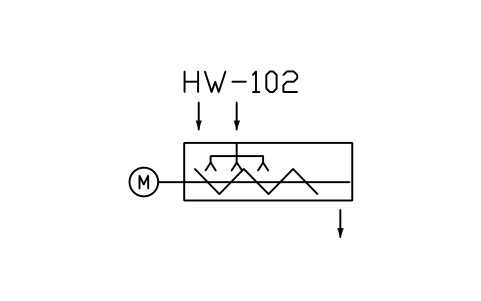

Screw conveyor, integrated nozzles
PPD_X6851_SCREW_SPRAY屬性
TAGSERVICEMATERIALCAPACITY_THPOWER_KWFEED_SIZE_MMPRODUCT_SIZE_MMMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC
熱能發生設備、機械和傳動
53 個圖塊，來自熱能發生設備、機械和機械傳動幾個章節：熱水鍋爐和蒸汽鍋爐及其燃燒系統、燃燒器和鍋爐附件、煙囪、汽輪機和燃氣輪機、電動機、發電機和變頻器，以及軸、軸承、齒輪、聯軸器、煞車和傳動輪。
使用 AutoCAD 2017 或更早的版本？ 下載 2010 格式
共 53 個符號，顯示 53 個

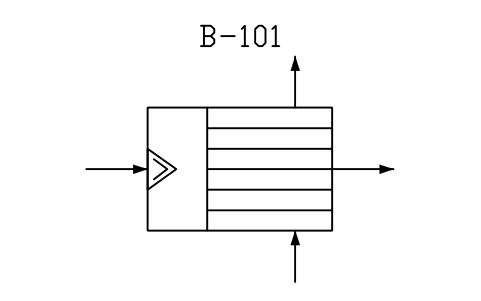

Hot water shell boiler
PPD_X6901_BOILER_HW_SHELL屬性
TAGSERVICEFUELSTEAM_FLOW_THSTEAM_PRESSURE_BARSTEAM_TEMP_CEFFICIENCY_PCTMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

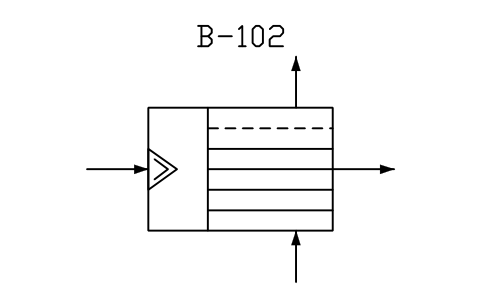

Steam shell boiler
PPD_X6902_BOILER_STEAM_SHELL屬性
TAGSERVICEFUELSTEAM_FLOW_THSTEAM_PRESSURE_BARSTEAM_TEMP_CEFFICIENCY_PCTMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

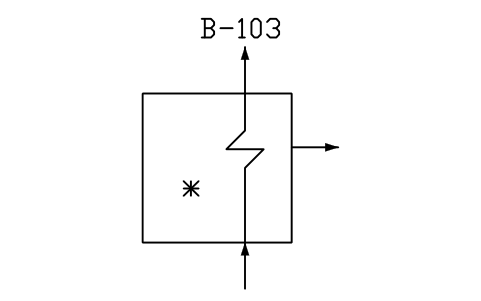

Hot water tube boiler
PPD_X6903_BOILER_HW_TUBE屬性
TAGSERVICEFUELSTEAM_FLOW_THSTEAM_PRESSURE_BARSTEAM_TEMP_CEFFICIENCY_PCTMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

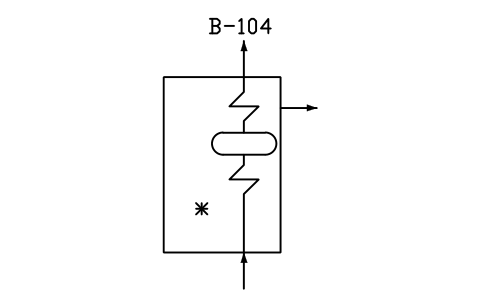

Steam tube boiler with drum
PPD_X6904_BOILER_STEAM_DRUM屬性
TAGSERVICEFUELSTEAM_FLOW_THSTEAM_PRESSURE_BARSTEAM_TEMP_CEFFICIENCY_PCTMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

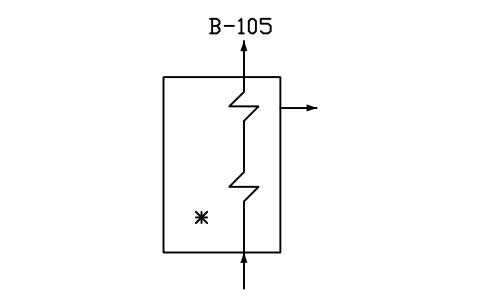

Steam tube boiler
PPD_X6905_BOILER_STEAM_TUBE屬性
TAGSERVICEFUELSTEAM_FLOW_THSTEAM_PRESSURE_BARSTEAM_TEMP_CEFFICIENCY_PCTMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

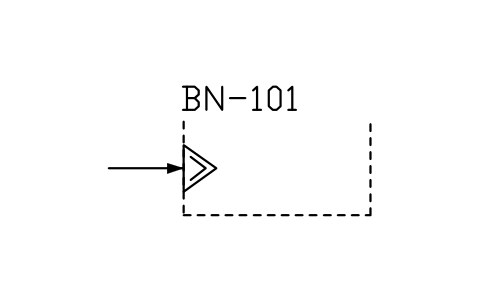

Burner, oil or gas
PPD_X6909_BURNER_OIL_GAS屬性
TAGSERVICEFUELHEAT_INPUT_MWAIR_FLOW_NM3HMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

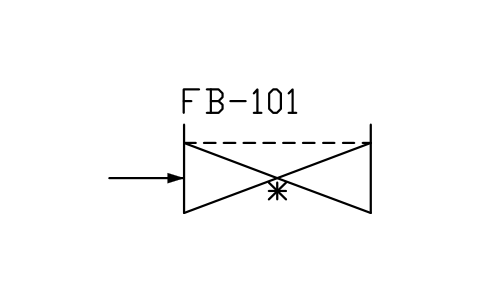

Fluidized bed boiler (CFB, BFB)
PPD_X6910_BOILER_FLUID_BED屬性
TAGSERVICEFUELHEAT_INPUT_MWAIR_FLOW_NM3HMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

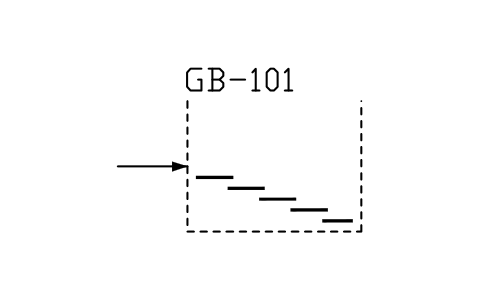

Incline grate boiler
PPD_X6911_BOILER_GRATE_INCLINE屬性
TAGSERVICEFUELHEAT_INPUT_MWAIR_FLOW_NM3HMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

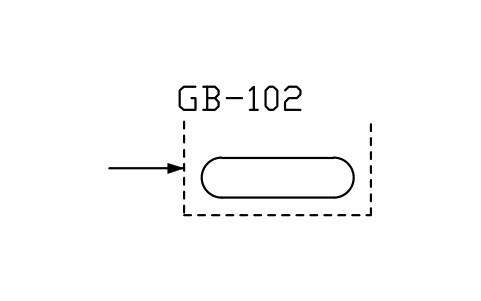

Travelling grate boiler
PPD_X6912_BOILER_GRATE_TRAVEL屬性
TAGSERVICEFUELHEAT_INPUT_MWAIR_FLOW_NM3HMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

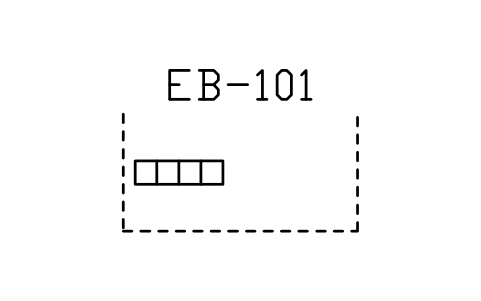

Electrical boiler, resistance
PPD_X6913_BOILER_ELEC_RESISTANCE屬性
TAGSERVICEFUELHEAT_INPUT_MWAIR_FLOW_NM3HMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

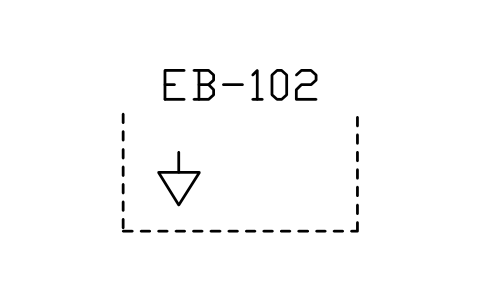

Electrical boiler, electrode
PPD_X6914_BOILER_ELEC_ELECTRODE屬性
TAGSERVICEFUELHEAT_INPUT_MWAIR_FLOW_NM3HMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

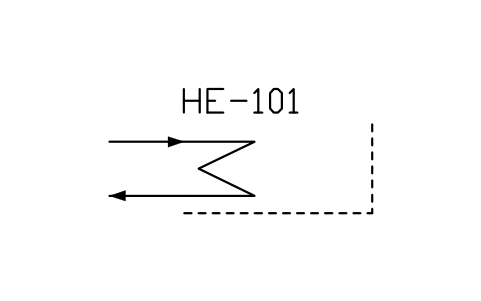

Heat exchanger (boiler)
PPD_X6915_HEAT_EXCHANGER_BOILER屬性
TAGSERVICEMEDIUMDESIGN_PRESSURE_BARDESIGN_TEMP_CAREA_M2MATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

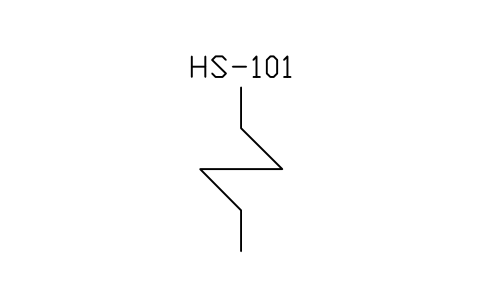

Heating surface
PPD_X6925_HEATING_SURFACE屬性
TAGSERVICEMEDIUMDESIGN_PRESSURE_BARDESIGN_TEMP_CAREA_M2MATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

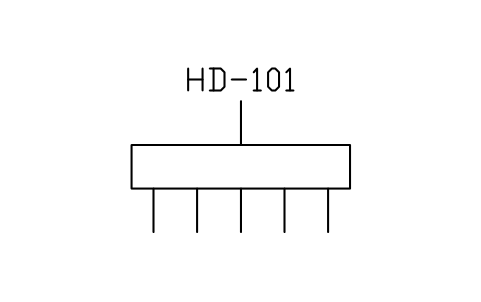

Header, form 1
PPD_X6926_HEADER_F1屬性
TAGSERVICEMEDIUMDESIGN_PRESSURE_BARDESIGN_TEMP_CAREA_M2MATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

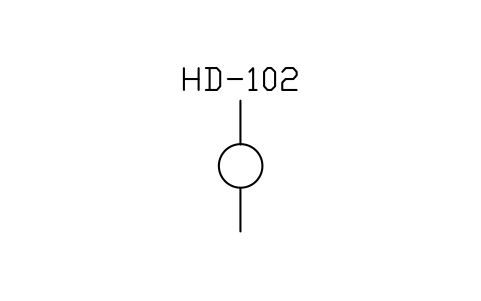

Header, form 2
PPD_X6927_HEADER_F2屬性
TAGSERVICEMEDIUMDESIGN_PRESSURE_BARDESIGN_TEMP_CAREA_M2MATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

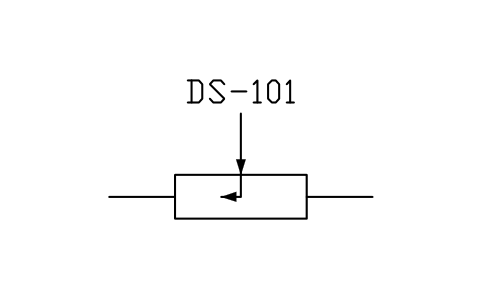

De-superheater
PPD_X6928_DESUPERHEATER屬性
TAGSERVICEMEDIUMDESIGN_PRESSURE_BARDESIGN_TEMP_CAREA_M2MATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

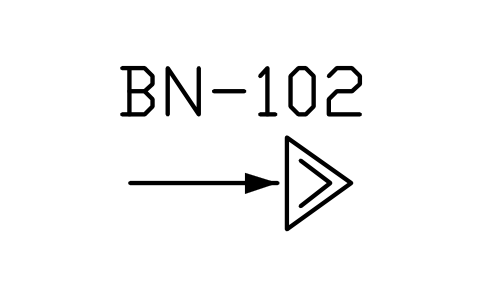

Burner
PPD_2541_BURNER屬性
TAGSERVICEFUELHEAT_INPUT_MWAIR_FLOW_NM3HMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

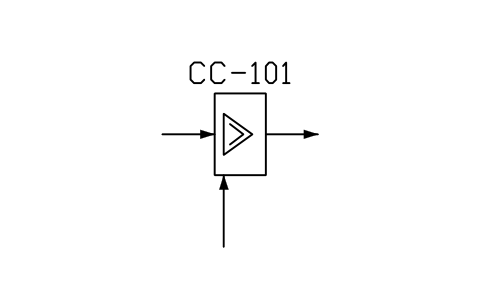

Combustion chamber
PPD_X6929_COMBUSTION_CHAMBER屬性
TAGSERVICEFUELHEAT_INPUT_MWAIR_FLOW_NM3HMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

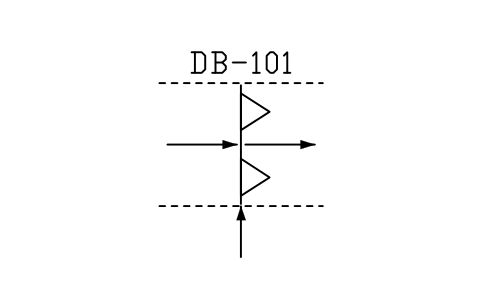

Duct burner, afterburner
PPD_X6930_DUCT_BURNER屬性
TAGSERVICEFUELHEAT_INPUT_MWAIR_FLOW_NM3HMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

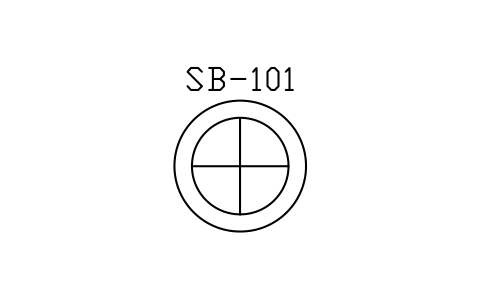

Soot blower, steam type
PPD_X6932_SOOT_BLOWER_STEAM屬性
TAGSERVICEMEDIUMDESIGN_PRESSURE_BARDESIGN_TEMP_CAREA_M2MATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

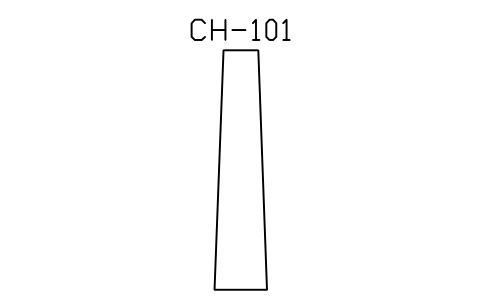

Chimney
PPD_2041_CHIMNEY屬性
TAGSERVICEHEIGHT_MFLUE_DIAMETER_MFLUESMATERIALMANUFACTURERREMARKSSTD_CLAUSESTD_REFDESC

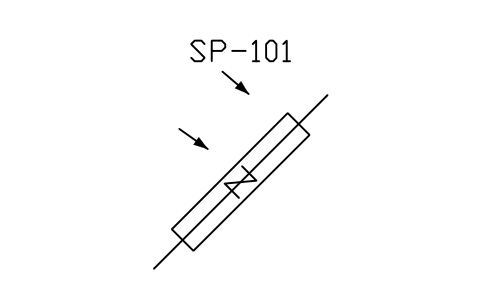

Thermal solar panel
PPD_X6951_SOLAR_THERMAL_PANEL屬性
TAGSERVICEMEDIUMDESIGN_PRESSURE_BARDESIGN_TEMP_CAREA_M2MATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

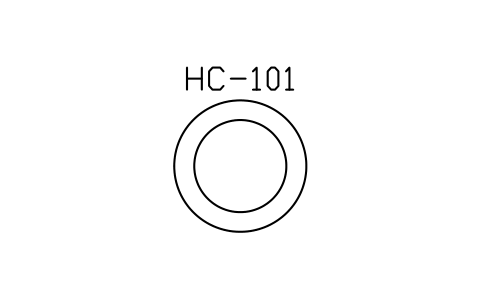

Thermal energy consumer
PPD_P010_THERMAL_CONSUMER屬性
TAGSERVICEMEDIUMDESIGN_PRESSURE_BARDESIGN_TEMP_CAREA_M2MATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

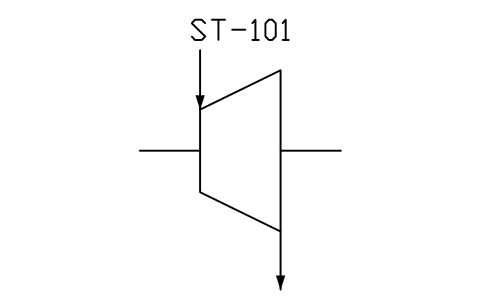

Steam turbine
PPD_2571_STEAM_TURBINE屬性
TAGSERVICEPOWER_MWSPEED_RPMINLET_PRESSURE_BARINLET_TEMP_CEXHAUST_PRESSURE_BARMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

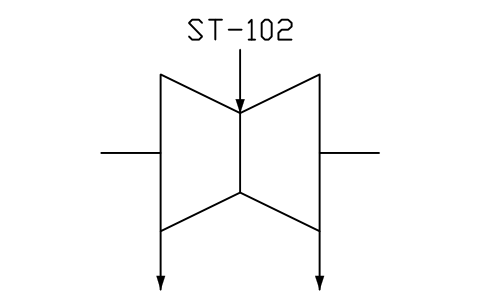

Steam turbine, centre inlet
PPD_2572_STEAM_TURBINE_CENTRE屬性
TAGSERVICEPOWER_MWSPEED_RPMINLET_PRESSURE_BARINLET_TEMP_CEXHAUST_PRESSURE_BARMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

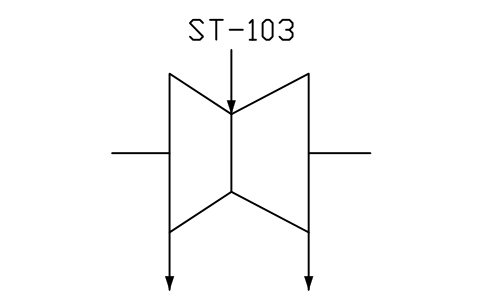

Steam turbine, IP, centre inlet
PPD_X7001_STEAM_TURBINE_IP屬性
TAGSERVICEPOWER_MWSPEED_RPMINLET_PRESSURE_BARINLET_TEMP_CEXHAUST_PRESSURE_BARMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

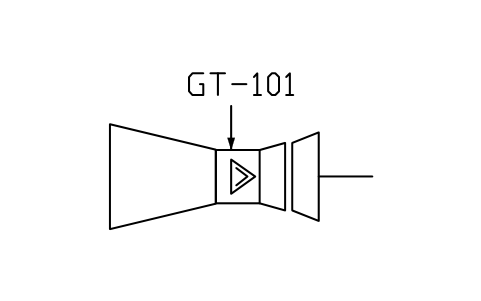

Gas turbine, free power turbine
PPD_X7011_GAS_TURBINE_FREE屬性
TAGSERVICEPOWER_MWSPEED_RPMFUELPRESSURE_RATIOEXHAUST_TEMP_CMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

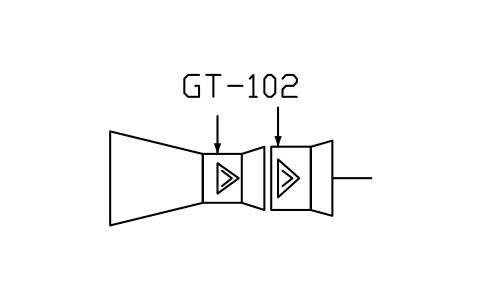

Gas turbine, separate combustors
PPD_X7012_GAS_TURBINE_SEP_COMB屬性
TAGSERVICEPOWER_MWSPEED_RPMFUELPRESSURE_RATIOEXHAUST_TEMP_CMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

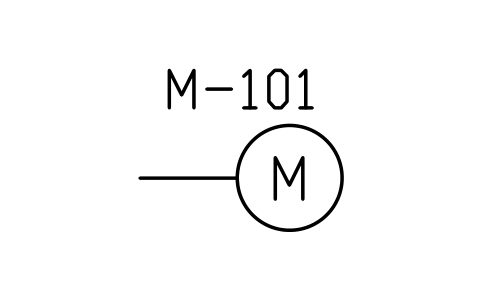

Electrical motor
PPD_P011_MOTOR屬性
TAGSERVICEPOWER_KWVOLTAGESPEED_RPMENCLOSUREINSULATION_CLASSMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

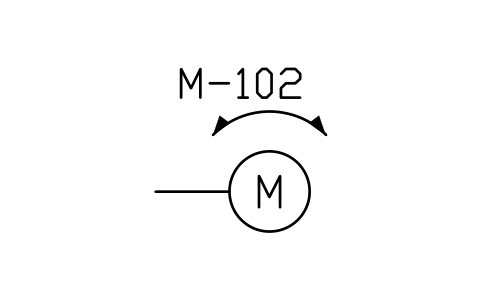

Electrical motor, reversible
PPD_X7050_MOTOR_REVERSIBLE屬性
TAGSERVICEPOWER_KWVOLTAGESPEED_RPMENCLOSUREINSULATION_CLASSMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

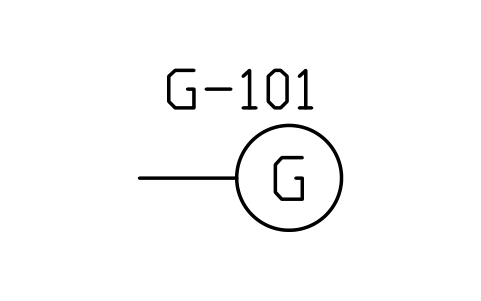

Electrical generator
PPD_P012_GENERATOR屬性
TAGSERVICEPOWER_MVAVOLTAGE_KVPOWER_FACTORSPEED_RPMCOOLINGMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

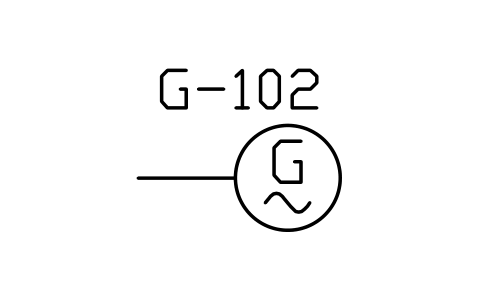

Electrical generator, AC type
PPD_X7051_GENERATOR_AC屬性
TAGSERVICEPOWER_MVAVOLTAGE_KVPOWER_FACTORSPEED_RPMCOOLINGMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

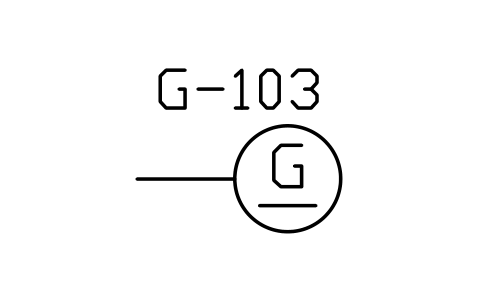

Electrical generator, DC type
PPD_X7052_GENERATOR_DC屬性
TAGSERVICEPOWER_MVAVOLTAGE_KVPOWER_FACTORSPEED_RPMCOOLINGMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

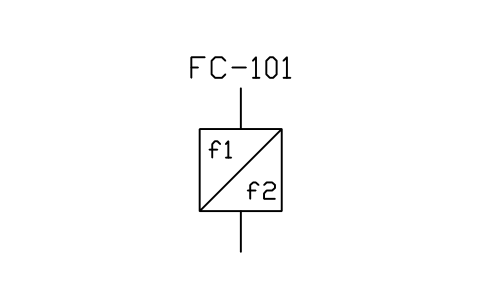

Frequency converter
PPD_753_FREQUENCY_CONVERTER屬性
TAGSERVICEPOWER_KWINPUT_FREQ_HZOUTPUT_FREQ_HZVOLTAGEMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

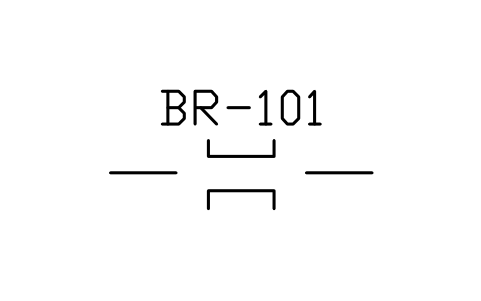

Bearing, general type
PPD_2006_BEARING屬性
TAGSERVICERATIOTORQUE_NMPOWER_KWMATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

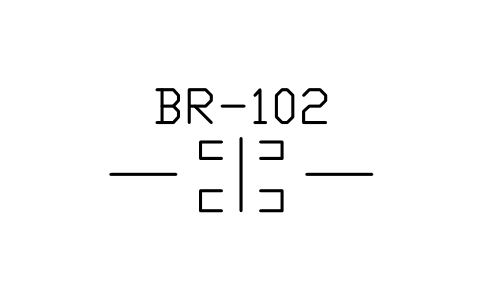

Bearing, thrust type
PPD_P080_BEARING_THRUST屬性
TAGSERVICERATIOTORQUE_NMPOWER_KWMATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

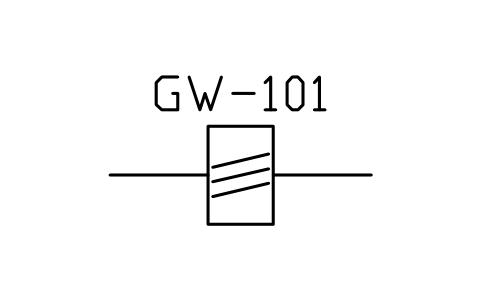

Gearwheel
PPD_P007_GEARWHEEL屬性
TAGSERVICERATIOTORQUE_NMPOWER_KWMATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

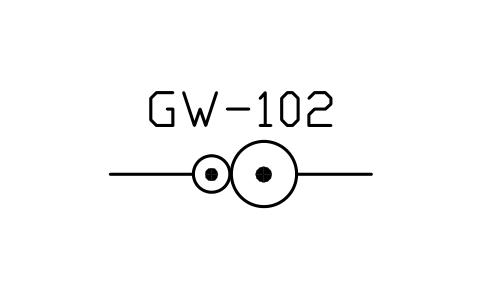

Gear wheels
PPD_P079_GEAR_WHEELS屬性
TAGSERVICERATIOTORQUE_NMPOWER_KWMATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

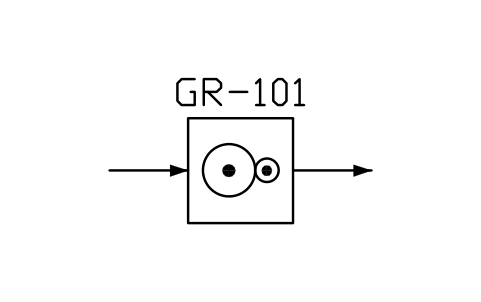

Gear, fixed ratio, speed increasing
PPD_X7101_GEAR_INCREASING屬性
TAGSERVICERATIOTORQUE_NMPOWER_KWMATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

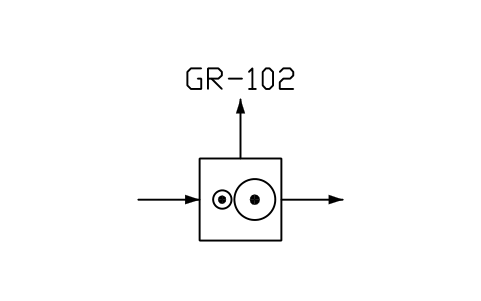

Gear, fixed ratio, speed decreasing
PPD_X7102_GEAR_DECREASING屬性
TAGSERVICERATIOTORQUE_NMPOWER_KWMATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

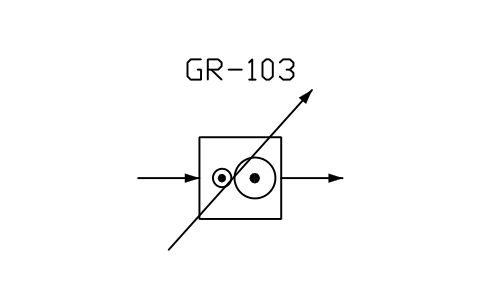

Gear, variable ratio
PPD_X7103_GEAR_VARIABLE屬性
TAGSERVICERATIOTORQUE_NMPOWER_KWMATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC
Coupling, general
PPD_P006_COUPLING屬性
TAGSERVICERATIOTORQUE_NMPOWER_KWMATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

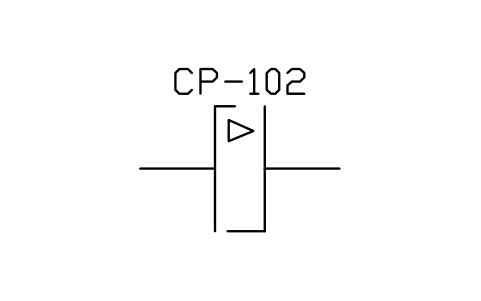

Coupling, pneumatic type
PPD_X7110_COUPLING_PNEUMATIC屬性
TAGSERVICERATIOTORQUE_NMPOWER_KWMATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

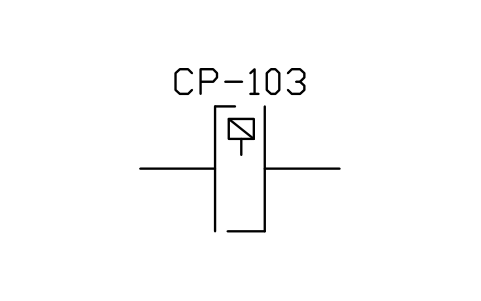

Coupling, electromagnetic type
PPD_X7111_COUPLING_ELECTROMAGNETIC屬性
TAGSERVICERATIOTORQUE_NMPOWER_KWMATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

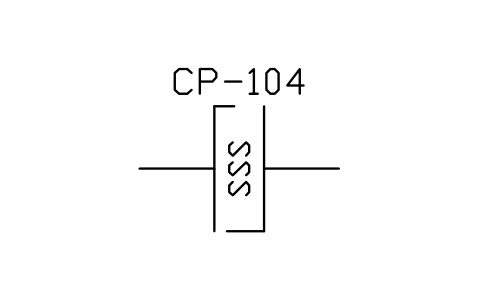

Coupling, SSS type
PPD_X7112_COUPLING_SSS屬性
TAGSERVICERATIOTORQUE_NMPOWER_KWMATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

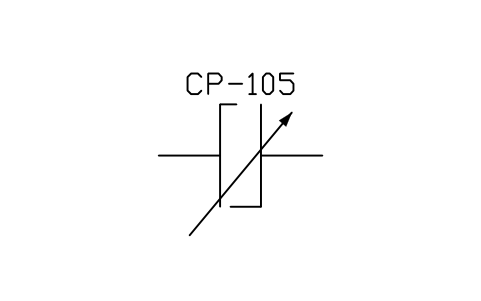

Coupling, variable speed ratio
PPD_X7113_COUPLING_VARIABLE屬性
TAGSERVICERATIOTORQUE_NMPOWER_KWMATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

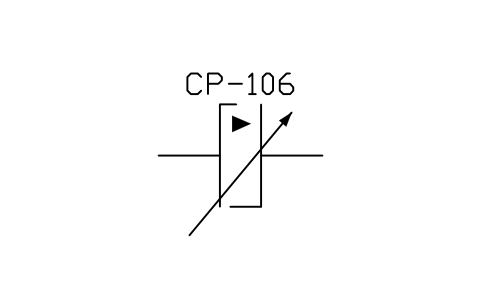

Coupling, variable, hydraulic
PPD_X7114_COUPLING_VARIABLE_HYD屬性
TAGSERVICERATIOTORQUE_NMPOWER_KWMATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

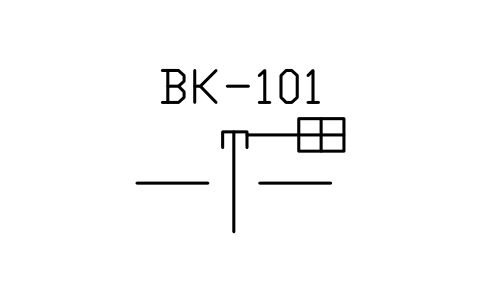

Brake, disc type, cylinder actuated
PPD_X7140_BRAKE_DISC屬性
TAGSERVICERATIOTORQUE_NMPOWER_KWMATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

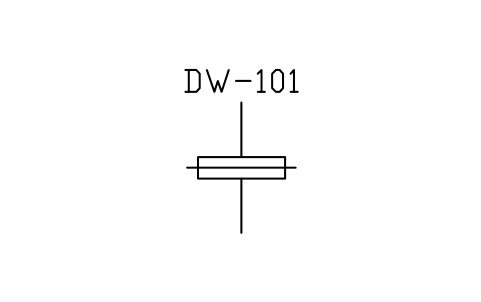

Drive wheel, belt type
PPD_P094_DRIVE_WHEEL_BELT屬性
TAGSERVICERATIOTORQUE_NMPOWER_KWMATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

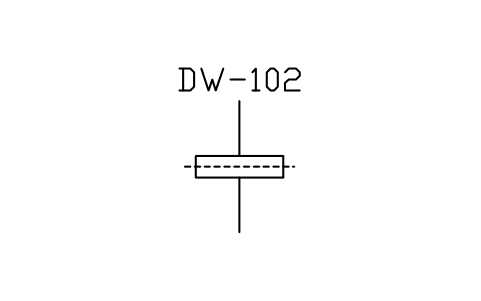

Drive wheel, chain type
PPD_P095_DRIVE_WHEEL_CHAIN屬性
TAGSERVICERATIOTORQUE_NMPOWER_KWMATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

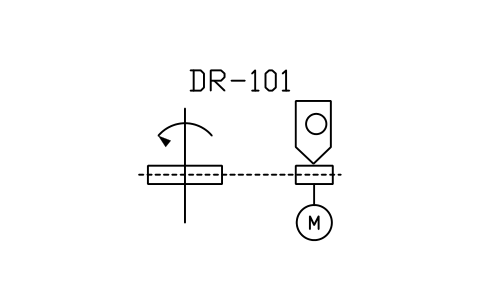

Chain drive, motor and sensor
PPD_X7150_CHAIN_DRIVE_MOTOR屬性
TAGSERVICERATIOTORQUE_NMPOWER_KWMATERIALMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

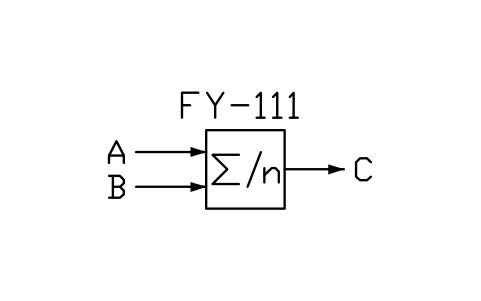

儀表和控制
63 個圖塊，用於量測和控制：製程控制資訊符號，溫度、料位、重量、流量、轉速、振動和位置感測器，信號、緊急停止，以及設定值、控制器、積分器、選擇器和各種運算功能等控制處理元件。
使用 AutoCAD 2017 或更早的版本？ 下載 2010 格式
共 63 個符號，顯示 63 個

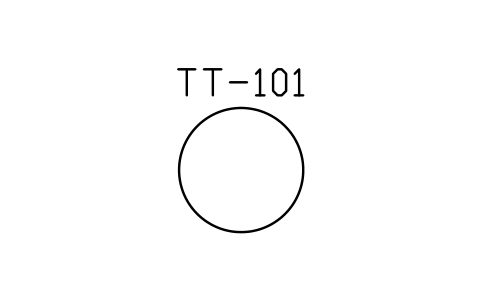

PCI, circle form, field mounted
PPD_X7201_PCI_CIRCLE_FIELD屬性
TAGSERVICERANGEUNITSIGNALLOCATIONMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

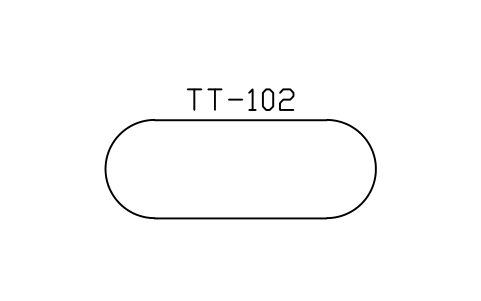

PCI, extended form, field mounted
PPD_X7202_PCI_EXT_FIELD屬性
TAGSERVICERANGEUNITSIGNALLOCATIONMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

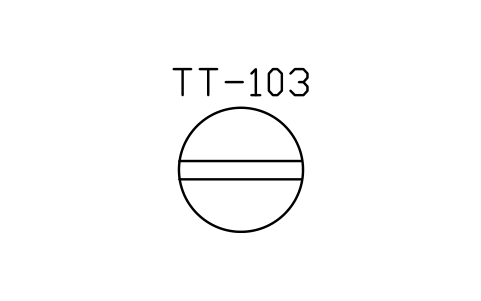

PCI, circle form, local control system
PPD_X7203_PCI_CIRCLE_LOCAL屬性
TAGSERVICERANGEUNITSIGNALLOCATIONMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

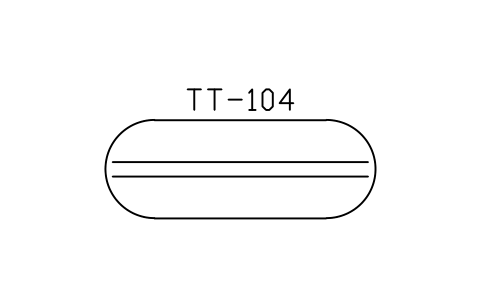

PCI, extended form, local control system
PPD_X7204_PCI_EXT_LOCAL屬性
TAGSERVICERANGEUNITSIGNALLOCATIONMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

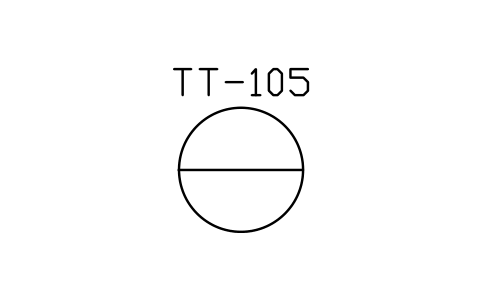

PCI, circle form, central control system
PPD_X7205_PCI_CIRCLE_CENTRAL屬性
TAGSERVICERANGEUNITSIGNALLOCATIONMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

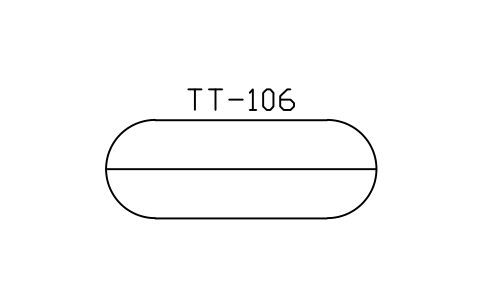

PCI, extended form, central control system
PPD_X7206_PCI_EXT_CENTRAL屬性
TAGSERVICERANGEUNITSIGNALLOCATIONMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

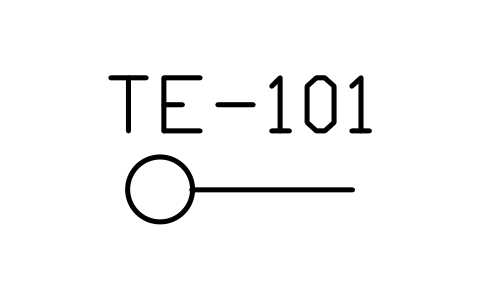

Point of measurement
PPD_1011_POINT_OF_MEASUREMENT屬性
TAGSERVICERANGEUNITSIGNALLOCATIONMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

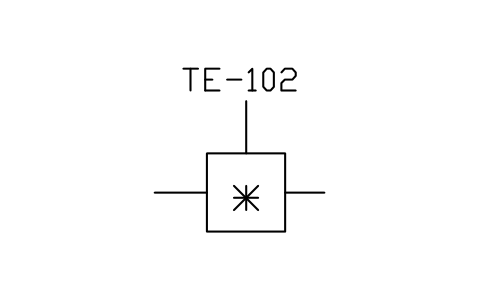

Sensor, built-in type, general
PPD_X7270_SENSOR_BUILT_IN屬性
TAGSERVICERANGEUNITSIGNALLOCATIONMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

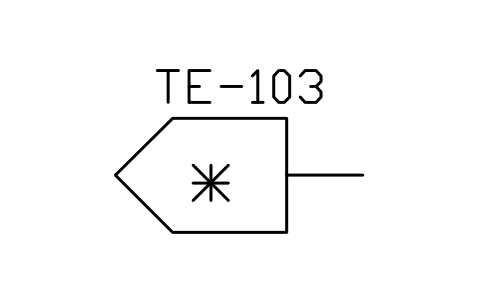

Sensor, general
PPD_751_SENSOR屬性
TAGSERVICERANGEUNITSIGNALLOCATIONMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

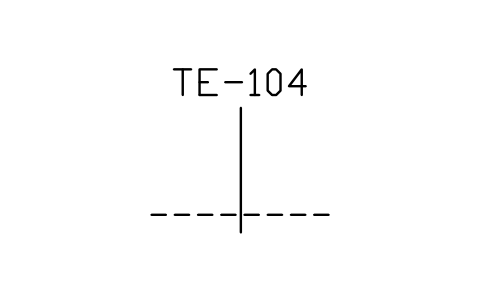

Temperature measurement in line or duct
PPD_X7230_TEMP_IN_LINE屬性
TAGSERVICERANGEUNITSIGNALLOCATIONMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

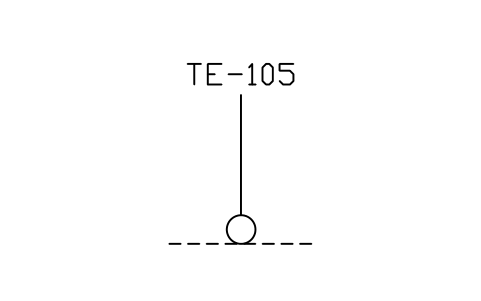

Temperature gradient, outside
PPD_X7240_TEMP_GRADIENT_OUTSIDE屬性
TAGSERVICERANGEUNITSIGNALLOCATIONMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

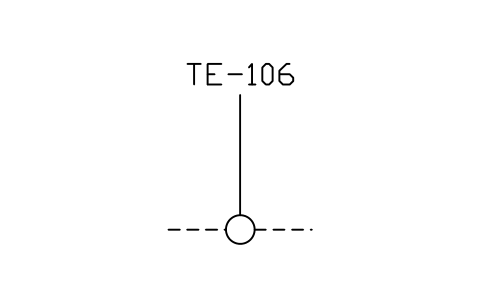

Temperature gradient, middle
PPD_X7241_TEMP_GRADIENT_MIDDLE屬性
TAGSERVICERANGEUNITSIGNALLOCATIONMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

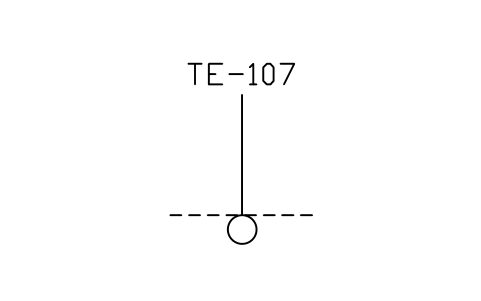

Temperature gradient, inside
PPD_X7242_TEMP_GRADIENT_INSIDE屬性
TAGSERVICERANGEUNITSIGNALLOCATIONMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

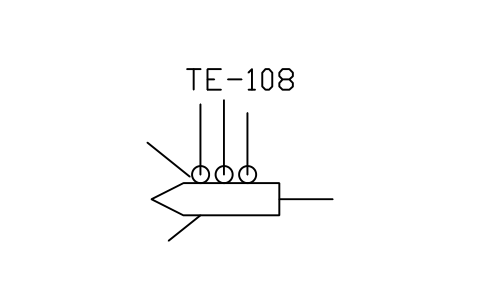

Temperature gradient on Y-piece
PPD_X7243_TEMP_GRADIENT_Y_PIECE屬性
TAGSERVICERANGEUNITSIGNALLOCATIONMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

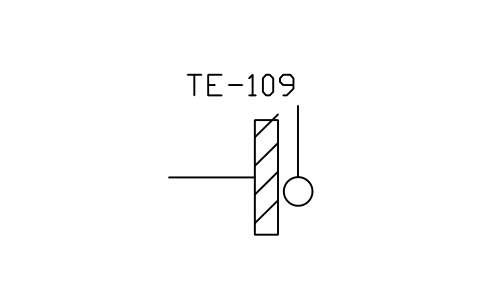

Temperature measurement, outdoor
PPD_X7344_TEMP_OUTDOOR屬性
TAGSERVICERANGEUNITSIGNALLOCATIONMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

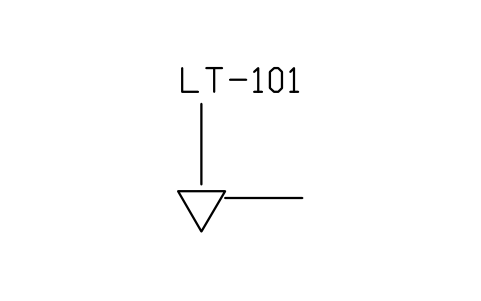

Level, general
PPD_X7250_LEVEL屬性
TAGSERVICERANGEUNITSIGNALLOCATIONMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

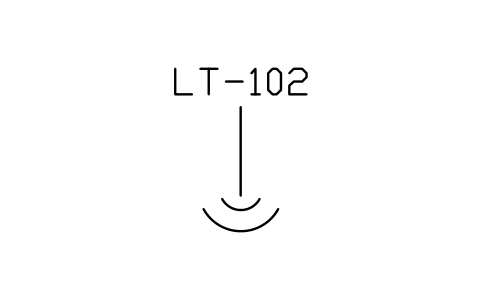

Level, ultrasonic or radar type
PPD_X7251_LEVEL_ULTRASONIC屬性
TAGSERVICERANGEUNITSIGNALLOCATIONMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

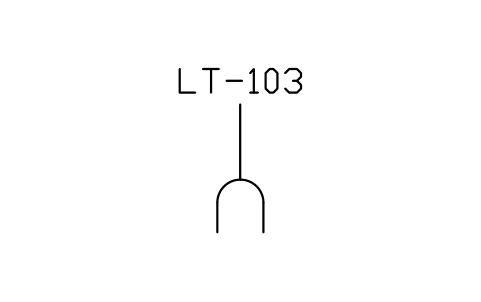

Level, vibration type
PPD_X7253_LEVEL_VIBRATION屬性
TAGSERVICERANGEUNITSIGNALLOCATIONMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

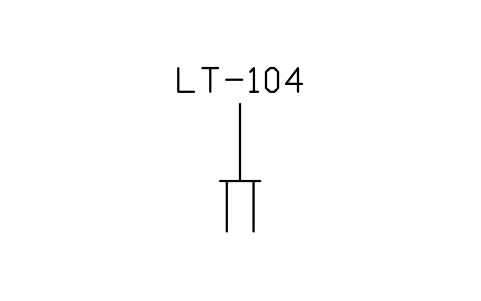

Level, electrode type, general
PPD_X7254_LEVEL_ELECTRODE屬性
TAGSERVICERANGEUNITSIGNALLOCATIONMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

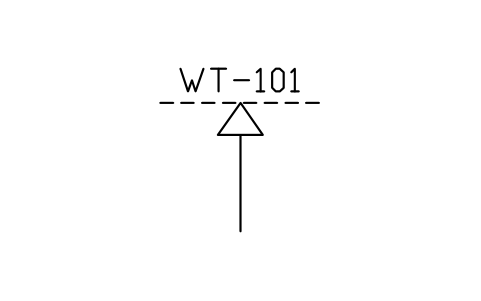

Weighing cell
PPD_X7261_WEIGHING_CELL屬性
TAGSERVICERANGEUNITSIGNALLOCATIONMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

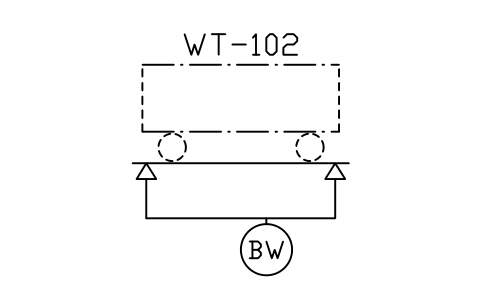

Weighing bridge for railway wagons
PPD_X7262_WEIGHING_BRIDGE_RAIL屬性
TAGSERVICERANGEUNITSIGNALLOCATIONMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

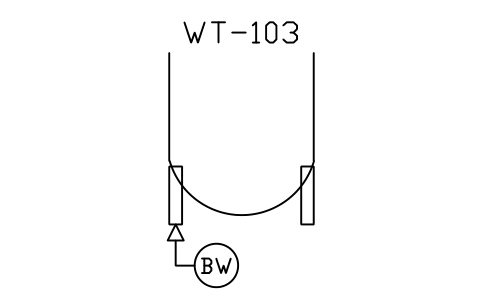

Weighing cell on tank
PPD_X7263_WEIGHING_CELL_TANK屬性
TAGSERVICERANGEUNITSIGNALLOCATIONMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

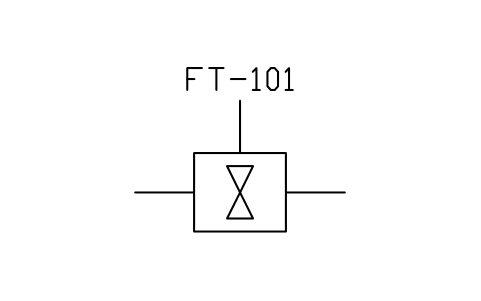

Propeller or turbine meter
PPD_X7271_FLOW_PROPELLER屬性
TAGSERVICERANGEUNITSIGNALLOCATIONMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

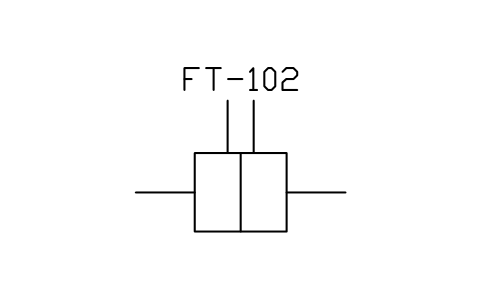

Orifice plate
PPD_X7272_ORIFICE_PLATE屬性
TAGSERVICERANGEUNITSIGNALLOCATIONMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

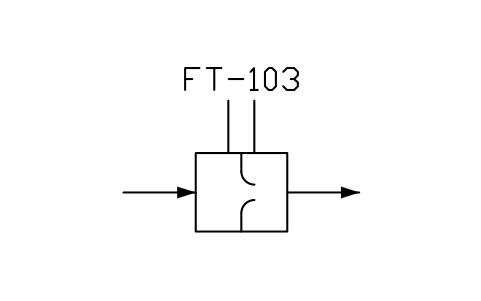

Flow nozzle
PPD_X7273_FLOW_NOZZLE屬性
TAGSERVICERANGEUNITSIGNALLOCATIONMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

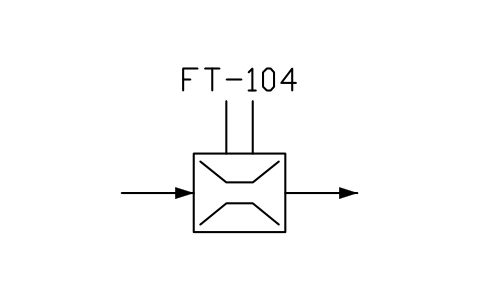

Venturi nozzle
PPD_X7274_VENTURI_NOZZLE屬性
TAGSERVICERANGEUNITSIGNALLOCATIONMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

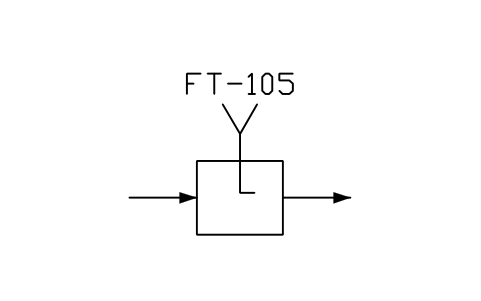

Pitot tube
PPD_X7275_PITOT_TUBE屬性
TAGSERVICERANGEUNITSIGNALLOCATIONMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

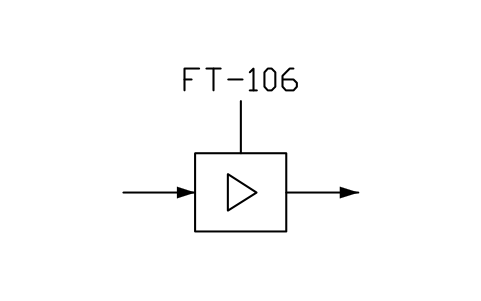

Vortex flow meter
PPD_X7276_VORTEX屬性
TAGSERVICERANGEUNITSIGNALLOCATIONMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

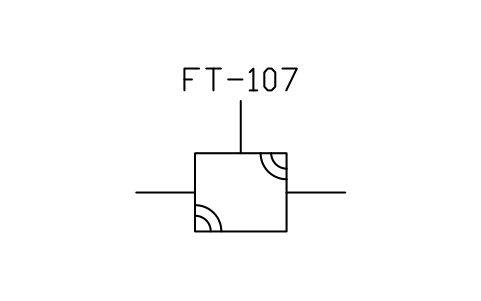

Ultrasonic flow meter, inline
PPD_X7277_ULTRASONIC_INLINE屬性
TAGSERVICERANGEUNITSIGNALLOCATIONMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

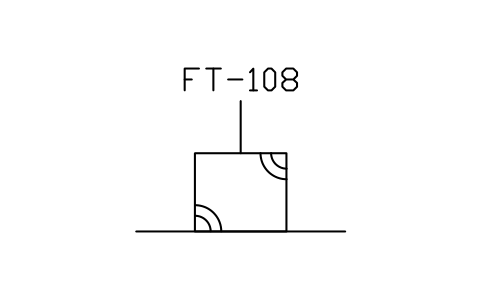

Ultrasonic flow meter, clamp-on
PPD_X7278_ULTRASONIC_CLAMP屬性
TAGSERVICERANGEUNITSIGNALLOCATIONMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

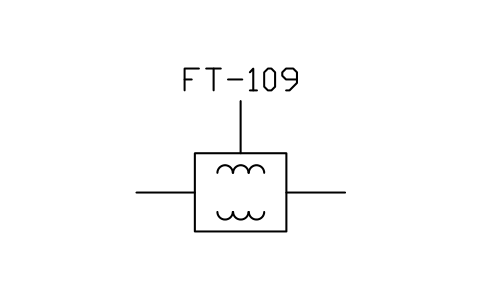

Magnetic flow meter
PPD_X7279_MAGNETIC_FLOW屬性
TAGSERVICERANGEUNITSIGNALLOCATIONMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

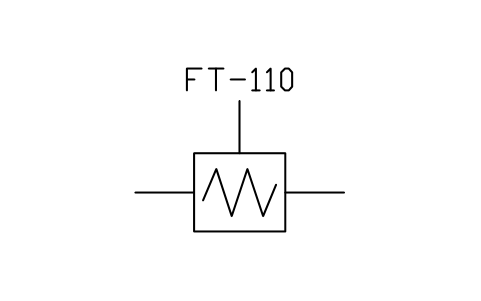

Coriolis flow meter
PPD_X7280_CORIOLIS屬性
TAGSERVICERANGEUNITSIGNALLOCATIONMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

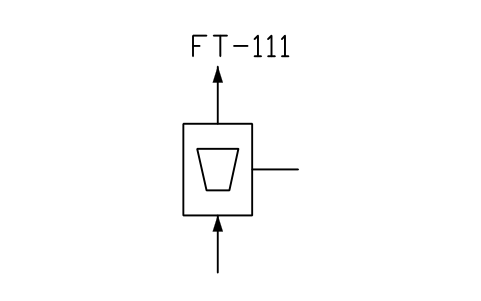

Variable area flow meter
PPD_X7281_VARIABLE_AREA屬性
TAGSERVICERANGEUNITSIGNALLOCATIONMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

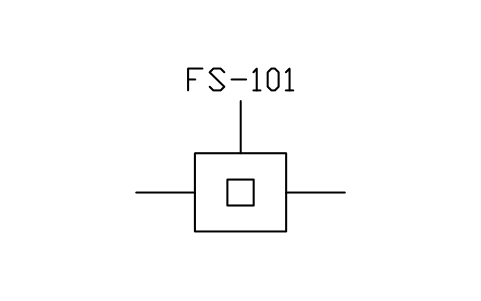

Flow switch, paddle type
PPD_X7282_FLOW_SWITCH_PADDLE屬性
TAGSERVICERANGEUNITSIGNALLOCATIONMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

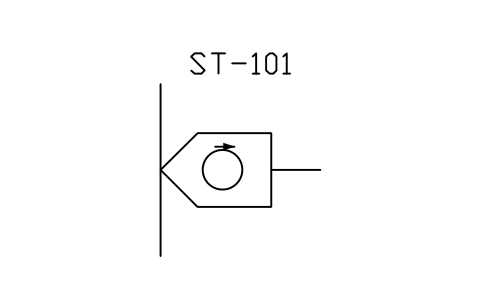

Sensor, rotation
PPD_P127_SENSOR_ROTATION屬性
TAGSERVICERANGEUNITSIGNALLOCATIONMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

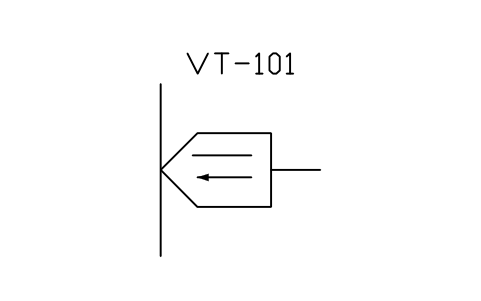

Sensor, vibration, general
PPD_P128_SENSOR_VIBRATION屬性
TAGSERVICERANGEUNITSIGNALLOCATIONMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

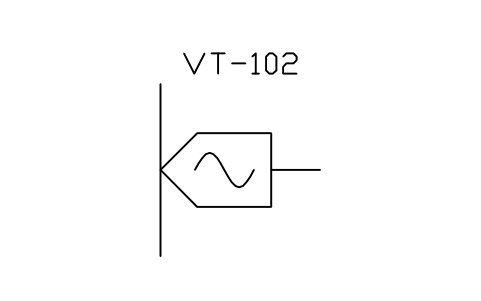

Sensor, vibration, rotating machines
PPD_P129_SENSOR_VIBRATION_ROT屬性
TAGSERVICERANGEUNITSIGNALLOCATIONMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

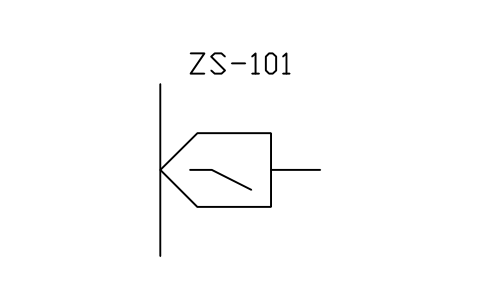

Limit switch, mechanical type
PPD_X7290_LIMIT_SWITCH_MECH屬性
TAGSERVICERANGEUNITSIGNALLOCATIONMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

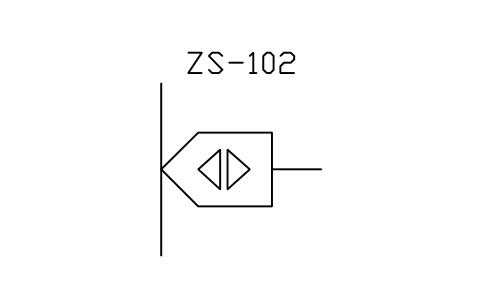

Limit switch, proximity type
PPD_X7291_LIMIT_SWITCH_PROX屬性
TAGSERVICERANGEUNITSIGNALLOCATIONMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

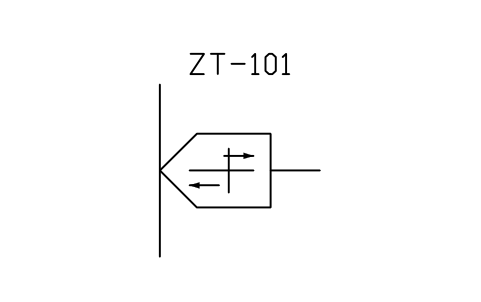

Sensor, axial displacement
PPD_P126_SENSOR_AXIAL屬性
TAGSERVICERANGEUNITSIGNALLOCATIONMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

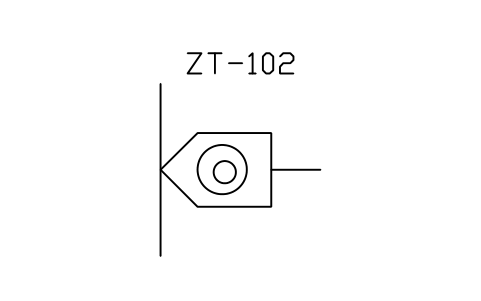

Sensor, eccentricity, rotating machines
PPD_P130_SENSOR_ECCENTRICITY屬性
TAGSERVICERANGEUNITSIGNALLOCATIONMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC
Signal, analogue
PPD_234_SIGNAL_ANALOGUE屬性
TAGSERVICERANGEUNITSIGNALLOCATIONMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC
Signal, digital
PPD_235_SIGNAL_DIGITAL屬性
TAGSERVICERANGEUNITSIGNALLOCATIONMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

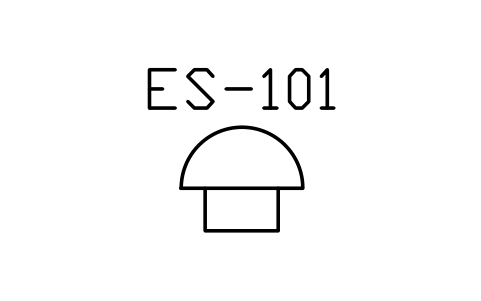

Emergency stop
PPD_X7283_EMERGENCY_STOP屬性
TAGSERVICERANGEUNITSIGNALLOCATIONMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

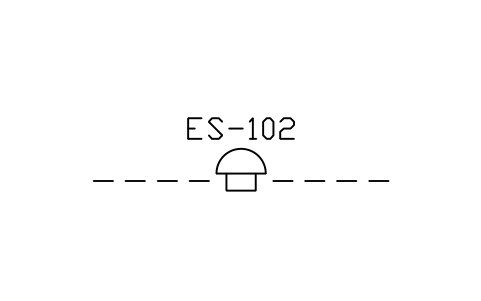

Emergency wire stop along conveyor
PPD_X7284_EMERGENCY_WIRE_STOP屬性
TAGSERVICERANGEUNITSIGNALLOCATIONMANUFACTURERMODELREMARKSSTD_CLAUSESTD_REFDESC

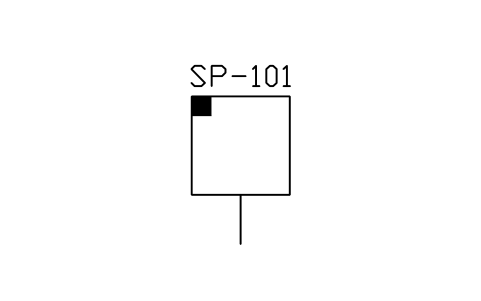

Set point, form 1
PPD_P100_SET_POINT_1屬性
TAGSERVICESETTINGINPUTOUTPUTLOCATIONREMARKSSTD_CLAUSESTD_REFDESC

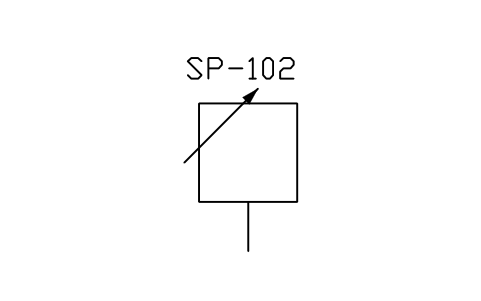

Set point, form 2
PPD_X7363_SET_POINT_2屬性
TAGSERVICESETTINGINPUTOUTPUTLOCATIONREMARKSSTD_CLAUSESTD_REFDESC

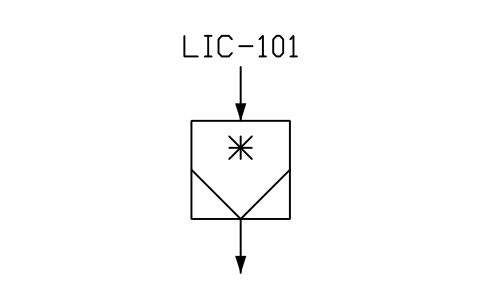

Controller, general
PPD_895_CONTROLLER屬性
TAGSERVICESETTINGINPUTOUTPUTLOCATIONREMARKSSTD_CLAUSESTD_REFDESC

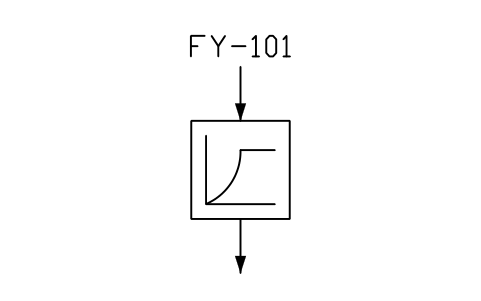

Control integrator
PPD_X7352_INTEGRATOR屬性
TAGSERVICESETTINGINPUTOUTPUTLOCATIONREMARKSSTD_CLAUSESTD_REFDESC

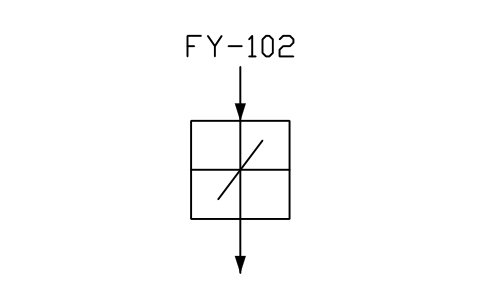

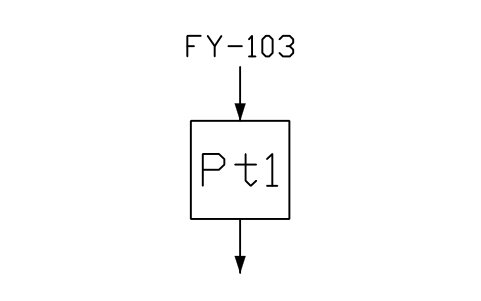

First order delay
PPD_X7354_FIRST_ORDER_DELAY屬性
TAGSERVICESETTINGINPUTOUTPUTLOCATIONREMARKSSTD_CLAUSESTD_REFDESC

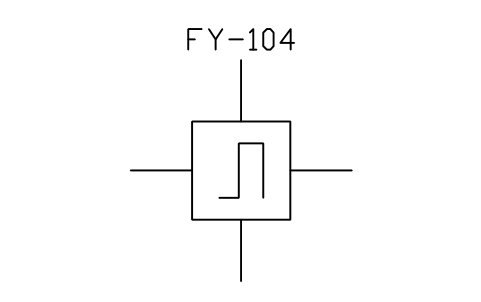

Limit value, high or low
PPD_X7364_LIMIT_VALUE屬性
TAGSERVICESETTINGINPUTOUTPUTLOCATIONREMARKSSTD_CLAUSESTD_REFDESC

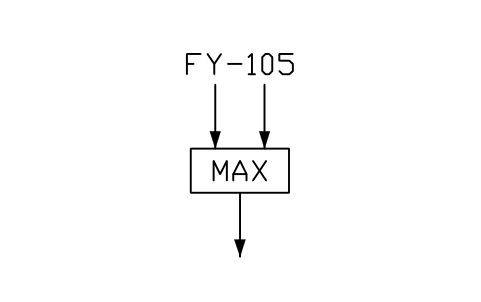

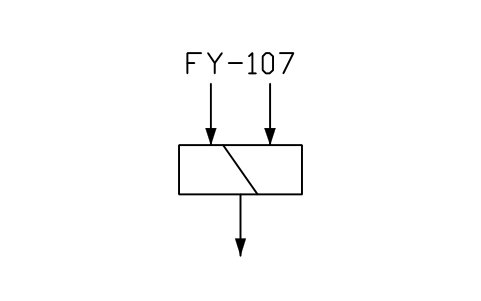

Maximum selector
PPD_X7359_MAX_SELECTOR屬性
TAGSERVICESETTINGINPUTOUTPUTLOCATIONREMARKSSTD_CLAUSESTD_REFDESC

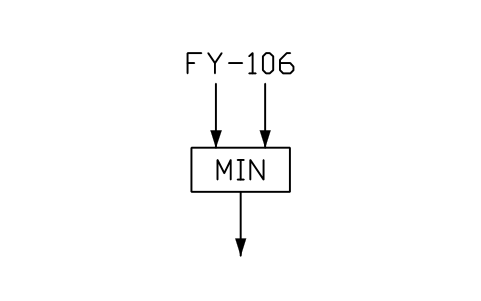

Minimum selector
PPD_X7360_MIN_SELECTOR屬性
TAGSERVICESETTINGINPUTOUTPUTLOCATIONREMARKSSTD_CLAUSESTD_REFDESC

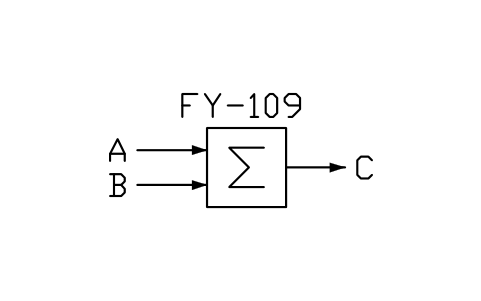

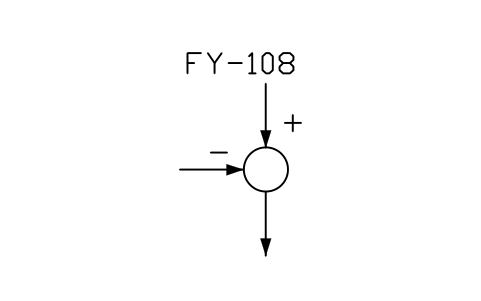

Subtraction
PPD_X7358_SUBTRACTION屬性
TAGSERVICESETTINGINPUTOUTPUTLOCATIONREMARKSSTD_CLAUSESTD_REFDESC
Difference
PPD_X7355_DIFFERENCE屬性
TAGSERVICESETTINGINPUTOUTPUTLOCATIONREMARKSSTD_CLAUSESTD_REFDESC

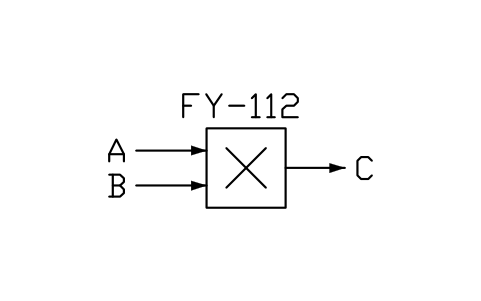

Multiplication
PPD_X7356_MULTIPLICATION屬性
TAGSERVICESETTINGINPUTOUTPUTLOCATIONREMARKSSTD_CLAUSESTD_REFDESC

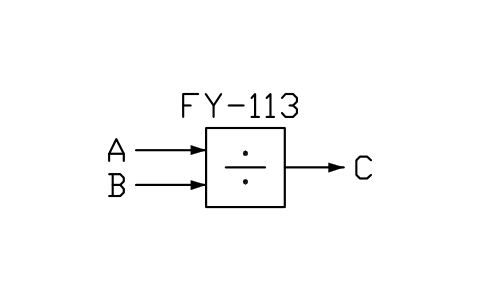

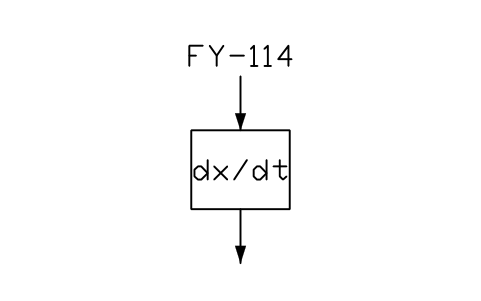

Differentiation
PPD_X7350_DIFFERENTIATION屬性
TAGSERVICESETTINGINPUTOUTPUTLOCATIONREMARKSSTD_CLAUSESTD_REFDESC

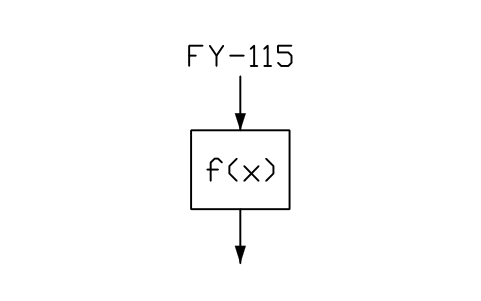

Polygon table
PPD_X7351_POLYGON_TABLE屬性
TAGSERVICESETTINGINPUTOUTPUTLOCATIONREMARKSSTD_CLAUSESTD_REFDESC
找不到需要的符號？告訴我們名稱就好。
用於零件清單的屬性
每個圖塊符號旁邊有一個可見標籤（例如鍋爐用 B-101，汽輪機用 ST-101，電動機用 M-101，發電機用 G-101）。設備清單所需的資料保存在隱藏屬性裡，例如 SERVICE、POWER_MW、SPEED_RPM、INLET_PRESSURE_BAR、FUEL 和 MANUFACTURER。STD_CLAUSE 和 STD_REF 保存該符號在 ISO 14084-2 中的條目號和註冊號（例如 X6904），方便回到標準裡查對。
用 BlockSync 把製程流程圖中的圖塊匯出到 Excel，產生設備清單，核對後一次寫回圖面，寫回前可預覽並自動備份。
怎麼使用這個符號庫
- 解壓檔案，開啟 DWG。把需要的符號複製到你的平面圖裡，或者從設計中心（ADCENTER）把圖塊拖進來。
- 符號以毫米為單位，依標準的 2.5 mm 模數繪製，尺寸在 5 到 30 mm 之間。以 1:1 插入，再依圖面大小整體縮放。煙囪、燃氣輪機等個別很大的符號做了縮小，保持可用的尺寸。
- 接口是標準中畫出的短線或箭頭。標準在鍋爐符號上畫的 * 表示燃燒或加熱系統的類型：在旁邊放置鍋爐章節裡對應的符號即可。
- 在標準的兩個章節裡都出現的符號（例如軸）在兩節中使用相同的塊名，所以兩個 DWG 檔案可以用在同一張圖裡。
關於 ISO 14084-2
ISO 14084-2:2015 規定了發電廠製程流程圖的圖形符號：管道和介質線、管件、閥門、機械、鍋爐、汽輪機和儀表。每個條目有條目號、註冊號和依 IEC 81346-2 的兩位字母代碼。這個庫把標準裡的條目重新繪製成圖塊。
圖塊是我們依標準自己繪製的，並非複製，庫也未經認證。本庫沒有與 DL/T 5028.2 等國內電力標準逐項核對。請對照專案圖例檢查，不一致時修改圖塊。
常見問題
- 庫裡有 ISO 14084-2 的全部符號嗎？
- 庫依標準的章節逐節重繪各節的符號；本頁列出了各節及其符號數量。每個符號的條目號和註冊號都存放在圖塊裡，可以回到標準裡核對。
- 為什麼分成多個 DWG 檔案？
- 標準有大約 480 個符號，全放在一個 DWG 裡瀏覽很慢，所以依標準的章節拆分：鍋爐和機械、閥門、泵、儀表等等。需要哪一節就下載哪一節；塊名互不衝突，可以在同一張圖裡使用多節。
- 可以用在商業專案裡嗎？
- 可以。可免費用於你自己的專案並可修改，包括商業專案。按現狀提供，不作任何擔保。
- 泵和閥門的畫法和 P&ID 庫、電力系統庫一樣嗎？
- ISO 14084-2 對電力產業有自己畫法的地方，圖塊依標準繪製。P&ID 庫（ISO 10628-2）和電力系統庫收錄通用畫法和電氣畫法。請選擇與圖面所依據標準一致的那一種。
- 可以修改符號或增加屬性嗎？
- 可以。開啟 DWG，用 BEDIT 編輯圖塊，修改或增加屬性，然後儲存。要更新已經含有該圖塊的圖面，可以執行 ATTSYNC 或替換該圖塊。請先備份：如果隨意使用 ATTSYNC，屬性值可能遺失。
- 在哪裡可以找到 AutoCAD 用的整套現成符號？
- AutoCAD 內建的只有少量範例圖塊，完整的符號需要從符號庫取得。下載本頁的 ZIP，開啟其中的 DWG，每個符號都是一個圖塊。用 INSERT 指令插入（圖塊選項板的「程式庫」索引標籤裡選這個 DWG），或從 DesignCenter（ADCENTER）拖進圖面。也可以只下載單一符號。
統計符號，生成零件清單
額定值和零件編號都是屬性，所以整個專案的符號可以不開啟圖面就統計和列表。把圖塊匯出到 Excel，用資料透視表彙總，再一次執行把修正寫回，過程中有預覽和備份。
看看怎樣用 BlockSync 統計圖塊
