RisorseLibrerie di simboli DWGO-ring, ISO 3601
Sezione 3,53 mm
O-ring, ISO 3601: Sezione 3,53 mm: 84 blocchi AutoCAD (DWG) pronti all'uso, da scaricare gratis e usare nei tuoi progetti, in un unico ZIP o un simbolo alla volta.
84 O-ring di sezione 3,53 mm, codici da 201 a 284: la sezione più usata.
Versione 1.0 · aggiornata il 17 ottobre 2026
Usi AutoCAD 2017 o una versione precedente? Scarica il formato 2010
Liberi da usare e modificare nei tuoi progetti, anche commerciali. Lo ZIP contiene un semplice file DWG in formato AutoCAD 2018 e un README; nessun componente aggiuntivo necessario. Forniti così come sono, senza garanzia.
Librerie di simboli correlate
Si abbina bene a questi strumenti
Devi contare questi simboli nei tuoi disegni?Esporta in Excel tutti i simboli e i loro attributi di un intero set di disegni, modifica le righe e riscrivile.Scopri BlockSync
Questi simboli finiranno in 30 disegni?Sostituisci un simbolo modificato in tutti i disegni in un’unica esecuzione, senza aprire ogni file.Scopri BlockCopy
Quali disegni usano questo simbolo?Cerca blocchi e testi in centinaia di disegni in un colpo solo, poi vai direttamente al risultato.Scopri DwgSearch

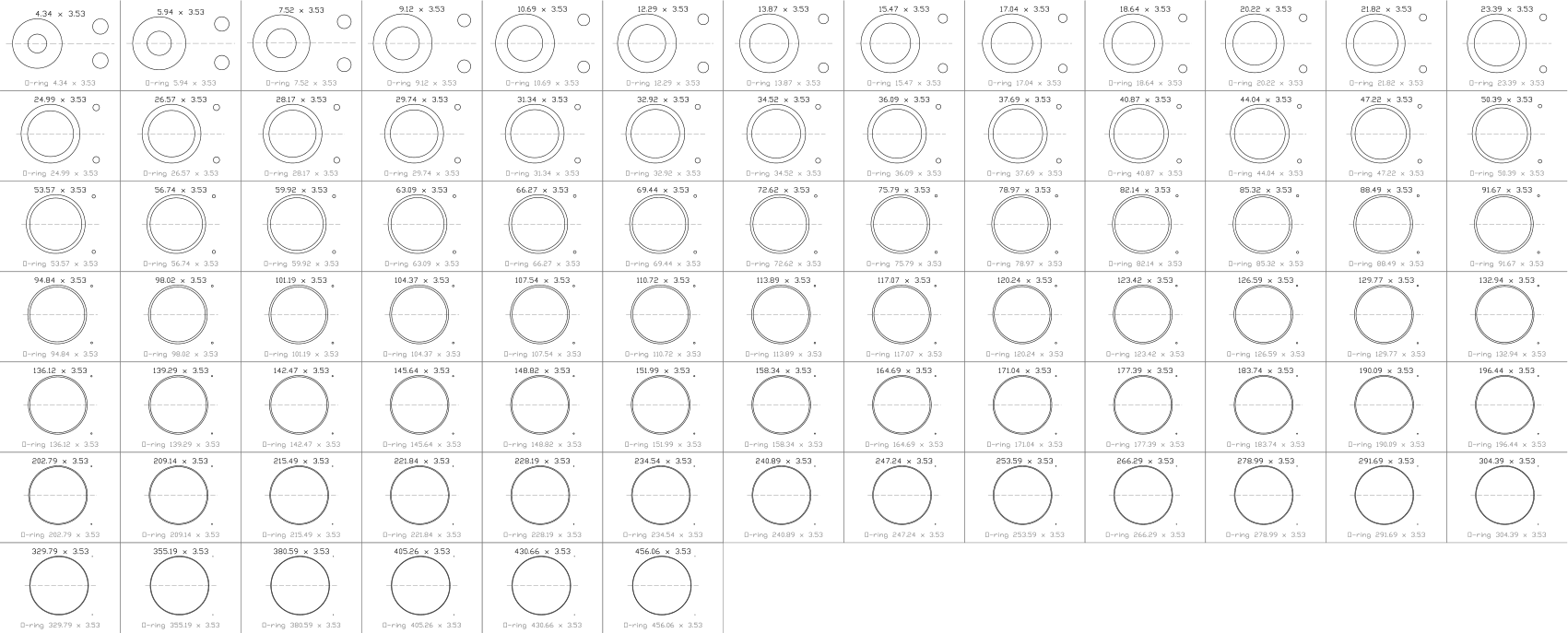

Tutti i 84 simboli
84 simboli su 84

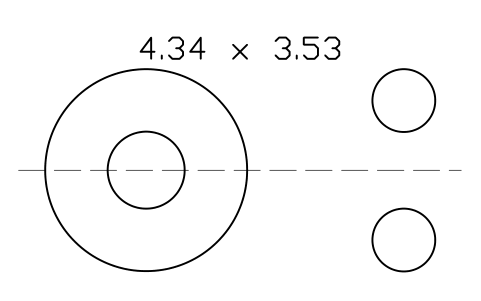

O-ring 4.34 x 3.53
ORG_201Attributi
DESIGNATIONSIZE_CODEID_MMCS_MMSTANDARDMATERIALHARDNESS_IRHDPART_NOMANUFACTURERQTYREMARKSDESC

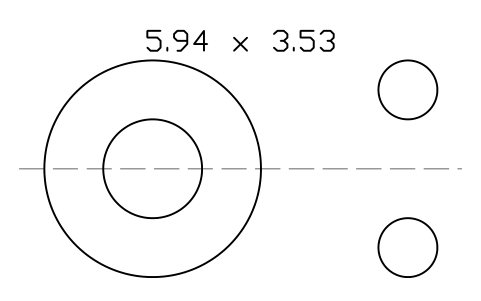

O-ring 5.94 x 3.53
ORG_202Attributi
DESIGNATIONSIZE_CODEID_MMCS_MMSTANDARDMATERIALHARDNESS_IRHDPART_NOMANUFACTURERQTYREMARKSDESC

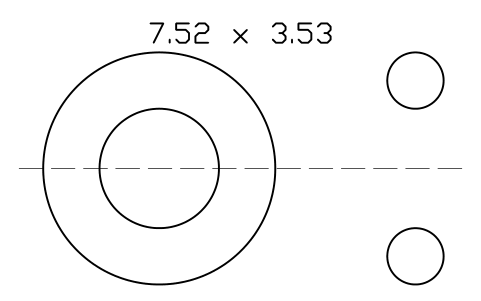

O-ring 7.52 x 3.53
ORG_203Attributi
DESIGNATIONSIZE_CODEID_MMCS_MMSTANDARDMATERIALHARDNESS_IRHDPART_NOMANUFACTURERQTYREMARKSDESC

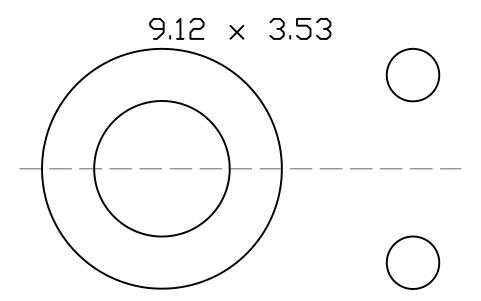

O-ring 9.12 x 3.53
ORG_204Attributi
DESIGNATIONSIZE_CODEID_MMCS_MMSTANDARDMATERIALHARDNESS_IRHDPART_NOMANUFACTURERQTYREMARKSDESC

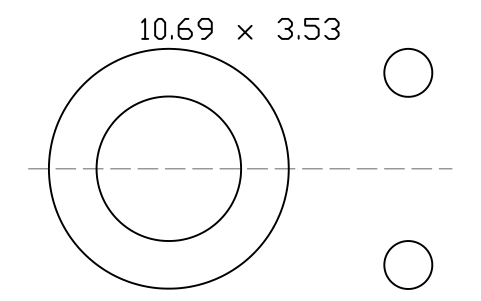

O-ring 10.69 x 3.53
ORG_205Attributi
DESIGNATIONSIZE_CODEID_MMCS_MMSTANDARDMATERIALHARDNESS_IRHDPART_NOMANUFACTURERQTYREMARKSDESC

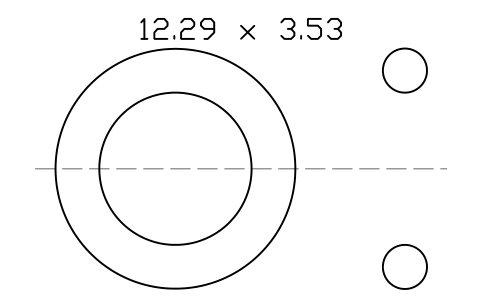

O-ring 12.29 x 3.53
ORG_206Attributi
DESIGNATIONSIZE_CODEID_MMCS_MMSTANDARDMATERIALHARDNESS_IRHDPART_NOMANUFACTURERQTYREMARKSDESC
O-ring 13.87 x 3.53
ORG_207Attributi
DESIGNATIONSIZE_CODEID_MMCS_MMSTANDARDMATERIALHARDNESS_IRHDPART_NOMANUFACTURERQTYREMARKSDESC

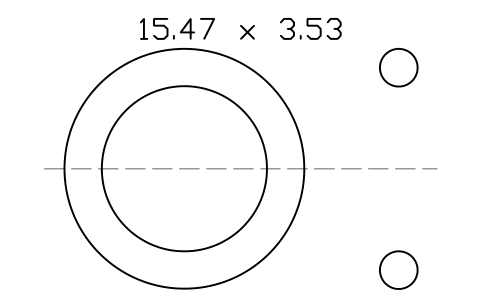

O-ring 15.47 x 3.53
ORG_208Attributi
DESIGNATIONSIZE_CODEID_MMCS_MMSTANDARDMATERIALHARDNESS_IRHDPART_NOMANUFACTURERQTYREMARKSDESC

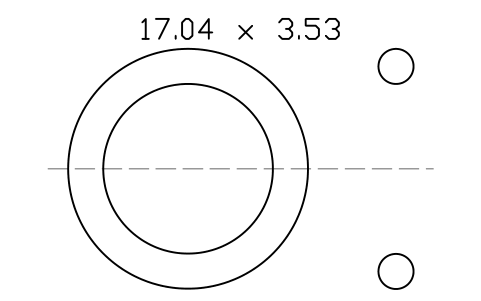

O-ring 17.04 x 3.53
ORG_209Attributi
DESIGNATIONSIZE_CODEID_MMCS_MMSTANDARDMATERIALHARDNESS_IRHDPART_NOMANUFACTURERQTYREMARKSDESC

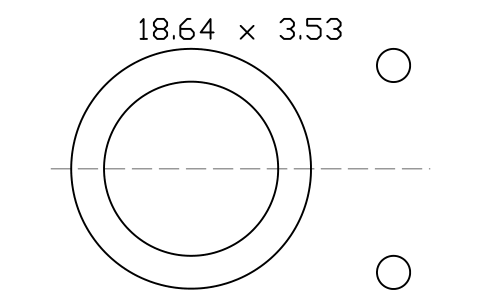

O-ring 18.64 x 3.53
ORG_210Attributi
DESIGNATIONSIZE_CODEID_MMCS_MMSTANDARDMATERIALHARDNESS_IRHDPART_NOMANUFACTURERQTYREMARKSDESC

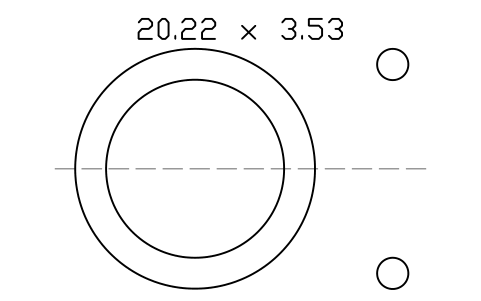

O-ring 20.22 x 3.53
ORG_211Attributi
DESIGNATIONSIZE_CODEID_MMCS_MMSTANDARDMATERIALHARDNESS_IRHDPART_NOMANUFACTURERQTYREMARKSDESC

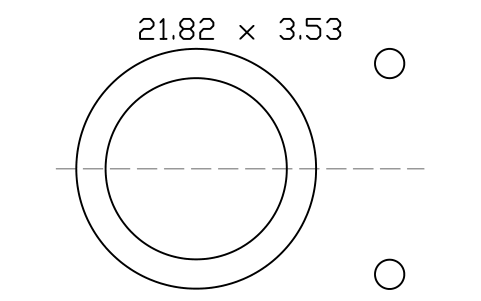

O-ring 21.82 x 3.53
ORG_212Attributi
DESIGNATIONSIZE_CODEID_MMCS_MMSTANDARDMATERIALHARDNESS_IRHDPART_NOMANUFACTURERQTYREMARKSDESC

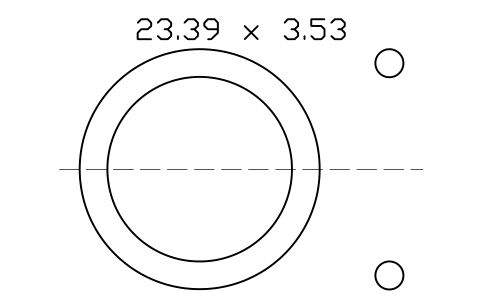

O-ring 23.39 x 3.53
ORG_213Attributi
DESIGNATIONSIZE_CODEID_MMCS_MMSTANDARDMATERIALHARDNESS_IRHDPART_NOMANUFACTURERQTYREMARKSDESC
O-ring 24.99 x 3.53
ORG_214Attributi
DESIGNATIONSIZE_CODEID_MMCS_MMSTANDARDMATERIALHARDNESS_IRHDPART_NOMANUFACTURERQTYREMARKSDESC

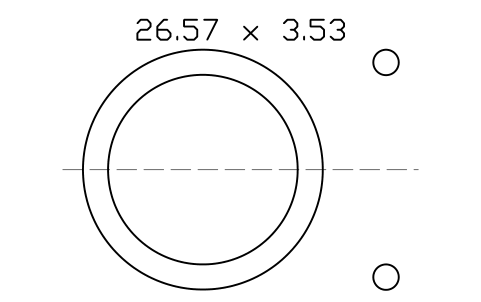

O-ring 26.57 x 3.53
ORG_215Attributi
DESIGNATIONSIZE_CODEID_MMCS_MMSTANDARDMATERIALHARDNESS_IRHDPART_NOMANUFACTURERQTYREMARKSDESC

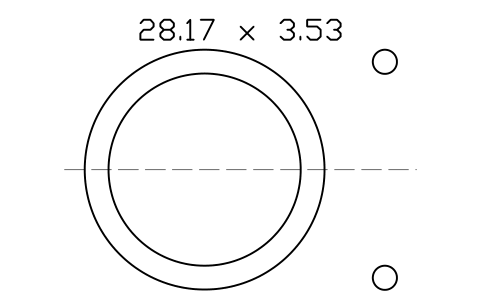

O-ring 28.17 x 3.53
ORG_216Attributi
DESIGNATIONSIZE_CODEID_MMCS_MMSTANDARDMATERIALHARDNESS_IRHDPART_NOMANUFACTURERQTYREMARKSDESC

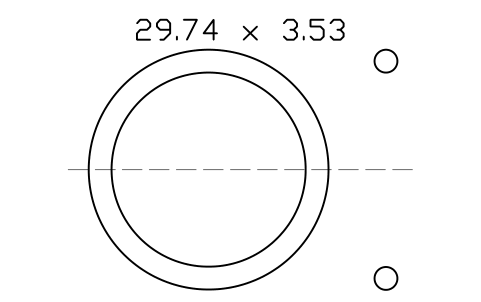

O-ring 29.74 x 3.53
ORG_217Attributi
DESIGNATIONSIZE_CODEID_MMCS_MMSTANDARDMATERIALHARDNESS_IRHDPART_NOMANUFACTURERQTYREMARKSDESC

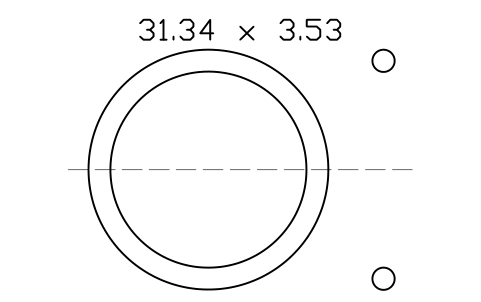

O-ring 31.34 x 3.53
ORG_218Attributi
DESIGNATIONSIZE_CODEID_MMCS_MMSTANDARDMATERIALHARDNESS_IRHDPART_NOMANUFACTURERQTYREMARKSDESC

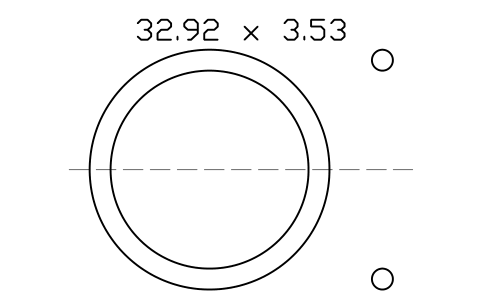

O-ring 32.92 x 3.53
ORG_219Attributi
DESIGNATIONSIZE_CODEID_MMCS_MMSTANDARDMATERIALHARDNESS_IRHDPART_NOMANUFACTURERQTYREMARKSDESC
O-ring 34.52 x 3.53
ORG_220Attributi
DESIGNATIONSIZE_CODEID_MMCS_MMSTANDARDMATERIALHARDNESS_IRHDPART_NOMANUFACTURERQTYREMARKSDESC
O-ring 36.09 x 3.53
ORG_221Attributi
DESIGNATIONSIZE_CODEID_MMCS_MMSTANDARDMATERIALHARDNESS_IRHDPART_NOMANUFACTURERQTYREMARKSDESC

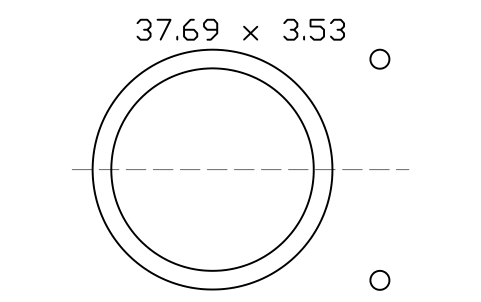

O-ring 37.69 x 3.53
ORG_222Attributi
DESIGNATIONSIZE_CODEID_MMCS_MMSTANDARDMATERIALHARDNESS_IRHDPART_NOMANUFACTURERQTYREMARKSDESC

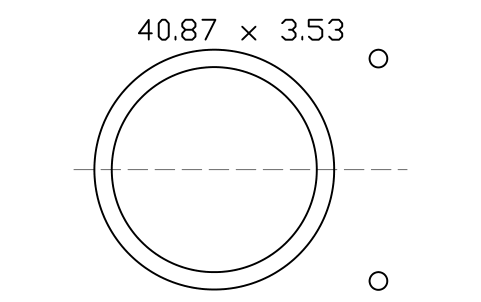

O-ring 40.87 x 3.53
ORG_223Attributi
DESIGNATIONSIZE_CODEID_MMCS_MMSTANDARDMATERIALHARDNESS_IRHDPART_NOMANUFACTURERQTYREMARKSDESC
O-ring 44.04 x 3.53
ORG_224Attributi
DESIGNATIONSIZE_CODEID_MMCS_MMSTANDARDMATERIALHARDNESS_IRHDPART_NOMANUFACTURERQTYREMARKSDESC

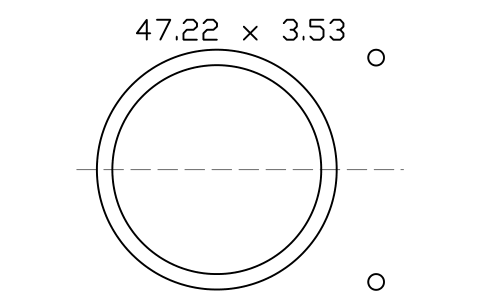

O-ring 47.22 x 3.53
ORG_225Attributi
DESIGNATIONSIZE_CODEID_MMCS_MMSTANDARDMATERIALHARDNESS_IRHDPART_NOMANUFACTURERQTYREMARKSDESC
O-ring 50.39 x 3.53
ORG_226Attributi
DESIGNATIONSIZE_CODEID_MMCS_MMSTANDARDMATERIALHARDNESS_IRHDPART_NOMANUFACTURERQTYREMARKSDESC

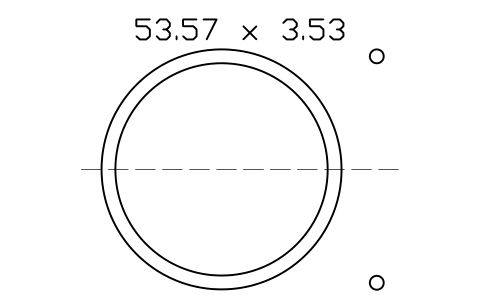

O-ring 53.57 x 3.53
ORG_227Attributi
DESIGNATIONSIZE_CODEID_MMCS_MMSTANDARDMATERIALHARDNESS_IRHDPART_NOMANUFACTURERQTYREMARKSDESC

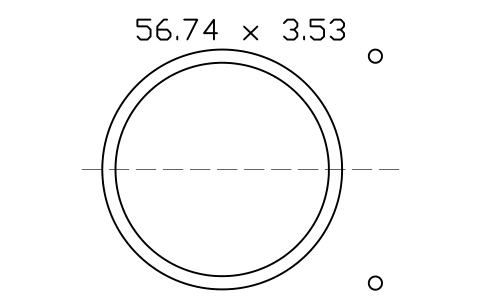

O-ring 56.74 x 3.53
ORG_228Attributi
DESIGNATIONSIZE_CODEID_MMCS_MMSTANDARDMATERIALHARDNESS_IRHDPART_NOMANUFACTURERQTYREMARKSDESC

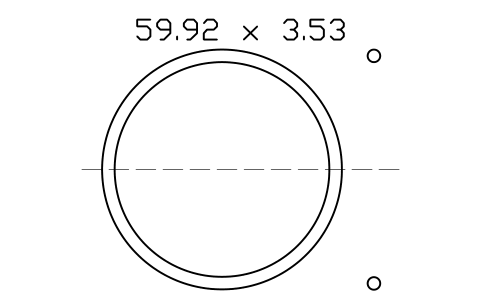

O-ring 59.92 x 3.53
ORG_229Attributi
DESIGNATIONSIZE_CODEID_MMCS_MMSTANDARDMATERIALHARDNESS_IRHDPART_NOMANUFACTURERQTYREMARKSDESC

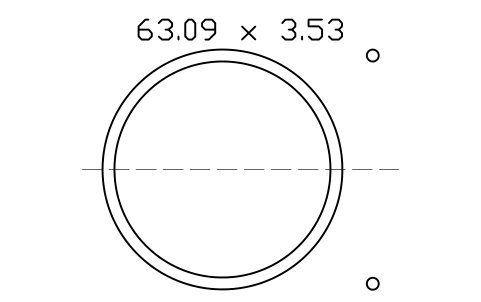

O-ring 63.09 x 3.53
ORG_230Attributi
DESIGNATIONSIZE_CODEID_MMCS_MMSTANDARDMATERIALHARDNESS_IRHDPART_NOMANUFACTURERQTYREMARKSDESC

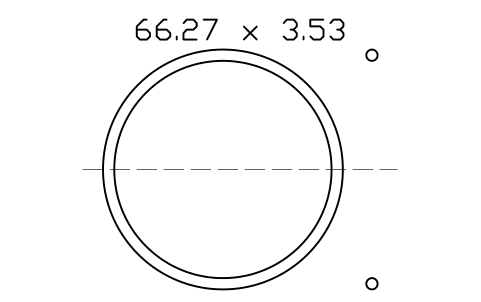

O-ring 66.27 x 3.53
ORG_231Attributi
DESIGNATIONSIZE_CODEID_MMCS_MMSTANDARDMATERIALHARDNESS_IRHDPART_NOMANUFACTURERQTYREMARKSDESC
O-ring 69.44 x 3.53
ORG_232Attributi
DESIGNATIONSIZE_CODEID_MMCS_MMSTANDARDMATERIALHARDNESS_IRHDPART_NOMANUFACTURERQTYREMARKSDESC

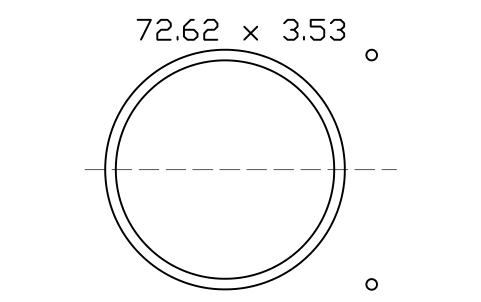

O-ring 72.62 x 3.53
ORG_233Attributi
DESIGNATIONSIZE_CODEID_MMCS_MMSTANDARDMATERIALHARDNESS_IRHDPART_NOMANUFACTURERQTYREMARKSDESC

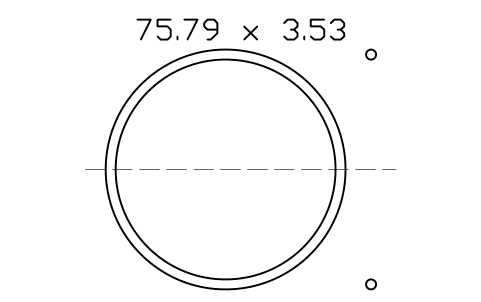

O-ring 75.79 x 3.53
ORG_234Attributi
DESIGNATIONSIZE_CODEID_MMCS_MMSTANDARDMATERIALHARDNESS_IRHDPART_NOMANUFACTURERQTYREMARKSDESC

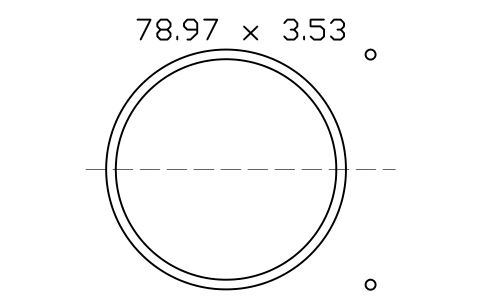

O-ring 78.97 x 3.53
ORG_235Attributi
DESIGNATIONSIZE_CODEID_MMCS_MMSTANDARDMATERIALHARDNESS_IRHDPART_NOMANUFACTURERQTYREMARKSDESC
O-ring 82.14 x 3.53
ORG_236Attributi
DESIGNATIONSIZE_CODEID_MMCS_MMSTANDARDMATERIALHARDNESS_IRHDPART_NOMANUFACTURERQTYREMARKSDESC
O-ring 85.32 x 3.53
ORG_237Attributi
DESIGNATIONSIZE_CODEID_MMCS_MMSTANDARDMATERIALHARDNESS_IRHDPART_NOMANUFACTURERQTYREMARKSDESC

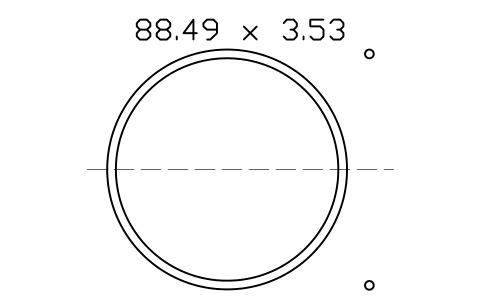

O-ring 88.49 x 3.53
ORG_238Attributi
DESIGNATIONSIZE_CODEID_MMCS_MMSTANDARDMATERIALHARDNESS_IRHDPART_NOMANUFACTURERQTYREMARKSDESC

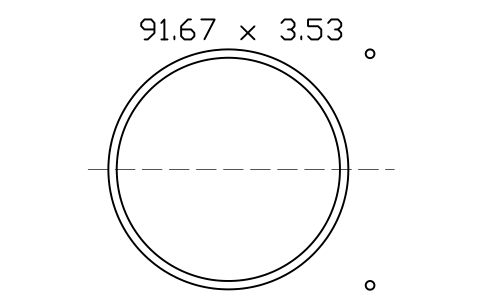

O-ring 91.67 x 3.53
ORG_239Attributi
DESIGNATIONSIZE_CODEID_MMCS_MMSTANDARDMATERIALHARDNESS_IRHDPART_NOMANUFACTURERQTYREMARKSDESC

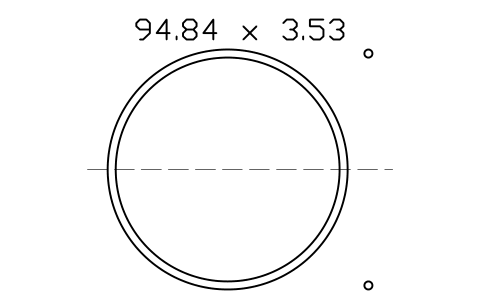

O-ring 94.84 x 3.53
ORG_240Attributi
DESIGNATIONSIZE_CODEID_MMCS_MMSTANDARDMATERIALHARDNESS_IRHDPART_NOMANUFACTURERQTYREMARKSDESC
O-ring 98.02 x 3.53
ORG_241Attributi
DESIGNATIONSIZE_CODEID_MMCS_MMSTANDARDMATERIALHARDNESS_IRHDPART_NOMANUFACTURERQTYREMARKSDESC
O-ring 101.19 x 3.53
ORG_242Attributi
DESIGNATIONSIZE_CODEID_MMCS_MMSTANDARDMATERIALHARDNESS_IRHDPART_NOMANUFACTURERQTYREMARKSDESC

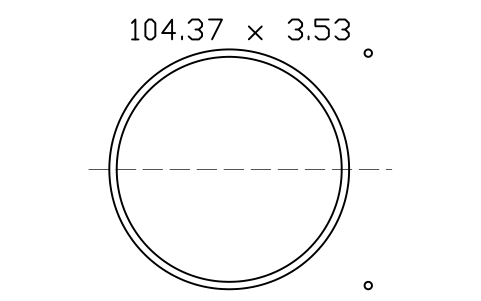

O-ring 104.37 x 3.53
ORG_243Attributi
DESIGNATIONSIZE_CODEID_MMCS_MMSTANDARDMATERIALHARDNESS_IRHDPART_NOMANUFACTURERQTYREMARKSDESC

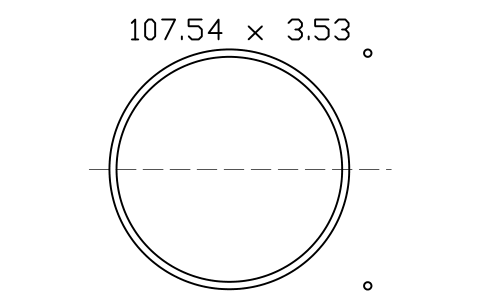

O-ring 107.54 x 3.53
ORG_244Attributi
DESIGNATIONSIZE_CODEID_MMCS_MMSTANDARDMATERIALHARDNESS_IRHDPART_NOMANUFACTURERQTYREMARKSDESC
O-ring 110.72 x 3.53
ORG_245Attributi
DESIGNATIONSIZE_CODEID_MMCS_MMSTANDARDMATERIALHARDNESS_IRHDPART_NOMANUFACTURERQTYREMARKSDESC

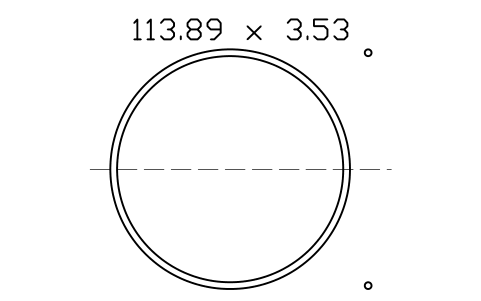

O-ring 113.89 x 3.53
ORG_246Attributi
DESIGNATIONSIZE_CODEID_MMCS_MMSTANDARDMATERIALHARDNESS_IRHDPART_NOMANUFACTURERQTYREMARKSDESC

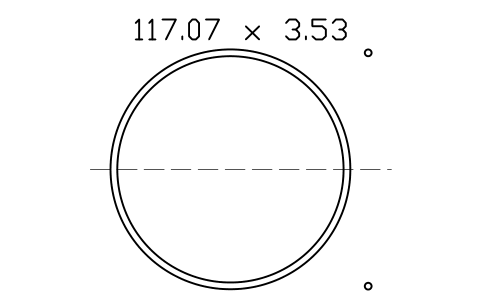

O-ring 117.07 x 3.53
ORG_247Attributi
DESIGNATIONSIZE_CODEID_MMCS_MMSTANDARDMATERIALHARDNESS_IRHDPART_NOMANUFACTURERQTYREMARKSDESC

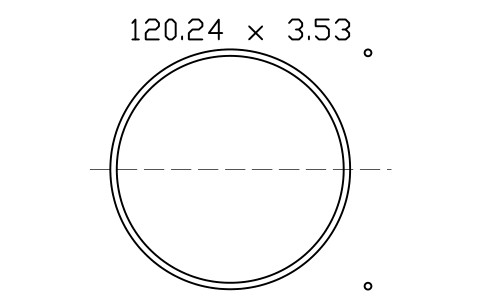

O-ring 120.24 x 3.53
ORG_248Attributi
DESIGNATIONSIZE_CODEID_MMCS_MMSTANDARDMATERIALHARDNESS_IRHDPART_NOMANUFACTURERQTYREMARKSDESC

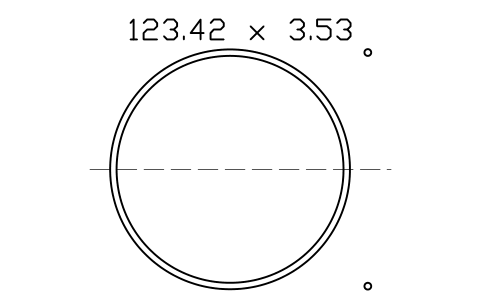

O-ring 123.42 x 3.53
ORG_249Attributi
DESIGNATIONSIZE_CODEID_MMCS_MMSTANDARDMATERIALHARDNESS_IRHDPART_NOMANUFACTURERQTYREMARKSDESC

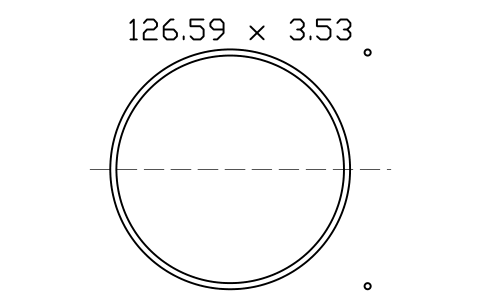

O-ring 126.59 x 3.53
ORG_250Attributi
DESIGNATIONSIZE_CODEID_MMCS_MMSTANDARDMATERIALHARDNESS_IRHDPART_NOMANUFACTURERQTYREMARKSDESC
O-ring 129.77 x 3.53
ORG_251Attributi
DESIGNATIONSIZE_CODEID_MMCS_MMSTANDARDMATERIALHARDNESS_IRHDPART_NOMANUFACTURERQTYREMARKSDESC

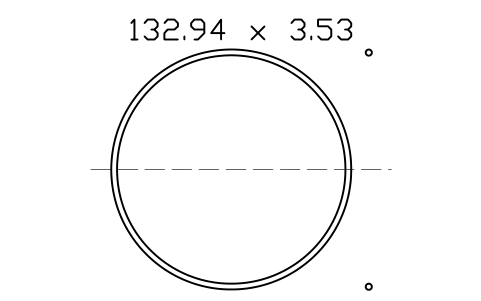

O-ring 132.94 x 3.53
ORG_252Attributi
DESIGNATIONSIZE_CODEID_MMCS_MMSTANDARDMATERIALHARDNESS_IRHDPART_NOMANUFACTURERQTYREMARKSDESC

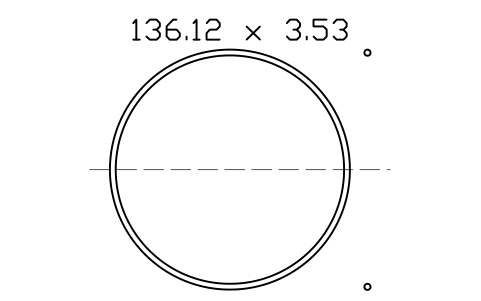

O-ring 136.12 x 3.53
ORG_253Attributi
DESIGNATIONSIZE_CODEID_MMCS_MMSTANDARDMATERIALHARDNESS_IRHDPART_NOMANUFACTURERQTYREMARKSDESC
O-ring 139.29 x 3.53
ORG_254Attributi
DESIGNATIONSIZE_CODEID_MMCS_MMSTANDARDMATERIALHARDNESS_IRHDPART_NOMANUFACTURERQTYREMARKSDESC

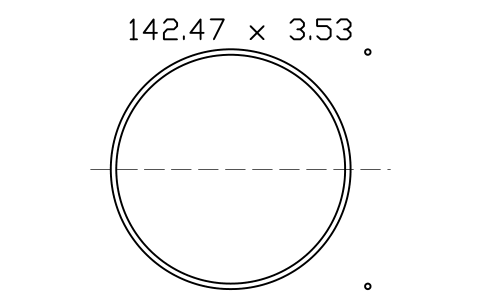

O-ring 142.47 x 3.53
ORG_255Attributi
DESIGNATIONSIZE_CODEID_MMCS_MMSTANDARDMATERIALHARDNESS_IRHDPART_NOMANUFACTURERQTYREMARKSDESC

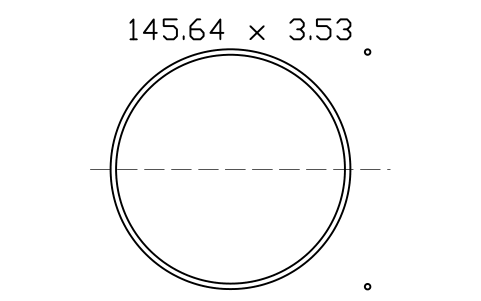

O-ring 145.64 x 3.53
ORG_256Attributi
DESIGNATIONSIZE_CODEID_MMCS_MMSTANDARDMATERIALHARDNESS_IRHDPART_NOMANUFACTURERQTYREMARKSDESC
O-ring 148.82 x 3.53
ORG_257Attributi
DESIGNATIONSIZE_CODEID_MMCS_MMSTANDARDMATERIALHARDNESS_IRHDPART_NOMANUFACTURERQTYREMARKSDESC

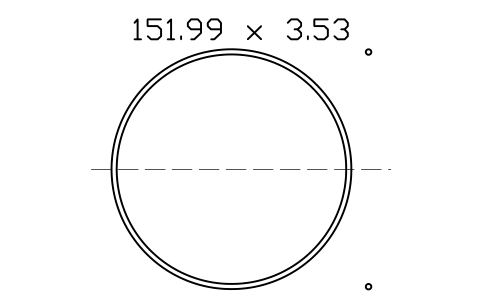

O-ring 151.99 x 3.53
ORG_258Attributi
DESIGNATIONSIZE_CODEID_MMCS_MMSTANDARDMATERIALHARDNESS_IRHDPART_NOMANUFACTURERQTYREMARKSDESC
O-ring 158.34 x 3.53
ORG_259Attributi
DESIGNATIONSIZE_CODEID_MMCS_MMSTANDARDMATERIALHARDNESS_IRHDPART_NOMANUFACTURERQTYREMARKSDESC
O-ring 164.69 x 3.53
ORG_260Attributi
DESIGNATIONSIZE_CODEID_MMCS_MMSTANDARDMATERIALHARDNESS_IRHDPART_NOMANUFACTURERQTYREMARKSDESC
O-ring 171.04 x 3.53
ORG_261Attributi
DESIGNATIONSIZE_CODEID_MMCS_MMSTANDARDMATERIALHARDNESS_IRHDPART_NOMANUFACTURERQTYREMARKSDESC

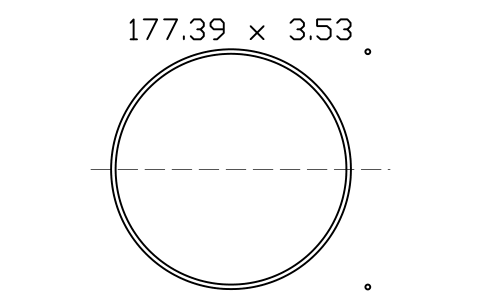

O-ring 177.39 x 3.53
ORG_262Attributi
DESIGNATIONSIZE_CODEID_MMCS_MMSTANDARDMATERIALHARDNESS_IRHDPART_NOMANUFACTURERQTYREMARKSDESC

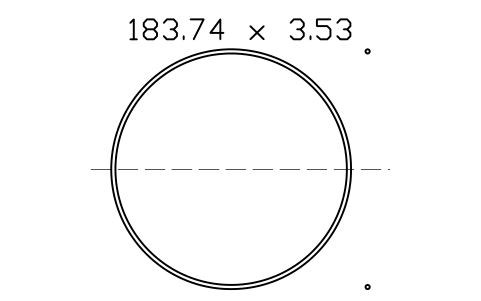

O-ring 183.74 x 3.53
ORG_263Attributi
DESIGNATIONSIZE_CODEID_MMCS_MMSTANDARDMATERIALHARDNESS_IRHDPART_NOMANUFACTURERQTYREMARKSDESC
O-ring 190.09 x 3.53
ORG_264Attributi
DESIGNATIONSIZE_CODEID_MMCS_MMSTANDARDMATERIALHARDNESS_IRHDPART_NOMANUFACTURERQTYREMARKSDESC
O-ring 196.44 x 3.53
ORG_265Attributi
DESIGNATIONSIZE_CODEID_MMCS_MMSTANDARDMATERIALHARDNESS_IRHDPART_NOMANUFACTURERQTYREMARKSDESC

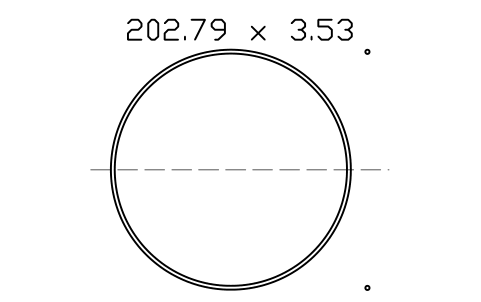

O-ring 202.79 x 3.53
ORG_266Attributi
DESIGNATIONSIZE_CODEID_MMCS_MMSTANDARDMATERIALHARDNESS_IRHDPART_NOMANUFACTURERQTYREMARKSDESC
O-ring 209.14 x 3.53
ORG_267Attributi
DESIGNATIONSIZE_CODEID_MMCS_MMSTANDARDMATERIALHARDNESS_IRHDPART_NOMANUFACTURERQTYREMARKSDESC

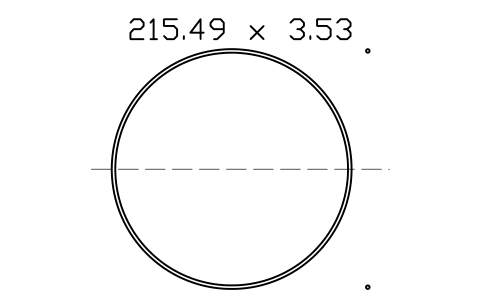

O-ring 215.49 x 3.53
ORG_268Attributi
DESIGNATIONSIZE_CODEID_MMCS_MMSTANDARDMATERIALHARDNESS_IRHDPART_NOMANUFACTURERQTYREMARKSDESC

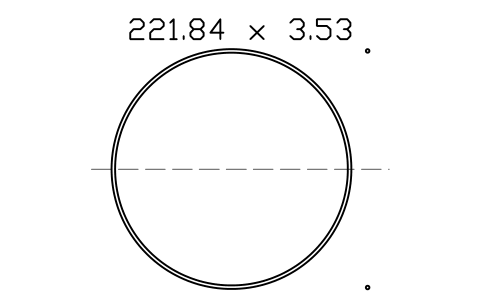

O-ring 221.84 x 3.53
ORG_269Attributi
DESIGNATIONSIZE_CODEID_MMCS_MMSTANDARDMATERIALHARDNESS_IRHDPART_NOMANUFACTURERQTYREMARKSDESC
O-ring 228.19 x 3.53
ORG_270Attributi
DESIGNATIONSIZE_CODEID_MMCS_MMSTANDARDMATERIALHARDNESS_IRHDPART_NOMANUFACTURERQTYREMARKSDESC
O-ring 234.54 x 3.53
ORG_271Attributi
DESIGNATIONSIZE_CODEID_MMCS_MMSTANDARDMATERIALHARDNESS_IRHDPART_NOMANUFACTURERQTYREMARKSDESC
O-ring 240.89 x 3.53
ORG_272Attributi
DESIGNATIONSIZE_CODEID_MMCS_MMSTANDARDMATERIALHARDNESS_IRHDPART_NOMANUFACTURERQTYREMARKSDESC

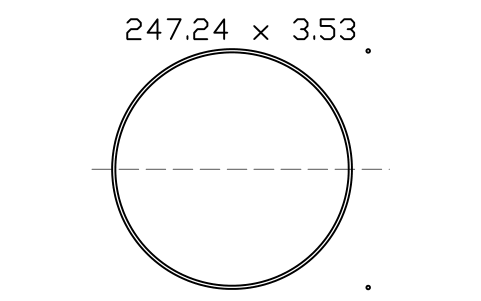

O-ring 247.24 x 3.53
ORG_273Attributi
DESIGNATIONSIZE_CODEID_MMCS_MMSTANDARDMATERIALHARDNESS_IRHDPART_NOMANUFACTURERQTYREMARKSDESC
O-ring 253.59 x 3.53
ORG_274Attributi
DESIGNATIONSIZE_CODEID_MMCS_MMSTANDARDMATERIALHARDNESS_IRHDPART_NOMANUFACTURERQTYREMARKSDESC

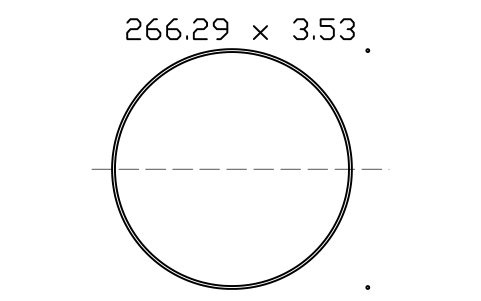

O-ring 266.29 x 3.53
ORG_275Attributi
DESIGNATIONSIZE_CODEID_MMCS_MMSTANDARDMATERIALHARDNESS_IRHDPART_NOMANUFACTURERQTYREMARKSDESC

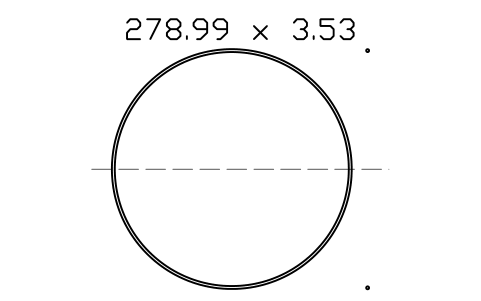

O-ring 278.99 x 3.53
ORG_276Attributi
DESIGNATIONSIZE_CODEID_MMCS_MMSTANDARDMATERIALHARDNESS_IRHDPART_NOMANUFACTURERQTYREMARKSDESC
O-ring 291.69 x 3.53
ORG_277Attributi
DESIGNATIONSIZE_CODEID_MMCS_MMSTANDARDMATERIALHARDNESS_IRHDPART_NOMANUFACTURERQTYREMARKSDESC

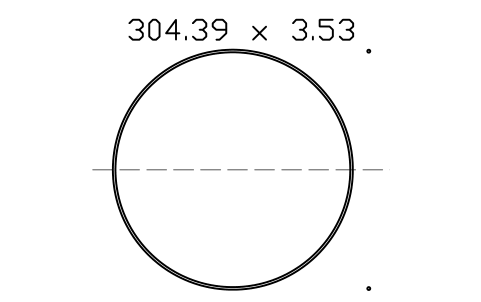

O-ring 304.39 x 3.53
ORG_278Attributi
DESIGNATIONSIZE_CODEID_MMCS_MMSTANDARDMATERIALHARDNESS_IRHDPART_NOMANUFACTURERQTYREMARKSDESC

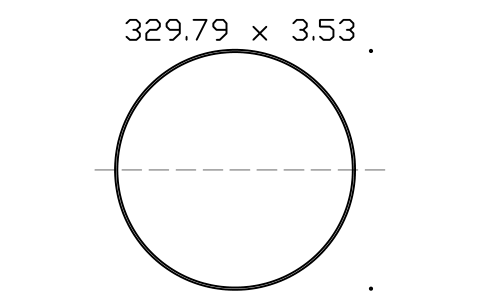

O-ring 329.79 x 3.53
ORG_279Attributi
DESIGNATIONSIZE_CODEID_MMCS_MMSTANDARDMATERIALHARDNESS_IRHDPART_NOMANUFACTURERQTYREMARKSDESC

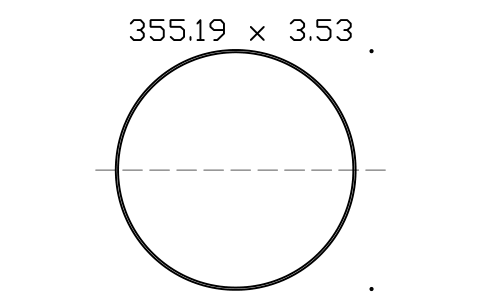

O-ring 355.19 x 3.53
ORG_280Attributi
DESIGNATIONSIZE_CODEID_MMCS_MMSTANDARDMATERIALHARDNESS_IRHDPART_NOMANUFACTURERQTYREMARKSDESC
O-ring 380.59 x 3.53
ORG_281Attributi
DESIGNATIONSIZE_CODEID_MMCS_MMSTANDARDMATERIALHARDNESS_IRHDPART_NOMANUFACTURERQTYREMARKSDESC

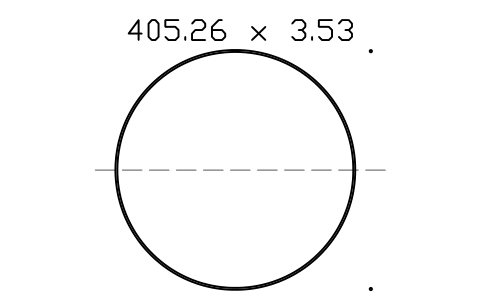

O-ring 405.26 x 3.53
ORG_282Attributi
DESIGNATIONSIZE_CODEID_MMCS_MMSTANDARDMATERIALHARDNESS_IRHDPART_NOMANUFACTURERQTYREMARKSDESC

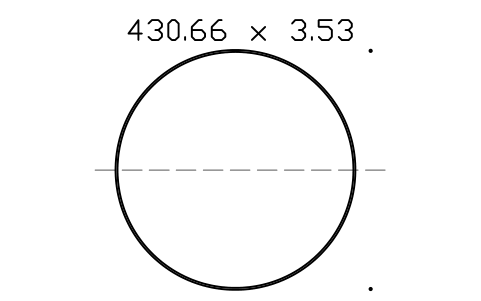

O-ring 430.66 x 3.53
ORG_283Attributi
DESIGNATIONSIZE_CODEID_MMCS_MMSTANDARDMATERIALHARDNESS_IRHDPART_NOMANUFACTURERQTYREMARKSDESC

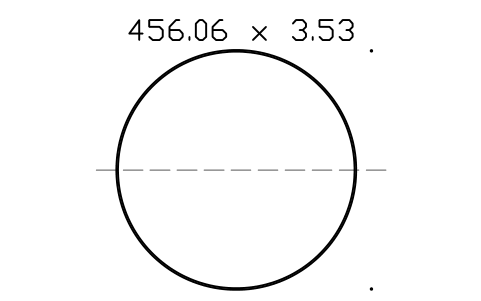

O-ring 456.06 x 3.53
ORG_284Attributi
DESIGNATIONSIZE_CODEID_MMCS_MMSTANDARDMATERIALHARDNESS_IRHDPART_NOMANUFACTURERQTYREMARKSDESC
Manca un simbolo? Dicci quale.
Attributi per le distinte base
Ogni blocco ha la designazione come attributo visibile (per esempio O-ring 29.87 x 3.53). Gli attributi invisibili sono SIZE_CODE, ID_MM, CS_MM, STANDARD, MATERIAL, HARDNESS_IRHD, PART_NO, MANUFACTURER, QTY e REMARKS. Codice misura, diametro interno e sezione sono già inseriti; imposta materiale e durezza come li ordini.
Esporta gli O-ring di un disegno d'insieme in Excel con BlockSync per avere una distinta con misura, materiale e quantità, e riscrivi le correzioni in un solo passaggio, con anteprima e backup.
Come usare la libreria
- Decomprimi il file e apri il DWG. Copia i simboli che ti servono nella tua pianta, oppure trascina i blocchi da DesignCenter (ADCENTER).
- Gli anelli sono disegnati in scala reale, 1 unità di disegno = 1 mm: il cerchio interno è il diametro interno, quello esterno è il diametro interno più due volte la sezione. Inseriscili in scala 1. Gli anelli piccoli sono disegnati piccoli; solo il foglio catalogo li ingrandisce per renderli visibili.
- Il punto di inserimento è il centro dell'anello. A sinistra c'è la vista frontale, a destra la sezione: due cerchi del diametro della sezione sopra e sotto l'asse. Lo stesso blocco serve quindi in una vista in pianta e in una sezione. Scomponi il blocco se ti serve una sola vista.
- Le cinque librerie differiscono solo per la sezione: scegli quella che ti serve e cerca la misura dal codice o dal diametro interno. Il nome del blocco è ORG_ seguito dal codice misura, per esempio ORG_210.
