Free AutoCAD geometrical tolerancing symbols (DWG), ISO 1101 style
Geometrical tolerancing symbols (ISO 1101): 99 ready-made AutoCAD blocks (DWG), free to download and use in your own projects, as a ZIP or one symbol at a time.

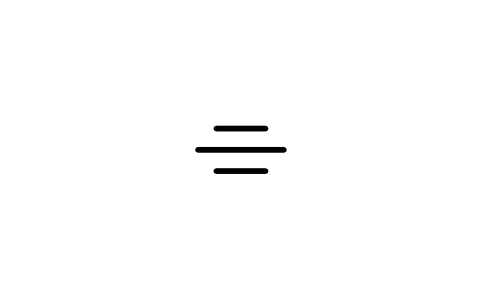

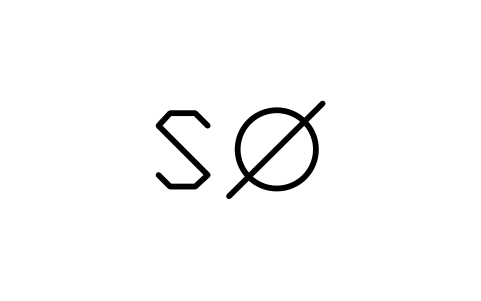

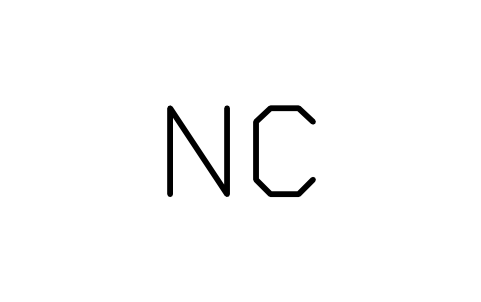

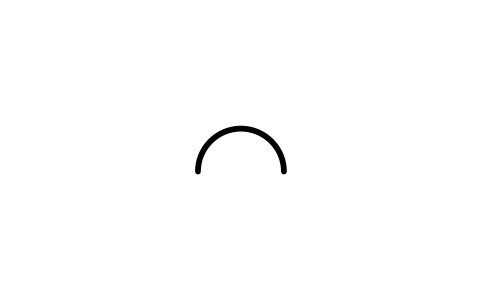

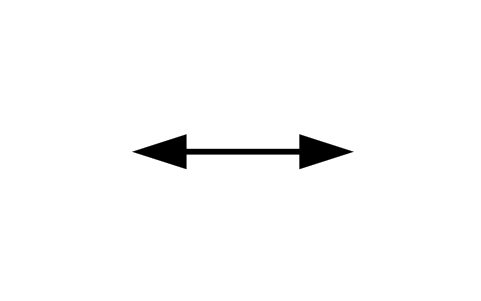

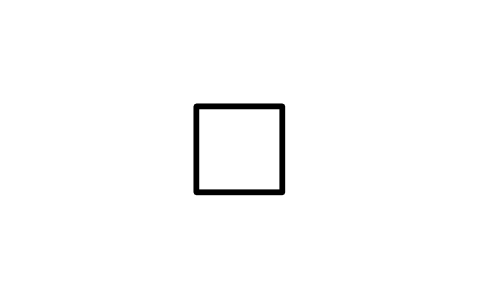

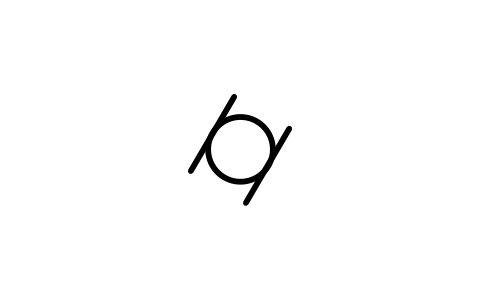

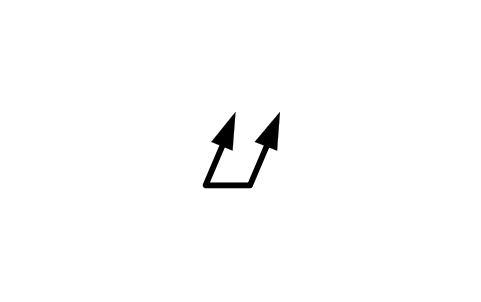

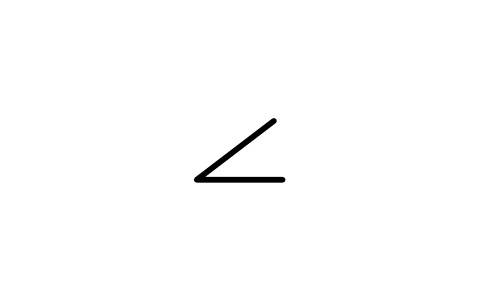

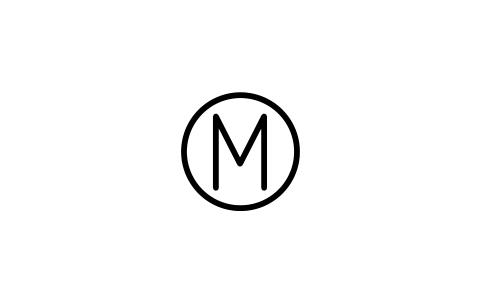

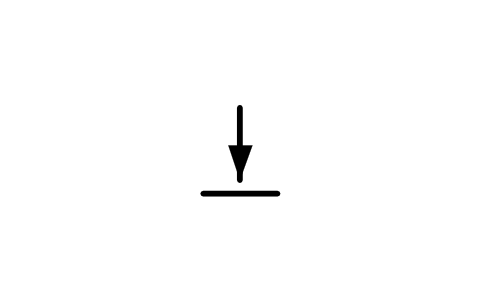

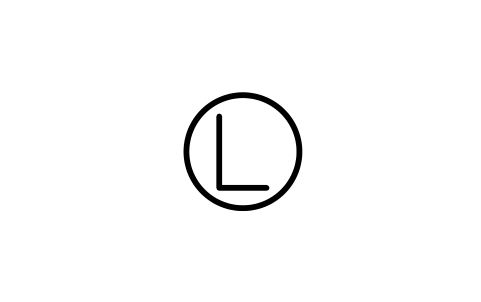

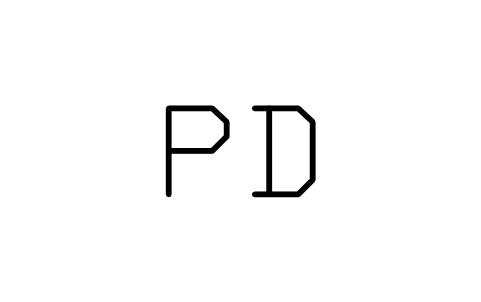

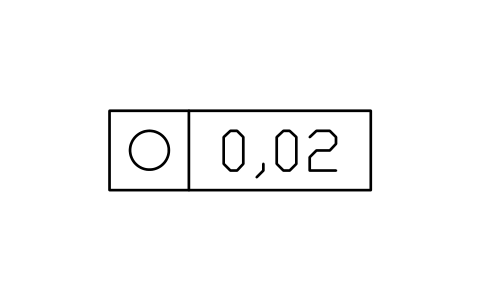

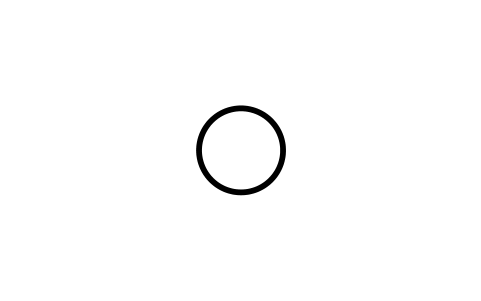

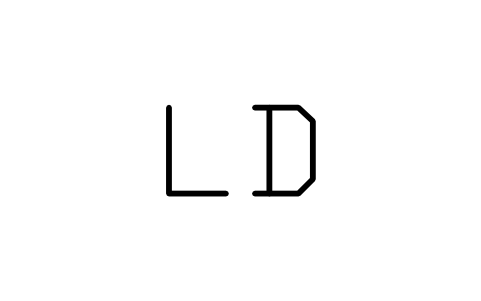

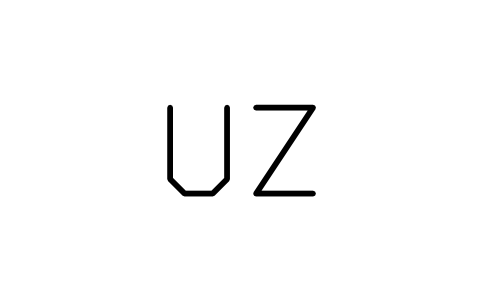

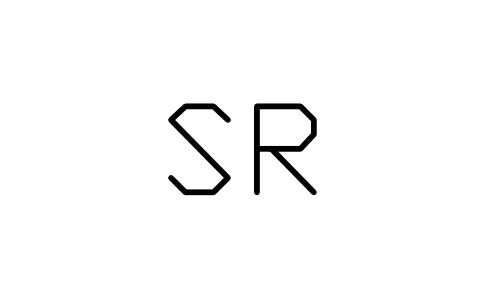

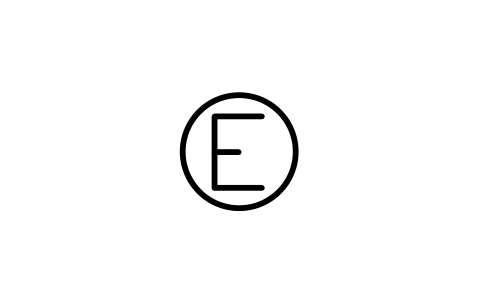

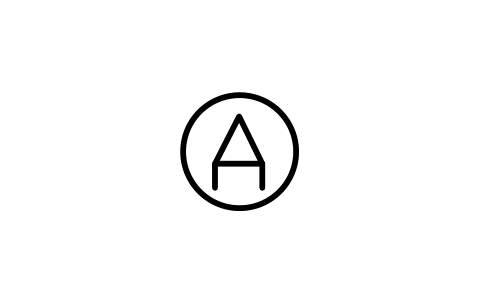

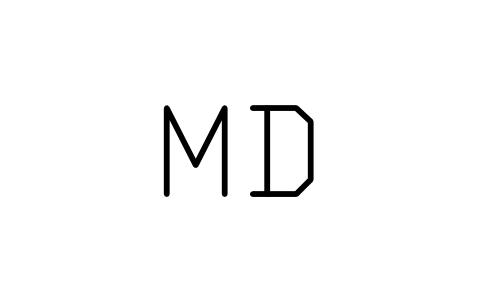

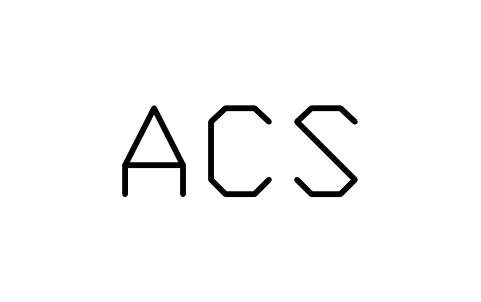

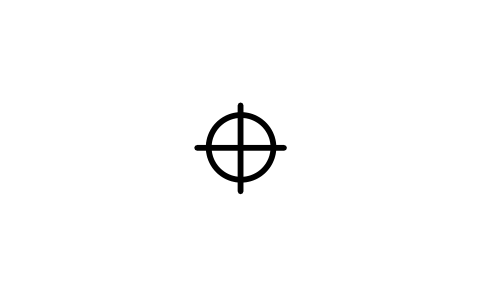

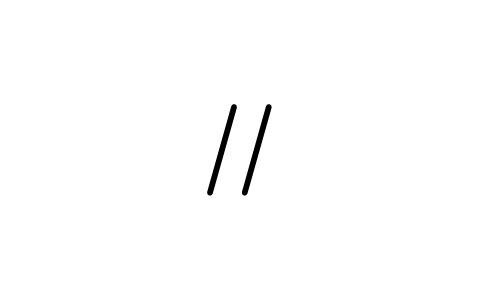

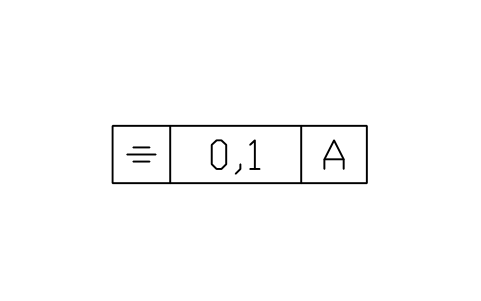

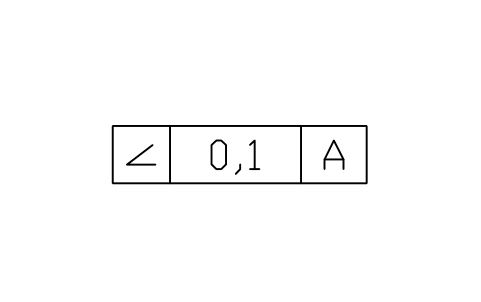

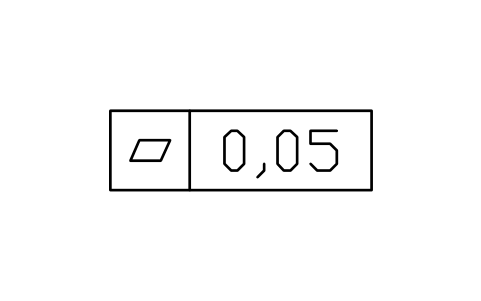

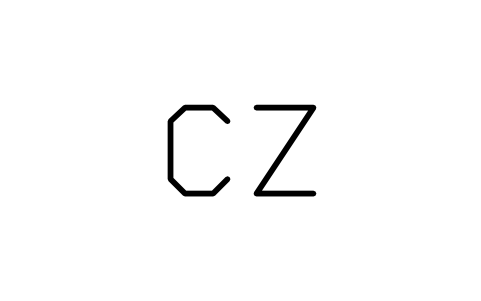

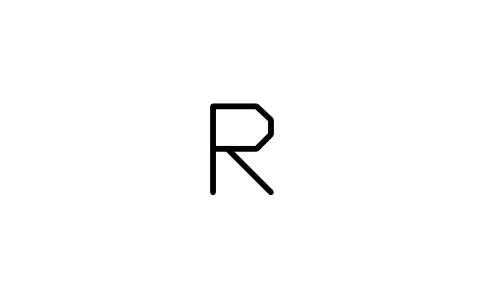

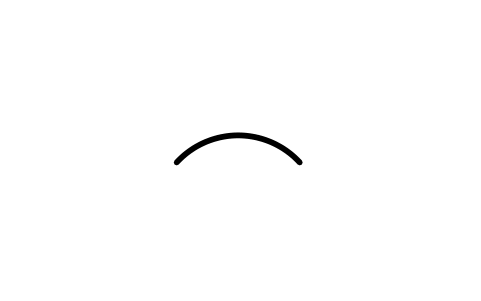

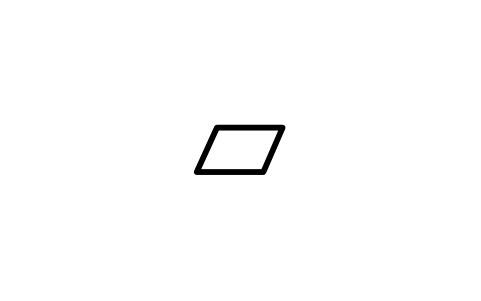

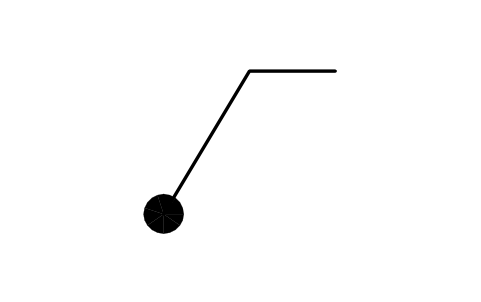

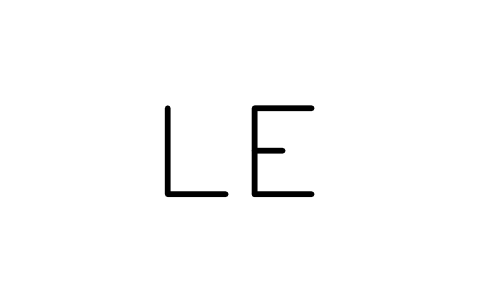

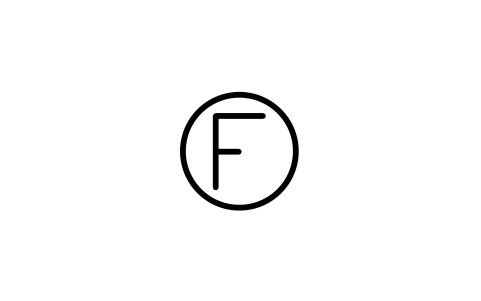

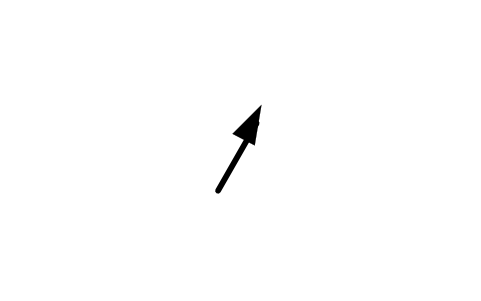

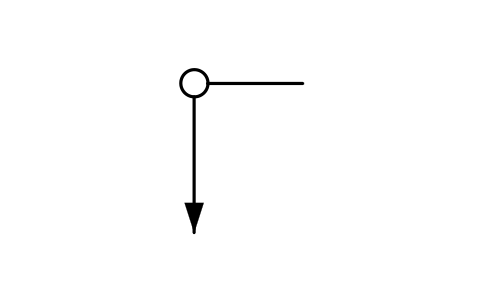

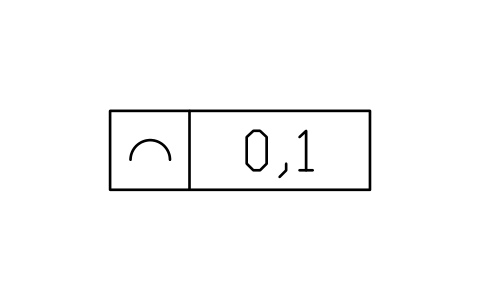

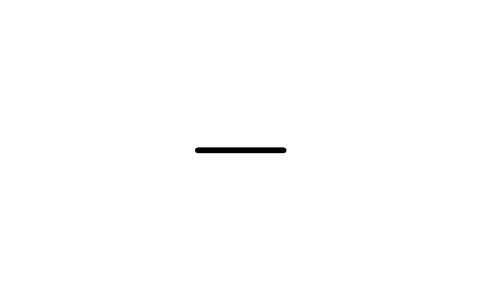

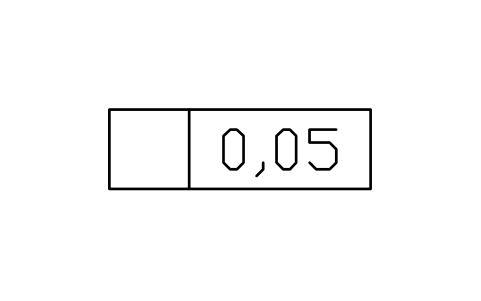

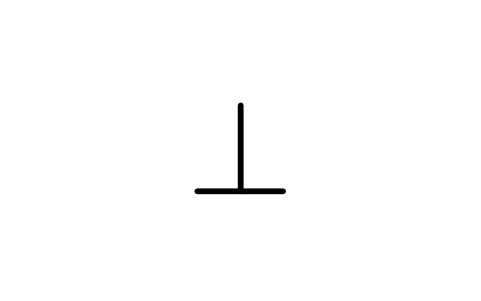

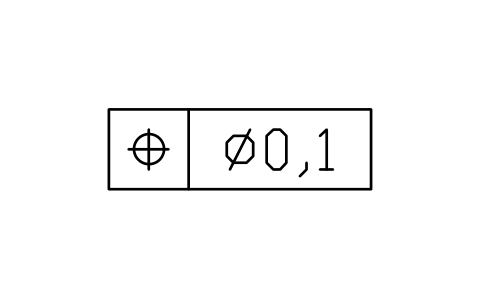

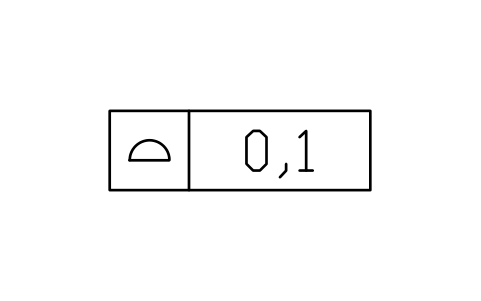

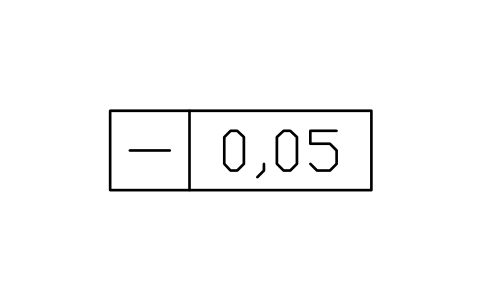

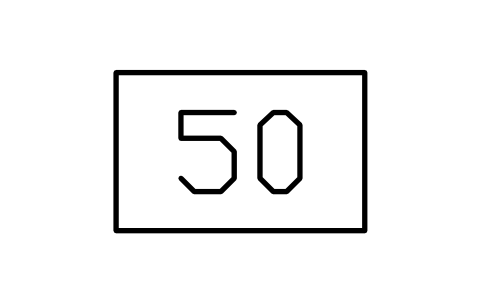

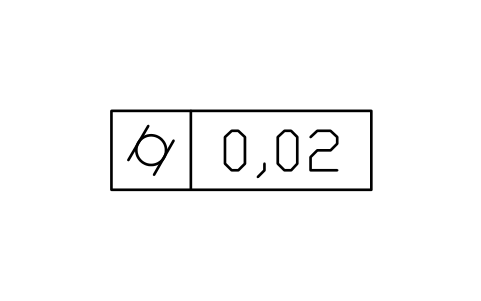

99 symbols for geometrical tolerancing as ready-to-use AutoCAD blocks, drawn after ISO 1101: the 14 characteristic symbols (straightness, flatness, roundness, cylindricity, profile of a line and of a surface, parallelism, perpendicularity, angularity, position, concentricity and coaxiality, symmetry, circular and total run-out), tolerance frames with the value and up to three datum letters as attributes, stacked and blank frames, frames with direction feature, collection plane, intersection plane and orientation plane, modifiers (M, L, P, F, E, UZ, CZ, LD, MD, PD, LE, NC, ACS), datum features and datum targets, leaders, notes and the dimension signs.
Version 1.0 · updated 17 Ekim 2026
Using AutoCAD 2017 or an earlier version? Download the 2010 format
Free to use and modify in your own projects, including commercial ones. The ZIP holds one plain DWG file in AutoCAD 2018 format and a README; no add-in needed. Provided as is, without warranty.
Related symbol libraries
Bu araçlarla iyi çalışır
Bu sembolleri çizimlerinizde saymanız mı gerekiyor?Bir çizim setindeki tüm sembolleri ve özniteliklerini Excel'e aktarın, satırları düzenleyin ve geri yazın.BlockSync aracını gör
Bir sembolü revize ettiniz, neyin değiştiğini mi bilmek istiyorsunuz?Bir çizim setinin iki revizyonunu blok blok karşılaştırın; neyin eklendiğini, kaldırıldığını ya da değiştirildiğini gösteren bir rapor alın.BlockCompare aracını gör
Bu sembolü hangi çizimler kullanıyor?Yüzlerce çizimde blokları ve metinleri aynı anda arayın, sonra doğrudan eşleşmeye gidin.DwgSearch aracını gör
All 99 symbols
99 sembolün 99 tanesi

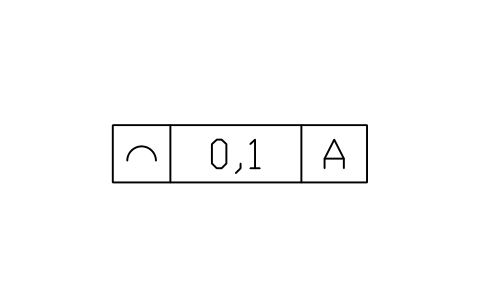

Line profile, 1 datum
GDT_FRM_PROFILE_LINE_D1Öznitelikler
TAGTOLDATUM1FEATUREREMARKSDESC

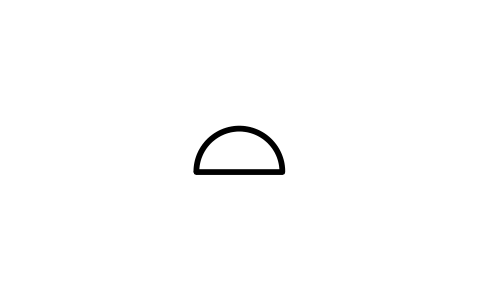

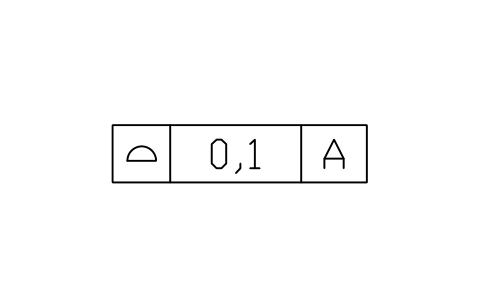

Surface profile, 1 datum
GDT_FRM_PROFILE_SURFACE_D1Öznitelikler
TAGTOLDATUM1FEATUREREMARKSDESC

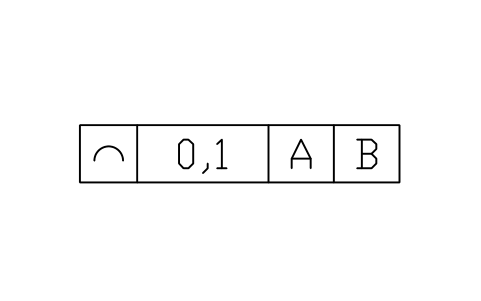

Line profile, 2 datums
GDT_FRM_PROFILE_LINE_D2Öznitelikler
TAGTOLDATUM1DATUM2FEATUREREMARKSDESC

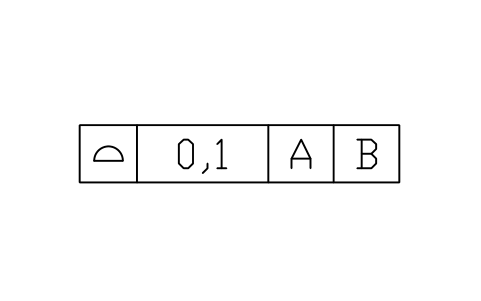

Surface profile, 2 datums
GDT_FRM_PROFILE_SURFACE_D2Öznitelikler
TAGTOLDATUM1DATUM2FEATUREREMARKSDESC

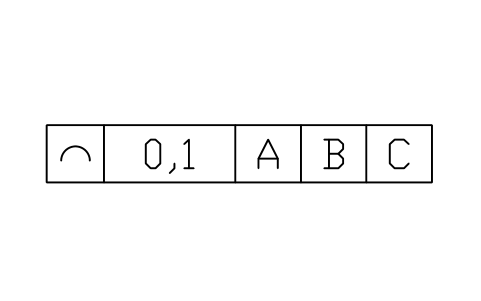

Line profile, 3 datums
GDT_FRM_PROFILE_LINE_D3Öznitelikler
TAGTOLDATUM1DATUM2DATUM3FEATUREREMARKSDESC
Surface profile, 3 datums
GDT_FRM_PROFILE_SURFACE_D3Öznitelikler
TAGTOLDATUM1DATUM2DATUM3FEATUREREMARKSDESC

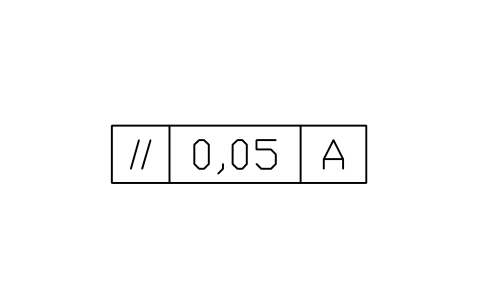

Parallelism, 1 datum
GDT_FRM_PARALLELISM_D1Öznitelikler
TAGTOLDATUM1FEATUREREMARKSDESC

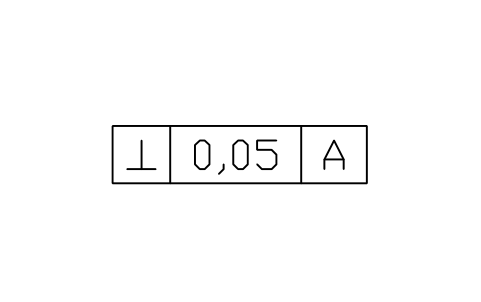

Perpendicularity, 1 datum
GDT_FRM_PERPENDICULARITY_D1Öznitelikler
TAGTOLDATUM1FEATUREREMARKSDESC

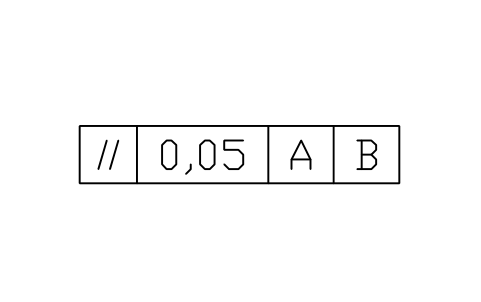

Parallelism, 2 datums
GDT_FRM_PARALLELISM_D2Öznitelikler
TAGTOLDATUM1DATUM2FEATUREREMARKSDESC

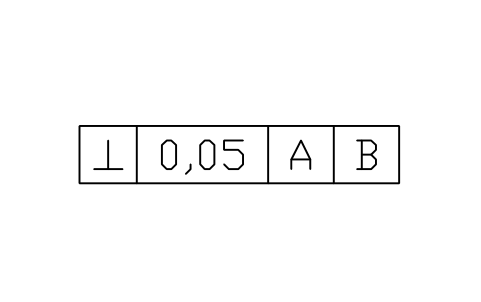

Perpendicularity, 2 datums
GDT_FRM_PERPENDICULARITY_D2Öznitelikler
TAGTOLDATUM1DATUM2FEATUREREMARKSDESC

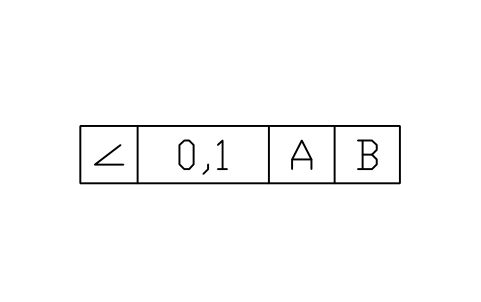

Angularity, 2 datums
GDT_FRM_ANGULARITY_D2Öznitelikler
TAGTOLDATUM1DATUM2FEATUREREMARKSDESC

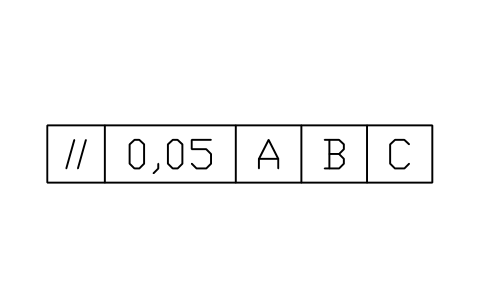

Parallelism, 3 datums
GDT_FRM_PARALLELISM_D3Öznitelikler
TAGTOLDATUM1DATUM2DATUM3FEATUREREMARKSDESC

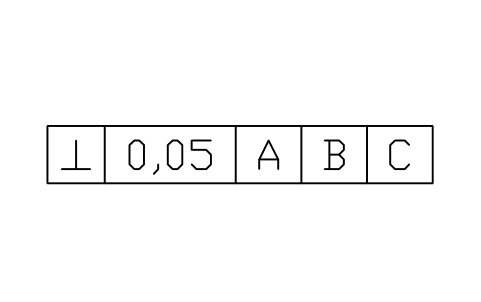

Perpendicularity, 3 datums
GDT_FRM_PERPENDICULARITY_D3Öznitelikler
TAGTOLDATUM1DATUM2DATUM3FEATUREREMARKSDESC

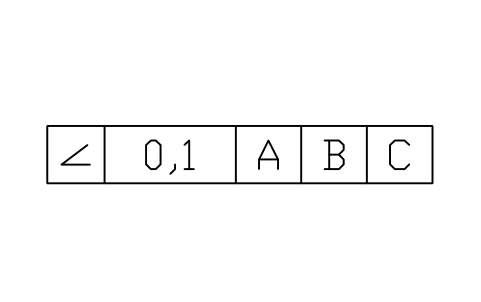

Angularity, 3 datums
GDT_FRM_ANGULARITY_D3Öznitelikler
TAGTOLDATUM1DATUM2DATUM3FEATUREREMARKSDESC

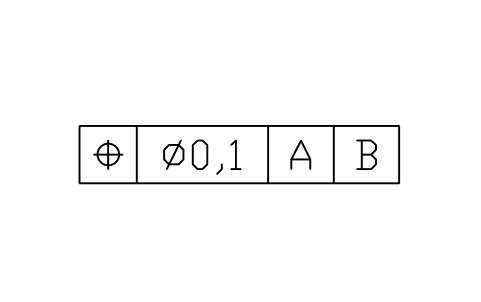

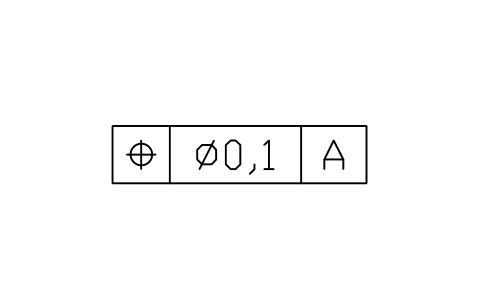

Position, 2 datums
GDT_FRM_POSITION_D2Öznitelikler
TAGTOLDATUM1DATUM2FEATUREREMARKSDESC

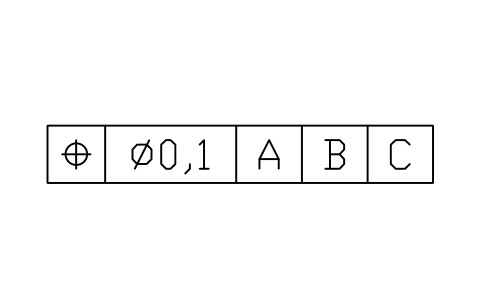

Position, 3 datums
GDT_FRM_POSITION_D3Öznitelikler
TAGTOLDATUM1DATUM2DATUM3FEATUREREMARKSDESC

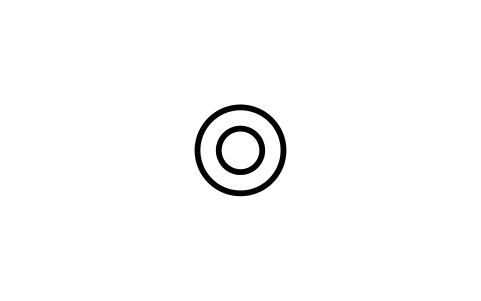

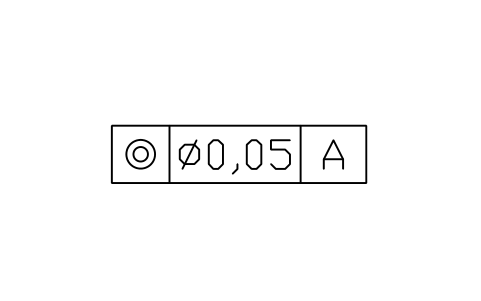

Concentric/coaxial, 1 datum
GDT_FRM_CONCENTRICITY_D1Öznitelikler
TAGTOLDATUM1FEATUREREMARKSDESC

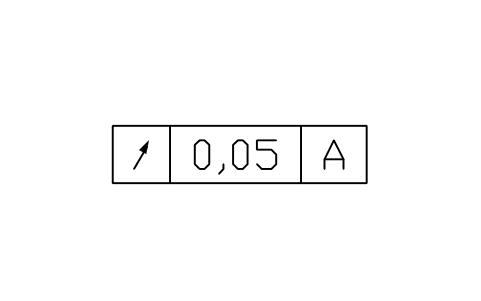

Circular run-out, 1 datum
GDT_FRM_RUNOUT_CIRCULAR_D1Öznitelikler
TAGTOLDATUM1FEATUREREMARKSDESC

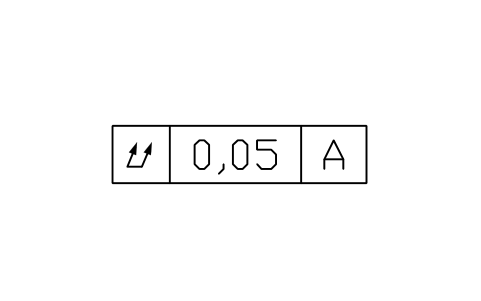

Total run-out, 1 datum
GDT_FRM_RUNOUT_TOTAL_D1Öznitelikler
TAGTOLDATUM1FEATUREREMARKSDESC

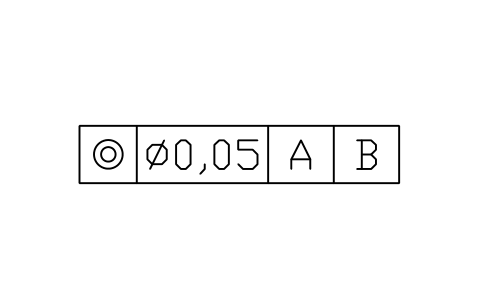

Concentric/coaxial, 2 datums
GDT_FRM_CONCENTRICITY_D2Öznitelikler
TAGTOLDATUM1DATUM2FEATUREREMARKSDESC

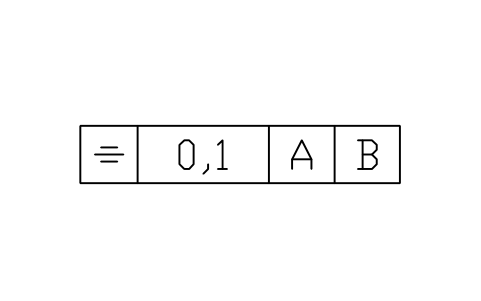

Symmetry, 2 datums
GDT_FRM_SYMMETRY_D2Öznitelikler
TAGTOLDATUM1DATUM2FEATUREREMARKSDESC

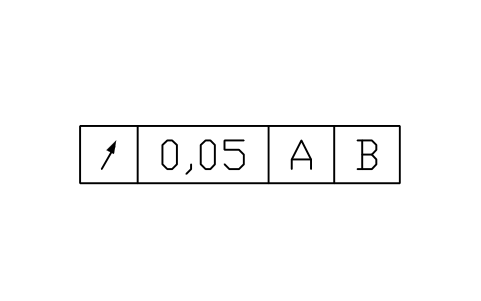

Circular run-out, 2 datums
GDT_FRM_RUNOUT_CIRCULAR_D2Öznitelikler
TAGTOLDATUM1DATUM2FEATUREREMARKSDESC
Total run-out, 2 datums
GDT_FRM_RUNOUT_TOTAL_D2Öznitelikler
TAGTOLDATUM1DATUM2FEATUREREMARKSDESC

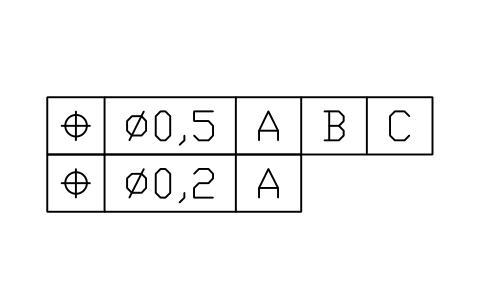

Position, composite frame
GDT_FRM_POSITION_COMPOSITEÖznitelikler
TAGTOLDATUM1DATUM2DATUM3TOL_2DATUM1_2FEATUREREMARKSDESC

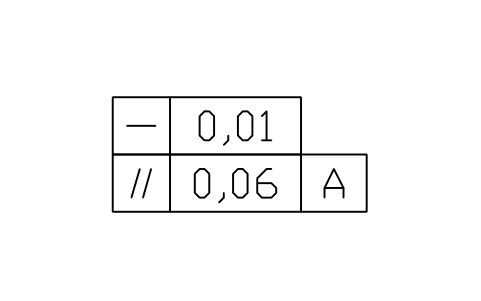

Straightness + parallelism
GDT_FRM_STRAIGHT_PARALLELÖznitelikler
TAGTOLTOL_2DATUM1_2FEATUREREMARKSDESC

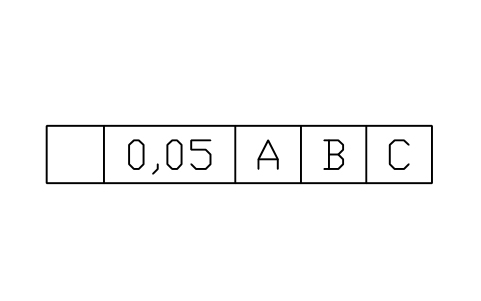

Blank frame, 3 datums
GDT_FRM_BLANK_D3Öznitelikler
TAGTOLDATUM1DATUM2DATUM3FEATUREREMARKSDESC

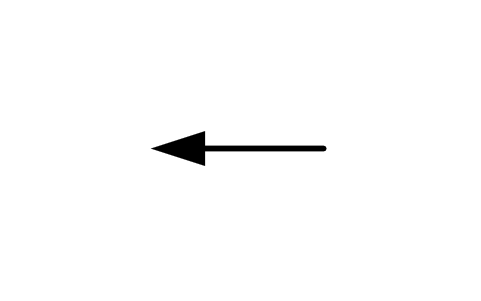

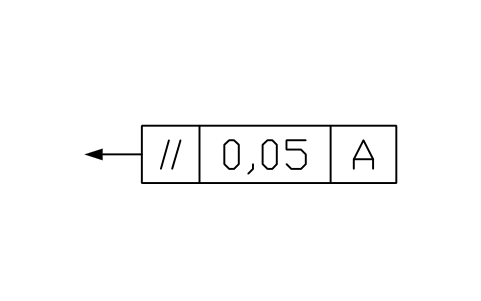

Direction feature frame
GDT_FRM_DIRECTION_PLANEÖznitelikler
TAGTOLDATUM1FEATUREREMARKSDESC

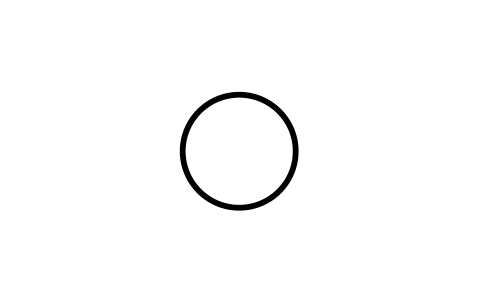

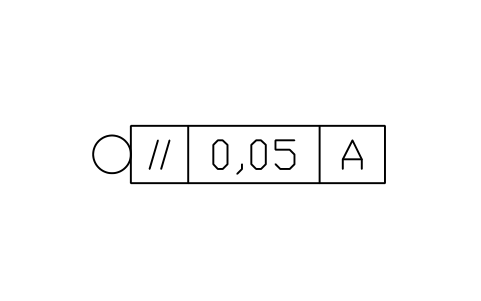

Collection plane frame
GDT_FRM_COLLECTION_PLANEÖznitelikler
TAGTOLDATUM1FEATUREREMARKSDESC

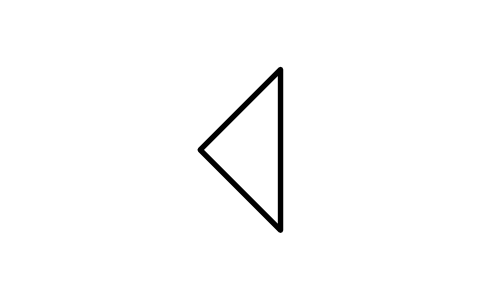

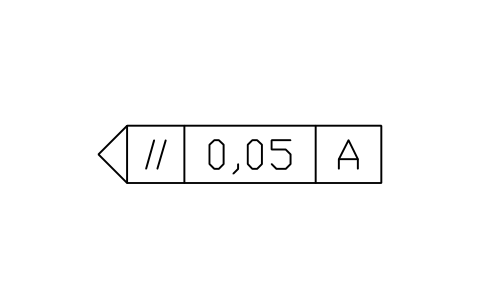

Intersection plane frame
GDT_FRM_INTERSECTION_PLANEÖznitelikler
TAGTOLDATUM1FEATUREREMARKSDESC

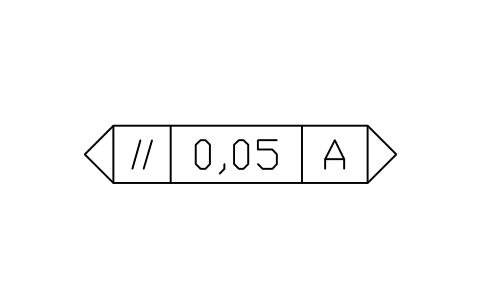

Orientation plane frame
GDT_FRM_ORIENTATION_PLANEÖznitelikler
TAGTOLDATUM1FEATUREREMARKSDESC
Bir sembol mü eksik? Hangisi olduğunu bize yazın.
Attributes for parts lists

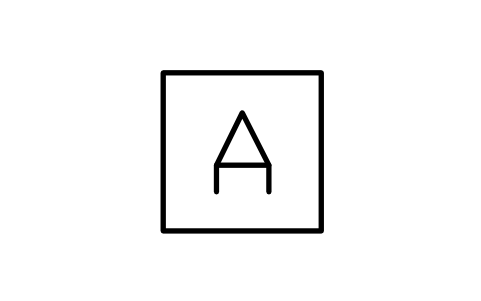

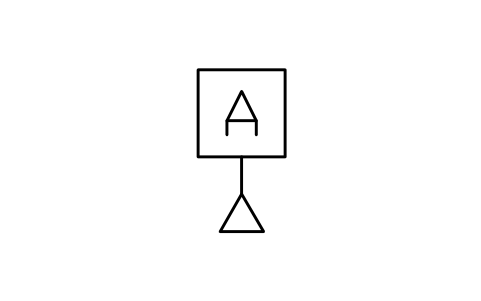

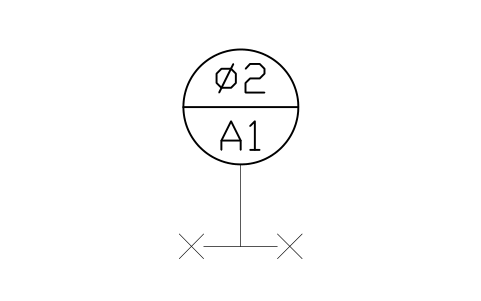

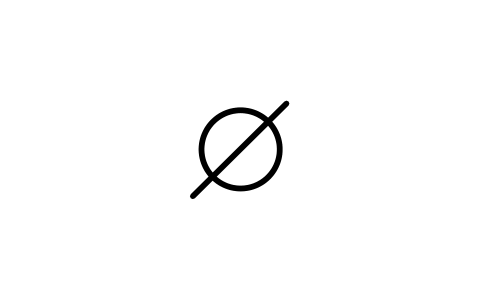

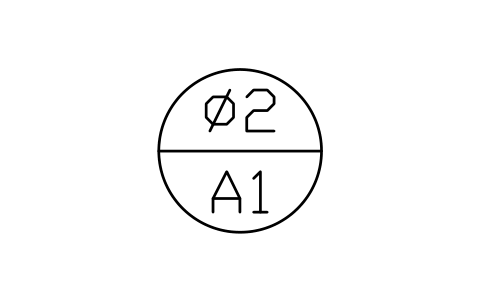

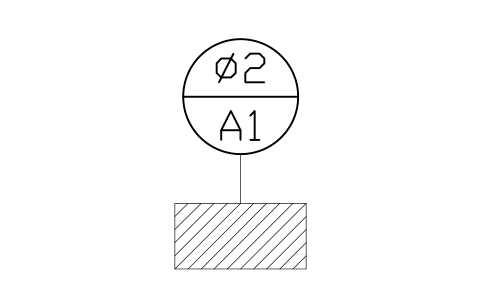

The tolerance value (TOL) and the datum letters (DATUM1 to DATUM3) are visible attributes inside the cells of the frame; type %%c in the value for the diameter sign. FEATURE and REMARKS are invisible. Datum blocks have LETTER, datum targets have TARGET_SIZE and TARGET_ID, the notes above a frame have COUNT or NOTE.
Because the values sit in attributes, you can export the tolerances of all drawings of a project to Excel with BlockSync, check them and write the corrections back in one run, with preview and backup.
How to use the library
- Unzip the file and open the DWG. Copy the frames and signs you need into your drawing, or drag the blocks in from DesignCenter (ADCENTER).
- The symbols are drawn at plotted size: text 3.5 mm, frame height 7 mm, symbols 3.5 mm high. Insert them at the scale of your drawing, for example scale 2 on a 1:2 drawing. The frame cells are 7 mm for the symbol, 16 mm for the value and 8 mm for each datum.

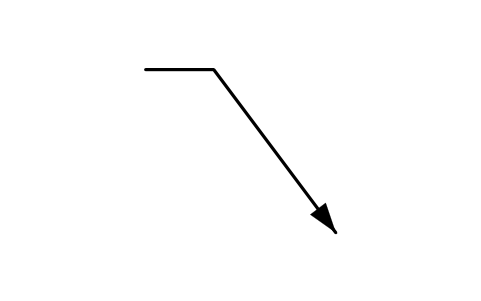

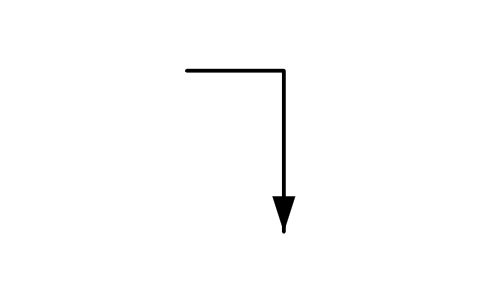

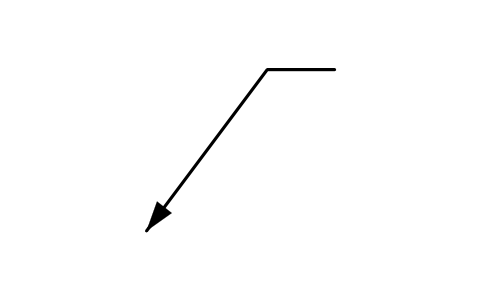

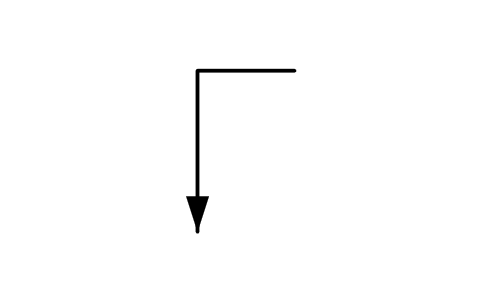

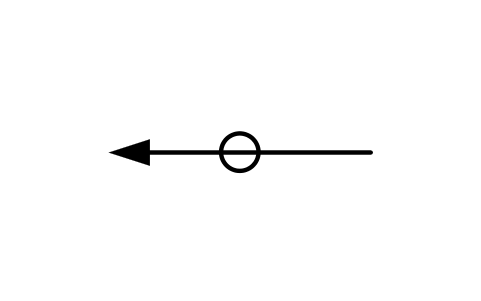

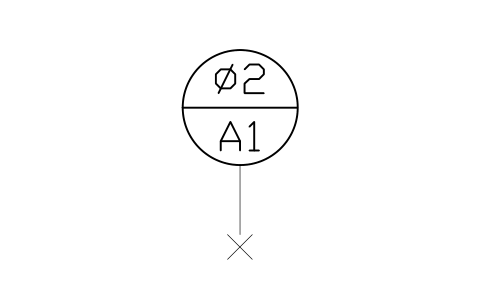

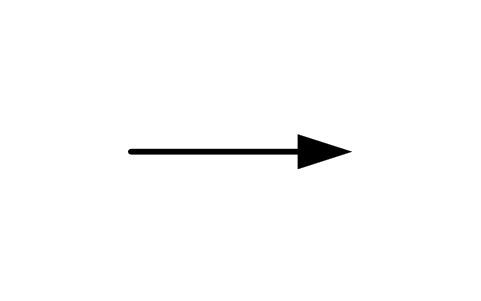

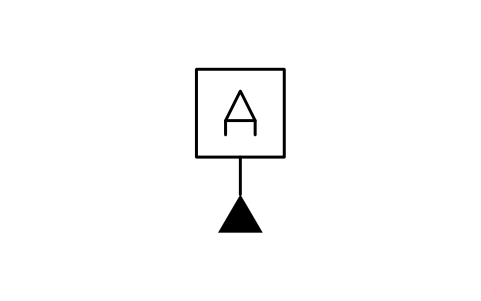

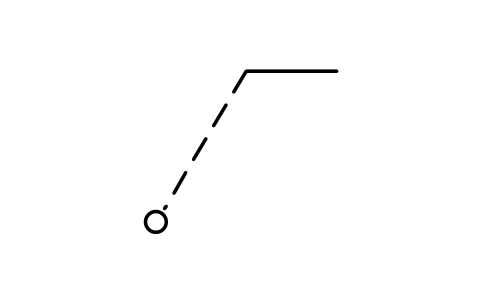

- A frame is inserted by the middle of its left edge, and the leaders start at the end of a frame, so the leader snaps to the frame. Datum feature blocks are inserted at the contact point on the surface, datum targets at the target point. Modifiers, circled letters and arrows are separate blocks that you place next to the value or the datum. Pick the frame by characteristic and by the number of datums. For several datums or special cases use a blank frame and copy the symbol from the characteristic group into it, or explode a frame and edit it.
- Double-click the block (or run EATTEDIT) and fill in the tolerance and the datum letters.
About ISO 1101
ISO 1101 specifies the geometrical tolerances on technical drawings: the characteristic symbols, the tolerance frame with its value and datum compartments, the modifiers and the indications for toleranced features and datums. This library follows the symbol tables and the frame layout of the standard. Datum features and targets are drawn in the form used by the datum standard, and the dimension signs are the ones that are commonly written with the frames.
These symbols are our own drawings after the figures of the standard. They are not copied from it, and the library is not certified against it. Company and customer standards differ in details such as the frame size and the position of the leader; change a block if your legend differs.
Frequently asked questions
- Do the frames work with the ASME convention as well?
- The frames, datum letters and most symbols look the same in both conventions, so many blocks can be used. Some signs differ: the modifiers and the datum feature triangle are drawn after ISO 1101, and the ASME form for a few of them is different. Check the standard of your customer before you use a block.
- How do I get a frame with two rows or with a note above it?

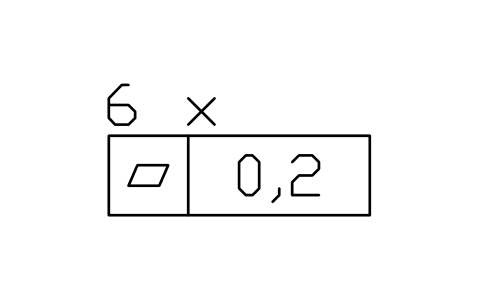

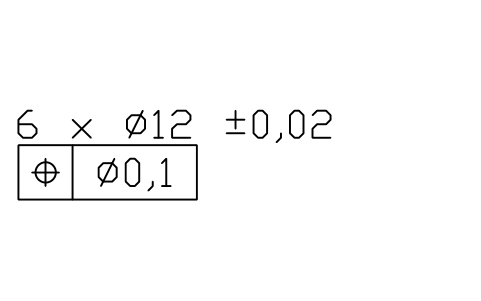

- The library has stacked frames for a composite position and for a form plus an orientation requirement, and frames with a number of features or a number and size note above them. For other combinations, insert two frames on top of each other or use the blank frame, and place the notes as text.
- Can I use the symbols in commercial projects?
- Yes. They are free to use and modify in your own projects, including commercial ones. They are provided as is, without warranty.
- Can I use the symbols in commercial projects?
- Yes. They are free to use and modify in your own projects, including commercial ones. They are provided as is, without warranty.
- Can I change a symbol or add attributes?
- Yes. Open the DWG, edit a block with BEDIT to change it or add attributes, and save. To update drawings that already contain the block, run ATTSYNC or replace the block. Make a backup first: attribute values can be lost if ATTSYNC is used carelessly.
- Where do I find a ready-made set of these symbols for AutoCAD?
- AutoCAD itself ships only a small set of sample blocks, so a full symbol set has to come from a library. Download the ZIP on this page and open the DWG: every symbol is a block. Insert one with INSERT (Blocks palette, Libraries tab, then pick the DWG) or drag it from DesignCenter (ADCENTER). You can also download a single symbol on its own.
