中学校の普通教室階
座席配置の異なる教室 5 室、ロッカー付きの廊下、防火戸のある階段 2 か所、エレベーター、車いす対応トイレ、トイレ、準備室、自習室。
ご自身のプロジェクトで自由に使用・編集できます（商用も可）。ZIP にはサンプル図面、テンプレート、印刷スタイルテーブル、README が入っています。アドインは不要です。図面のデータは架空のもので、設計や施工には使えません。現状のまま提供し、保証はありません。 ライブラリ利用条件(CXL-1.0)
バージョン 1.0 · 2026年10月29日 更新
このサンプルで使っているリソース
図面のシンボルはすべて当サイトのライブラリのブロックで、属性も入力済みです。図枠と表題欄は、ISO A3 の表題欄テンプレートを使っています。ダウンロードして、ご自身の図面づくりにお使いください。
画層、スタイル、シート設定はシリーズのどの図面も共通です。説明はシリーズのページにあります： 学校平面図
表題欄の項目
表題欄の属性です。ダブルクリックして記入するか、BlockSync で図面一式にまとめて書き込めます。
| 属性 | 図面上の項目 | このサンプルの値 |
|---|---|---|
| COMPANY | COMPANY | CADXChange |
| PROJECT | PROJECT | Riverside Secondary School |
| AREA | AREA | First floor |
| SYSTEM | SYSTEM | Architecture |
| CLIENT | CLIENT | Sample |
| TITLE | DRAWING TITLE | Classroom floor plan, first floor |
| DRAWING_NO | DRAWING NO. | A-871 |
| CONTRACT_NO | CONTRACT NO. | — |
| REV | REV | A |
| DRAWN | DRAWN | — |
| CHECKED | CHECKED | — |
| APPROVED | APPROVED | — |
| DATE | DATE | 2026-10-29 |
| SCALE | SCALE | 1:200 |
| SHEET | SHEET | 1 |
| SHEET_OF | OF | 1 |
改訂表：R1〜R4 の各行に REV、DATE、DESCRIPTION、BY（計 16 属性、このサンプルでは空欄）。
図面内のブロック
この図面の機器リストです。ブロック名、シンボル、配置数を示します。BlockSync を使うと、ご自身の図面から同じリストを書き出せます。
| シンボル | ブロック名 | 配置数 |
|---|---|---|
 FIX窓、2400 | ARCH_WINDOW_FIXED_2400 | 15 |
 室名タグ | ARCH_TAG_ROOM | 15 |
 FIX窓、1800 | ARCH_WINDOW_FIXED_1800 | 7 |
 洋式便器(床置き・タンク一体型) | ARCH_WC | 7 |
 片開きドア、900 | ARCH_DOOR_SINGLE | 6 |
 片開きドア、1000 | ARCH_DOOR_SINGLE_1000 | 6 |

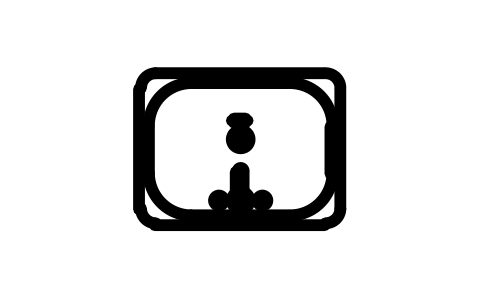

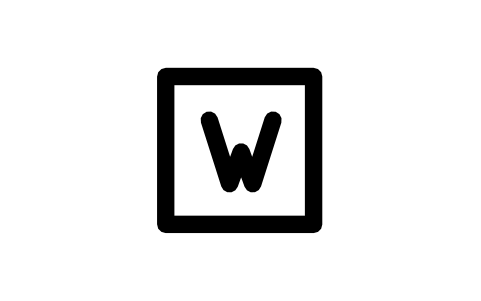

 洗面器(角形)、600 | ARCH_BASIN_RECT_600 | 6 |
 消火器(水) | ARCH_FIRE_EXTINGUISHER_WATER | 4 |

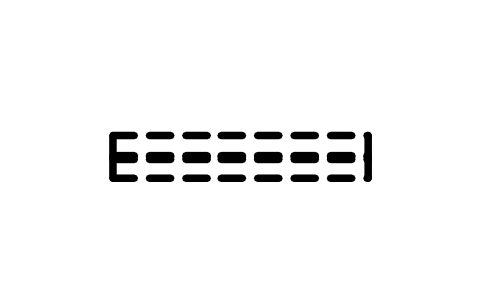

 高窓(破線表示)、1200 | ARCH_WINDOW_HIGH | 3 |

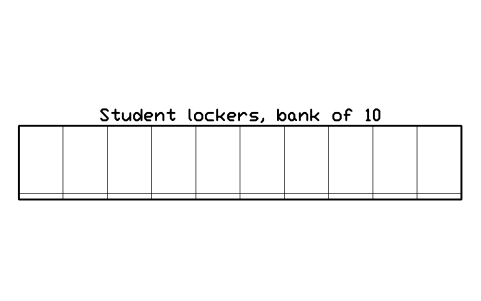

 生徒用ロッカー、10個1組 | SCH_LOCKERS_10 | 3 |

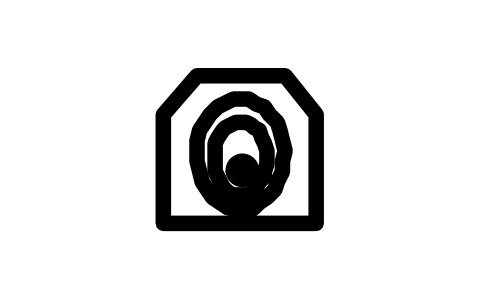

 小便器(壁掛け) | ARCH_URINAL | 3 |

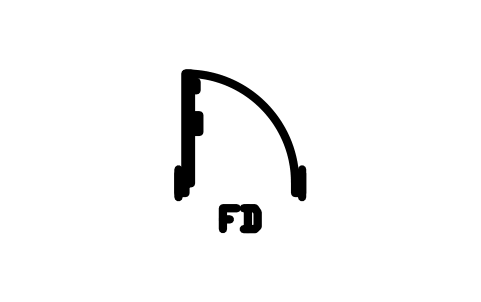

 片開き防火ドア、900 | ARCH_DOOR_SINGLE_FIRE | 2 |
 U字階段(折り返し) | ARCH_STAIR_U | 2 |

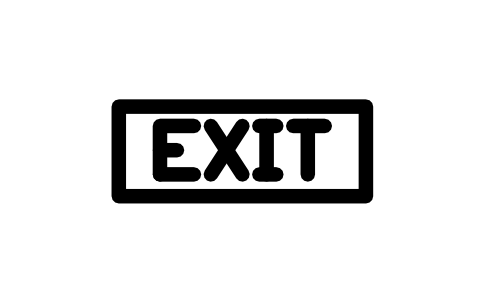

 非常口表示 | ARCH_EXIT_SIGN | 2 |

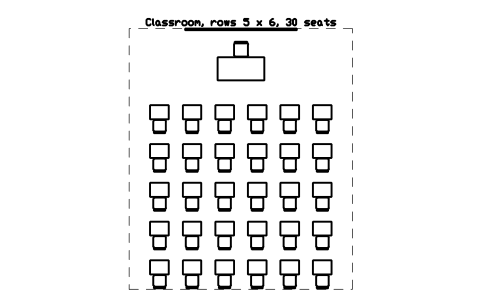

 教室、5 x 6列、30席 | SCH_CLASS_ROWS_5X6 | 2 |

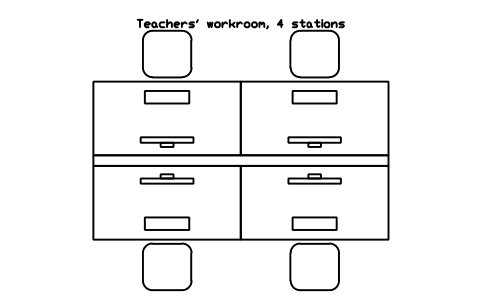

 教員用ワークルーム、4ステーション | SCH_STAFF_WORKBANK_4 | 2 |

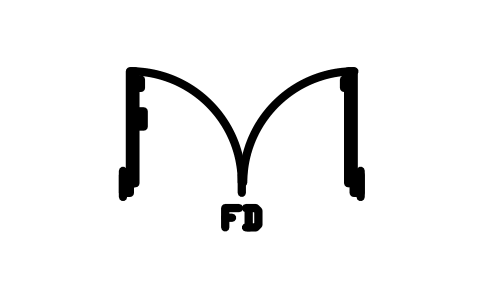

 両開き防火ドア、1800 | ARCH_DOOR_DOUBLE_FIRE | 1 |

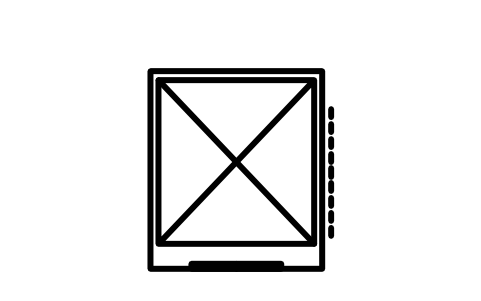

 乗用エレベーター | ARCH_LIFT_PASSENGER | 1 |

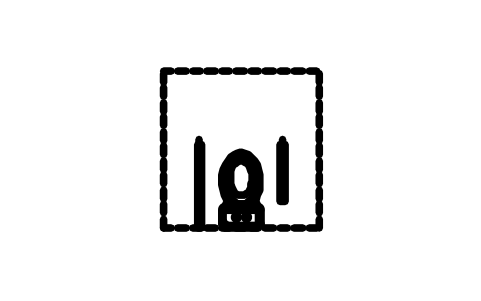

 バリアフリー便器(手すり付き) | ARCH_WC_ACCESSIBLE | 1 |

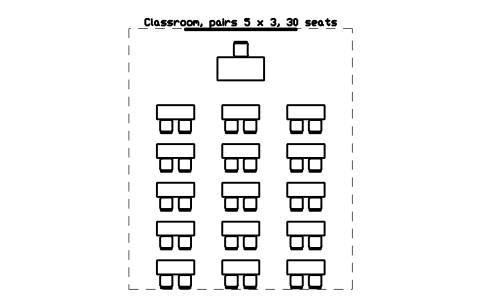

 教室、2人組 5 x 3、30席 | SCH_CLASS_PAIRS_5X3 | 1 |

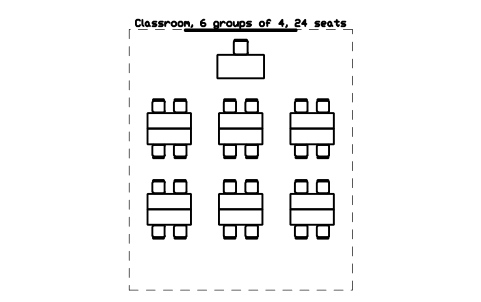

 教室、6グループ×4人、24席 | SCH_CLASS_PODS_6 | 1 |

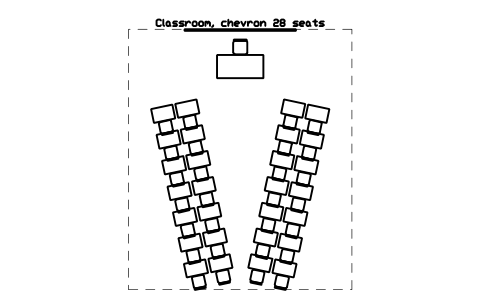

 教室、ヘリンボーン配置、28席 | SCH_CLASS_CHEVRON_28 | 1 |

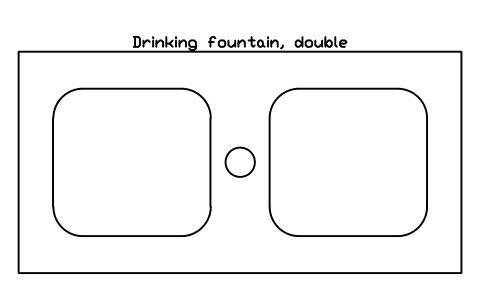

 水飲み場、ダブル | SCH_DRINKING_FOUNTAIN | 1 |

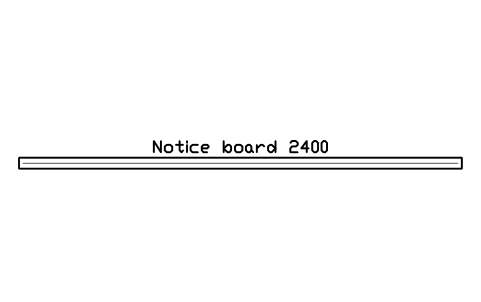

 掲示板 2400 | SCH_NOTICE_BOARD_2400 | 1 |

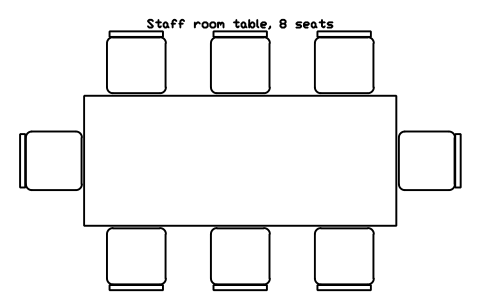

 職員室テーブル、8席 | SCH_STAFF_TABLE_8 | 1 |

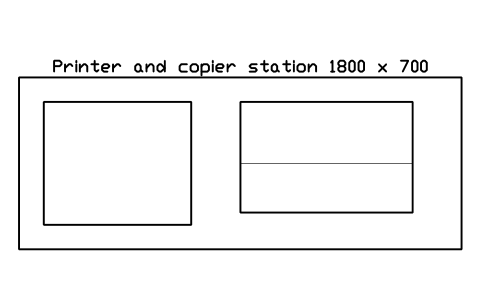

 プリンター・コピー機ステーション 1800 x 700 | SCH_PRINT_STATION | 1 |

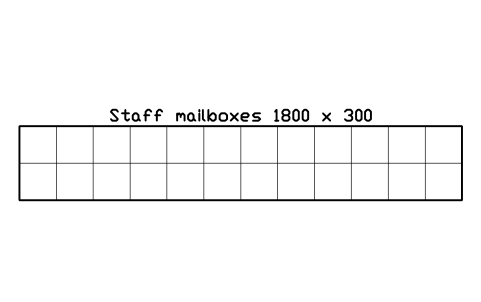

 職員用メールボックス 1800 x 300 | SCH_STAFF_MAILBOX | 1 |

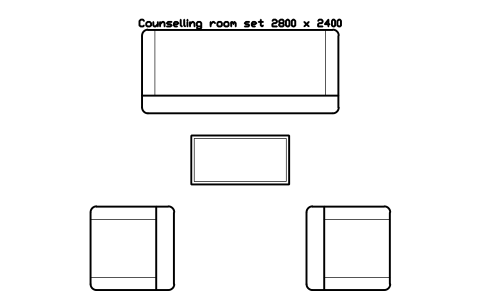

 カウンセリングルーム家具セット 2800 x 2400 | SCH_COUNSEL_SET | 1 |

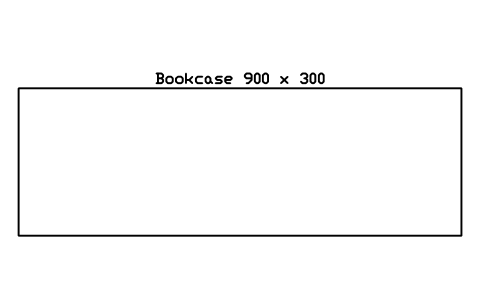

 本棚 900 x 300 | SCH_BOOKCASE_900 | 1 |

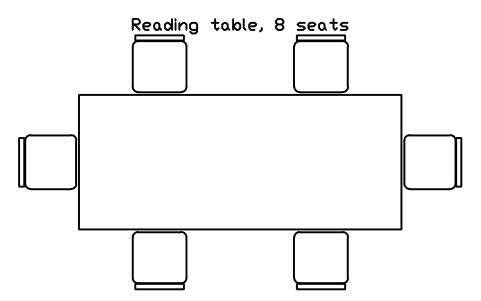

 閲覧テーブル、8席 | SCH_LIB_TABLE_8 | 1 |

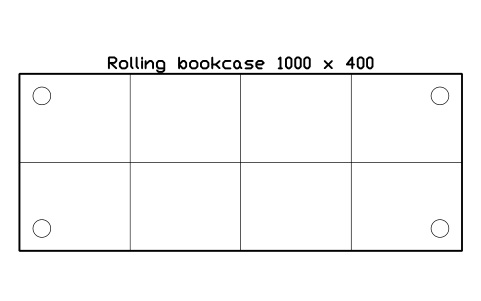

 移動式ブックケース 1000 x 400 | SCH_LIB_ROLL_SHELF | 1 |

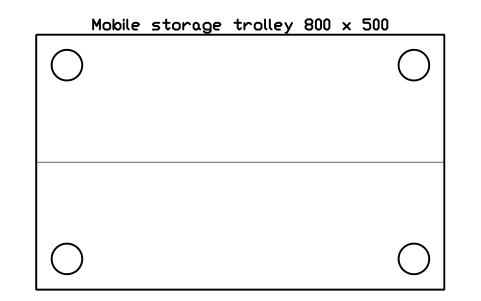

 移動式収納カート 800 x 500 | SCH_MOBILE_TROLLEY | 1 |

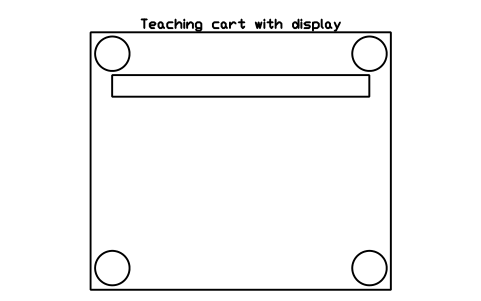

 ディスプレイ付き授業カート | SCH_TEACHING_CART | 1 |
 方位記号 | ARCH_NORTH_ARROW | 1 |
 スケールバー(5m) | ARCH_SCALE_BAR | 1 |
機器明細表
配置したシンボル 1 つにつき 1 行で、図面内のブロックの属性から読み取っています。図面に表示される内容と、入力済みで表示されない明細表用の属性です。BlockSync を使うと、ご自身の図面から同じ属性を書き出せます。
| タグ | 説明 | 図面に表示 | 入力済み（非表示） |
|---|---|---|---|
| W1 | FIX窓、1800ARCH_WINDOW_FIXED_1800 | WIDTH_MM = 1800HEIGHT_MM = 1350GLAZING = Double, low-E | |
| W2 | FIX窓、2400ARCH_WINDOW_FIXED_2400 | WIDTH_MM = 2400HEIGHT_MM = 1350GLAZING = Double, low-E | |
| W3 | FIX窓、2400ARCH_WINDOW_FIXED_2400 | WIDTH_MM = 2400HEIGHT_MM = 1350GLAZING = Double, low-E | |
| W4 | FIX窓、2400ARCH_WINDOW_FIXED_2400 | WIDTH_MM = 2400HEIGHT_MM = 1350GLAZING = Double, low-E | |
| W5 | FIX窓、2400ARCH_WINDOW_FIXED_2400 | WIDTH_MM = 2400HEIGHT_MM = 1350GLAZING = Double, low-E | |
| W6 | FIX窓、2400ARCH_WINDOW_FIXED_2400 | WIDTH_MM = 2400HEIGHT_MM = 1350GLAZING = Double, low-E | |
| W7 | FIX窓、2400ARCH_WINDOW_FIXED_2400 | WIDTH_MM = 2400HEIGHT_MM = 1350GLAZING = Double, low-E | |
| W8 | FIX窓、2400ARCH_WINDOW_FIXED_2400 | WIDTH_MM = 2400HEIGHT_MM = 1350GLAZING = Double, low-E | |
| W9 | FIX窓、2400ARCH_WINDOW_FIXED_2400 | WIDTH_MM = 2400HEIGHT_MM = 1350GLAZING = Double, low-E | |
| W10 | FIX窓、2400ARCH_WINDOW_FIXED_2400 | WIDTH_MM = 2400HEIGHT_MM = 1350GLAZING = Double, low-E | |
| W11 | FIX窓、1800ARCH_WINDOW_FIXED_1800 | WIDTH_MM = 1800HEIGHT_MM = 1350GLAZING = Double, low-E | |
| W12 | FIX窓、1800ARCH_WINDOW_FIXED_1800 | WIDTH_MM = 1800HEIGHT_MM = 1350GLAZING = Double, low-E | |
| W13 | FIX窓、1800ARCH_WINDOW_FIXED_1800 | WIDTH_MM = 1800HEIGHT_MM = 1350GLAZING = Double, low-E | |
| W14 | 高窓(破線表示)、1200ARCH_WINDOW_HIGH | WIDTH_MM = 1200HEIGHT_MM = 1350GLAZING = Double, low-E | |
| W16 | 高窓(破線表示)、1200ARCH_WINDOW_HIGH | WIDTH_MM = 1200HEIGHT_MM = 1350GLAZING = Double, low-E | |
| W15 | 高窓(破線表示)、1200ARCH_WINDOW_HIGH | WIDTH_MM = 1200HEIGHT_MM = 1350GLAZING = Double, low-E | |
| W19 | FIX窓、2400ARCH_WINDOW_FIXED_2400 | WIDTH_MM = 2400HEIGHT_MM = 1350GLAZING = Double, low-E | |
| W18 | FIX窓、2400ARCH_WINDOW_FIXED_2400 | WIDTH_MM = 2400HEIGHT_MM = 1350GLAZING = Double, low-E | |
| W17 | FIX窓、2400ARCH_WINDOW_FIXED_2400 | WIDTH_MM = 2400HEIGHT_MM = 1350GLAZING = Double, low-E | |
| W22 | FIX窓、2400ARCH_WINDOW_FIXED_2400 | WIDTH_MM = 2400HEIGHT_MM = 1350GLAZING = Double, low-E | |
| W21 | FIX窓、2400ARCH_WINDOW_FIXED_2400 | WIDTH_MM = 2400HEIGHT_MM = 1350GLAZING = Double, low-E | |
| W20 | FIX窓、2400ARCH_WINDOW_FIXED_2400 | WIDTH_MM = 2400HEIGHT_MM = 1350GLAZING = Double, low-E | |
| W24 | FIX窓、1800ARCH_WINDOW_FIXED_1800 | WIDTH_MM = 1800HEIGHT_MM = 1350GLAZING = Double, low-E | |
| W23 | FIX窓、1800ARCH_WINDOW_FIXED_1800 | WIDTH_MM = 1800HEIGHT_MM = 1350GLAZING = Double, low-E | |
| W25 | FIX窓、1800ARCH_WINDOW_FIXED_1800 | WIDTH_MM = 1800HEIGHT_MM = 1350GLAZING = Double, low-E | |
| D1 | 片開きドア、900ARCH_DOOR_SINGLE | WIDTH_MM = 900HEIGHT_MM = 2100DOOR_TYPE = Single swingMATERIAL = TimberFIRE_RATING = NoneFINISH = PaintedHARDWARE_SET = HS-1 | |
| D2 | 片開き防火ドア、900ARCH_DOOR_SINGLE_FIRE | WIDTH_MM = 900HEIGHT_MM = 2100DOOR_TYPE = Fire door, stair coreMATERIAL = TimberFIRE_RATING = NoneFINISH = PaintedHARDWARE_SET = HS-1 | |
| D3 | 片開きドア、1000ARCH_DOOR_SINGLE_1000 | WIDTH_MM = 1000HEIGHT_MM = 2100DOOR_TYPE = Classroom doorMATERIAL = TimberFIRE_RATING = NoneFINISH = PaintedHARDWARE_SET = HS-1 | |
| D4 | 片開きドア、1000ARCH_DOOR_SINGLE_1000 | WIDTH_MM = 1000HEIGHT_MM = 2100DOOR_TYPE = Classroom doorMATERIAL = TimberFIRE_RATING = NoneFINISH = PaintedHARDWARE_SET = HS-1 | |
| D5 | 片開きドア、1000ARCH_DOOR_SINGLE_1000 | WIDTH_MM = 1000HEIGHT_MM = 2100DOOR_TYPE = Classroom doorMATERIAL = TimberFIRE_RATING = NoneFINISH = PaintedHARDWARE_SET = HS-1 | |
| D6 | 片開きドア、900ARCH_DOOR_SINGLE | WIDTH_MM = 900HEIGHT_MM = 2100DOOR_TYPE = Accessible WC doorMATERIAL = TimberFIRE_RATING = NoneFINISH = PaintedHARDWARE_SET = HS-1 | |
| D7 | 片開き防火ドア、900ARCH_DOOR_SINGLE_FIRE | WIDTH_MM = 900HEIGHT_MM = 2100DOOR_TYPE = Fire door, stair coreMATERIAL = TimberFIRE_RATING = NoneFINISH = PaintedHARDWARE_SET = HS-1 | |
| D8 | 片開きドア、1000ARCH_DOOR_SINGLE_1000 | WIDTH_MM = 1000HEIGHT_MM = 2100DOOR_TYPE = Single swingMATERIAL = TimberFIRE_RATING = NoneFINISH = PaintedHARDWARE_SET = HS-1 | |
| D9 | 片開きドア、1000ARCH_DOOR_SINGLE_1000 | WIDTH_MM = 1000HEIGHT_MM = 2100DOOR_TYPE = Classroom doorMATERIAL = TimberFIRE_RATING = NoneFINISH = PaintedHARDWARE_SET = HS-1 | |
| D10 | 片開きドア、1000ARCH_DOOR_SINGLE_1000 | WIDTH_MM = 1000HEIGHT_MM = 2100DOOR_TYPE = Classroom doorMATERIAL = TimberFIRE_RATING = NoneFINISH = PaintedHARDWARE_SET = HS-1 | |
| D11 | 片開きドア、900ARCH_DOOR_SINGLE | WIDTH_MM = 900HEIGHT_MM = 2100DOOR_TYPE = Single swingMATERIAL = TimberFIRE_RATING = NoneFINISH = PaintedHARDWARE_SET = HS-1 | |
| D12 | 片開きドア、900ARCH_DOOR_SINGLE | WIDTH_MM = 900HEIGHT_MM = 2100DOOR_TYPE = Single swingMATERIAL = TimberFIRE_RATING = NoneFINISH = PaintedHARDWARE_SET = HS-1 | |
| D13 | 片開きドア、900ARCH_DOOR_SINGLE | WIDTH_MM = 900HEIGHT_MM = 2100DOOR_TYPE = Single swingMATERIAL = TimberFIRE_RATING = NoneFINISH = PaintedHARDWARE_SET = HS-1 | |
| D14 | 片開きドア、900ARCH_DOOR_SINGLE | WIDTH_MM = 900HEIGHT_MM = 2100DOOR_TYPE = Single swingMATERIAL = TimberFIRE_RATING = NoneFINISH = PaintedHARDWARE_SET = HS-1 | |
| D15 | 両開き防火ドア、1800ARCH_DOOR_DOUBLE_FIRE | WIDTH_MM = 1800HEIGHT_MM = 2100DOOR_TYPE = Double fire doorMATERIAL = TimberFIRE_RATING = NoneFINISH = PaintedHARDWARE_SET = HS-1 |
製造者、型式、備考はすべてのブロックで空欄にしてあり、ご自身のデータを入力できます。値は例です。
