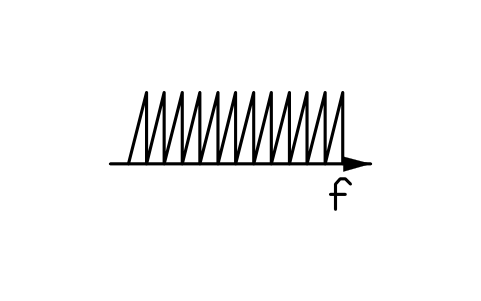

Erect band, several channels symbol (DWG block)
Erect band, several channels is a ready-to-use AutoCAD block named TLX_S01304_ERECT_BAND_SEVERAL_CHANNELS in the Antennas, waveguides, modulation, filters and optical fibre (IEC 60617), group “Frequency spectrum marks”. It carries 4 attributes, 0 of them visible, so it works in equipment lists and BlockSync exports.
Block details
| Block name | TLX_S01304_ERECT_BAND_SEVERAL_CHANNELS |
|---|---|
| Library | Antennas, waveguides, modulation, filters and optical fibre (IEC 60617) |
| Group | Frequency spectrum marks |
| Standard | IEC 60617 |
| Attributes | 4 attributes, 0 visible |
Attributes
Hidden, they carry the data for schedules: REMARKS, STD_CLAUSE, STD_REF, DESC.
Export the attributes of every copy in a drawing to Excel with BlockSync, check them and write the corrections back in one run.
How to use it
- Download the ZIP and unzip it. It holds one DWG with the block TLX_S01304_ERECT_BAND_SEVERAL_CHANNELS.
- Open the DWG and copy the block into your drawing, or insert it from the DWG with INSERT.
- Double-click a copy to fill in the tag and the other attributes.
The symbol is our own drawing after the common form of IEC 60617, not a certified copy. The library page explains how the symbols relate to the standard.
Names in other languages
The same symbol under its name in the other site languages.
- inglês
- Erect band, several channels
- chinês simplificado
- 正置频带，多路
- chinês tradicional
- 正置頻帶，多路
- japonês
- 正立帯域(複数チャネル)
- coreano
- 정립 대역, 다중 채널
- alemão
- Normallage-Band, mehrere Kanäle
- francês
- Bande en position normale, plusieurs voies
- italiano
- Banda in posizione diretta, più canali
- espanhol
- Banda en posición directa, varios canales
