The problem
PUBLISH is fiddly to configure, cross-file merging is weak, and applying CTBs in bulk is tedious.
How Dwg2Pdf works
These are the tabs inside the actual app, in the order they appear — every screenshot below is a real, unedited capture of Dwg2Pdf running.

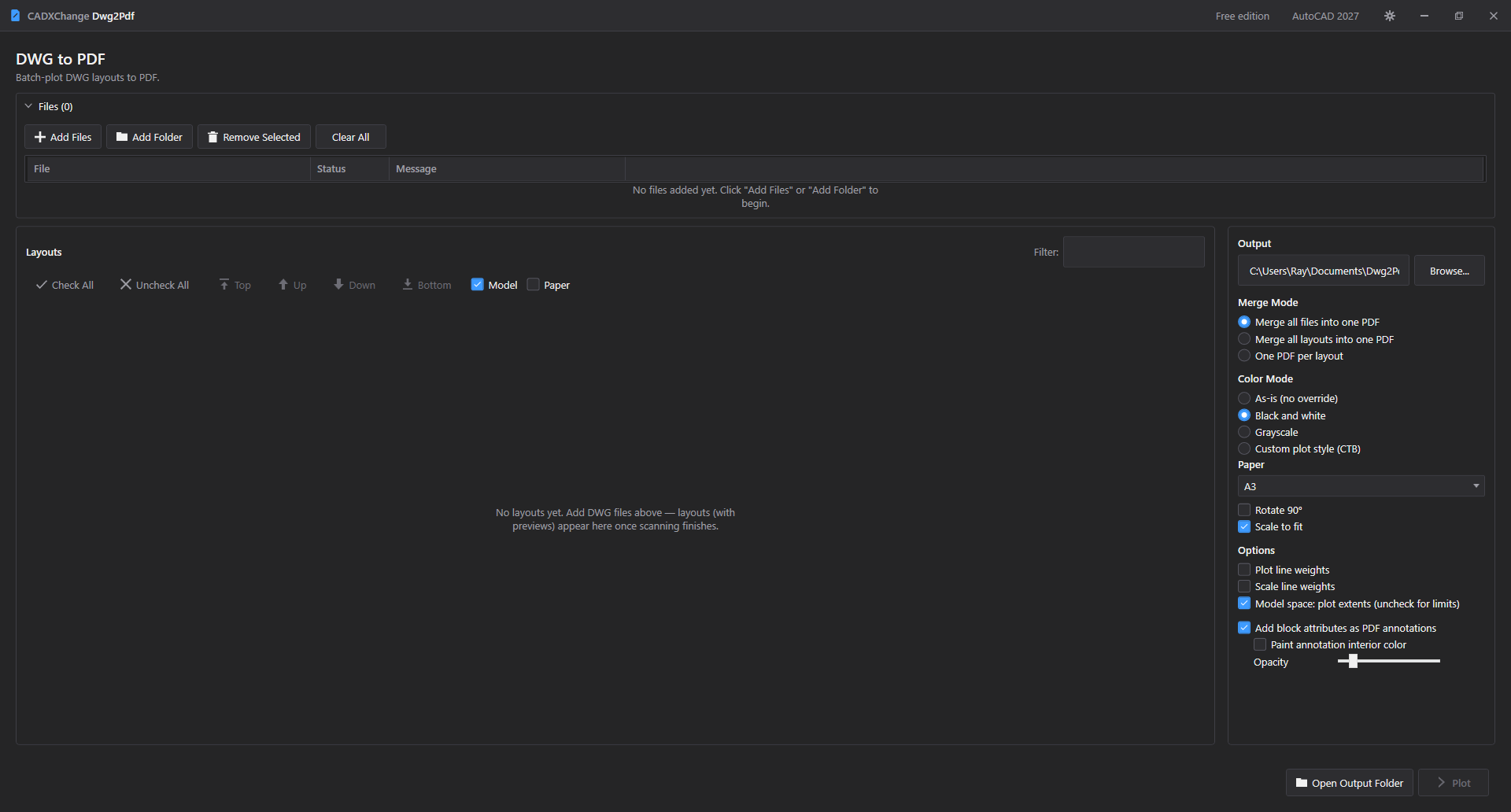

One screen: pick layouts, set output rules, plot
Add drawings, choose exactly which layouts get plotted and in what order, decide how the output PDFs are merged, and set color/CTB policy for the whole batch — all before a single page is generated.
- 1Add Files or Add Folder to build the batch. Layouts are scanned automatically, with a live preview per layout, and Model/Paper checkboxes let you include or exclude each space.
- 2Use Check All / Uncheck All plus Top / Up / Down / Bottom to control exactly which layouts are included and the order they'll appear in a merged PDF — the order in the list is the order in the output.
- 3Pick a Merge Mode: Merge all files into one PDF, Merge all layouts into one PDF (grouped across files by layout name), or One PDF per layout — matching how submittal sets actually get assembled, instead of PUBLISH's rigid all-or-nothing behavior.
- 4Pick a Color Mode: As-is (no override), Black and white, Grayscale, or Custom plot style (CTB) — Add CTB… lets you attach a specific .ctb file, optionally restricted to an entire range or a specific page range within it.
- 5Set Paper (A4/A3/A2/A1), Rotate 90°, and Scale to fit for consistent output sizing across drawings that weren't all set up the same way.
- 6Fine-tune with Plot line weights, Scale line weights, and Model space: plot extents (uncheck to plot to drawing limits instead).
- 7Optionally enable Add block attributes as PDF annotations to stamp attribute values as real, selectable PDF annotation layers over the plot — with an adjustable Opacity slider and an option to Paint annotation interior color — useful for searchable or markup-ready PDFs rather than flat plotted geometry.
- 8Set the Output folder (or Browse… to change it), then Plot. Cancel stops after the layout currently being plotted finishes; Open Output Folder jumps straight to the result.
Options on this screen
- Merge all files into one PDF
- Every layout from every file lands in a single output PDF.
- Merge all layouts into one PDF
- Layouts are grouped by name across files into one PDF per layout name.
- One PDF per layout
- Every layout gets its own separate output file.
- As-is / Black and white / Grayscale / Custom plot style (CTB)
- Color policy applied uniformly across the whole batch instead of per drawing.
- Add block attributes as PDF annotations
- Stamp block attribute values as selectable PDF annotations, with adjustable opacity.

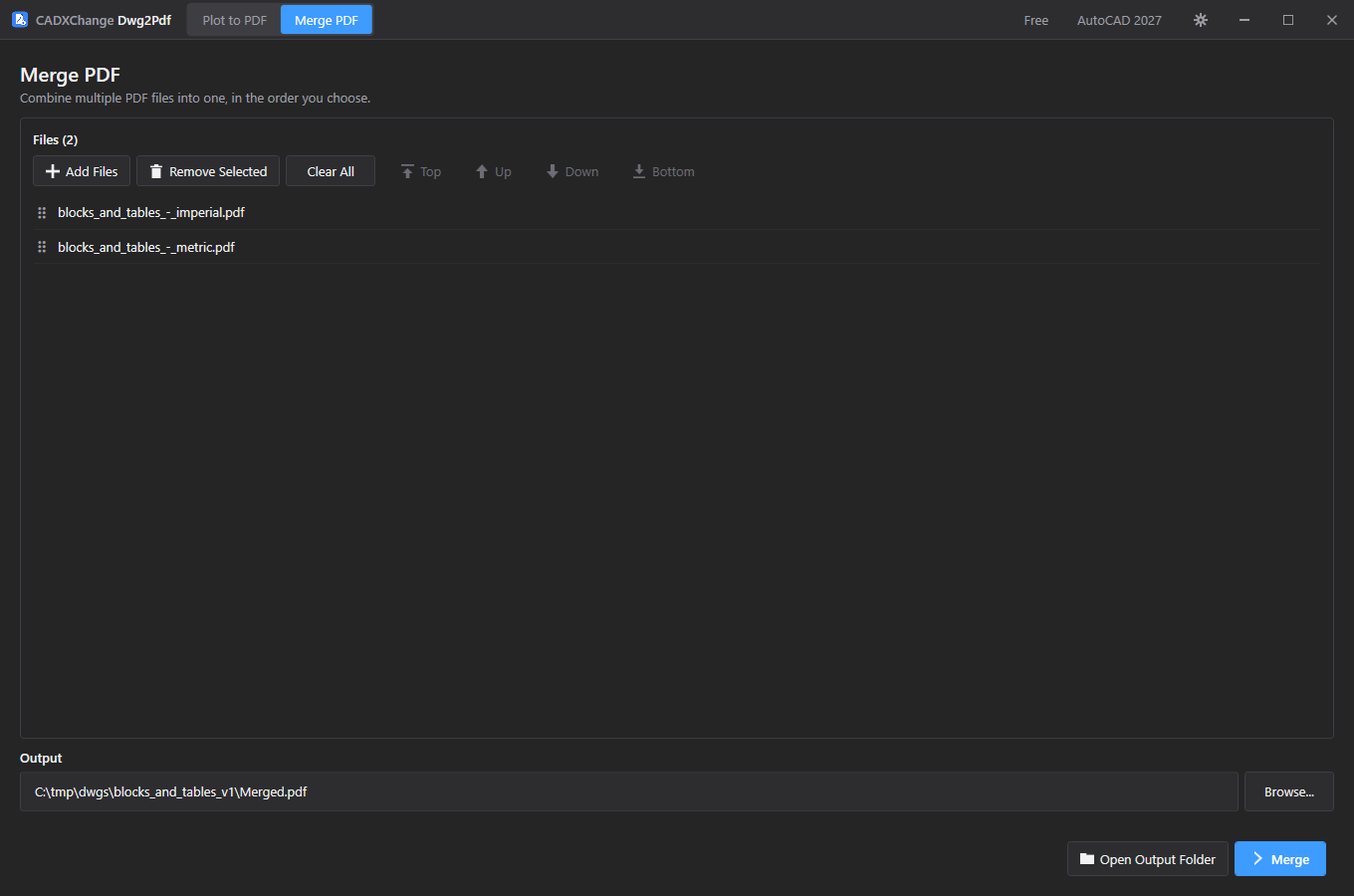

A standalone Merge PDF mode, for PDFs you already have
A second mode alongside DWG to PDF, for combining PDF files that already exist — scanned sheets, PDFs from other software, previous Dwg2Pdf output — into one file, without opening AutoCAD or plotting anything.
- 1Switch to the Merge PDF tab from the DWG to PDF screen.
- 2Add Files to pick one or more existing PDFs, or drag and drop them straight into the list.
- 3Drag a row's ⠿ handle to reorder it, or select a row and use Top / Up / Down / Bottom — list order is the page order in the merged output.
- 4Remove Selected drops the highlighted files; Clear All empties the list.
- 5The output path defaults to Merged.pdf in the folder the added files came from the first time files are added; Browse… picks a different name or location.
- 6Click Merge. If the output file already exists, Dwg2Pdf appends " (2)", " (3)", etc. instead of overwriting it. Open Output Folder jumps straight to the result.
Also included
Layout order is output order
The Top/Up/Down/Bottom controls on the layout list aren't just for tidiness — they directly determine page order in a merged PDF, so a submittal set can be assembled in the right sequence without post-processing in a separate PDF tool.
CTB and color policy, applied in bulk
Choosing a plot style once and having it apply across every layout in the batch removes the most tedious and error-prone part of a manual PUBLISH-based workflow: confirming the right CTB is attached, drawing by drawing, before a submission run.
Dry-run scan before any PDF is generated
Scanning a batch populates the layout list with previews before anything is plotted, so a wrong paper size or an accidentally-included layout gets caught before a 200-page run rather than after.
Cancel mid-batch without losing finished output
Canceling a plot run finishes the layout currently in progress and stops before the next one — PDFs already written for earlier layouts are kept, not discarded.
Merge PDF works on files Dwg2Pdf never plotted
The Merge PDF tab combines any existing PDFs — scans, output from other software, PDFs plotted in a previous Dwg2Pdf run — in a chosen order, without needing AutoCAD installed or a DWG in sight.
Environment & requirements
Everything that determines whether Dwg2Pdf will run on your machine, and how it behaves once it does.
- Output is standard PDF, viewable in any PDF reader — no proprietary viewer needed.
- CTB plot style files are the standard AutoCAD .ctb files already on your system (or ones you provide) — nothing proprietary to Dwg2Pdf.
- Dwg2Pdf doesn't touch Excel at any point — it's a DWG-to-PDF tool end to end.
- Windows 10/11, 64-bit only.
- Requires a licensed, full version of AutoCAD (2021–2027). AutoCAD LT is not supported — LT can't run the background automation Dwg2Pdf depends on.
- If more than one AutoCAD version is installed, pick which one to use under Settings → AutoCAD, or leave it on "Auto (newest installed)" — if that version fails to load for any reason, it falls back to another installed version automatically.
- Built on .NET 8. If the .NET 8 Desktop Runtime isn't already on your machine, the installer prompts to fetch it from Microsoft (free, one-time, roughly 60 MB).
- Network access is used only to check your license at startup and periodically afterward. Scanning, reading and writing all happen locally through AutoCAD's own engine — no drawing content is ever uploaded.
- Interface language: English / 日本語 / 简体中文.
- Batches of many files can process several drawings in the background in parallel — tune "Max parallel AutoCAD instances" in Settings to trade speed for CPU/memory headroom.
- Every long-running action shows a progress bar with a percentage and estimated time remaining, and can be canceled mid-run.
- Settings → Diagnostics → Open Log Folder gets you straight to the host and plugin logs if something needs troubleshooting.
See also the site-wide system requirements page comparing all tools.
Scenarios
A few of the situations Dwg2Pdf is built for — if yours isn't listed, it's probably still covered by one of the tabs above.
Bulk delivery set
Before
Publishing 300 layouts one config at a time before a submission deadline.
After
One merge rule and CTB policy, run once, get a single reviewable report.
Time saved
~5 hours → 20 minutes
Weekly progress set for a client
Before
A recurring weekly submission needs the same 40 layouts across a growing drawing set replotted with the same merge rule and CTB every time — re-configuring PUBLISH or clicking through each layout weekly is a standing chore.
After
Re-run the same batch with the same settings each week — add newly issued drawings to the file list, plot, done.
Time saved
~1.5 hours every week → 10 minutes
Multi-discipline set with different CTBs
Before
A combined issue includes electrical, piping and structural drawings that each use a different plot style (CTB), and PUBLISH's single global plot-style setting makes batching them together awkward without manual per-file steps.
After
Run one batch per discipline with its own CTB and merge rule, or filter layouts by naming convention — each group merges into its own submittal-ready PDF.
Time saved
~3 hours across a combined issue → 30 minutes
As-built PDF archive at project close-out
Before
At project close-out, every final-revision layout across the whole project needs to be archived as PDF with attribute data preserved for searchability — plotting each drawing individually and later manually noting tag numbers is slow and error-prone.
After
Batch-plot the entire as-built set in one run with Add block attributes as PDF annotations turned on, producing a searchable archive where equipment tags are real PDF text, not just plotted lines.
Time saved
~1 day for a large project → under an hour
