Free hotel and hospitality layout blocks for AutoCAD (DWG): guest rooms, restaurant, banquet, spa, kitchen

About the dimensions

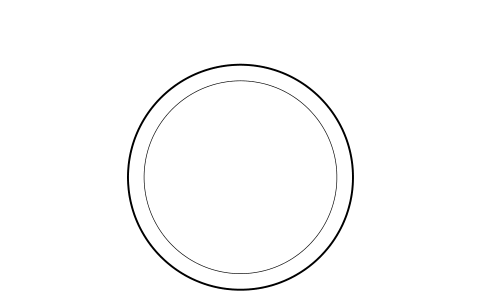

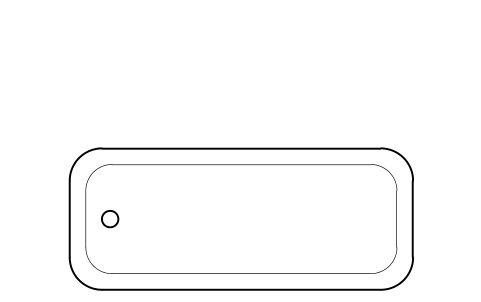

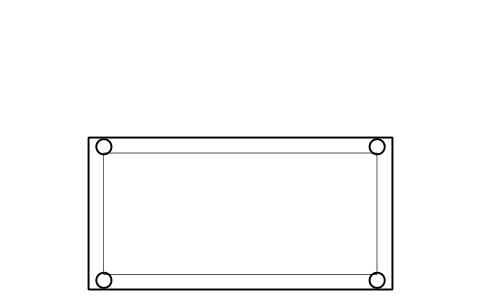

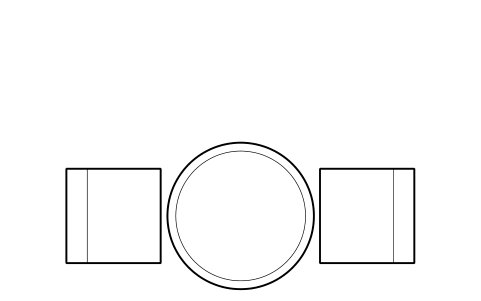

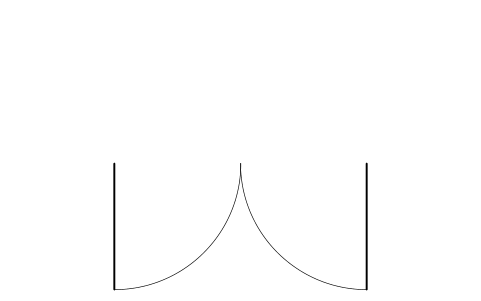

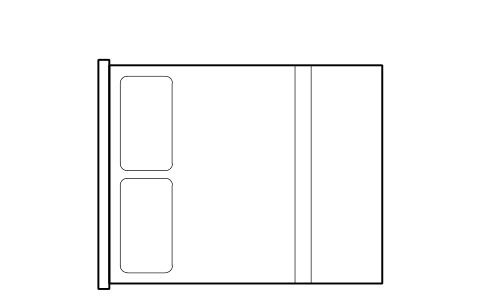

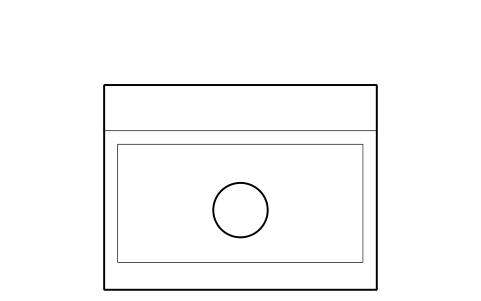

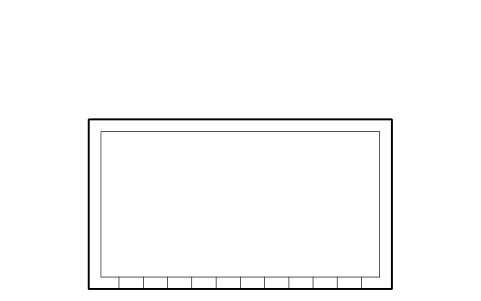

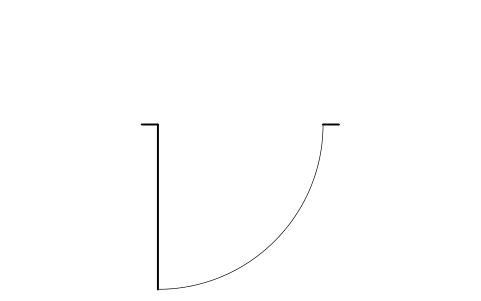

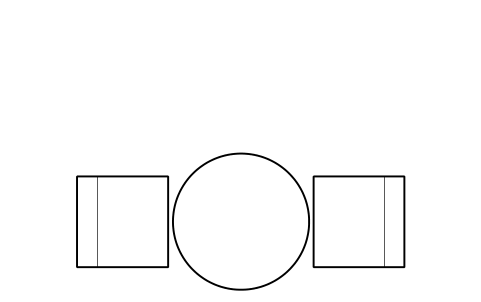

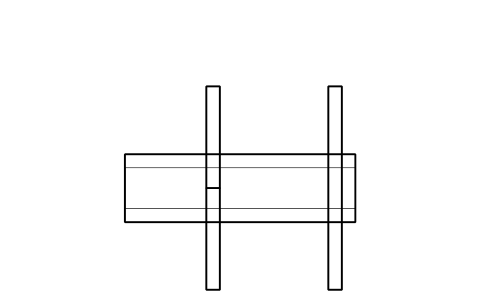

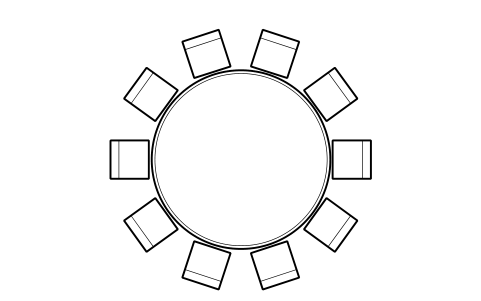

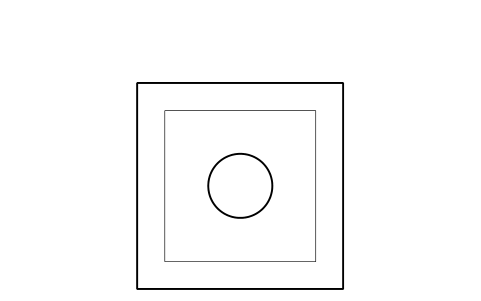

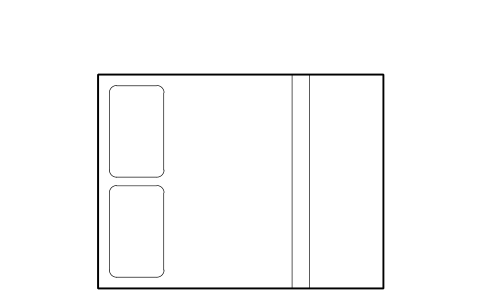

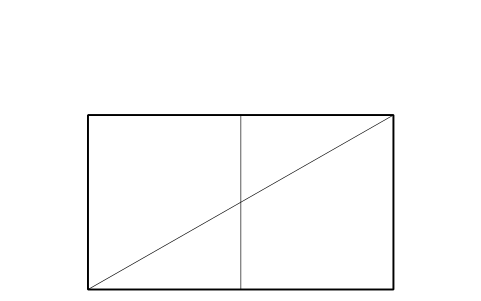

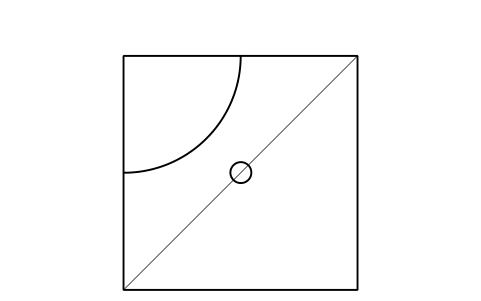

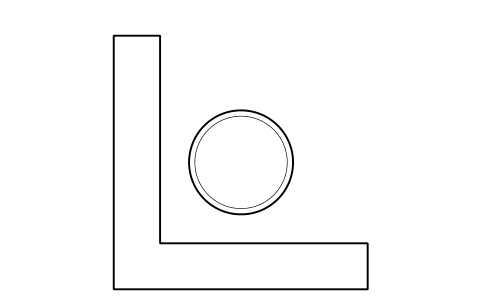

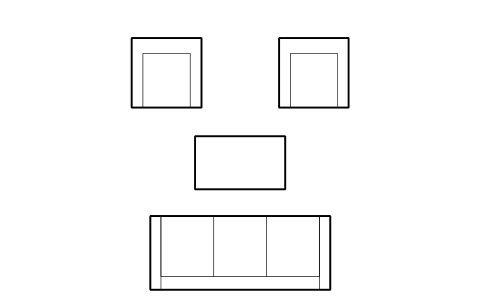

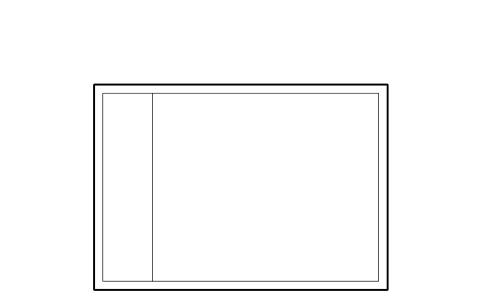

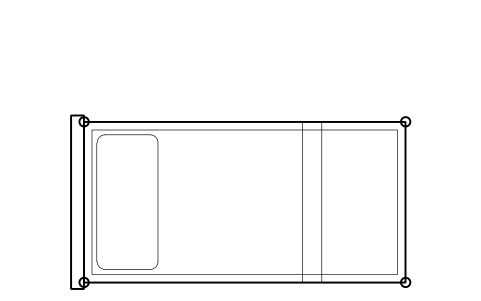

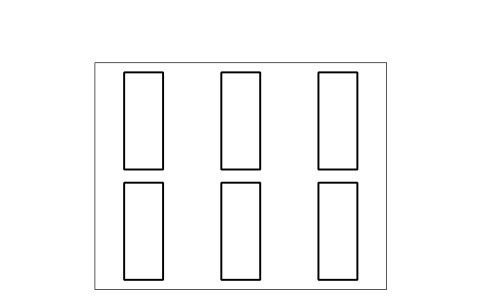

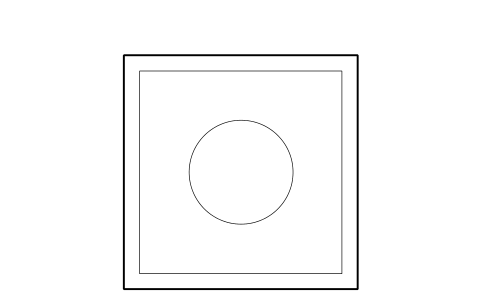

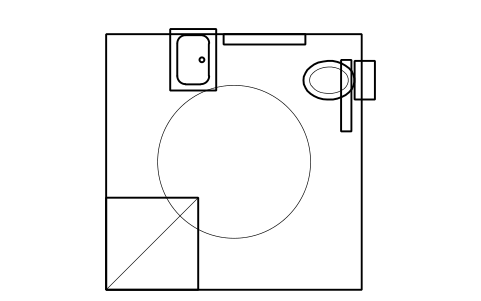

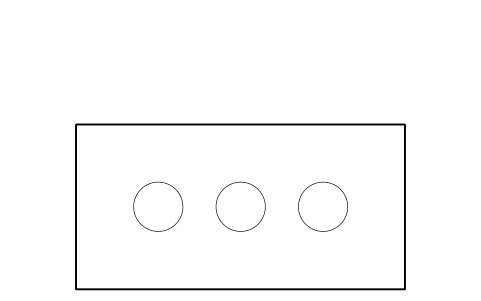

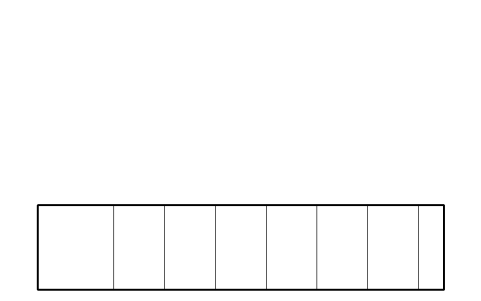

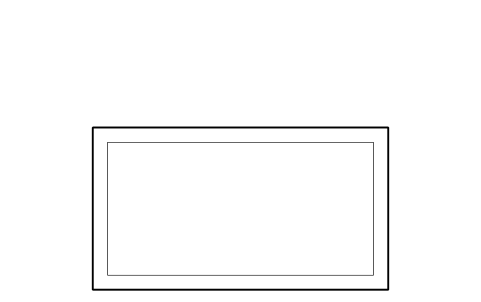

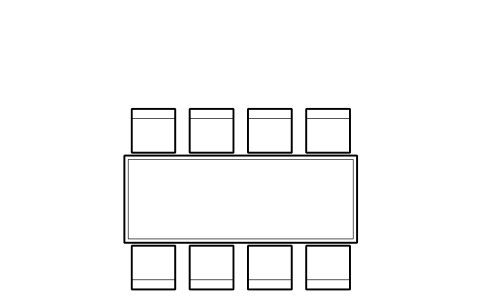

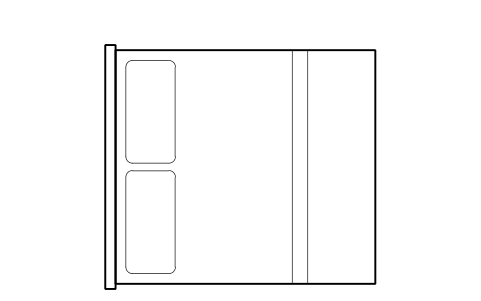

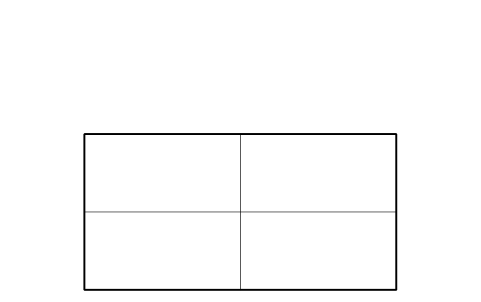

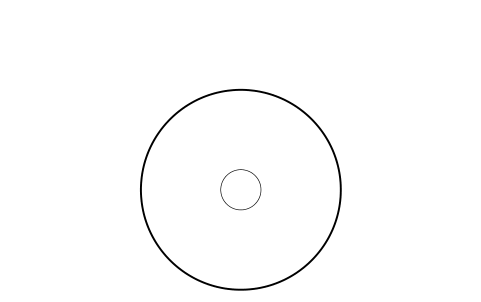

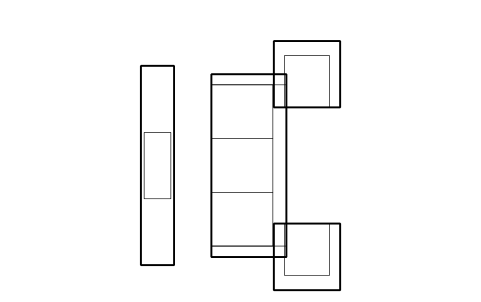

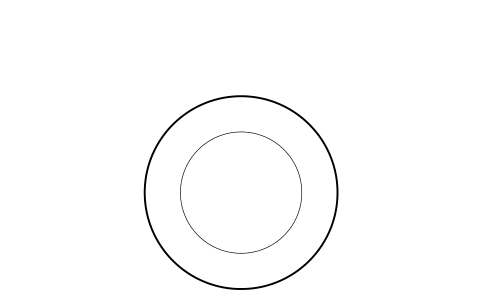

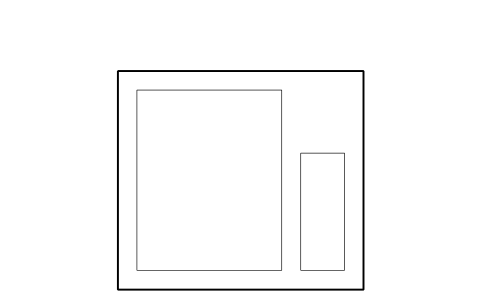

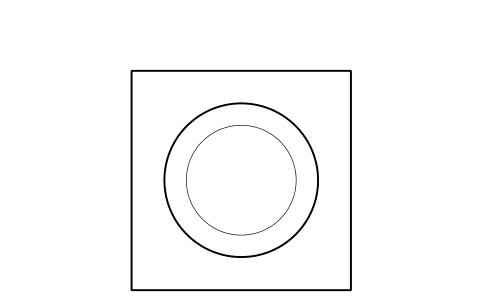

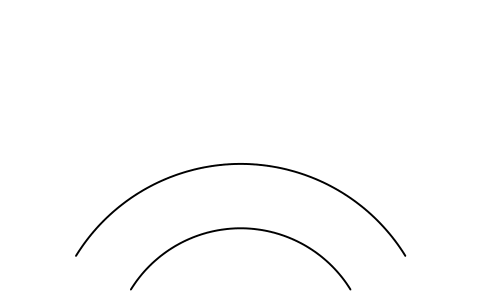

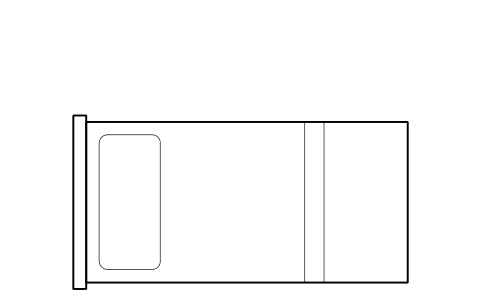

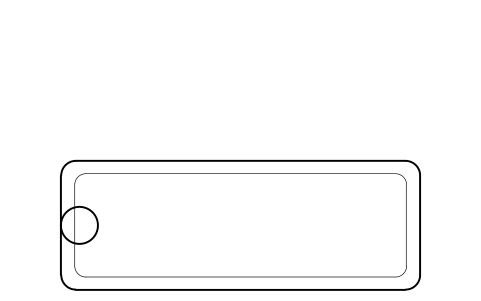

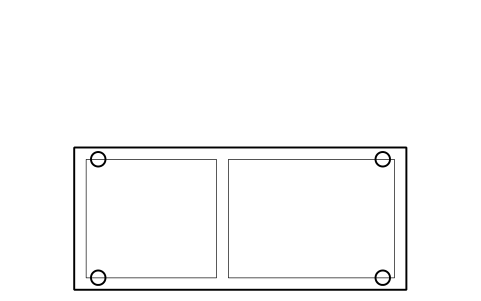

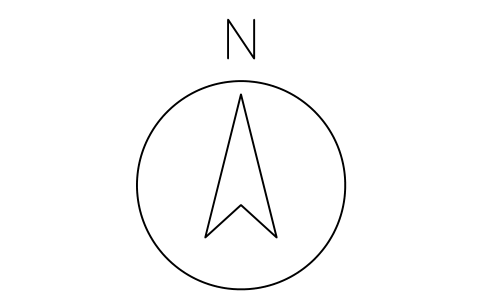

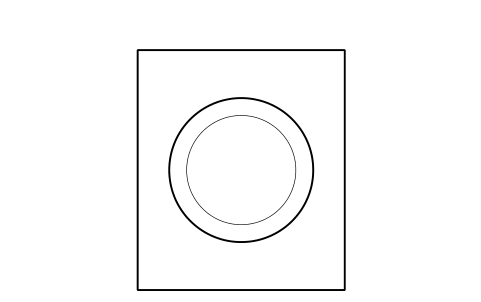

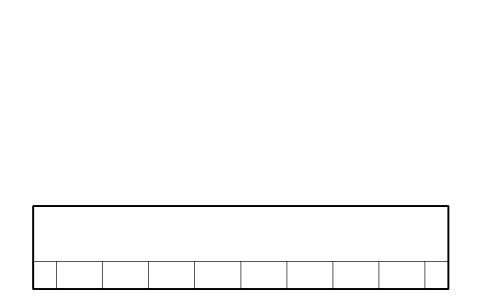

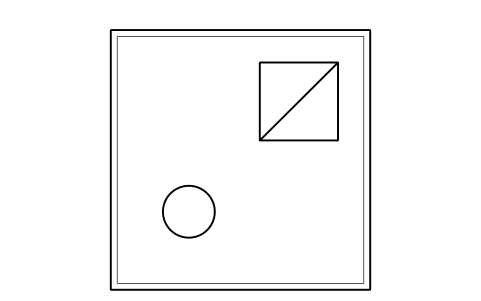

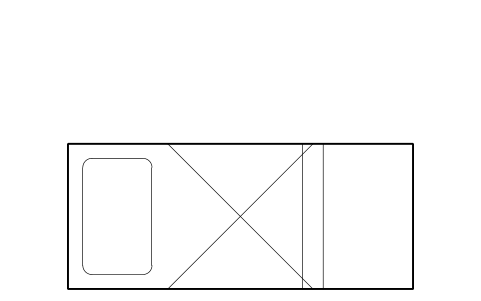

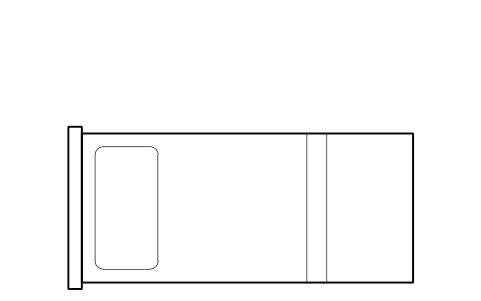

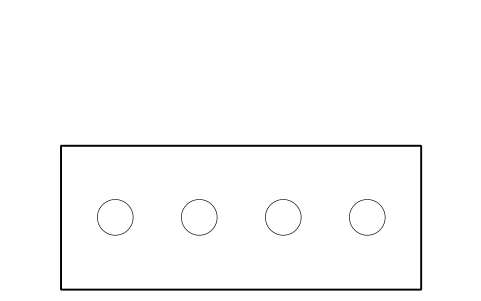

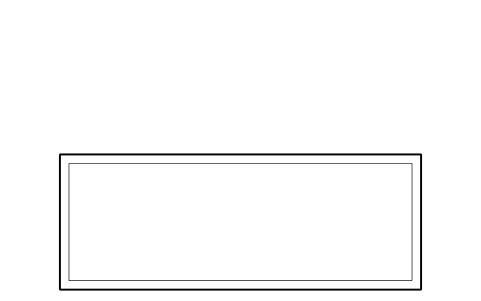

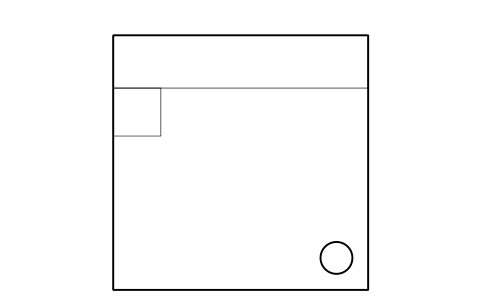

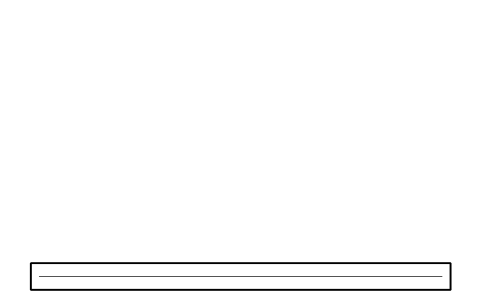

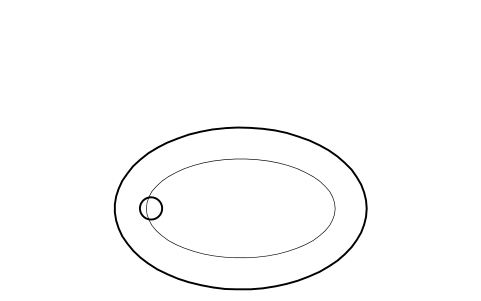

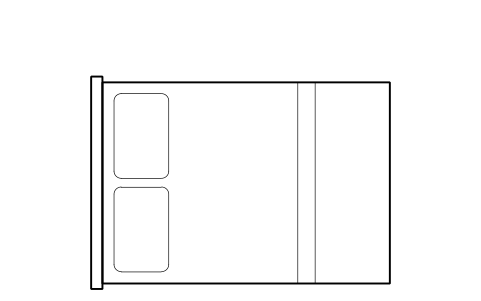

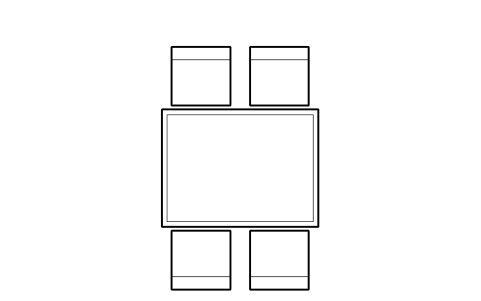

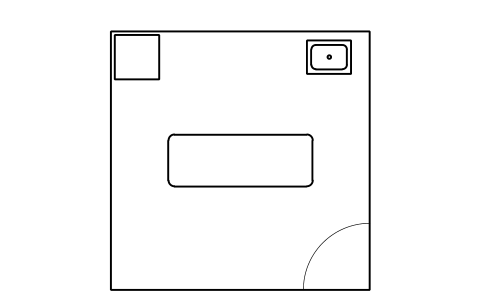

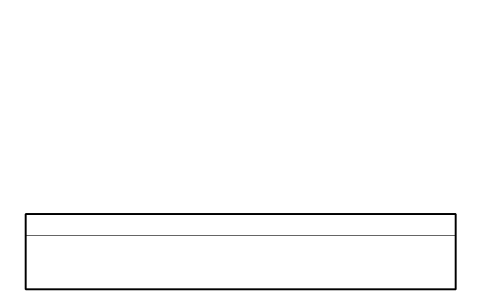

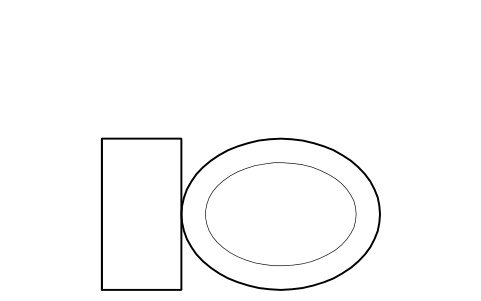

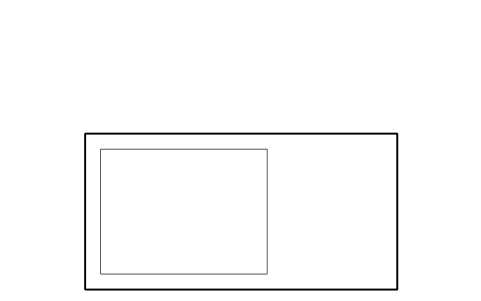

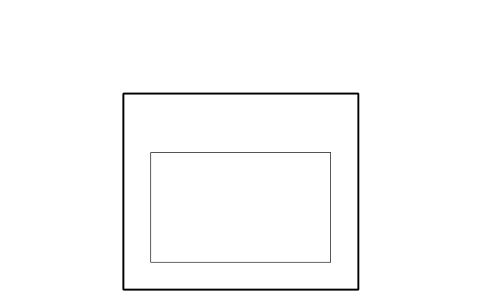

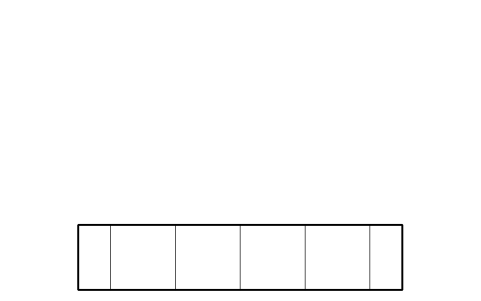

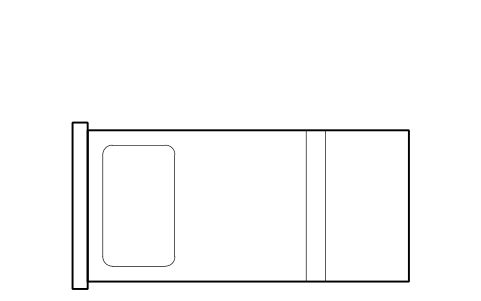

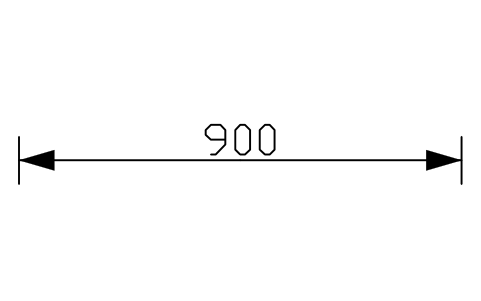

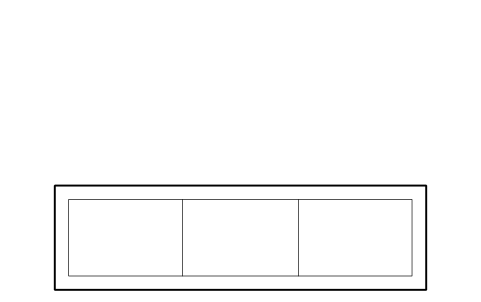

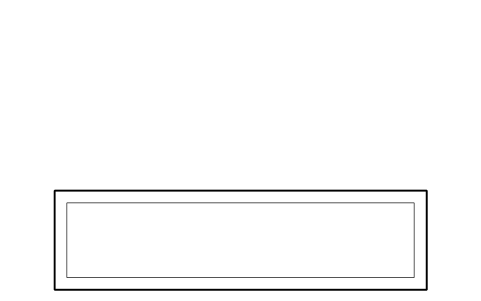

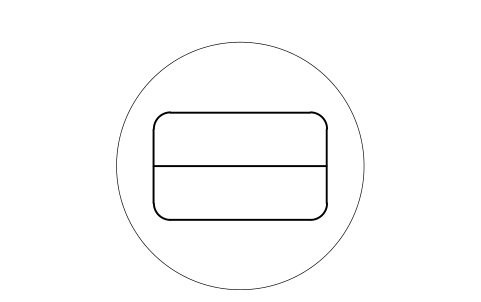

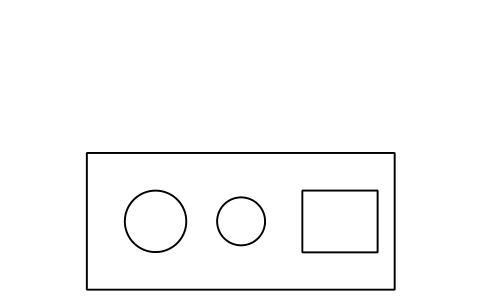

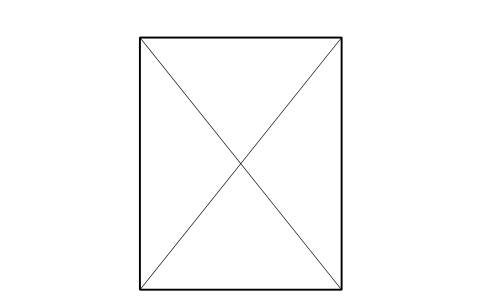

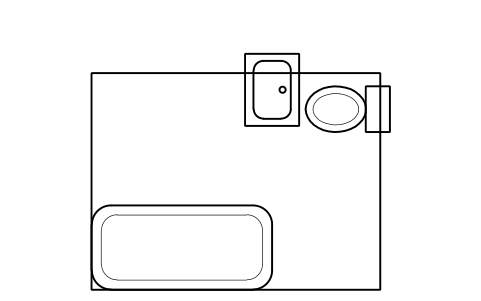

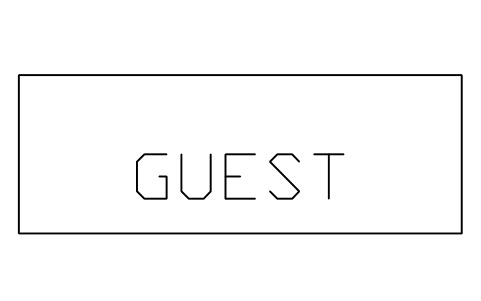

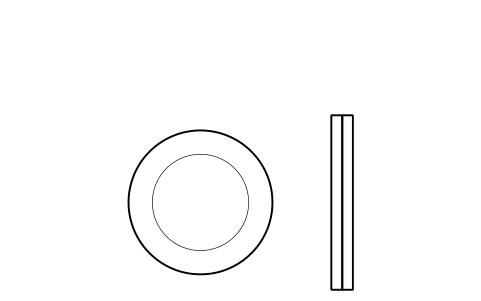

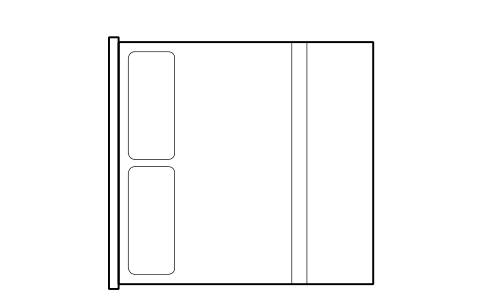

Hotel layouts follow brand standards and local rules, not a drawing standard, so the blocks use typical sizes: 2000 mm long beds in widths from 900 to 2000 mm, a 600 mm bedside table, 450 mm dining chairs, a 1800 mm banquet round for 10, a 900 mm row pitch for theatre seating. Bed sizes differ between countries and brands; check the brand standard or the supplier's data before you fix the layout.

The blocks are our own drawings, not copies of any manufacturer's catalogue or brand standard, and the library is not certified. They help to arrange rooms, count furniture and check space on a drawing; they do not show that a layout meets a brand standard, accessibility, fire or capacity rules. Seat counts, clearances and escape routes come from your brief and the rules that apply to your building.

Frequently asked questions

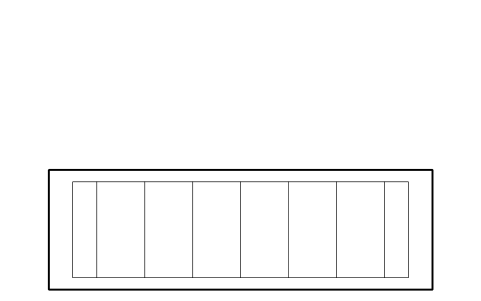

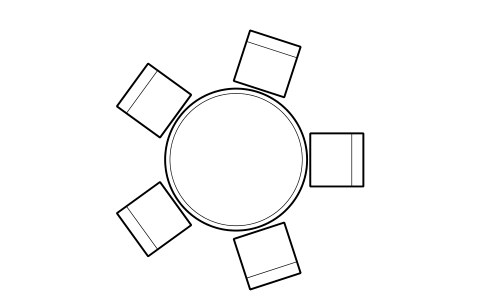

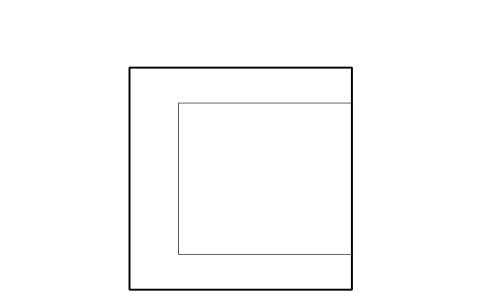

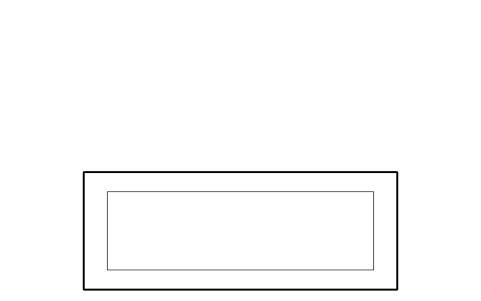

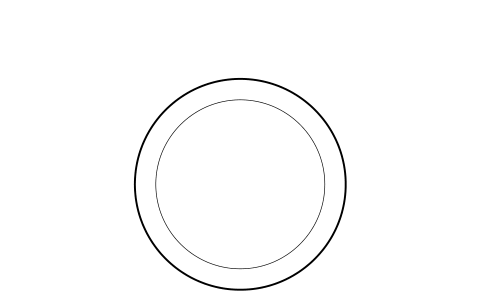

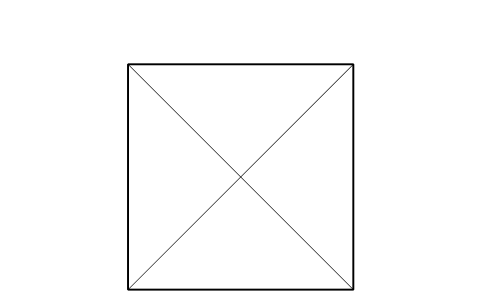

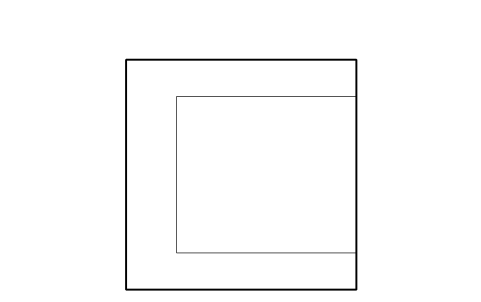

Which items are in the library?

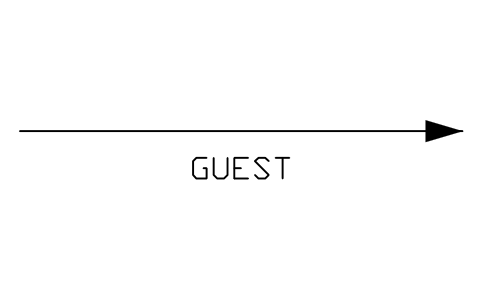

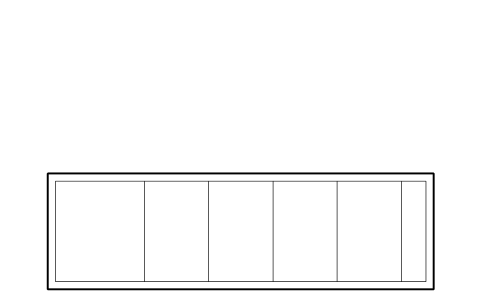

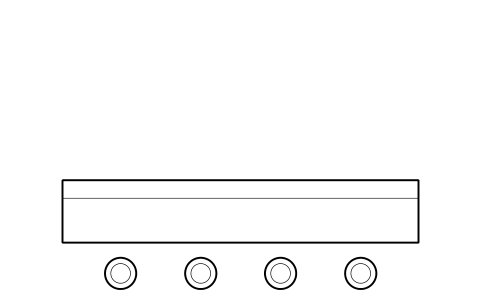

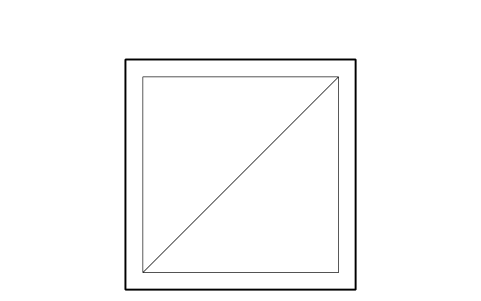

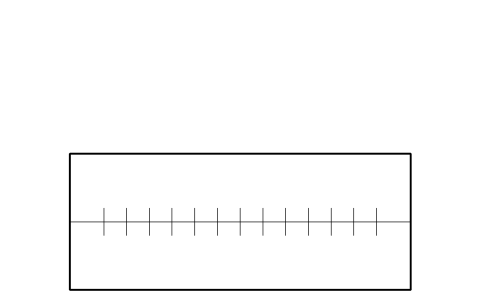

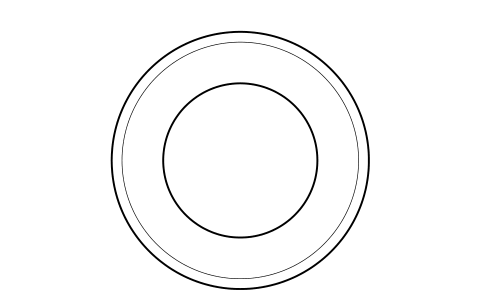

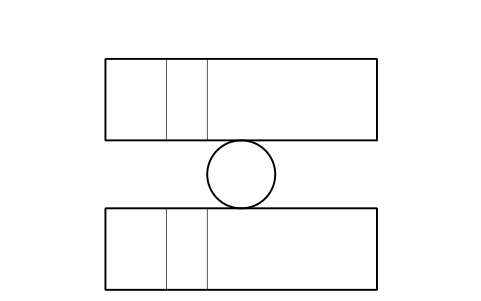

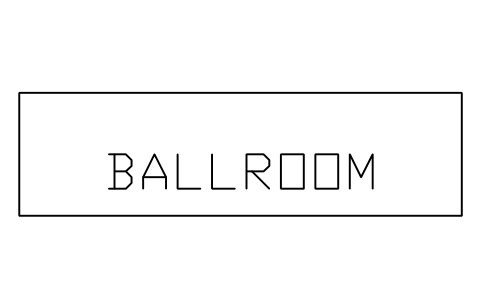

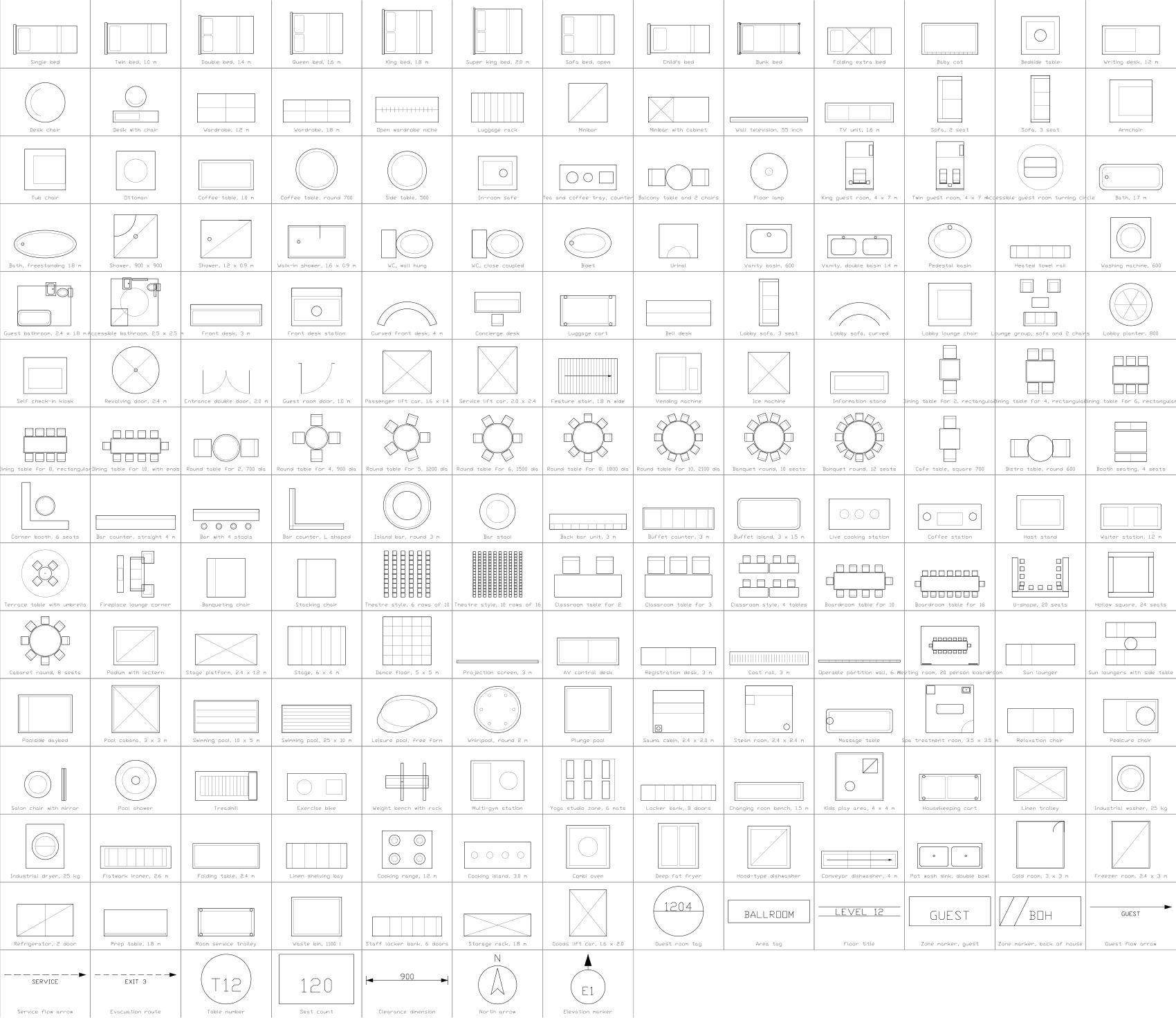

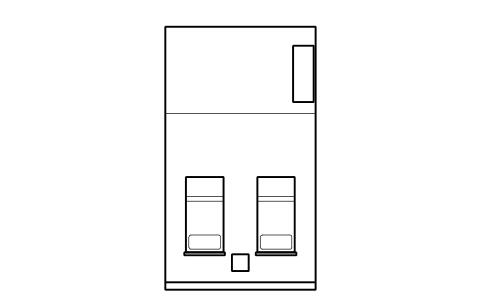

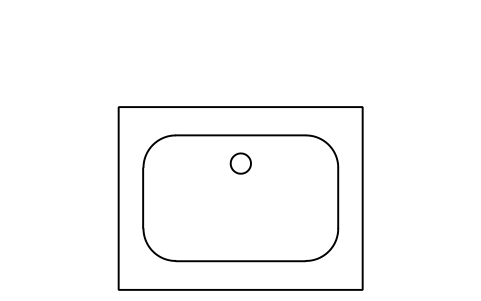

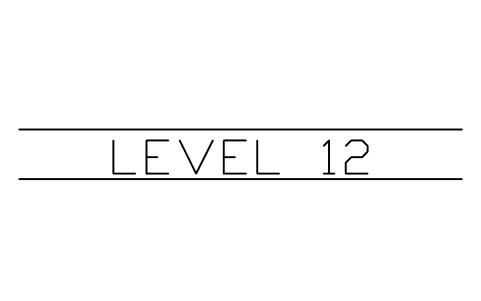

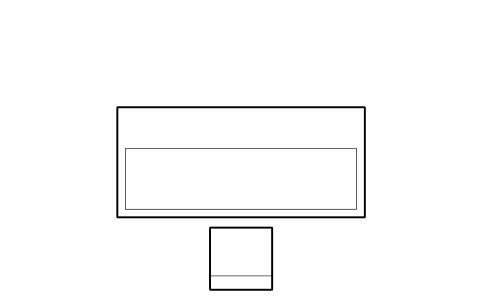

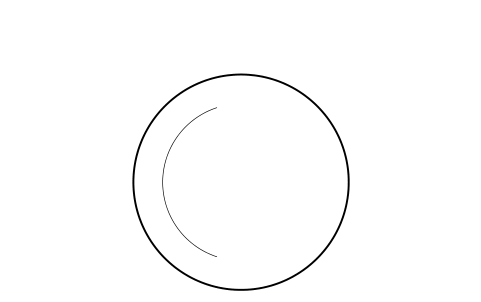

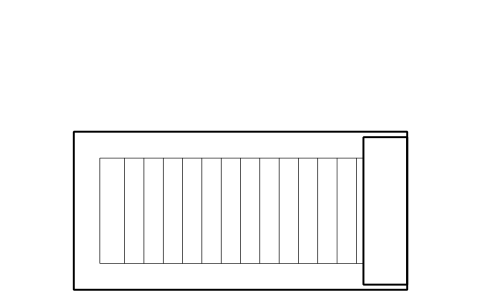

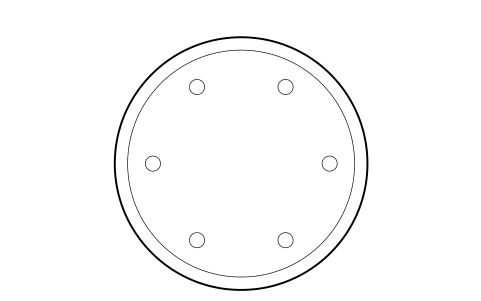

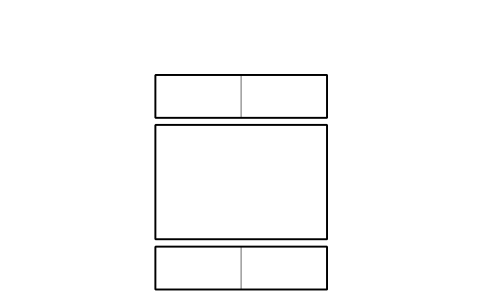

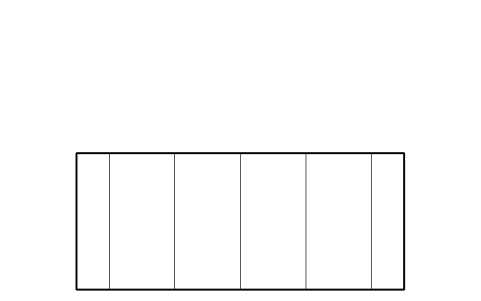

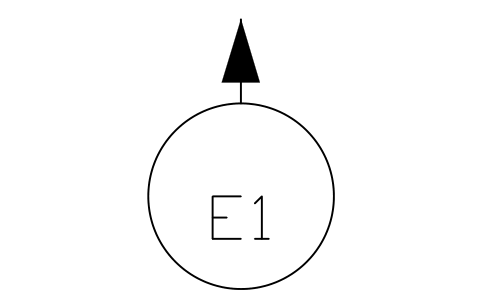

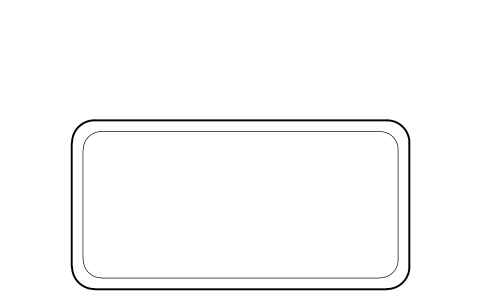

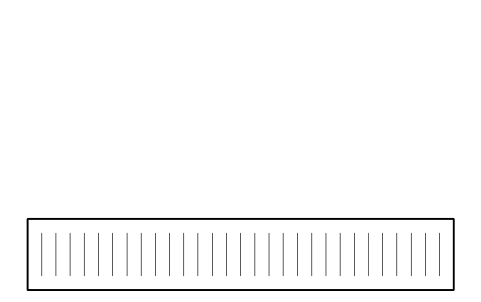

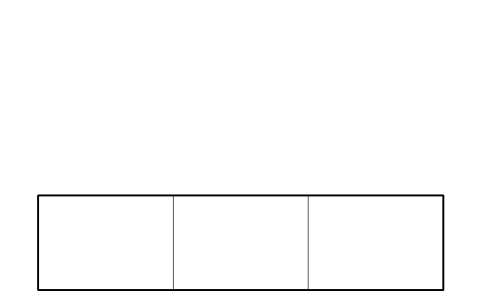

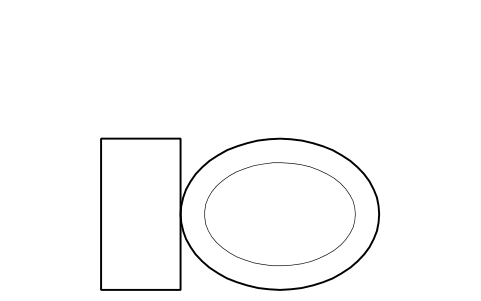

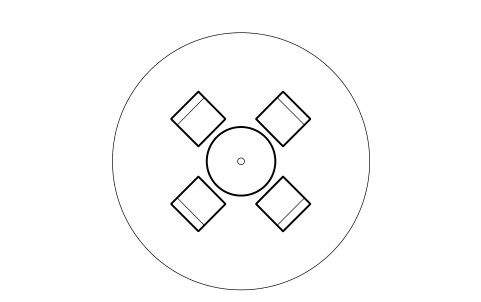

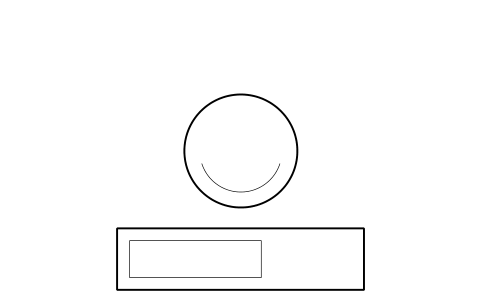

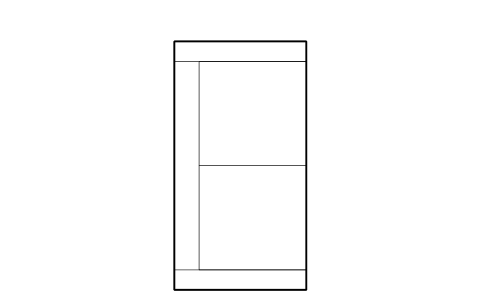

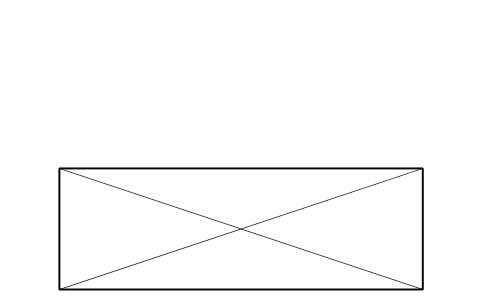

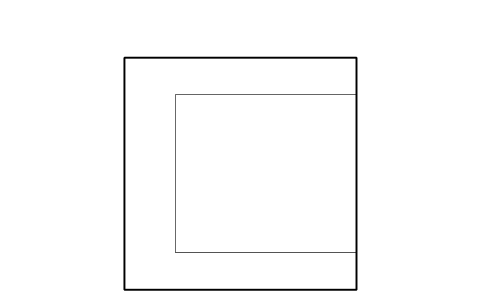

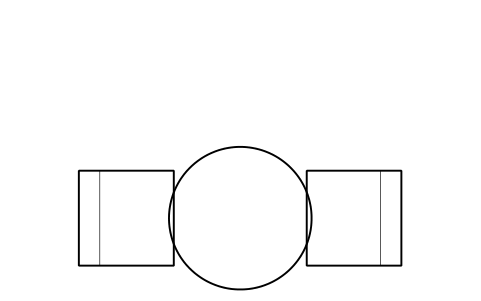

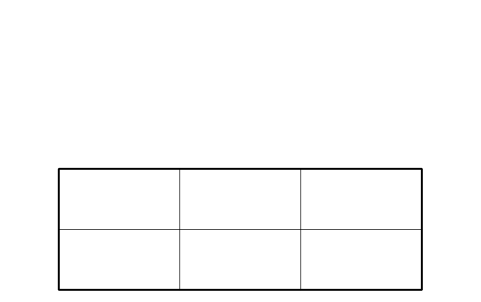

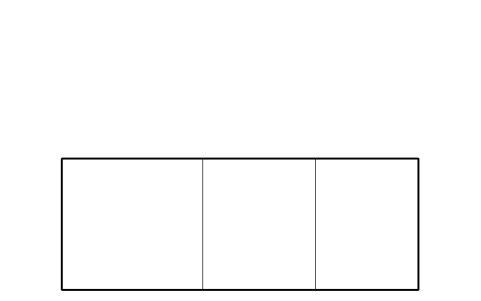

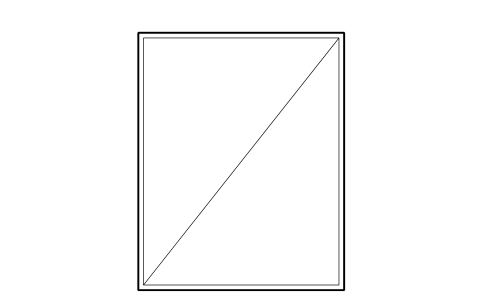

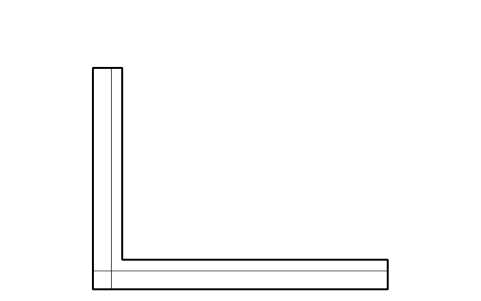

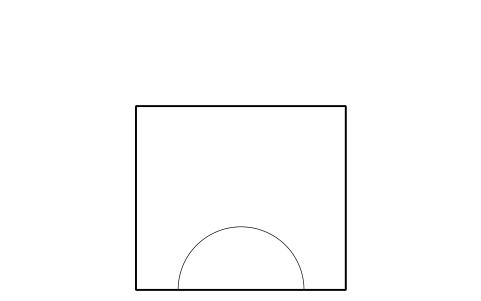

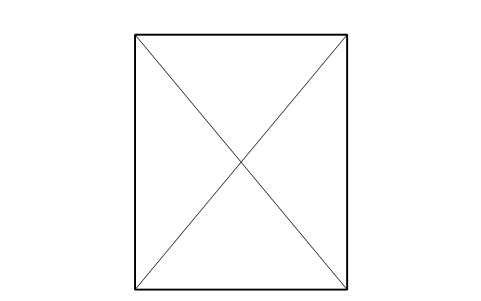

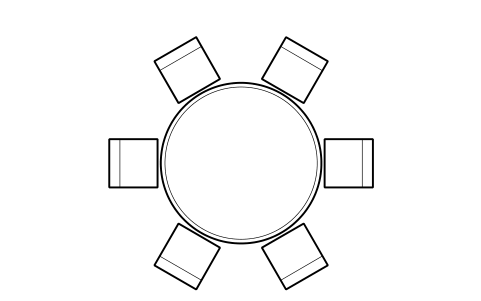

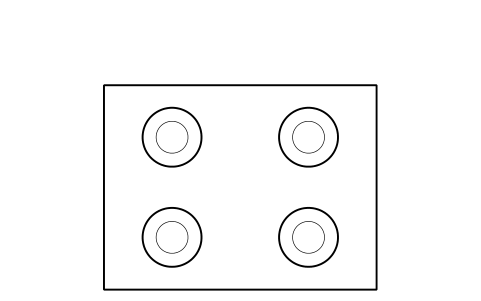

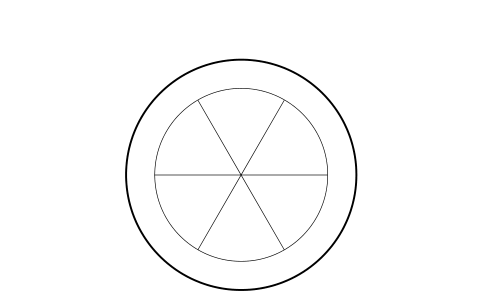

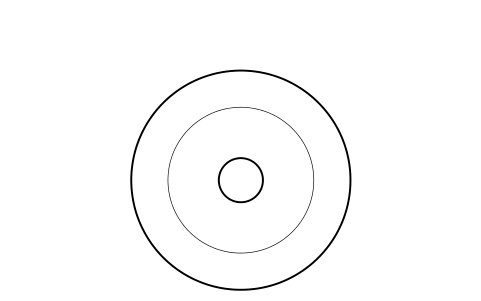

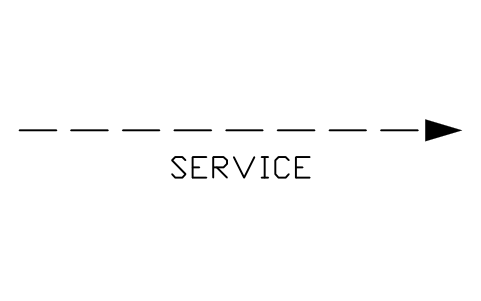

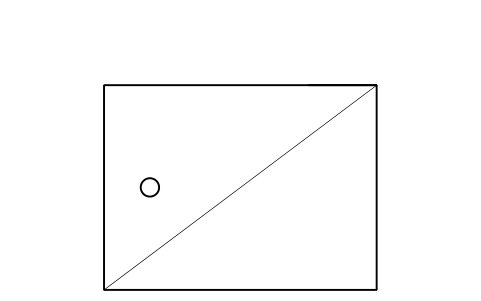

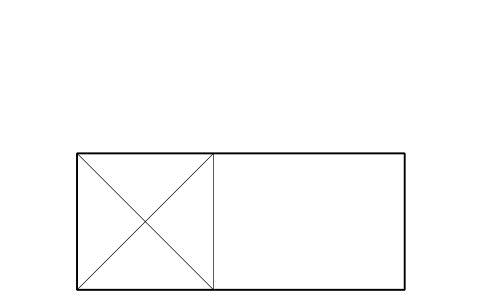

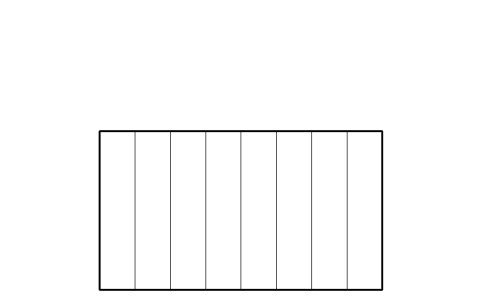

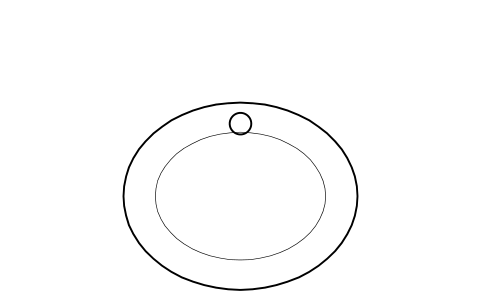

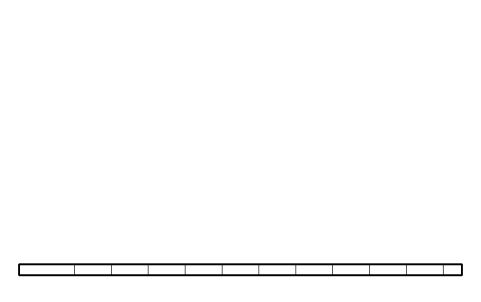

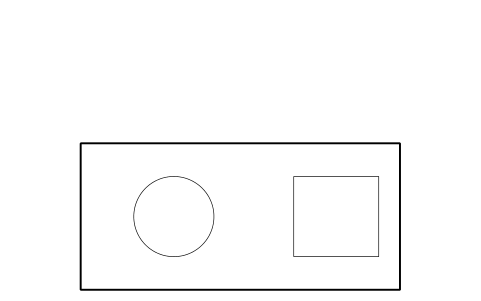

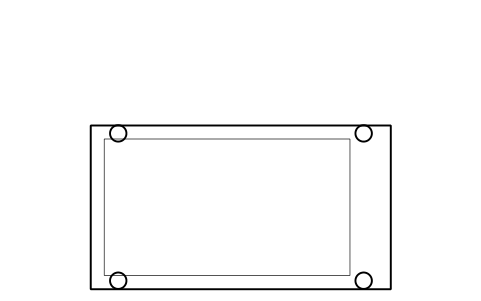

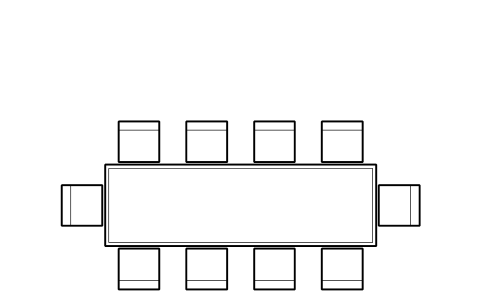

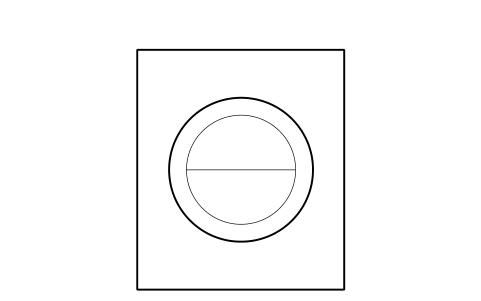

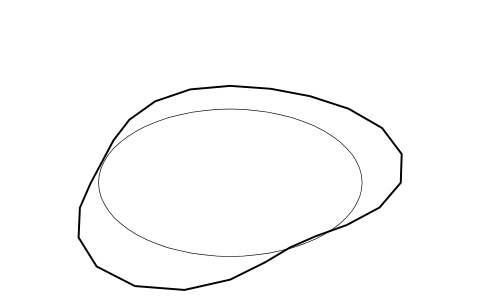

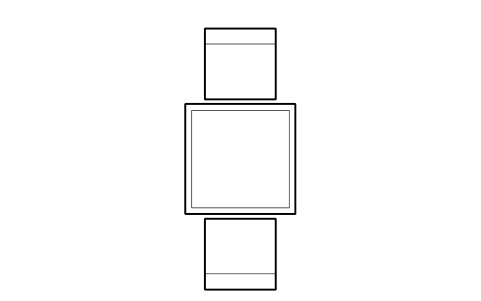

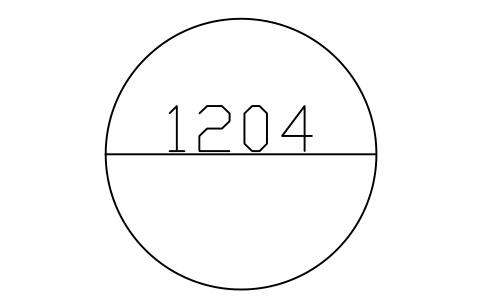

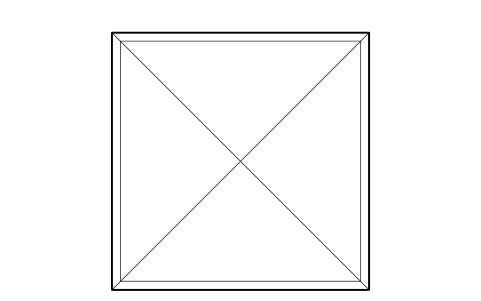

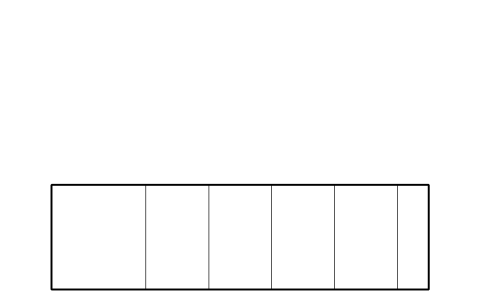

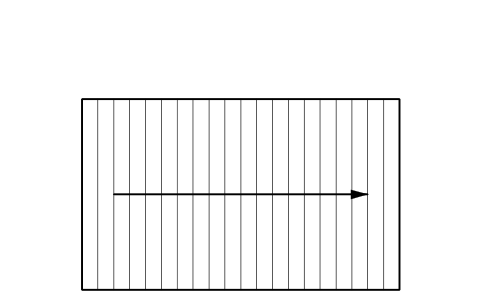

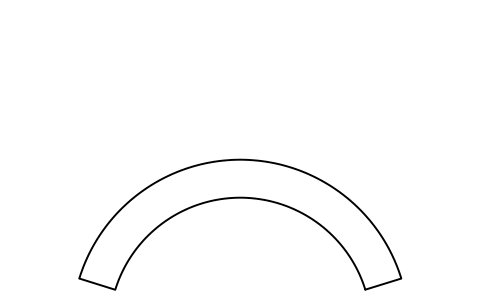

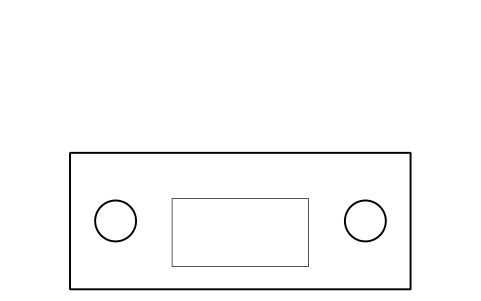

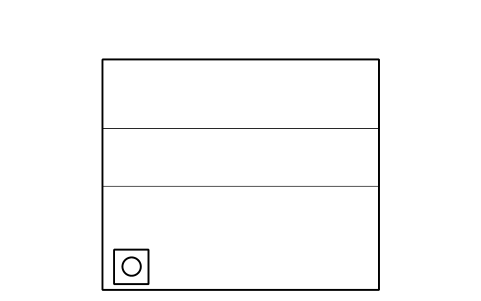

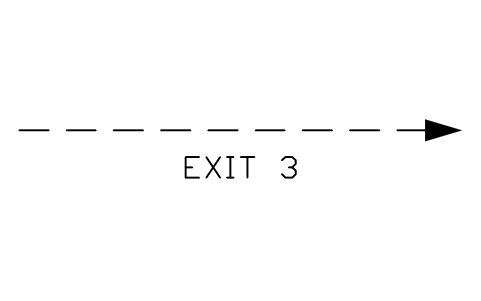

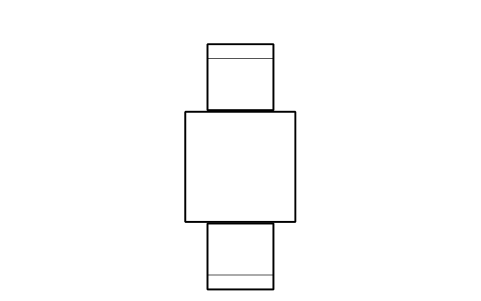

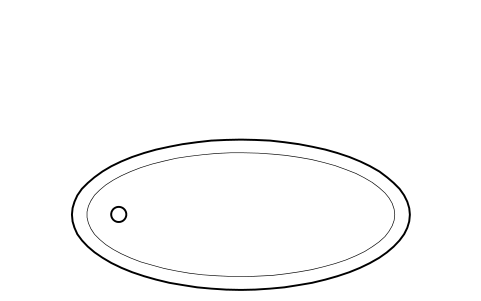

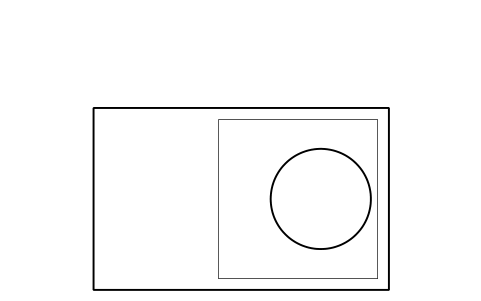

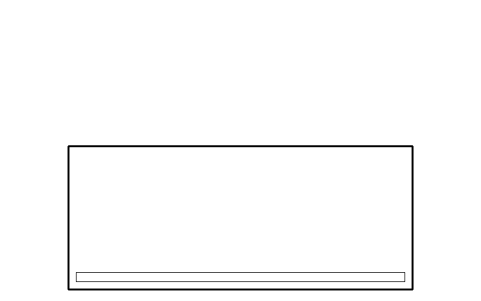

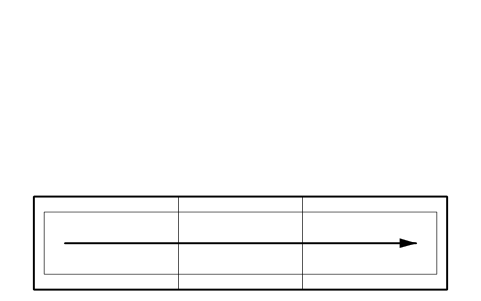

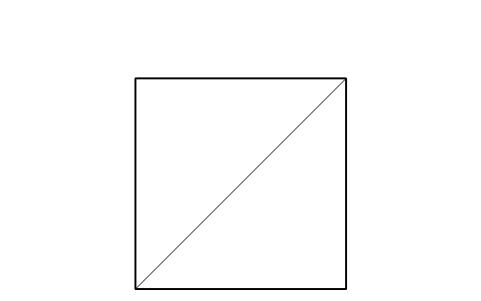

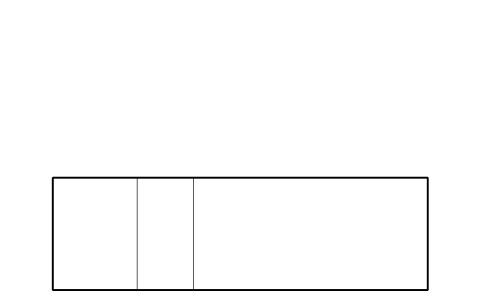

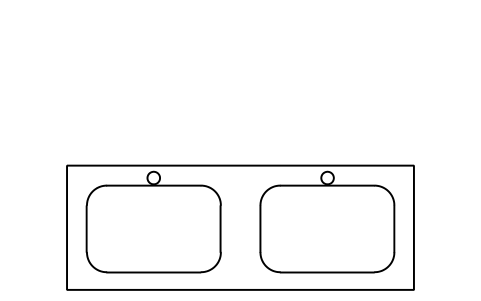

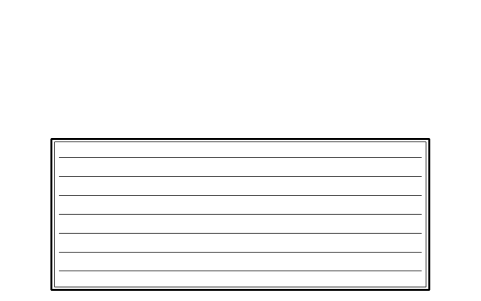

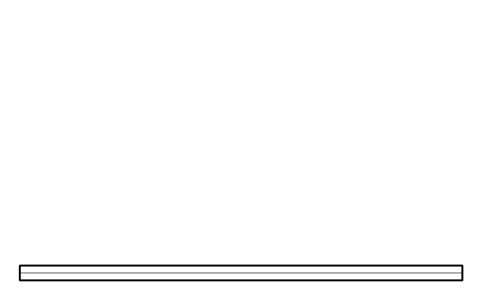

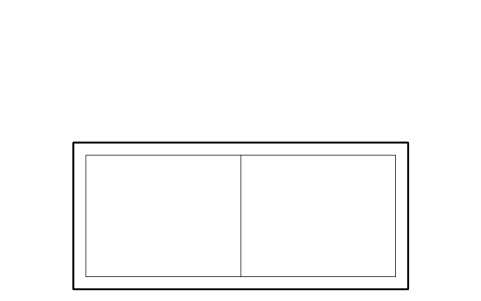

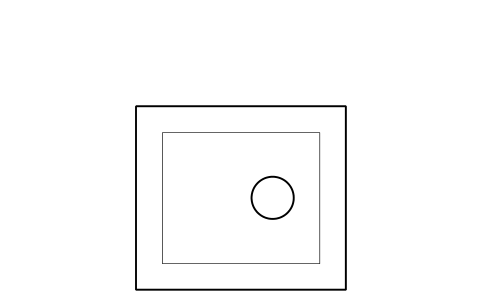

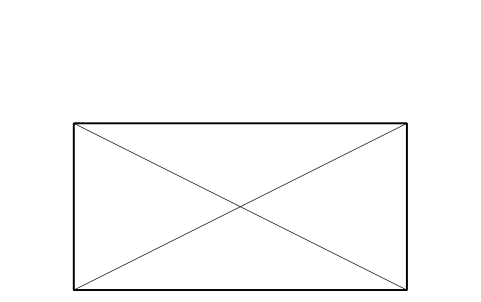

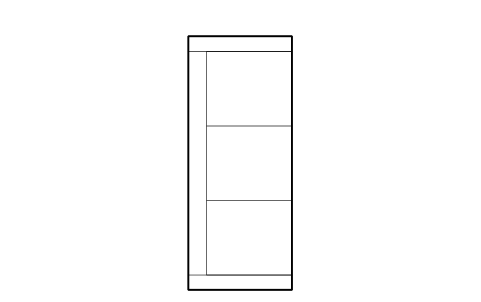

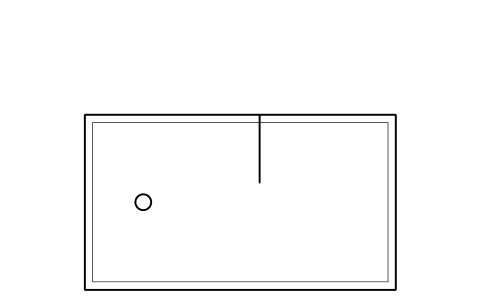

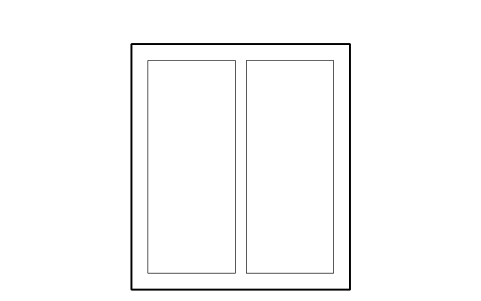

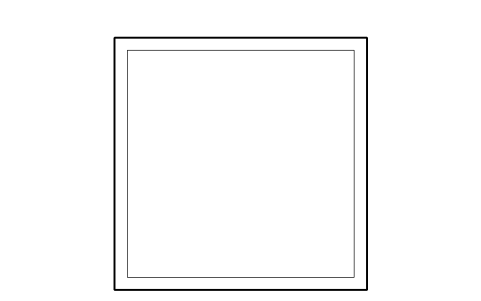

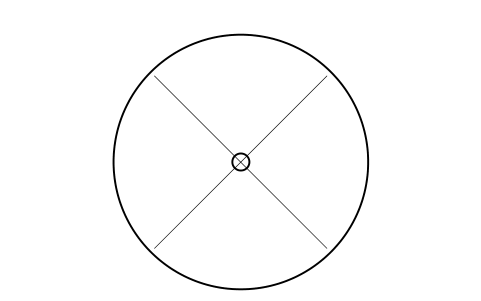

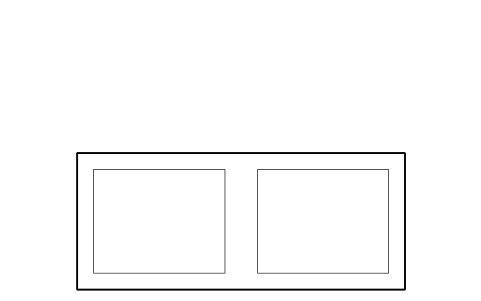

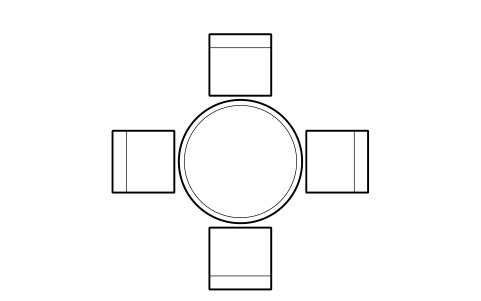

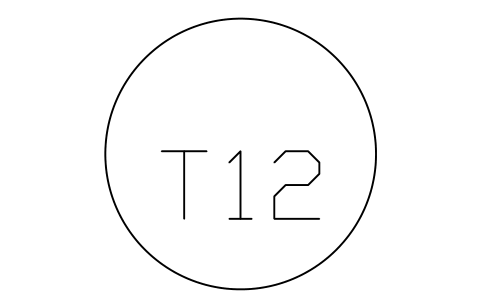

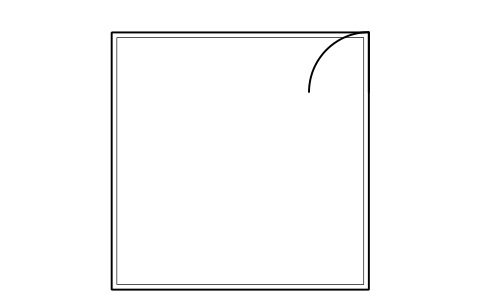

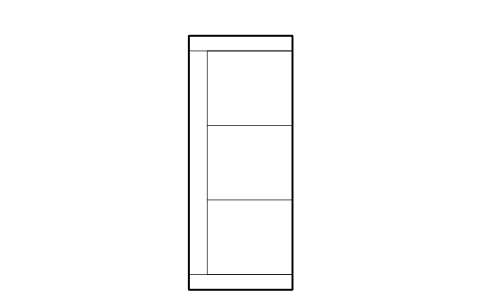

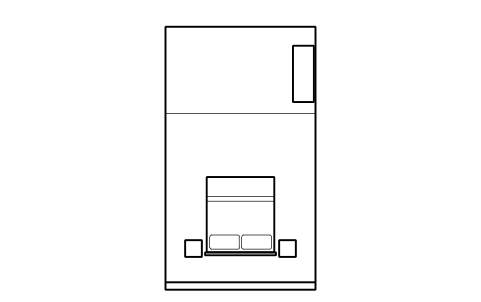

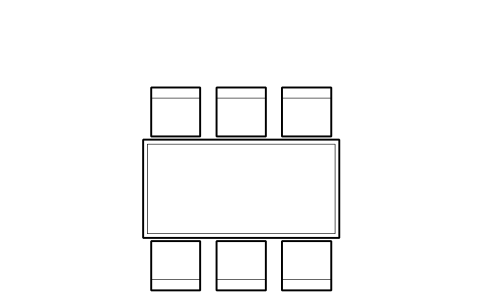

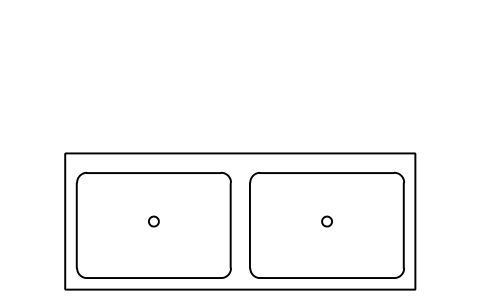

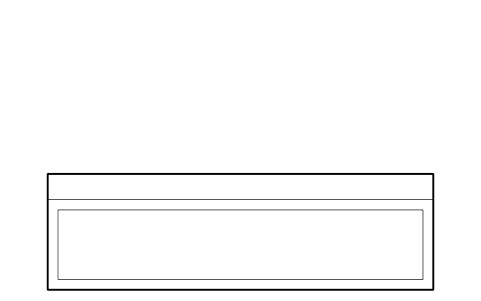

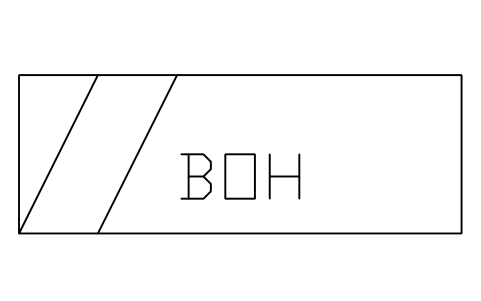

Guest room furniture, bathroom, lobby and public areas, dining and bar, meetings and events, spa pool and leisure, back of house, and layout markers. The page above lists every group with its count.

Can I use the blocks for an FF&E schedule?

Yes. Each block carries ROOM_NO, FINISH, MANUFACTURER, MODEL and QTY attributes, so exporting the plan with BlockSync gives a schedule with the quantities counted from the drawing. Fill in the attributes when you place the item.

Can I use the symbols in commercial projects?

Yes. They are free to use and modify in your own projects, including commercial ones. They are provided as is, without warranty.

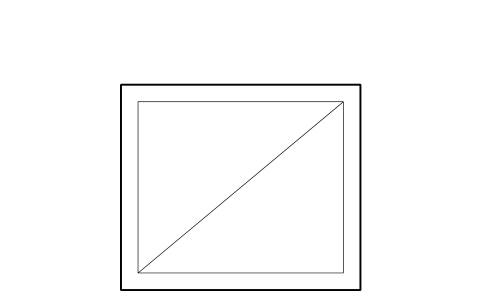

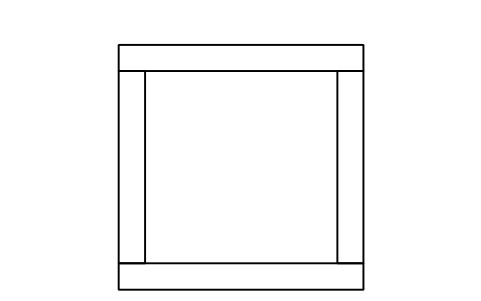

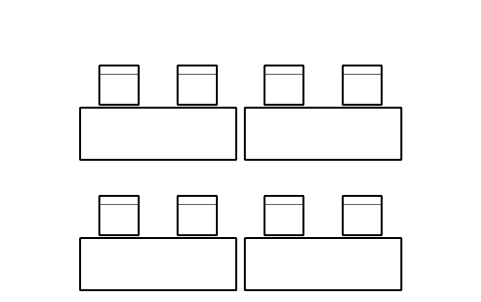

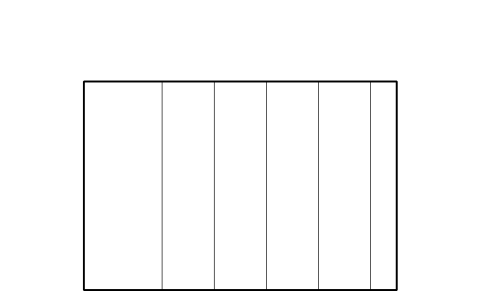

Are the event set-ups to scale?

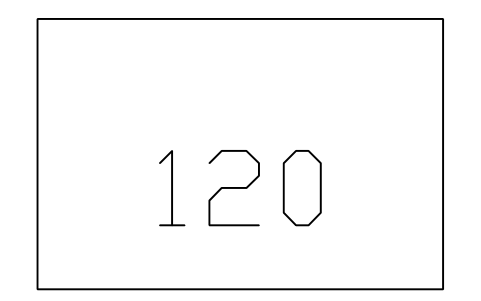

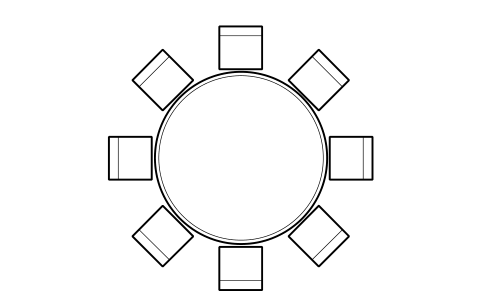

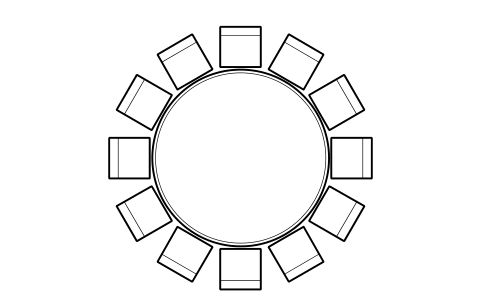

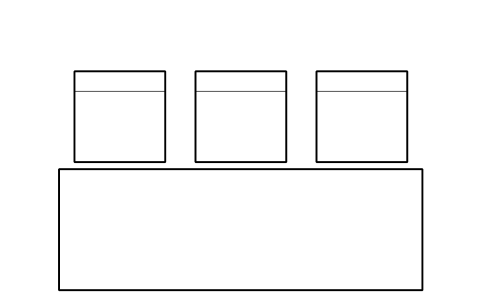

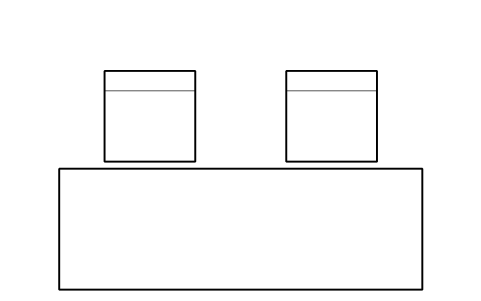

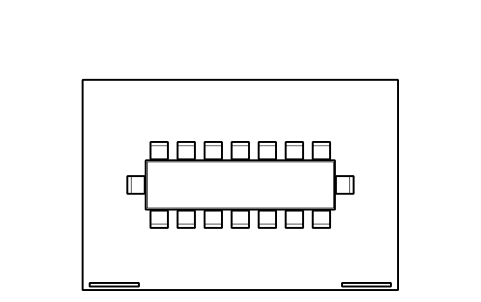

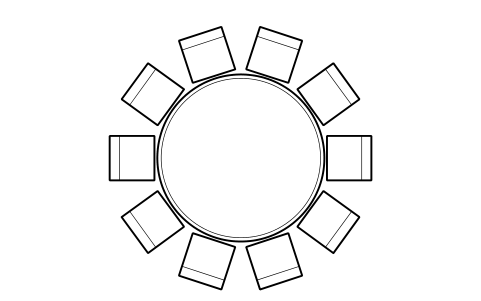

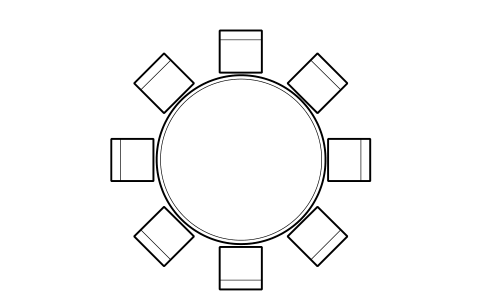

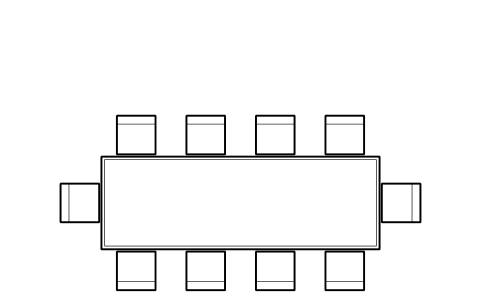

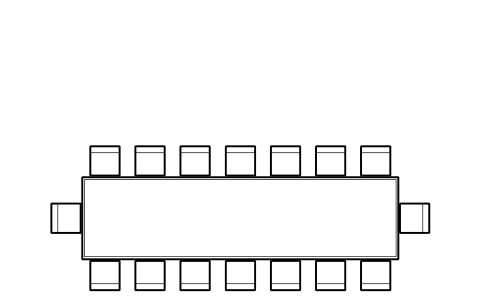

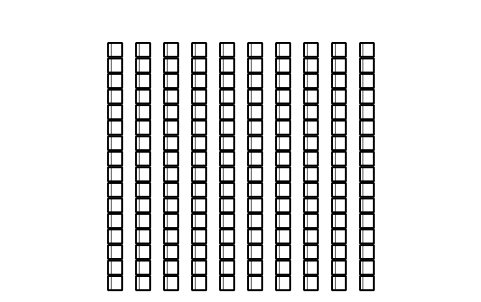

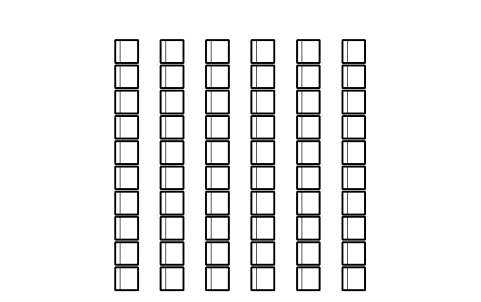

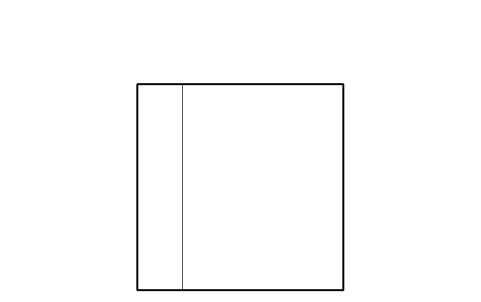

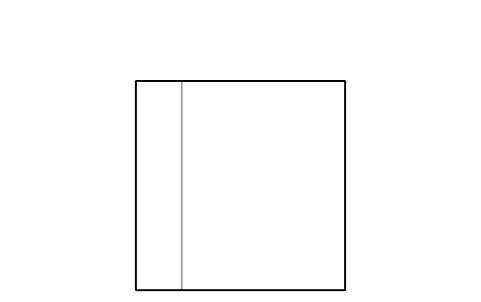

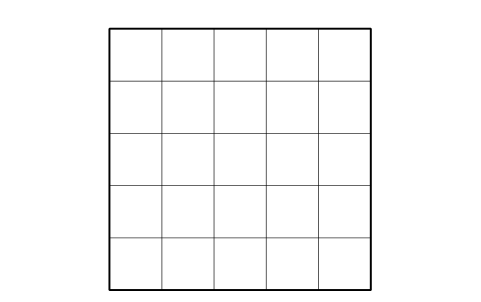

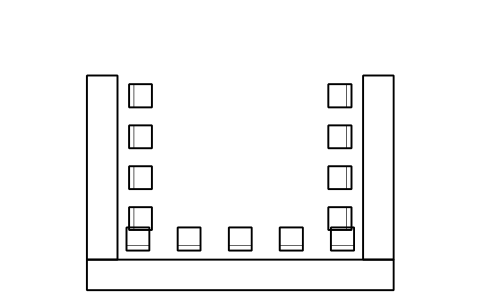

Yes, at real size: theatre rows at a 900 mm pitch with 500 mm seats, banquet rounds of 1800 and 2100 mm with 450 mm chairs, boardroom and U-shape tables with the chairs in place. The seat count is in the SEATS attribute; check the clearances against your fire and capacity rules.

Can I change a symbol or add attributes?

Yes. Open the DWG, edit a block with BEDIT to change it or add attributes, and save. To update drawings that already contain the block, run ATTSYNC or replace the block. Make a backup first: attribute values can be lost if ATTSYNC is used carelessly.

Where do I find a ready-made set of these symbols for AutoCAD?

AutoCAD itself ships only a small set of sample blocks, so a full symbol set has to come from a library. Download the ZIP on this page and open the DWG: every symbol is a block. Insert one with INSERT (Blocks palette, Libraries tab, then pick the DWG) or drag it from DesignCenter (ADCENTER). You can also download a single symbol on its own.
