GB: A4 to A1 at 1:500
Millimetres, four layouts on GB sheets (A4 to A1) with the viewport locked at 1:500, text and 3.5 mm dimension styles for 1:500 and 1:1000, text with Chinese characters.
Free to use and modify in your own projects, including commercial ones. The ZIP holds the template, a plot style table and a README; no add-in needed. Layer names, colours and styles are common practice, not a standard: check them against your office or client standard. Library terms (CXL-1.0)

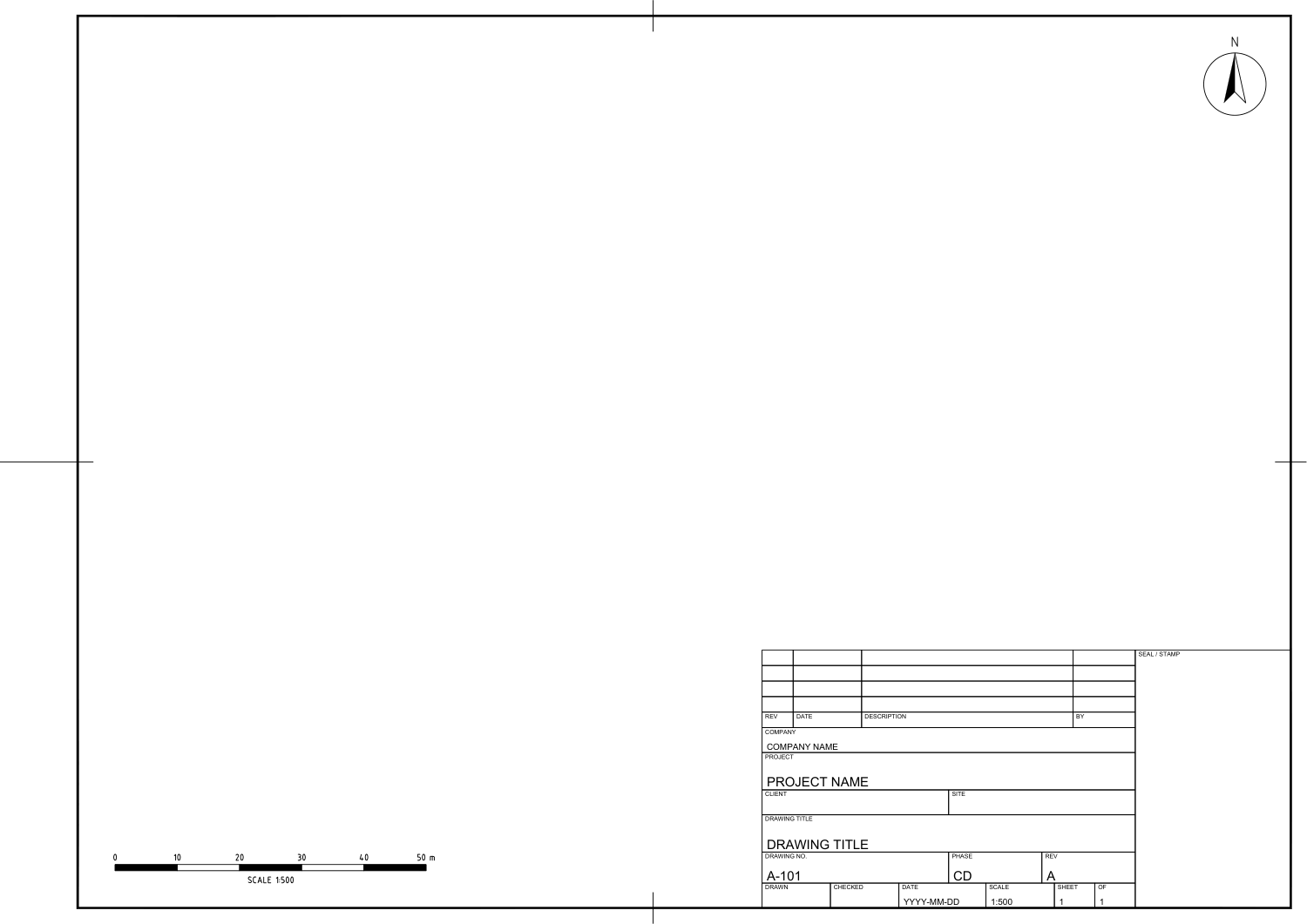

Sheet layouts
| Layout | Sheet | Paper size | Viewport scale |
|---|---|---|---|
| GB-A4 | GB A4 | 297 × 210 mm | 1:500 |
| GB-A3 | GB A3 | 420 × 297 mm | 1:500 |
| GB-A2 | GB A2 | 594 × 420 mm | 1:500 |
| GB-A1 | GB A1 | 841 × 594 mm | 1:500 |
Text and dimension styles
Defined in the template, so you do not have to set them up in every new drawing.
| Kind | Name | Settings |
|---|---|---|
| Text style | GB | gbenor.shx, variable height |
| Text style | GB-3.5@500 | gbenor.shx, height 1750 mm |
| Text style | GB-5@500 | gbenor.shx, height 2500 mm |
| Text style | GB-7@500 | gbenor.shx, height 3500 mm |
| Text style | GB-3.5@1000 | gbenor.shx, height 3500 mm |
| Text style | GB-5@1000 | gbenor.shx, height 5000 mm |
| Text style | GB-7@1000 | gbenor.shx, height 7000 mm |
| Dimension style | SITE@500 | Text 3.5 mm, arrows 3.5 mm, extension lines 2.5 mm beyond the dimension line and 1 mm from the object, dimension lines 7 mm apart, overall scale 1:500 |
| Dimension style | SITE@1000 | Text 3.5 mm, arrows 3.5 mm, extension lines 2.5 mm beyond the dimension line and 1 mm from the object, dimension lines 7 mm apart, overall scale 1:1000 |
The number before the @ sign is the printed text height, the number after it the drawing scale: GB-3.5@100 prints 3.5 mm high at 1:100, so it is 350 units high in the model.
