Nesting tables, round pair, 700 / 500 symbol (DWG block)

Nesting tables, round pair, 700 / 500 is a ready-to-use AutoCAD block named DEC_NEST_ROUND in the Art deco furniture plan symbols, group “Tables and dining”. It carries 12 attributes, 1 of them visible, so it works in equipment lists and BlockSync exports.

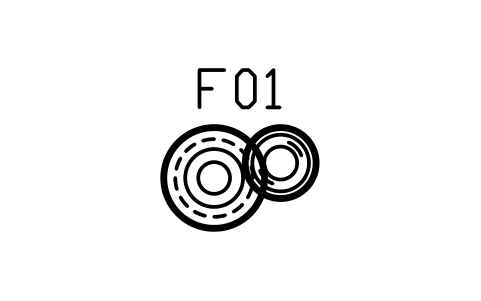

Nesting tables, round pair, 700 / 500 symbol, block DEC_NEST_ROUND
Download this symbol (ZIP)

Block details

Block nameDEC_NEST_ROUND
LibraryArt deco furniture plan symbols
GroupTables and dining
Attributes12 attributes, 1 visible

Attributes

Visible on the drawing: TAG.

Hidden, they carry the data for schedules: DESCRIPTION, WIDTH_MM, DEPTH_MM, HEIGHT_MM, MATERIAL, FINISH, QTY, MANUFACTURER, MODEL, REMARKS, DESC.

Export the attributes of every copy in a drawing to Excel with BlockSync, check them and write the corrections back in one run.

How to use it

  1. Download the ZIP and unzip it. It holds one DWG with the block DEC_NEST_ROUND.
  2. Open the DWG and copy the block into your drawing, or insert it from the DWG with INSERT.
  3. Double-click a copy to fill in the tag and the other attributes.

The symbol is our own drawing after the common form of Art deco furniture plan symbols, not a certified copy. The library page explains how the symbols relate to the standard.
