Free AutoCAD drawing marks, site, building services and accessibility blocks (DWG)

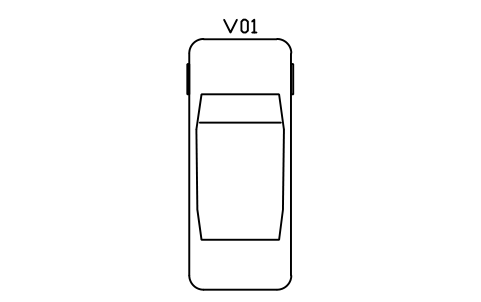

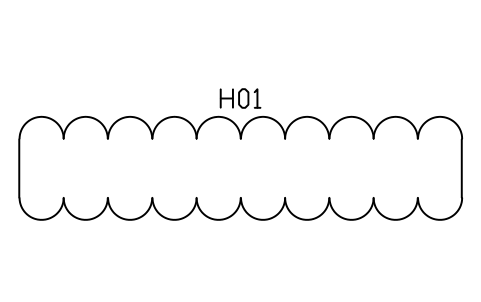

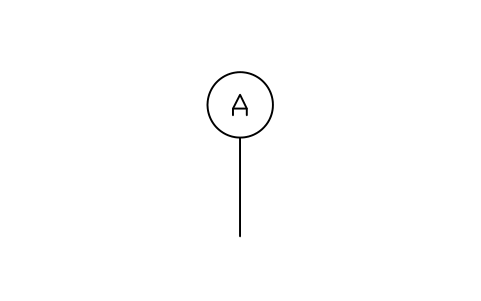

71 blocks for AutoCAD plans at real size in millimetres: drawing marks and tags sized for 1:100 (grid bubble, level mark, spot level, room, door and window tags, section marks), site and landscape (trees, conifers, palms, shrubs, hedges, vehicles), building services (split, cassette and ducted air conditioners, outdoor units, radiators, meters, drainage items) and accessibility and signage (wheelchair symbol, clear spaces, turning circles of 1500 and 1800 mm, accessible WC, grab rails, tactile paving). Level, room name and number, description, size and quantity are attributes. This is a selection from the architectural library; the block names are the same, and the complete library is linked below.
Using AutoCAD 2017 or an earlier version? Download the 2010 format
Free to use and modify in your own projects, including commercial ones. The ZIP holds one plain DWG file in AutoCAD 2018 format and a README; no add-in needed. Provided as is, without warranty.
This is a selection from the complete architectural symbol library (466 symbols). The block names are the same, so you can use both in one drawing. Open the complete library
After you download
Use the symbols across a whole drawing set
A symbol only helps when every drawing uses the same version of it.
- Open the DWG and copy the blocks you need into your drawing, or drag them in from DesignCenter. Insert them at scale 1; the README in this ZIP gives the drawing unit and the insertion point of each group.
- When a symbol changes later, replace the old block with the new one in every drawing in one run with BlockCopy, instead of opening each file.
- To count symbols or list their attributes across many drawings, export them to Excel with BlockSync and build a pivot table from the result.
Step-by-step guideBlockCopyBlockSync
The tools are free for up to 10 files per batch; Pro removes the limit.
All 71 symbols
71 of 71 symbols

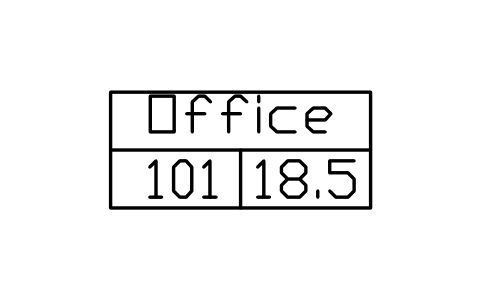

Room tag
ARCH_TAG_ROOMAttributes
TAGROOM_NAMEROOM_NOAREA_M2FINISH_FLOORFINISH_WALLFINISH_CEILINGOCCUPANCYDESC

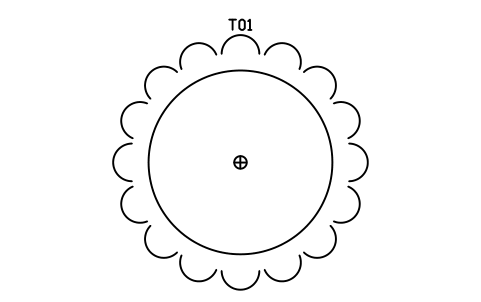

Tree, deciduous
ARCH_TREEAttributes
TAGBOTANICAL_NAMECOMMON_NAMEHEIGHT_MSPREAD_MTRUNK_DIAMETER_MMSTATUSQTYREMARKSDESC

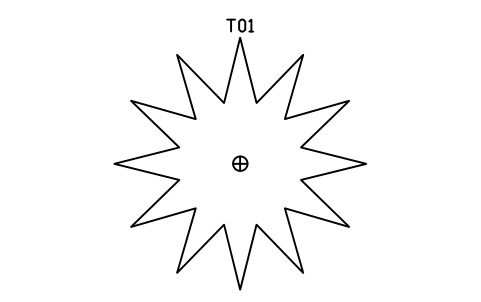

Tree, coniferous
ARCH_TREE_CONIFERAttributes
TAGBOTANICAL_NAMECOMMON_NAMEHEIGHT_MSPREAD_MTRUNK_DIAMETER_MMSTATUSQTYREMARKSDESC

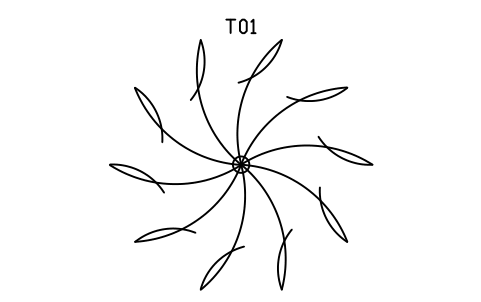

Tree, palm
ARCH_TREE_PALMAttributes
TAGBOTANICAL_NAMECOMMON_NAMEHEIGHT_MSPREAD_MTRUNK_DIAMETER_MMSTATUSQTYREMARKSDESC

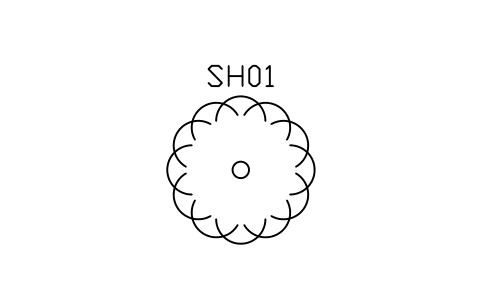

Shrub
ARCH_SHRUBAttributes
TAGBOTANICAL_NAMECOMMON_NAMEHEIGHT_MSPREAD_MTRUNK_DIAMETER_MMSTATUSQTYREMARKSDESC

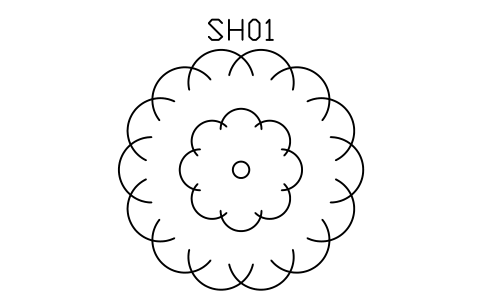

Shrub, large cluster
ARCH_SHRUB_LARGEAttributes
TAGBOTANICAL_NAMECOMMON_NAMEHEIGHT_MSPREAD_MTRUNK_DIAMETER_MMSTATUSQTYREMARKSDESC

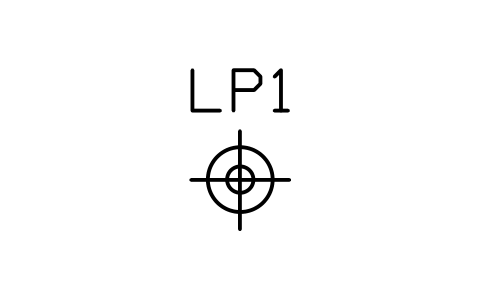

Lamp post / bollard light
ARCH_LAMP_POSTAttributes
TAGLAMP_TYPEHEIGHT_MPOWER_WREMARKSDESC

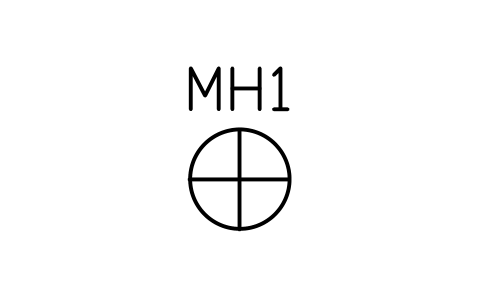

Manhole / inspection chamber
ARCH_MANHOLEAttributes
TAGSIZECOVER_LEVELINVERT_LEVELTYPEREMARKSDESC

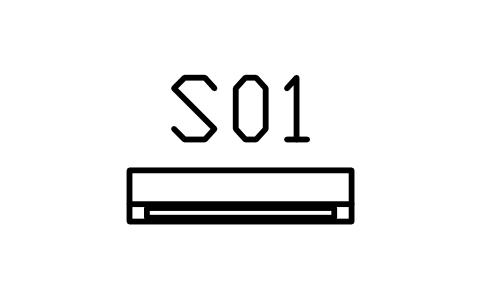

Air conditioner, indoor wall unit
ARCH_SVC_AC_SPLITAttributes
TAGDESCRIPTIONCAPACITYSIZESERVICEMANUFACTURERMODELQTYREMARKSDESC

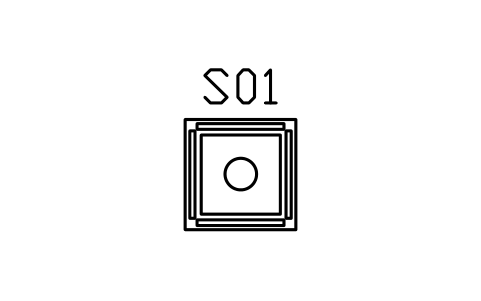

Air conditioner, cassette 4-way
ARCH_SVC_AC_CASSETTEAttributes
TAGDESCRIPTIONCAPACITYSIZESERVICEMANUFACTURERMODELQTYREMARKSDESC

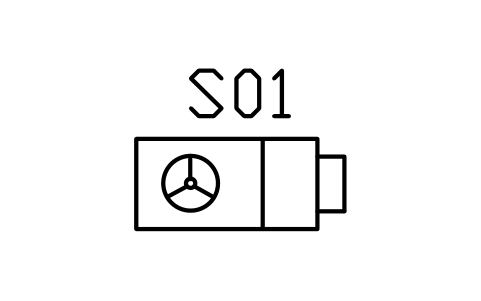

Fan coil unit, ceiling ducted
ARCH_SVC_FCU_DUCTEDAttributes
TAGDESCRIPTIONCAPACITYSIZESERVICEMANUFACTURERMODELQTYREMARKSDESC

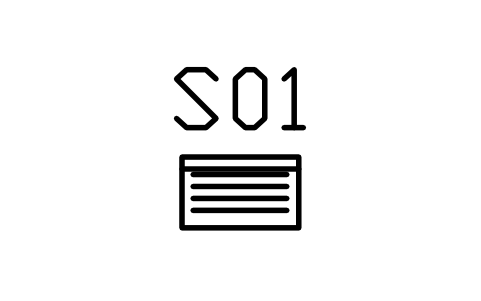

Air conditioner, floor cabinet
ARCH_SVC_AC_FLOORAttributes
TAGDESCRIPTIONCAPACITYSIZESERVICEMANUFACTURERMODELQTYREMARKSDESC

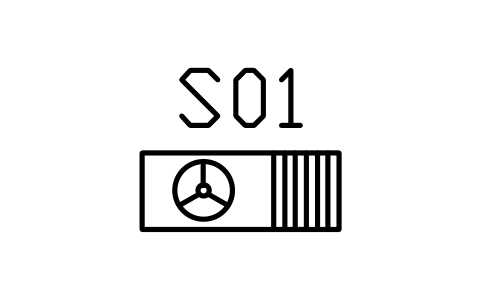

Air conditioner, outdoor unit
ARCH_SVC_AC_OUTDOORAttributes
TAGDESCRIPTIONCAPACITYSIZESERVICEMANUFACTURERMODELQTYREMARKSDESC

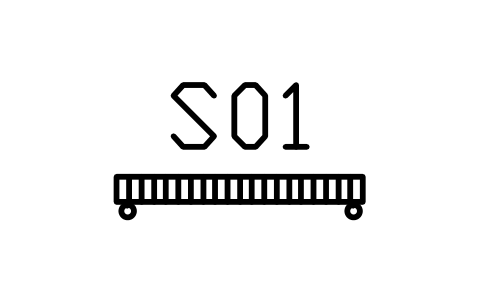

Radiator, panel
ARCH_SVC_RADIATORAttributes
TAGDESCRIPTIONCAPACITYSIZESERVICEMANUFACTURERMODELQTYREMARKSDESC

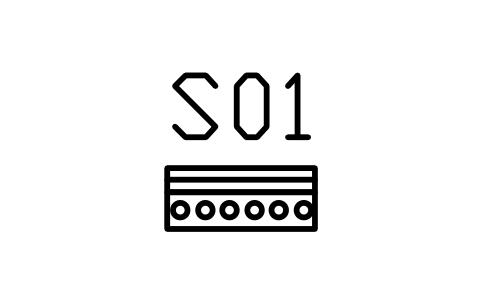

Underfloor heating manifold
ARCH_SVC_UFH_MANIFOLDAttributes
TAGDESCRIPTIONCAPACITYSIZESERVICEMANUFACTURERMODELQTYREMARKSDESC

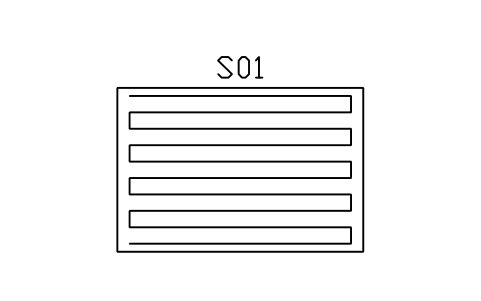

Underfloor heating zone, serpentine
ARCH_SVC_UFH_ZONEAttributes
TAGDESCRIPTIONCAPACITYSIZESERVICEMANUFACTURERMODELQTYREMARKSDESC

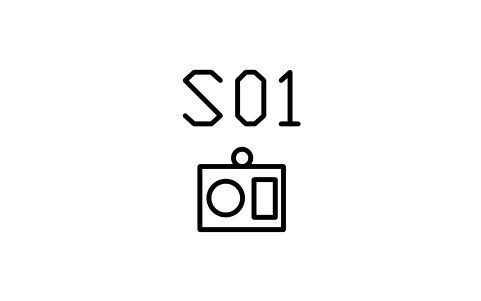

Boiler, wall-hung
ARCH_SVC_BOILERAttributes
TAGDESCRIPTIONCAPACITYSIZESERVICEMANUFACTURERMODELQTYREMARKSDESC

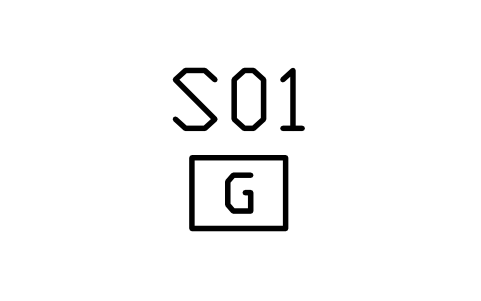

Gas meter
ARCH_SVC_GAS_METERAttributes
TAGDESCRIPTIONCAPACITYSIZESERVICEMANUFACTURERMODELQTYREMARKSDESC

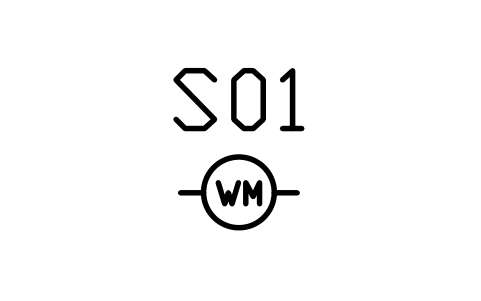

Water meter
ARCH_SVC_WATER_METERAttributes
TAGDESCRIPTIONCAPACITYSIZESERVICEMANUFACTURERMODELQTYREMARKSDESC

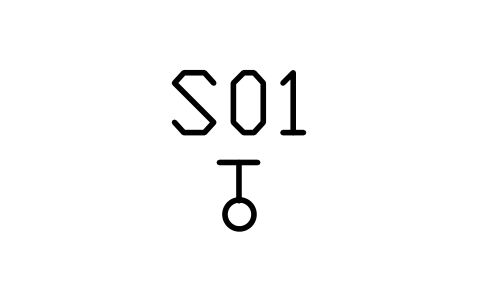

Hose bib (outside tap)
ARCH_SVC_HOSE_BIBAttributes
TAGDESCRIPTIONCAPACITYSIZESERVICEMANUFACTURERMODELQTYREMARKSDESC

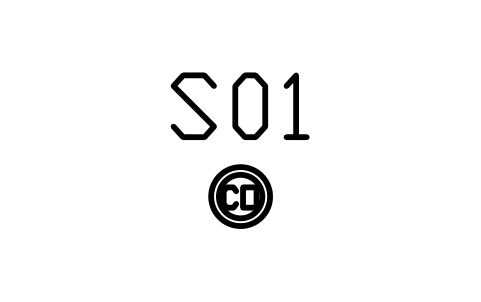

Drain cleanout
ARCH_SVC_CLEANOUTAttributes
TAGDESCRIPTIONCAPACITYSIZESERVICEMANUFACTURERMODELQTYREMARKSDESC

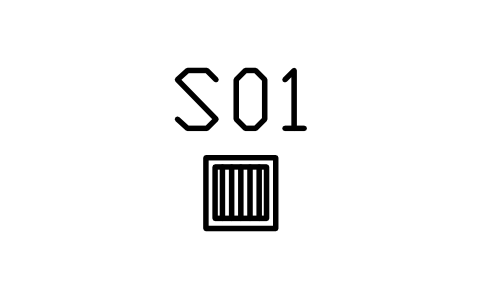

Yard gully
ARCH_SVC_GULLYAttributes
TAGDESCRIPTIONCAPACITYSIZESERVICEMANUFACTURERMODELQTYREMARKSDESC

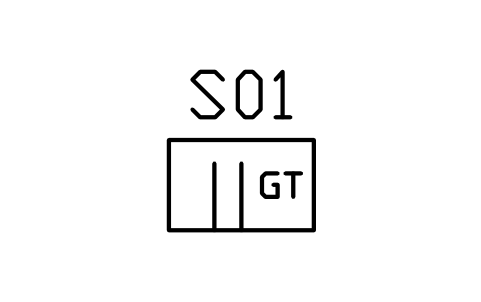

Grease trap
ARCH_SVC_GREASE_TRAPAttributes
TAGDESCRIPTIONCAPACITYSIZESERVICEMANUFACTURERMODELQTYREMARKSDESC

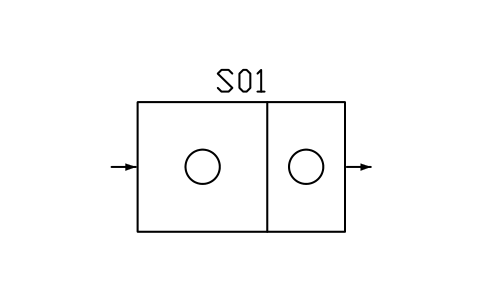

Septic tank, two chambers
ARCH_SVC_SEPTICAttributes
TAGDESCRIPTIONCAPACITYSIZESERVICEMANUFACTURERMODELQTYREMARKSDESC

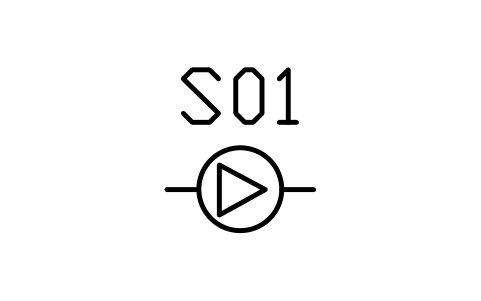

Pump, circulating
ARCH_SVC_PUMPAttributes
TAGDESCRIPTIONCAPACITYSIZESERVICEMANUFACTURERMODELQTYREMARKSDESC

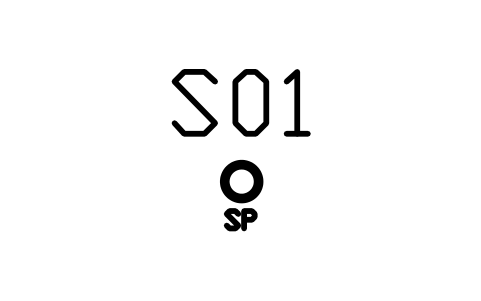

Soil stack
ARCH_SVC_SOIL_STACKAttributes
TAGDESCRIPTIONCAPACITYSIZESERVICEMANUFACTURERMODELQTYREMARKSDESC

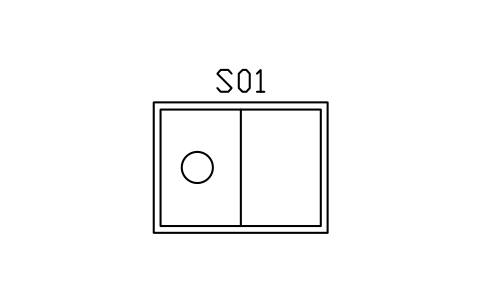

Water storage tank, rectangular
ARCH_SVC_WATER_TANKAttributes
TAGDESCRIPTIONCAPACITYSIZESERVICEMANUFACTURERMODELQTYREMARKSDESC

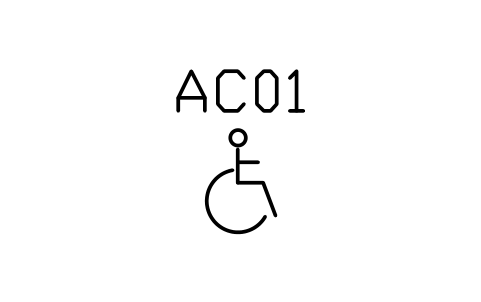

Accessibility symbol (wheelchair)
ARCH_ISA_WHEELCHAIRAttributes
TAGDESCRIPTIONSIZESTANDARDQTYREMARKSDESC

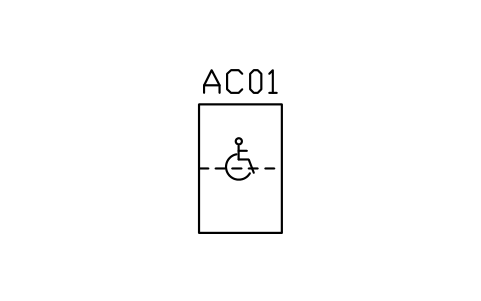

Wheelchair clear space, 900 x 1400
ARCH_WHEELCHAIR_SPACEAttributes
TAGDESCRIPTIONSIZESTANDARDQTYREMARKSDESC

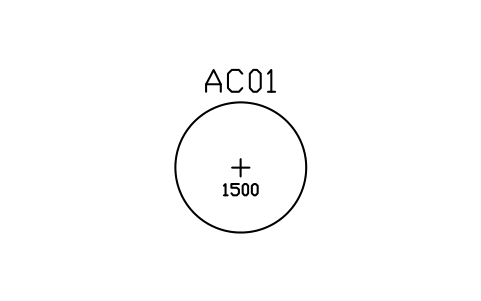

Wheelchair turning circle, 1500
ARCH_TURNING_CIRCLE_1500Attributes
TAGDESCRIPTIONSIZESTANDARDQTYREMARKSDESC

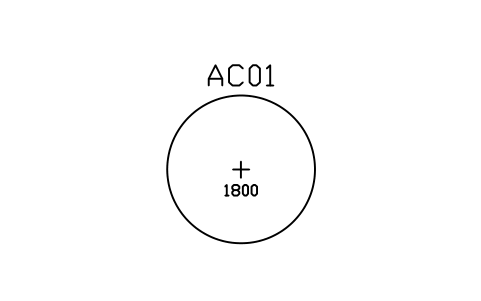

Wheelchair turning circle, 1800
ARCH_TURNING_CIRCLE_1800Attributes
TAGDESCRIPTIONSIZESTANDARDQTYREMARKSDESC

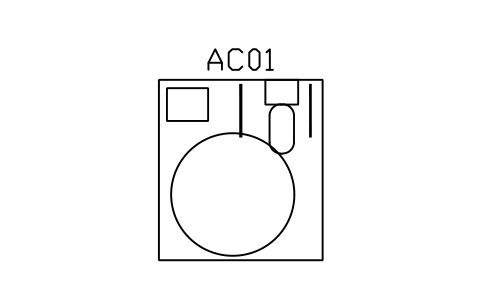

Accessible WC with transfer space
ARCH_ACCESS_WCAttributes
TAGDESCRIPTIONSIZESTANDARDQTYREMARKSDESC

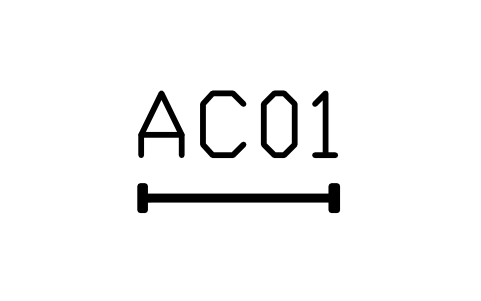

Grab rail, straight 800
ARCH_GRAB_RAILAttributes
TAGDESCRIPTIONSIZESTANDARDQTYREMARKSDESC

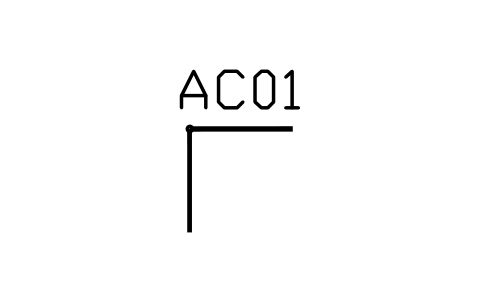

Grab rail, L-shaped
ARCH_GRAB_RAIL_LAttributes
TAGDESCRIPTIONSIZESTANDARDQTYREMARKSDESC

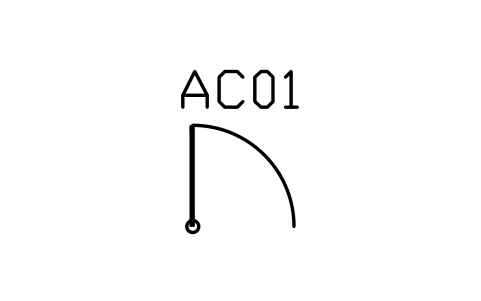

Grab rail, folding
ARCH_GRAB_RAIL_FOLDINGAttributes
TAGDESCRIPTIONSIZESTANDARDQTYREMARKSDESC

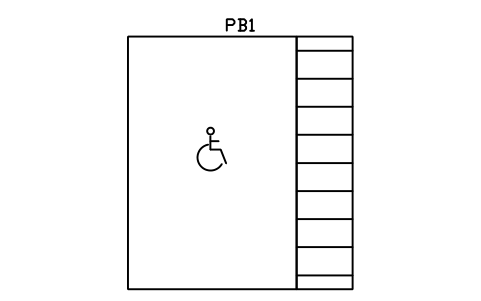

Parking bay, accessible with aisle
ARCH_PARKING_ACCESSIBLEAttributes
TAGDESCRIPTIONSIZESTANDARDQTYREMARKSDESC

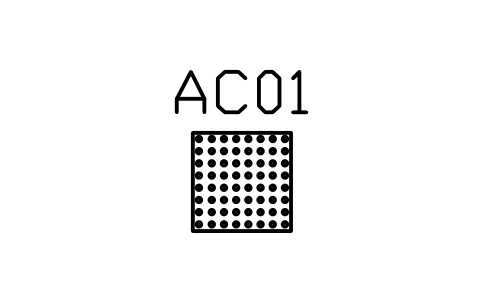

Tactile paving, warning (blister)
ARCH_TACTILE_WARNINGAttributes
TAGDESCRIPTIONSIZESTANDARDQTYREMARKSDESC

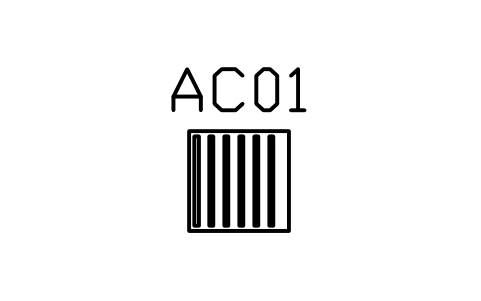

Tactile paving, guidance (bars)
ARCH_TACTILE_GUIDANCEAttributes
TAGDESCRIPTIONSIZESTANDARDQTYREMARKSDESC

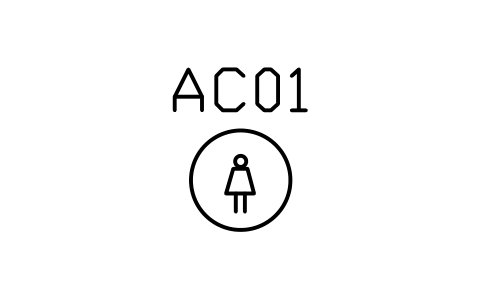

Sign, WC women
ARCH_SIGN_WC_WOMENAttributes
TAGDESCRIPTIONSIZESTANDARDQTYREMARKSDESC

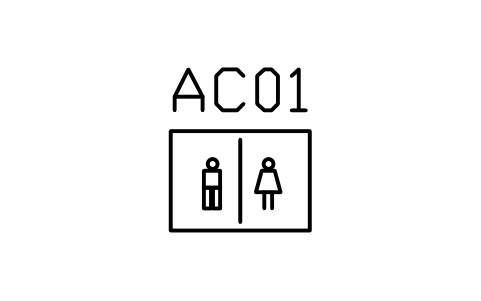

Sign, WC unisex
ARCH_SIGN_WC_UNISEXAttributes
TAGDESCRIPTIONSIZESTANDARDQTYREMARKSDESC

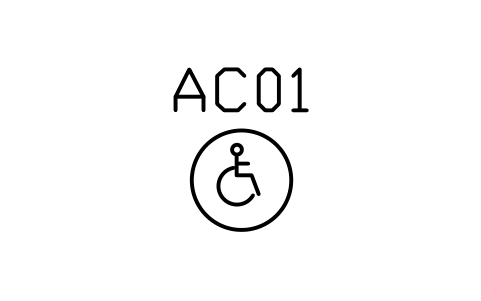

Sign, WC accessible
ARCH_SIGN_WC_ACCESSIBLEAttributes
TAGDESCRIPTIONSIZESTANDARDQTYREMARKSDESC

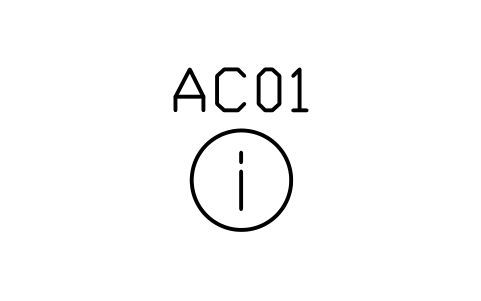

Sign, information point
ARCH_SIGN_INFORMATIONAttributes
TAGDESCRIPTIONSIZESTANDARDQTYREMARKSDESC

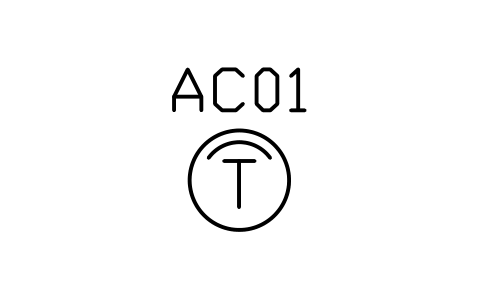

Sign, hearing loop
ARCH_HEARING_LOOPAttributes
TAGDESCRIPTIONSIZESTANDARDQTYREMARKSDESC
Missing a symbol? Tell us which one.
Attributes for parts lists
Drawing marks carry their values in visible attributes: the grid axis, the level, the room name, number and area, the section and sheet numbers. The data you put on a schedule are invisible attributes: DESCRIPTION, SIZE and QTY for site items and accessibility symbols; CAPACITY, SERVICE, MANUFACTURER and MODEL for building services; BOTANICAL_NAME, HEIGHT_M and STATUS for trees.
Drawing marks carry their values in visible attributes: the grid axis, the level, the room name, number and area, the section and sheet numbers. Export the blocks of all drawings to Excel with BlockSync to build a door, window or furniture schedule, check it and write the changes back.
How to use the library
- Unzip the file and open the DWG. Copy the symbols you need into your plan, or drag the blocks in from DesignCenter (ADCENTER).

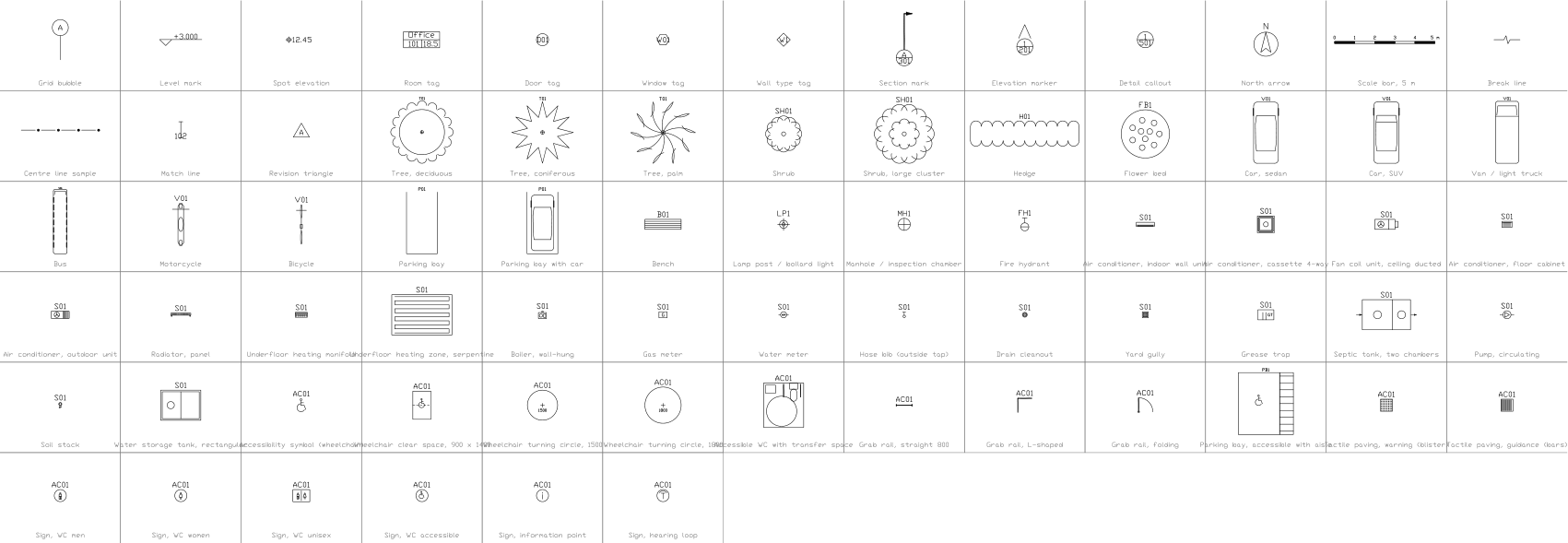

- Insert the blocks at scale 1 in model space; they are drawn at real size in millimetres. The catalog in the file shows them at 1:100.
- A door is inserted at its hinge point on the wall centre line and a window at its left reveal. Use MIRROR or a different X scale for another hand or width, and record the real size in the attributes. Electrical, fire safety, accessibility and sign symbols are inserted at their centre, drawn at the size they have on a 1:100 plan.
- Drawing marks and tags are sized for 1:100 (text height 250 mm); scale them by your drawing scale. Double-click a block (or run EATTEDIT) to fill in the tag and the schedule data.
About the drawing conventions
There is no single standard for architectural plan symbols: doors, windows, stairs and furniture are drawn in broadly similar ways, but details such as the swing arc, the window lines or the stair arrow differ between countries and offices.
These symbols are our own drawings after common architectural drafting conventions, and the library is not certified against any standard. Check them against your office or client drafting standard and change the blocks if yours differ.
Frequently asked questions
- Are these symbols to a drawing standard?
- No. There is no binding standard for architectural plan symbols. They follow common conventions and can be changed to match your office standard.
- Which units are the blocks in?
- Millimetres, at real size. Insert them at scale 1 in a model space that is in millimetres; if your drawing is in metres or inches, scale the blocks on insertion (0.001 or 0.03937).
- Can I use the symbols in commercial projects?
- Yes. They are free to use and modify in your own projects, including commercial ones. They are provided as is, without warranty.
- How do I make a door or furniture schedule from the drawings?
- Export the door, window or furniture blocks of all drawings to Excel with BlockSync: one row per block with its tag and attributes. Fill in the sizes and finishes in Excel and write them back in one run, with preview and backup.
- Can I change a symbol or add attributes?
- Yes. Open the DWG, edit a block with BEDIT to change it or add attributes, and save. To update drawings that already contain the block, run ATTSYNC or replace the block. Make a backup first: attribute values can be lost if ATTSYNC is used carelessly.
Count the symbols and build a parts list
Because ratings and part numbers are attributes, the symbols of a whole project can be counted and listed without opening the drawings. Export the blocks to Excel, total them with a pivot table and write corrections back in one run, with preview and backup.
