Free AutoCAD floor plan and architectural symbols (DWG): doors and windows in plan and elevation, walls, furniture, floor and wall finishes, electrical, fire safety

Architectural plan symbols: 627 ready-made AutoCAD blocks (DWG), free to download and use in your own projects, as a ZIP or one symbol at a time.

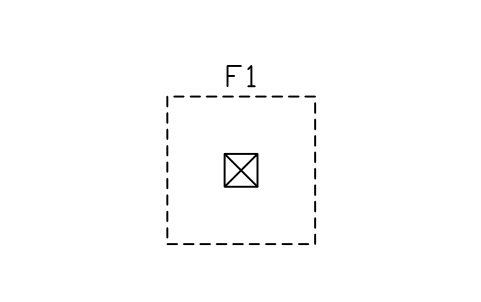

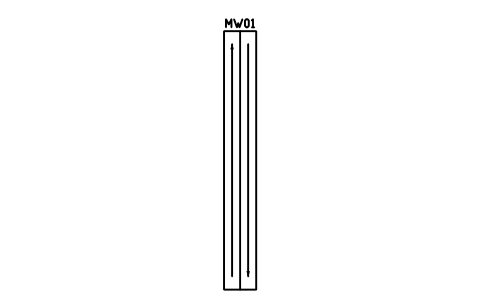

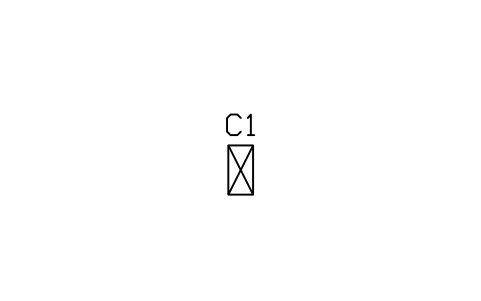

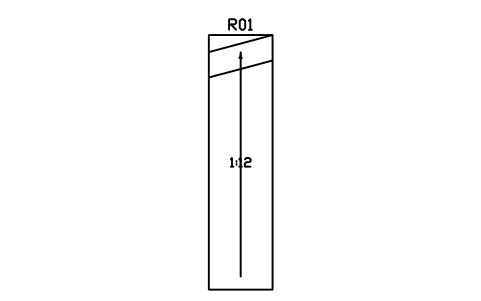

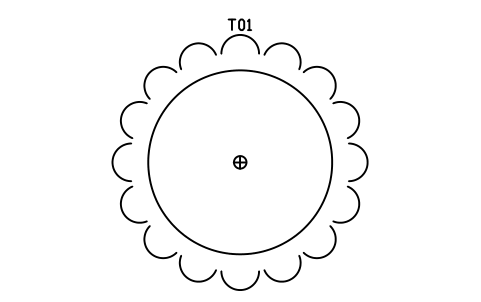

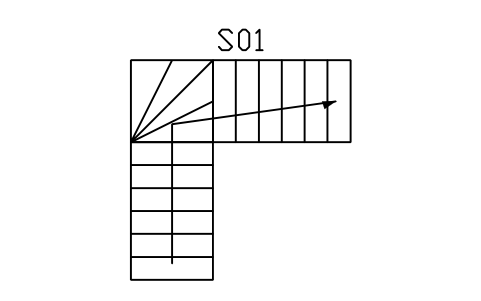

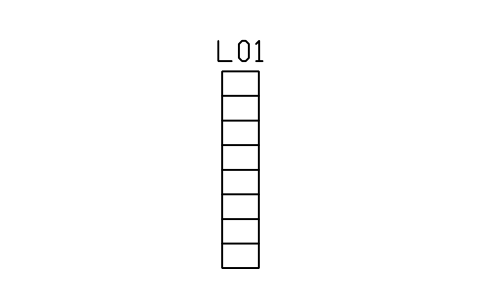

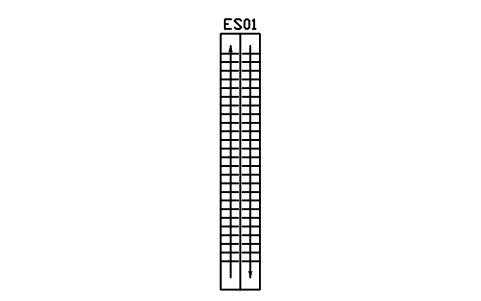

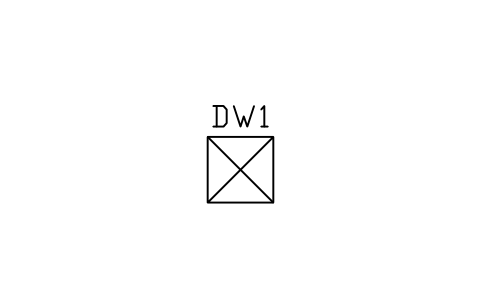

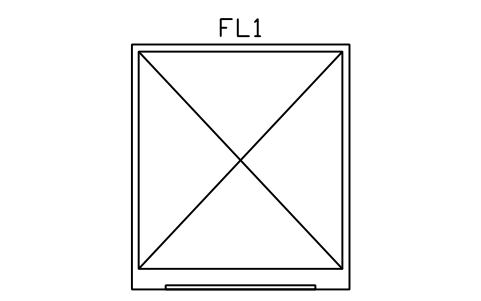

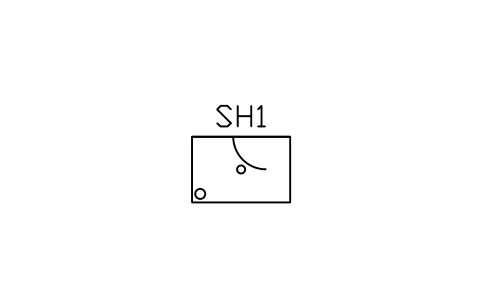

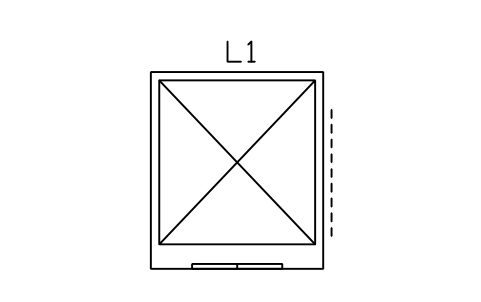

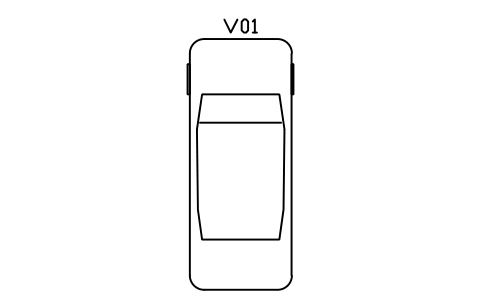

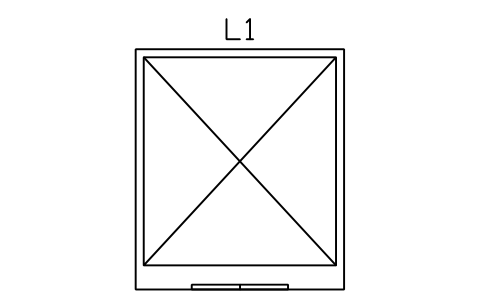

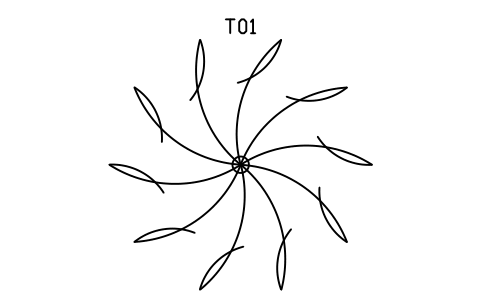

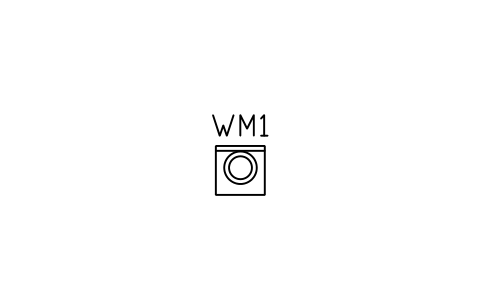

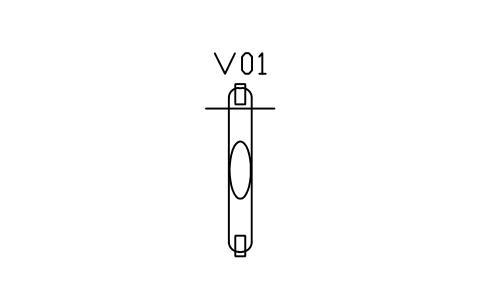

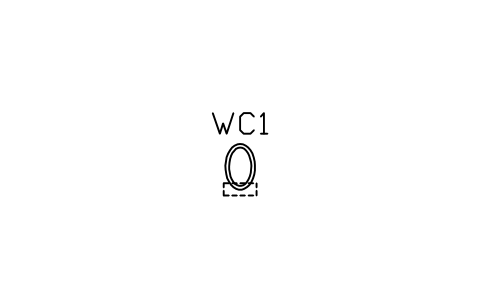

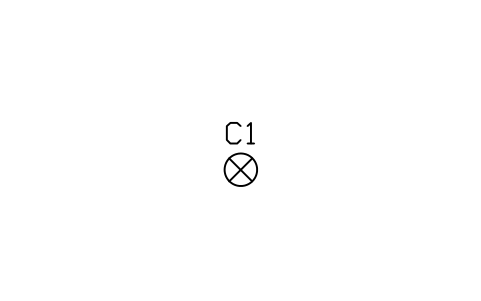

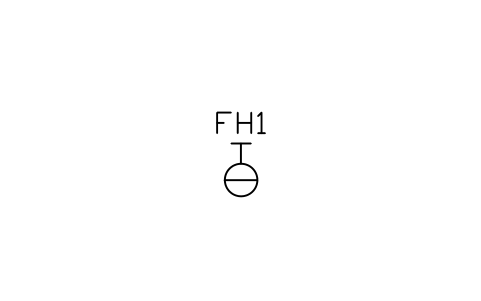

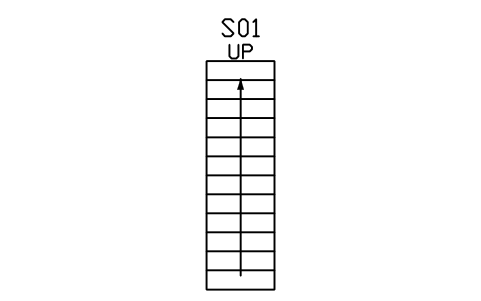

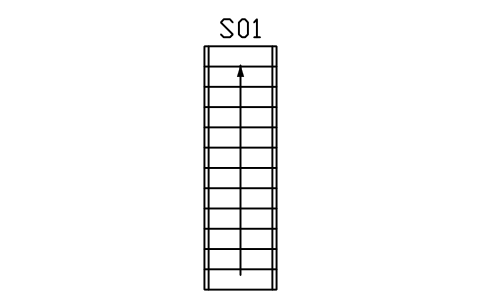

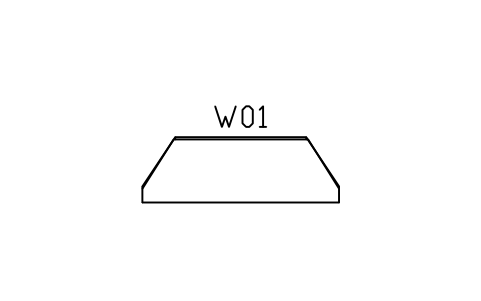

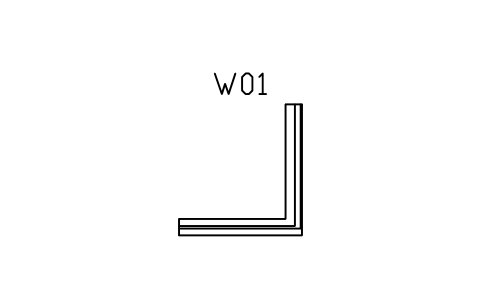

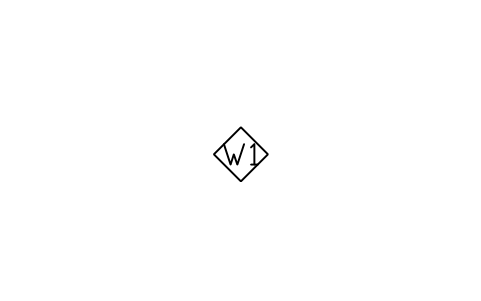

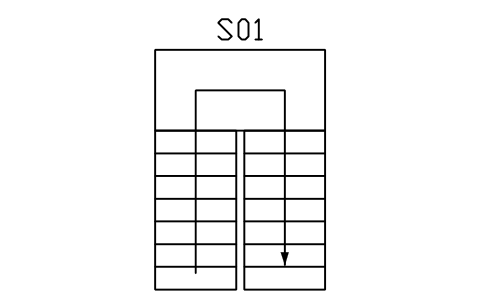

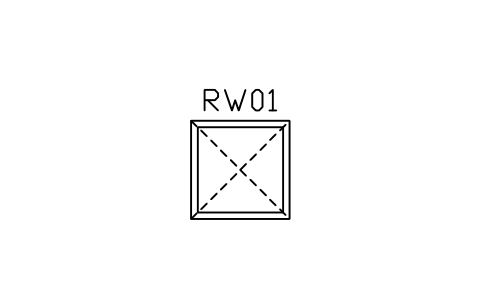

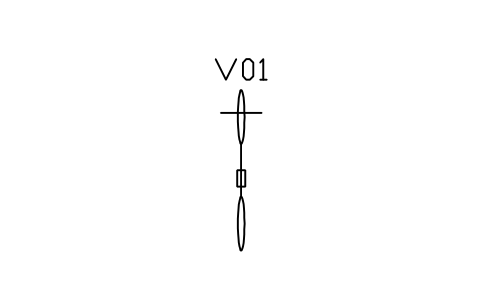

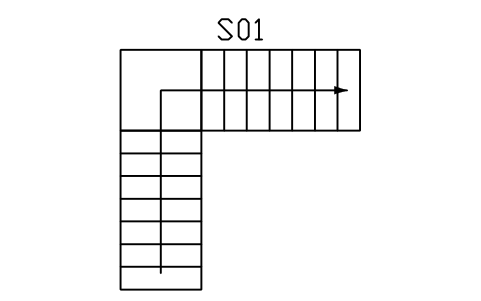

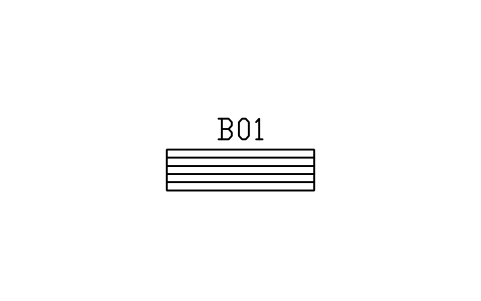

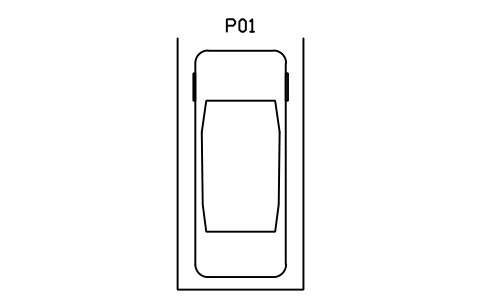

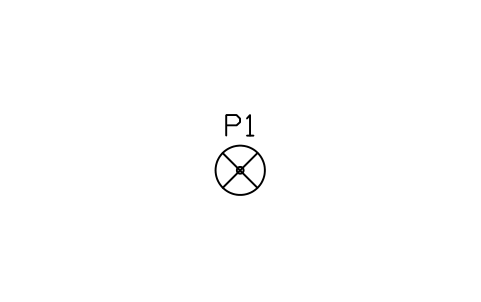

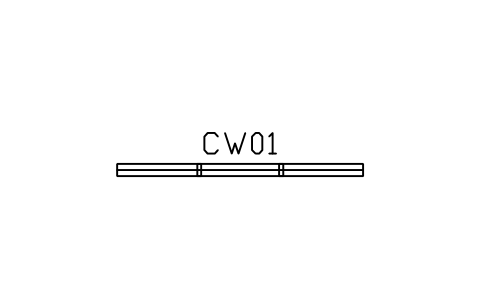

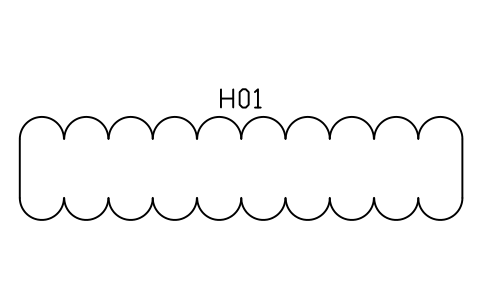

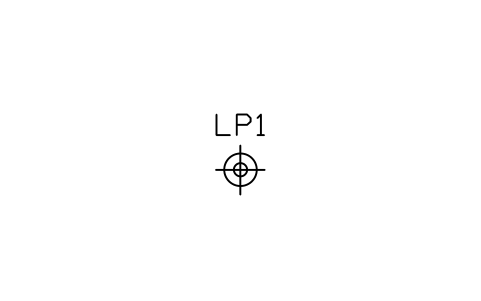

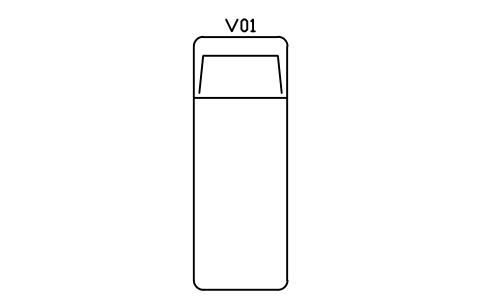

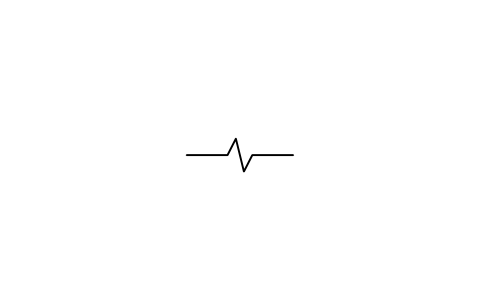

627 architectural symbols as ready-to-use AutoCAD blocks at real size in millimetres: doors and windows in plan and in elevation, wall and partition constructions (brick, concrete, block, stud, glass, cavity, and new, existing and demolished walls), stairs, ramps and lifts, roof plans with ridges, hips, valleys, drains and solar arrays, sanitary fixtures, kitchen and laundry appliances, living, dining, bedroom and office furniture, everyday items such as rugs, lamps, plants, bins and curtains, school, shop and hospitality furniture, healthcare and fitness equipment, sockets, switches and luminaires, fire alarm and fire fighting equipment, exit signs, wheelchair and accessibility symbols, building services such as air conditioners, radiators, meters and drainage items, columns, beams, cores and footings, trees and vehicles, and the usual drawing marks and tags. Door and window numbers, sizes, materials, finishes and manufacturer data sit in attributes, so door, window and furniture schedules can be read straight from the drawings. Bathroom fixtures and kitchen units are also drawn in elevation, and there are stair and railing details: stairs and ramps in side view, balustrades and handrails. Furniture is drawn in detail, with cushions, pillows, place settings and bedside tables, and many pieces come in several sizes. Doors, windows, sanitary fixtures and kitchen units are drawn in detail too and come in several sizes, named in the block and prefilled in the attributes. Floor tiles and paving, wood floors and herringbone parquet, brick and block walls, cladding, wallpaper patterns and the usual materials in section (earth, gravel, concrete, timber, insulation, steel, glass) are ready as 1200 mm panels drawn with thin lines, with a finish code and the schedule data in attributes.

Version 1.3 · updated October 25, 2026 · Check out what's changed

3D views of 428 symbolsSee how the symbols of this library look as 3D objects: furniture, fixtures, doors and more.Browse the 3D views
Download tool paletteDownload ZIPPreview in browser

Using AutoCAD 2017 or an earlier version? Download the 2010 format

Copyright CADXChange. Use and modify the symbols freely in your own drawings and projects, including commercial ones; credit and a link are needed only when you publish them. Please do not redistribute or resell the library. Each ZIP holds one plain DWG file in AutoCAD 2018 format and a README; no add-in needed. Provided as is, without warranty. Library terms (CXL-1.0)

Only need one topic? These selections contain the same blocks:

Sample drawings made with this library

Show all 20 sample drawings

Related symbol libraries

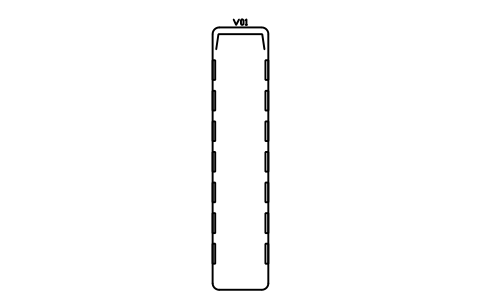

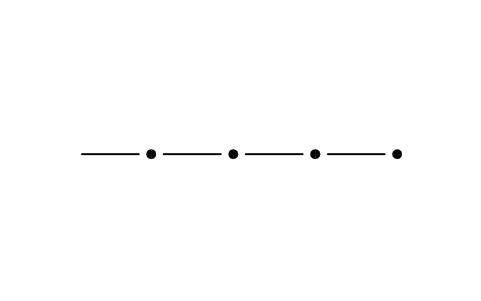

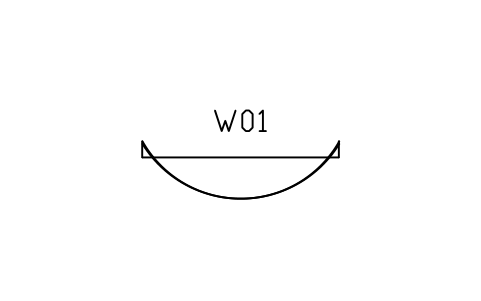

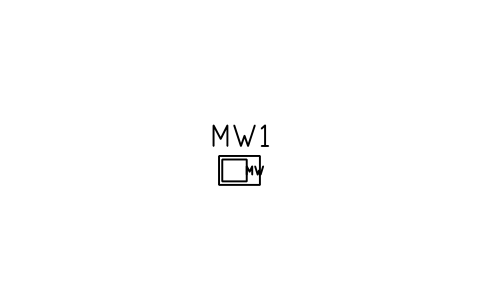

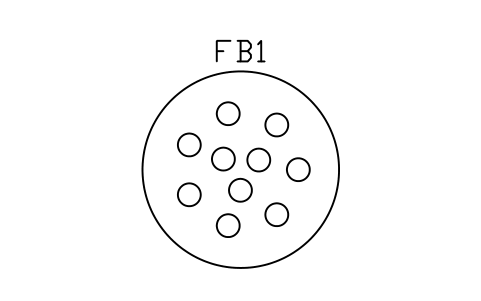

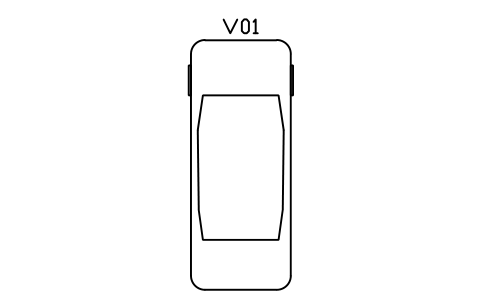

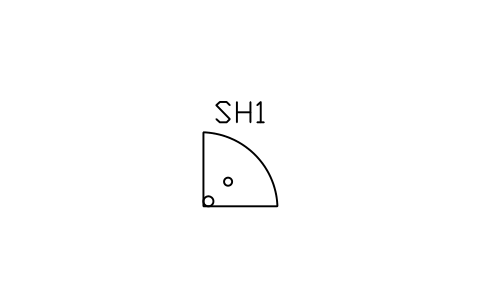

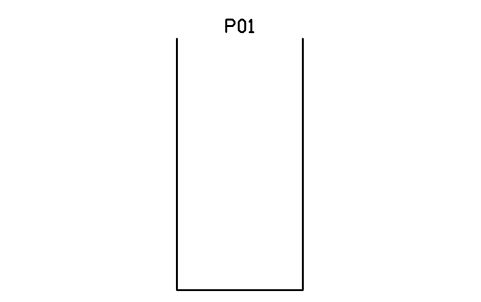

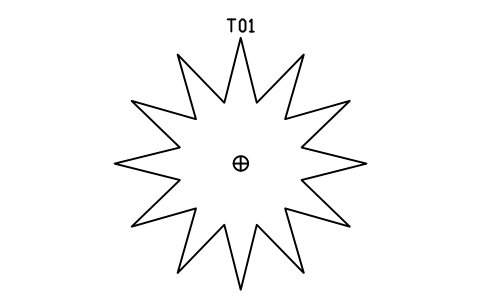

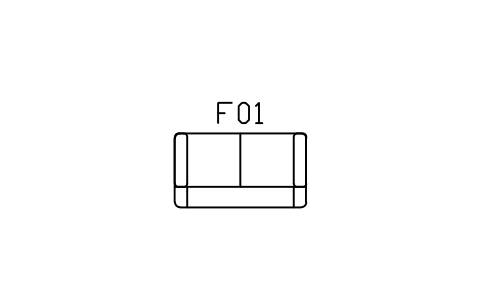

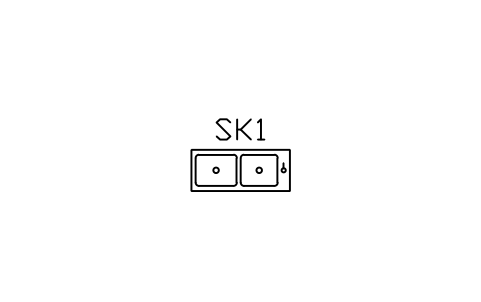

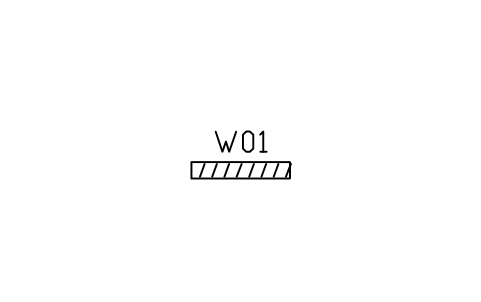

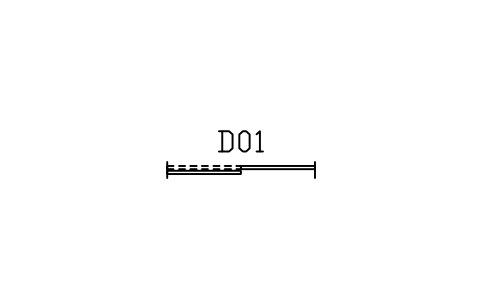

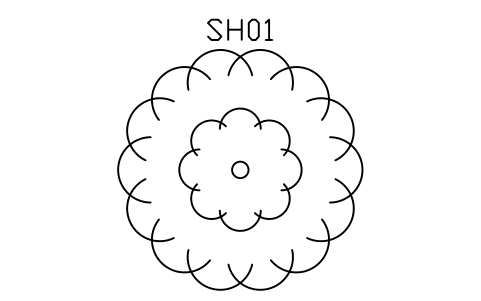

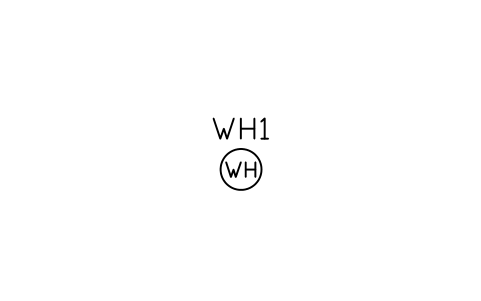

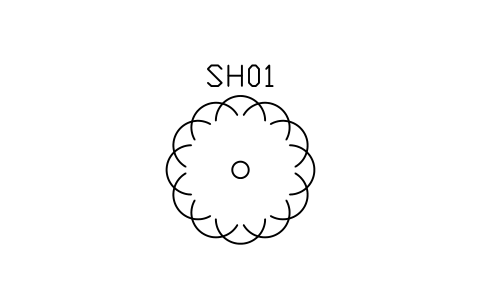

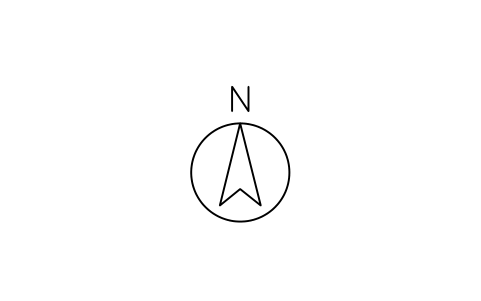

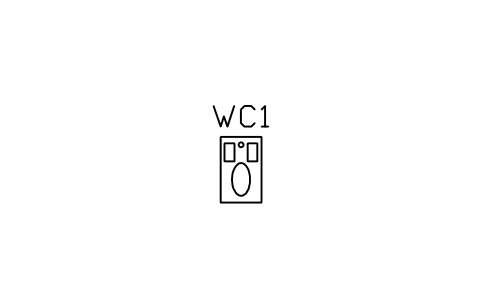

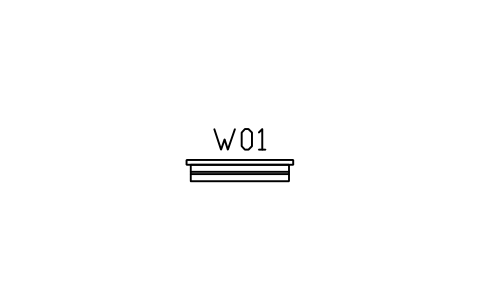

All 627 symbols

627 of 627 symbols

Missing a symbol? Tell us which one.

Attributes for parts lists

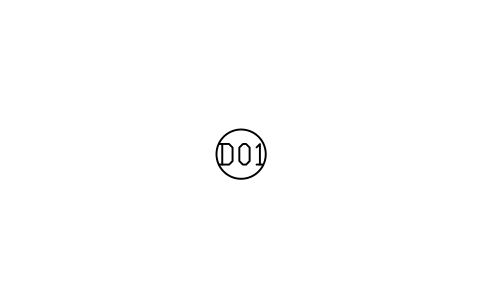

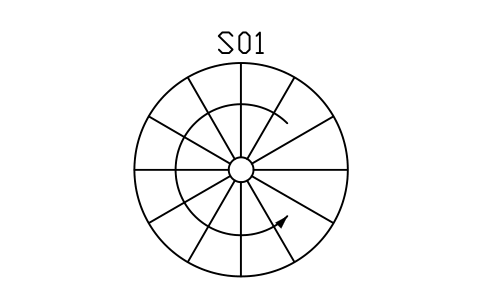

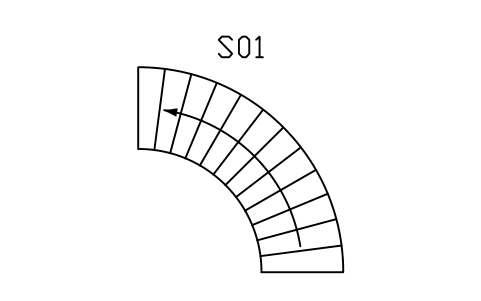

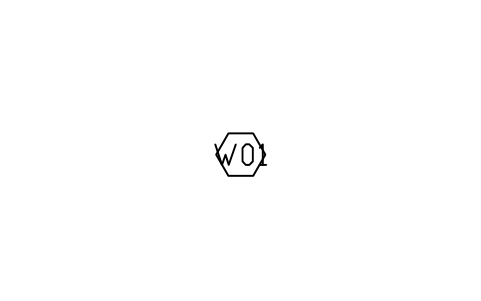

Every block has a visible tag next to the symbol (for example D01 for a door, W01 for a window, F01 for a piece of furniture). The data you put on a schedule are invisible attributes: WIDTH_MM, HEIGHT_MM, DOOR_TYPE, MATERIAL, FIRE_RATING and FINISH for doors; SILL_HEIGHT_MM, GLAZING and U_VALUE for windows; NUM_RISERS, RISER_MM and TREAD_MM for stairs; CIRCUIT, MOUNTING_HEIGHT_MM and RATING for sockets and switches; LUMENS and POWER_W for luminaires; ZONE, ADDRESS and NEXT_INSPECTION for fire safety devices; and DESCRIPTION, QTY, MANUFACTURER and MODEL for furniture and fixtures.

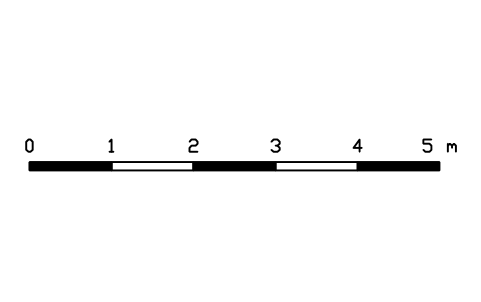

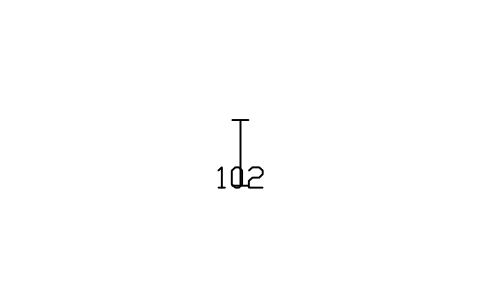

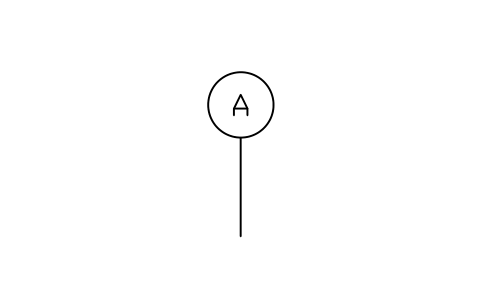

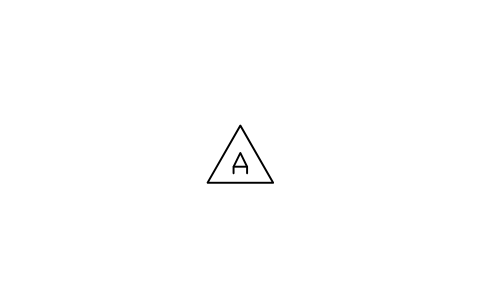

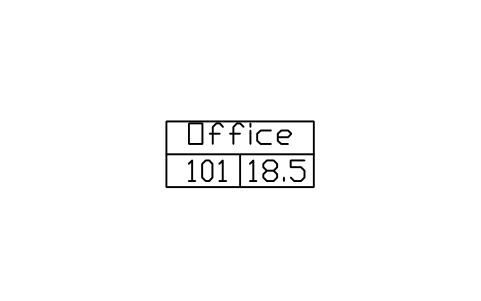

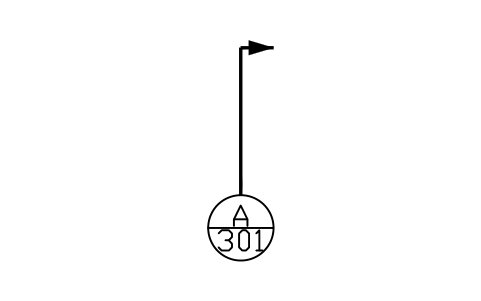

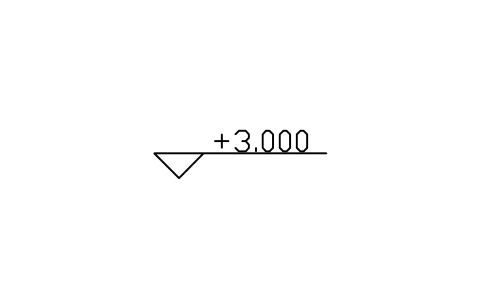

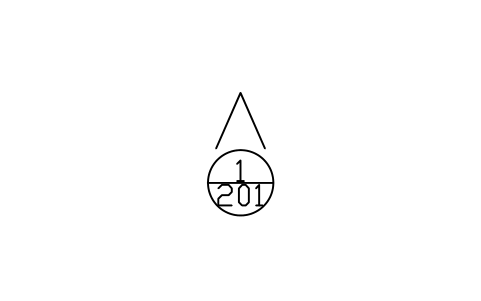

Drawing marks carry their values in visible attributes: the grid axis, the level, the room name, number and area, the section and sheet numbers.

How to use the library

  1. Unzip the file and open the DWG. Copy the symbols you need into your plan, or drag the blocks in from DesignCenter (ADCENTER).
  2. Insert the blocks at scale 1 in model space; they are drawn at real size in millimetres. The catalog in the file shows them at 1:100.

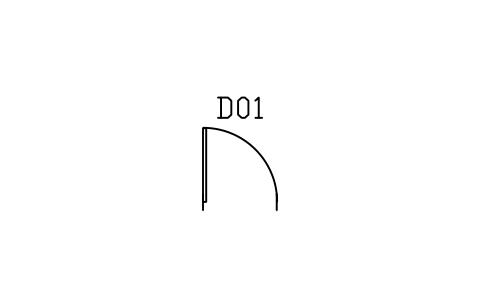

  3. A door is inserted at its hinge point on the wall centre line and a window at its left reveal. Use MIRROR or a different X scale for another hand or width, and record the real size in the attributes. Electrical, fire safety, accessibility and sign symbols are inserted at their centre, drawn at the size they have on a 1:100 plan.
  4. Drawing marks and tags are sized for 1:100 (text height 250 mm); scale them by your drawing scale. Double-click a block (or run EATTEDIT) to fill in the tag and the schedule data. Finish panels and material swatches are 1200 mm squares (1200 x 800 mm in section) with the insertion point at the lower-left corner; scale the block to the area you want to show and put the finish code in the tag.

About the drawing conventions

There is no single standard for architectural plan symbols: doors, windows, stairs and furniture are drawn in broadly similar ways, but details such as the swing arc, the window lines or the stair arrow differ between countries and offices.

These symbols are our own drawings after common architectural drafting conventions, and the library is not certified against any standard. Check them against your office or client drafting standard and change the blocks if yours differ.

What changed in each version

Version 1.3 · October 25, 2026

New: floor tiles and paving, wood floors and parquet, wall finishes and cladding, wallpaper patterns, materials in section, and more drawing marks (finish tags, ceiling height, slope arrows, fire compartment lines). The catalog sheet now has a heading for every group, long names run over two lines and small symbols are enlarged.

New symbols (74)

Tile, square 300 · Tile, square 600 · Tile, diagonal 300 · Tile, diagonal 600 · Tile, 600 x 300 running bond · Tile, large format 1200 x 600 · Tile, checkerboard 300 · Tile, hexagonal 200 · Tile, octagon and diamond 300 · Tile, brick bond 300 x 100 · Tile, mosaic 50 · Wood floor, strips 90 · Wood floor, boards 150 · Wood floor, wide planks 200 · Parquet, herringbone · Parquet, herringbone diagonal · Parquet, basket weave 300 · Paving, setts 100 x 120 · Paving, random flagstone · Carpet tile 600 with direction · Terrazzo, chips · Concrete floor, saw-cut joints 600 · Raised access floor 600 · Brick, stretcher bond · Brick, stack bond · Brick, Flemish bond · Brick, English bond · Blockwork 450 x 225 · Stone, coursed ashlar · Cladding, timber horizontal 150 · Cladding, board and batten · Cladding, vertical slats 50 · Cladding, corrugated sheet · Cladding, standing seam 400 · Panelling, wainscot with rail · Wallpaper, stripes 60 · Wallpaper, pinstripe · Wallpaper, wide stripes · Wallpaper, polka dots · Wallpaper, trellis · 34 more

Version 1.2 · October 20, 2026

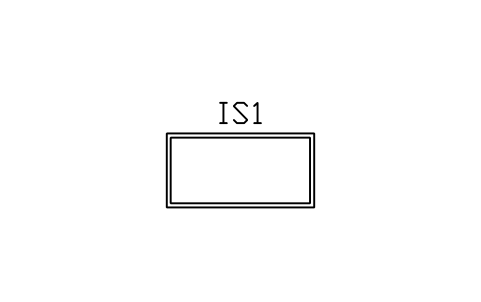

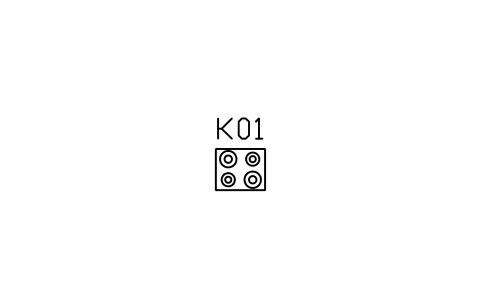

Doors, windows, sanitary fixtures and kitchen units are drawn in more detail and come in more sizes: doors and windows in several widths with frame, leaf, swing arc and handle; baths, shower trays, vanity units, hobs, sinks and cabinets with taps, drains, bowls and burners. New: glazed, entrance and French doors, accessible WC, walk-in shower, induction hob, built-in oven, tall unit and islands with sink or hob.

New symbols (62)

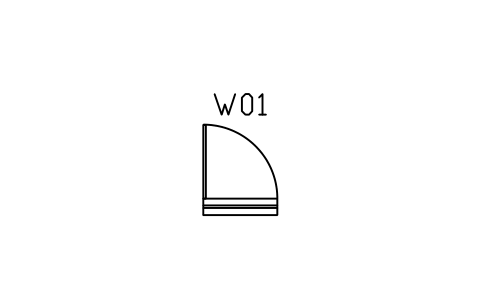

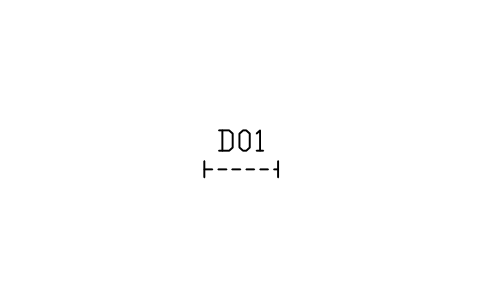

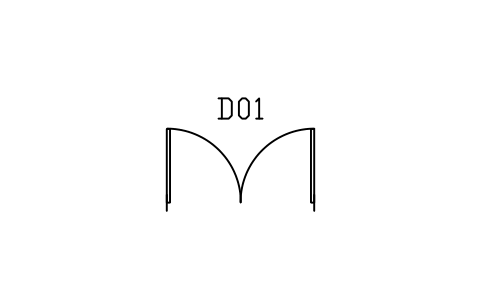

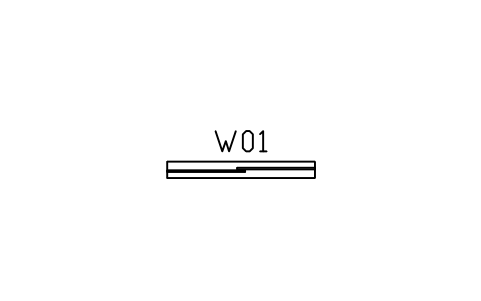

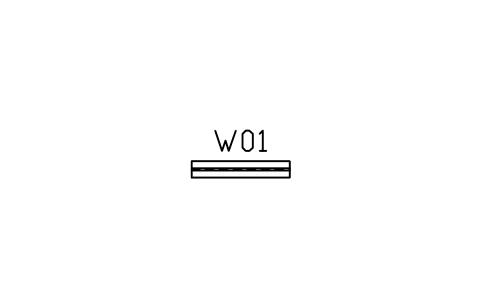

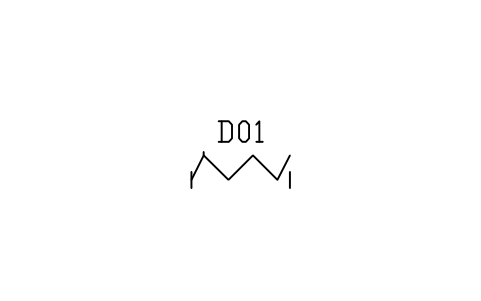

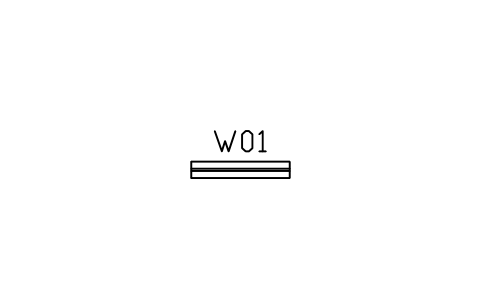

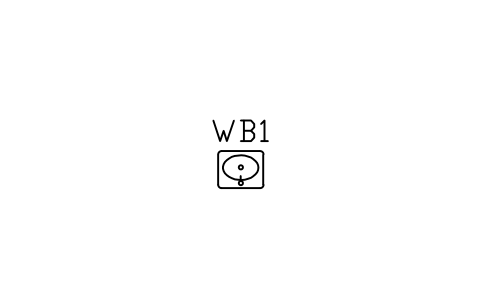

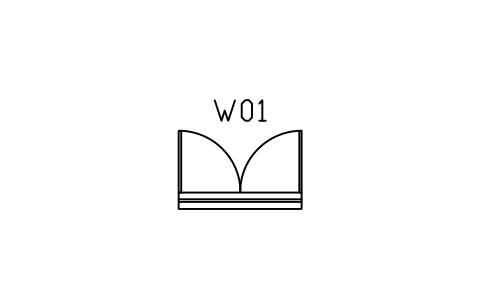

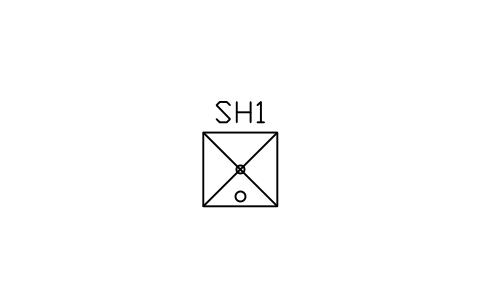

Door, single swing, 700 · Door, single swing, 800 · Door, single swing, 1000 · Door, single swing, glazed, 900 · Door, entrance with step, 1000 · Door, double swing, 1200 · Door, double swing, 1500 · Door, double swing, 2000 · Door, French double glazed, 1500 · Door, sliding glass patio, 2400 · Door, bi-fold, 1800, four leaves · Opening, no door, 1200 · Window, fixed, 600 · Window, fixed, 900 · Window, fixed, 1800 · Window, fixed, 2400 · Window, casement single, 600 · Window, casement double, 1200 · Window, casement double, 1800 · Window, sliding, 1200 · Window, sliding, 2400 · Window, sliding, three panes, 2700 · Window, top-hung / tilt, 900 · Window, top-hung / tilt, 1800 · WC, back-to-wall, concealed cistern · WC, accessible, with grab rails · Wash basin, rectangular, 400 · Wash basin, rectangular, 600 · Hand basin, cloakroom, 400 x 250 · Vanity unit with basin, 600 · Vanity unit with basin, 1000 · Vanity unit, double basin, 1500 · Vanity with vessel basin, 800 · Bathtub, rectangular, 1500 · Bathtub, rectangular, 1800 · Bathtub, freestanding rolltop, 1700 · Shower tray, square, 800 · Shower tray, square, 1000 · Shower tray, rectangular, 1200 x 800 · Shower, walk-in with glass screen, 1200 x 900 · 22 more

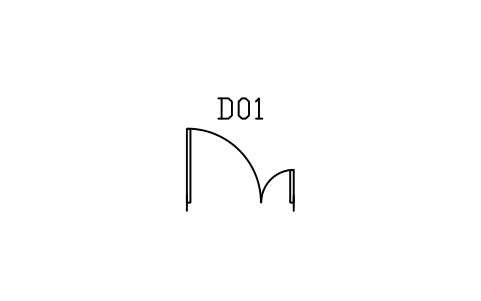

Redrawn with more detail (69)

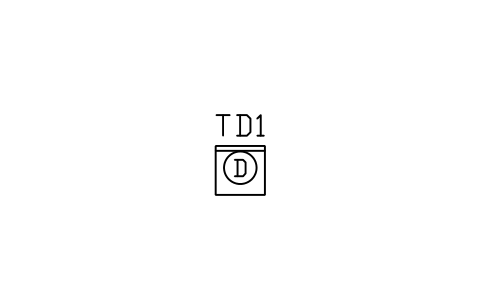

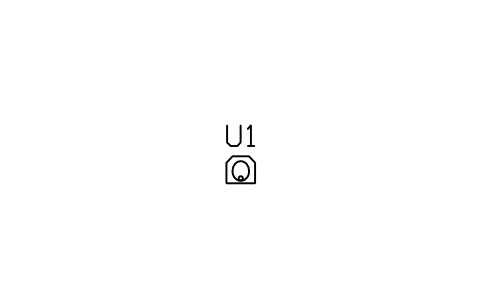

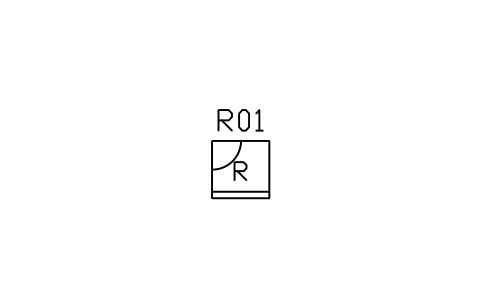

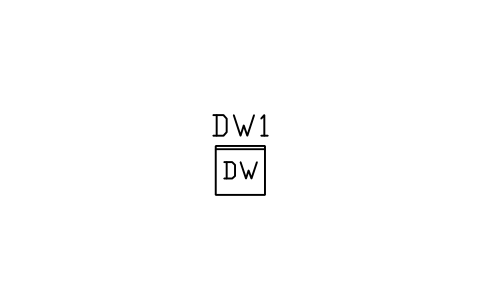

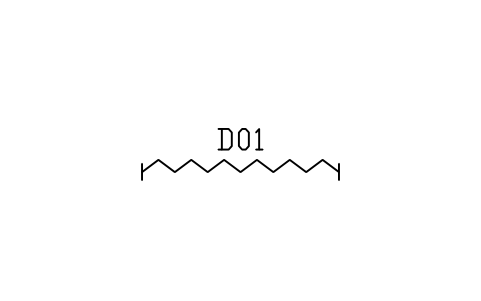

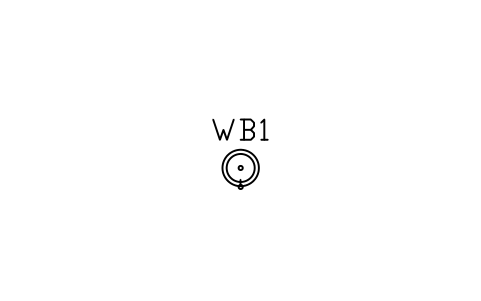

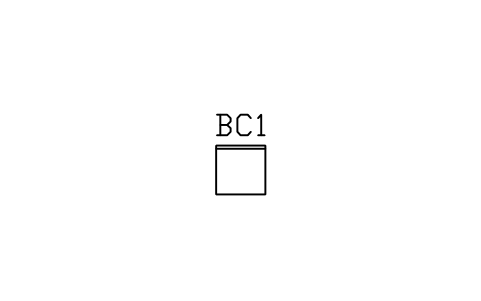

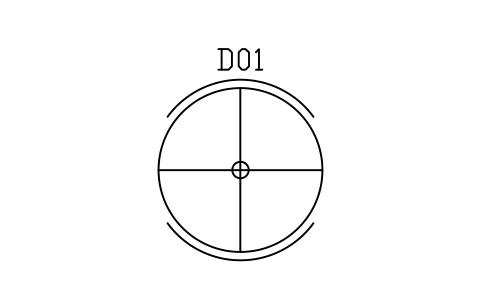

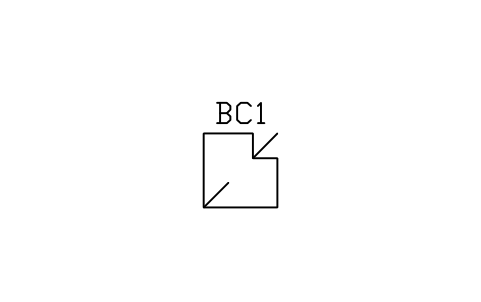

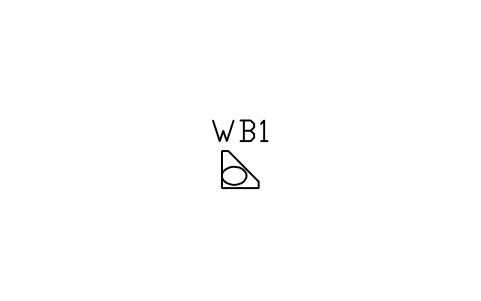

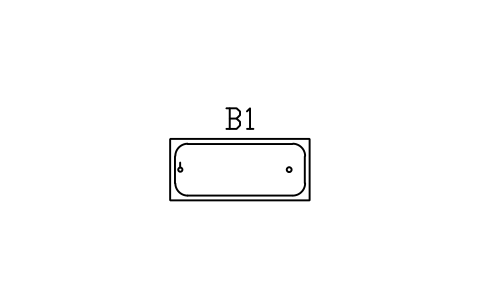

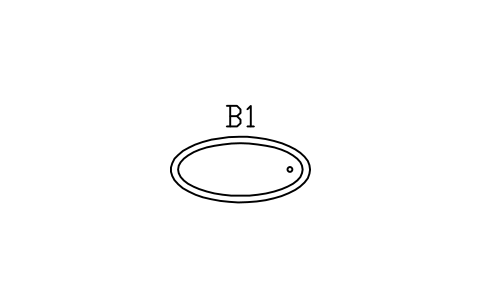

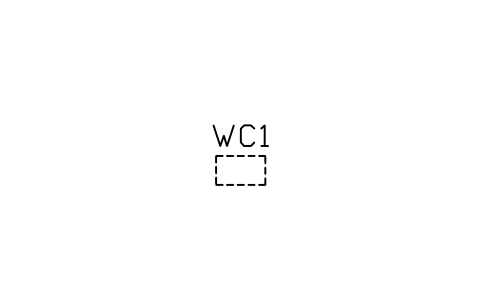

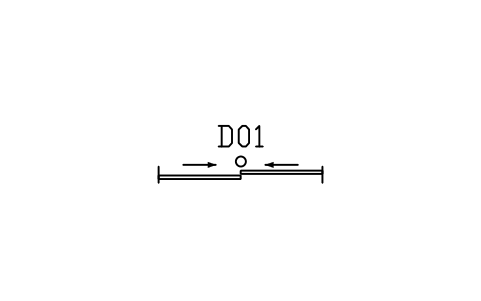

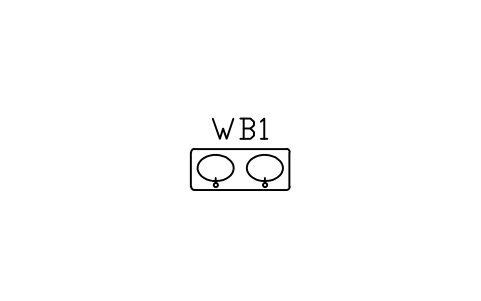

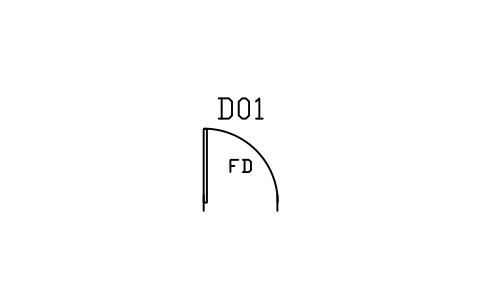

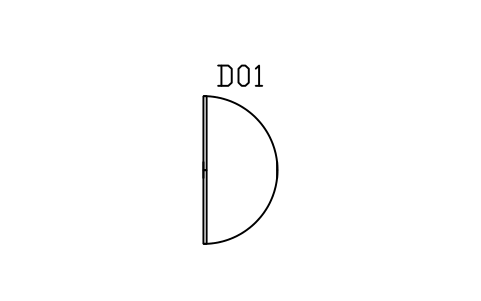

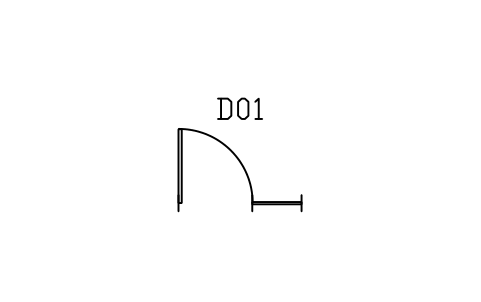

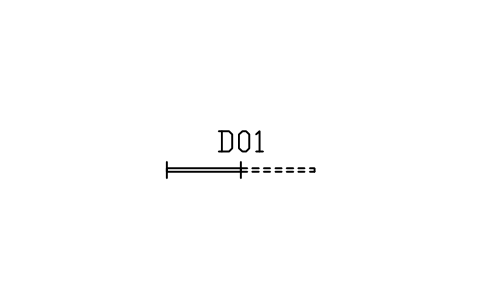

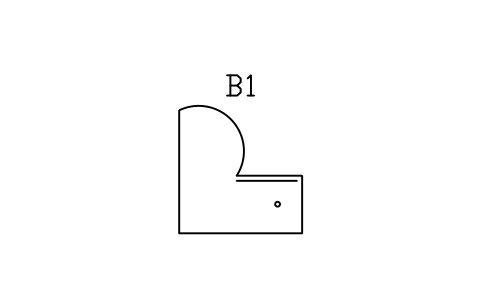

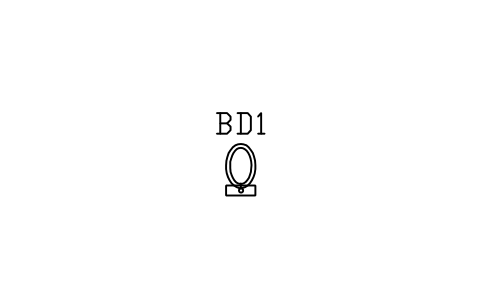

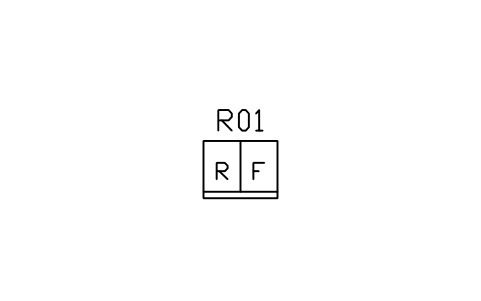

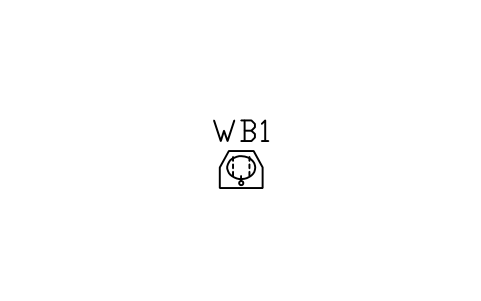

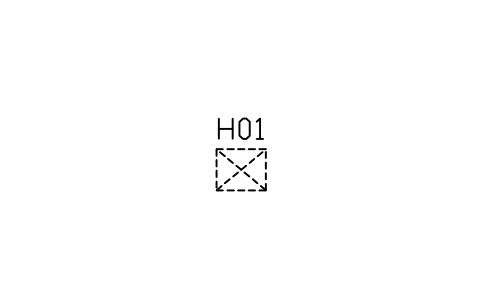

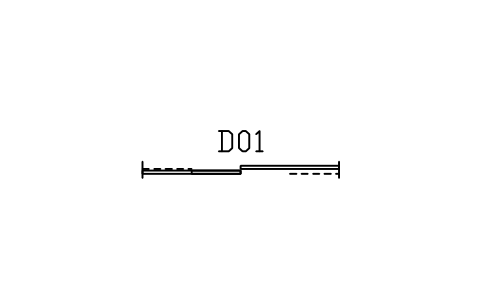

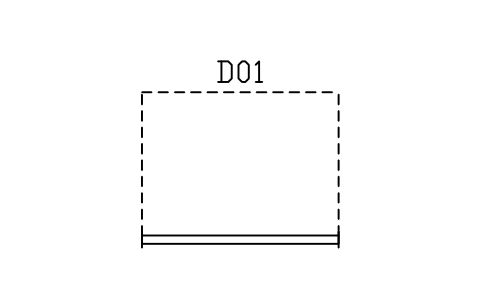

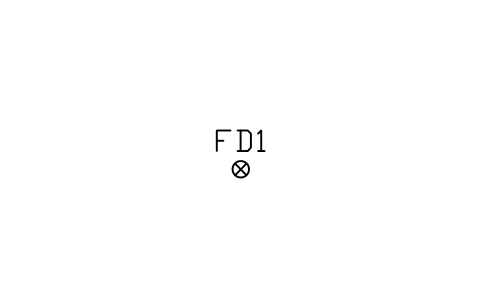

Wash basin, corner · Wash basin, double, 1200 · Wash basin, pedestal, 550 · Wash basin, rectangular, 500 · Wash basin, round, 450 · Bathtub, rectangular, 1700 · Bathtub, corner, 1500 · Bathtub, freestanding oval, 1700 · Bidet · Base cabinet, 600 · Corner base cabinet, 900 · Wall cabinet, 600 · Cooker with oven, 600 · Dishwasher, 600 · Door, automatic sliding, 2000 · Door, sliding barn-style, 900 · Door, bi-fold, 1200 · Door, double swing, 1800 · Door, double acting, 900 · Door, double leaf, fire-rated, 1800 · Door, folding partition, 2400 · Opening, no door, 900 · Door, overhead / garage, 2400 · Door, pocket sliding, 900 · Door, revolving, 2000 · Door, roller shutter, 2400 · Door, single with sidelight, 1500 · Door, single swing, 900 · Door, single swing, fire-rated, 900 · Door, sliding single, 1800 · Door, sliding double, 2400 · Door, double leaf, unequal, 1300 · Tumble dryer, 600 · Curtain wall elevation, 3 x 3 · Floor drain · Refrigerator, 600 x 650 · Refrigerator, double door, 900 · Hob, four burners, 600 · Range hood, 600 · Kitchen island, 1800 · 29 more

Version 1.1 · October 20, 2026

Furniture is drawn in more detail and comes in more sizes: sofas with cushions, beds with pillows, dining tables with place settings, desks with computers. New corner sofas, bed sets, wardrobes and conference tables.

New symbols (25)

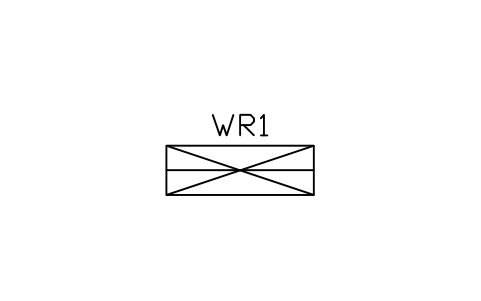

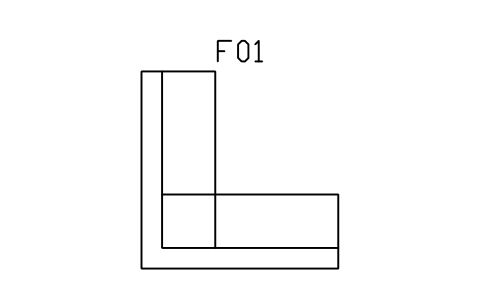

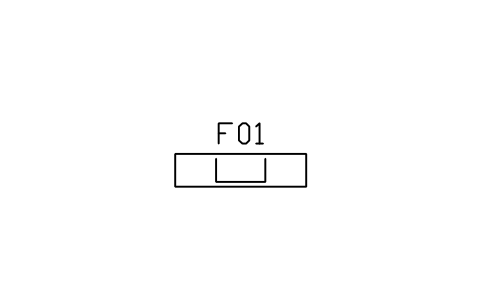

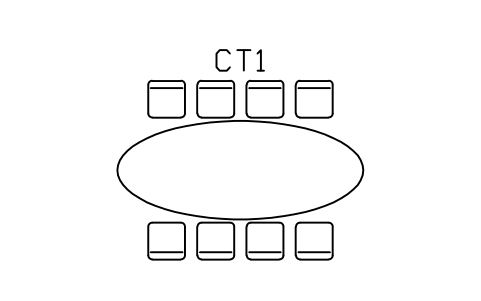

Sofa, four seater, 2800 · Sofa, corner, right · Dining table, four chairs · Dining table with eight chairs · Bar stool · Dining bench, 1200 · Coffee table, round, 800 · Nesting tables, set of three · Side table with lamp, 500 · TV unit with drawers, 2400 · Display cabinet, glass, 900 · Bed, small double, 1200 x 2000 · Bed, super king, 2000 x 2000 · Bed set, double, with bedsides · Bed set, queen, with bedsides · Bed set, king, with bedsides · Kids bed, 800 x 1700 · Wardrobe, 1200, hinged doors · Wardrobe, 2400, sliding doors · Wardrobe, corner, 1800 x 1800 · Tallboy chest, 600 · Dressing table with stool · Desk, 1200 x 600, with chair · Desk, 1600 x 800, with chair · Conference table, 10 chairs

Redrawn with more detail (41)

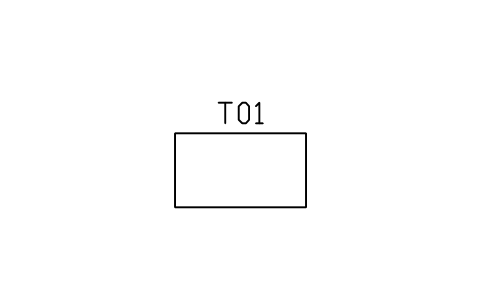

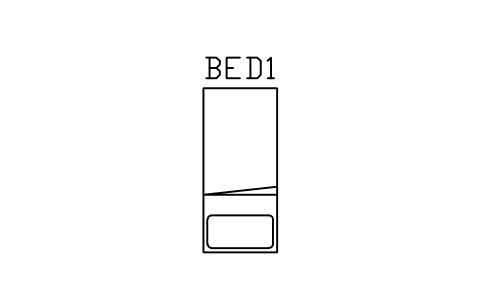

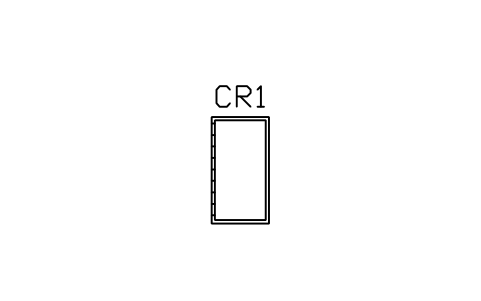

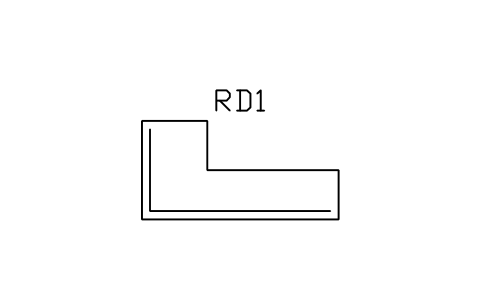

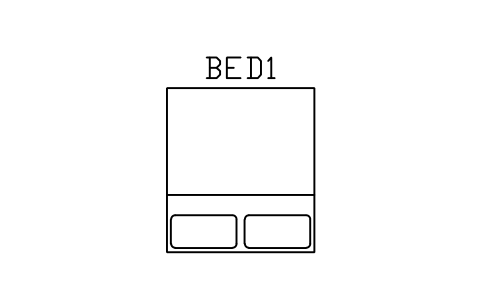

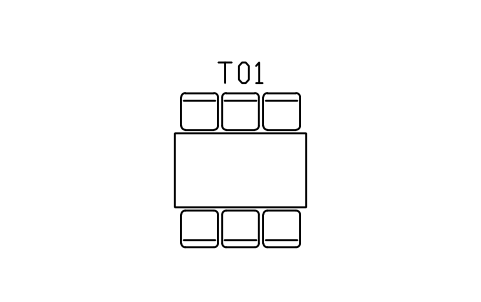

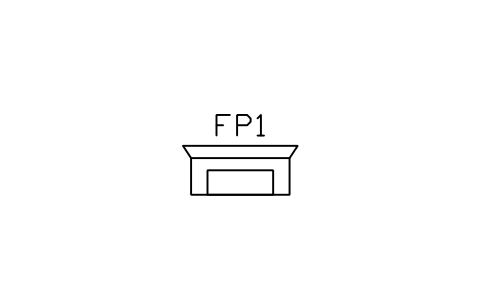

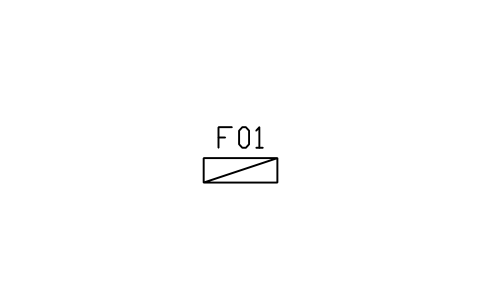

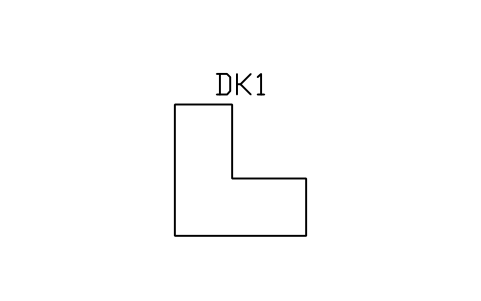

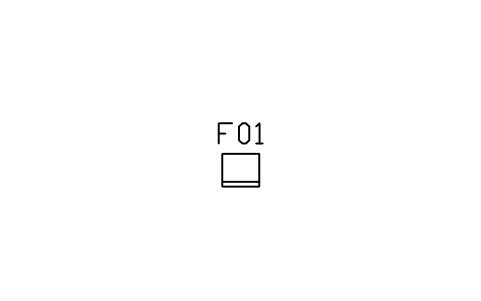

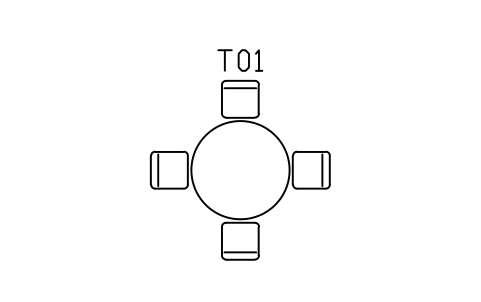

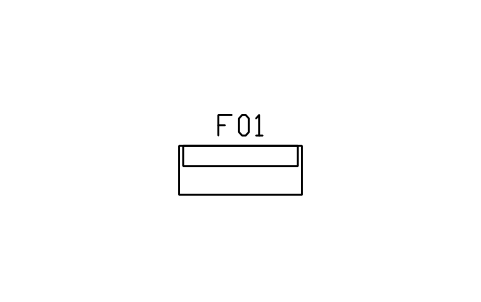

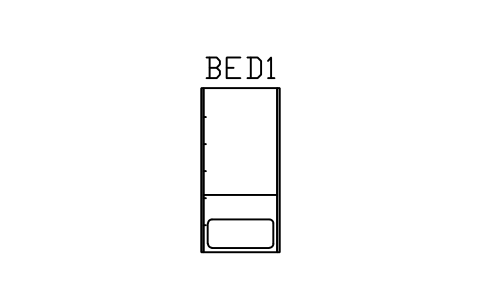

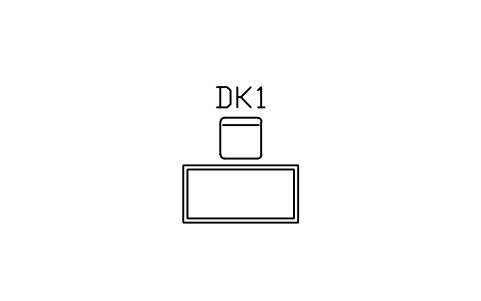

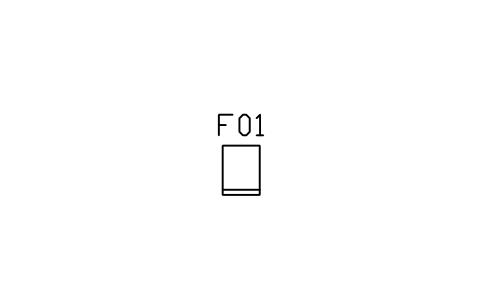

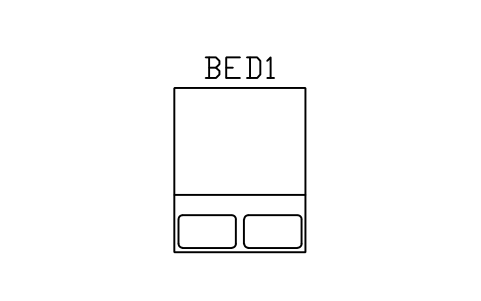

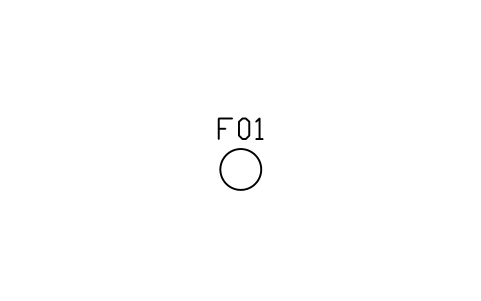

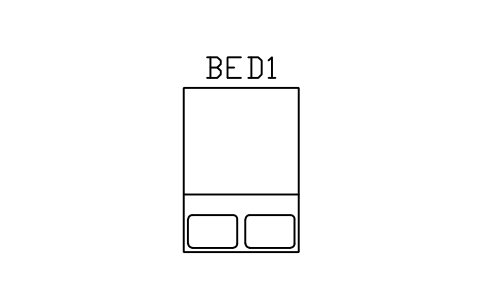

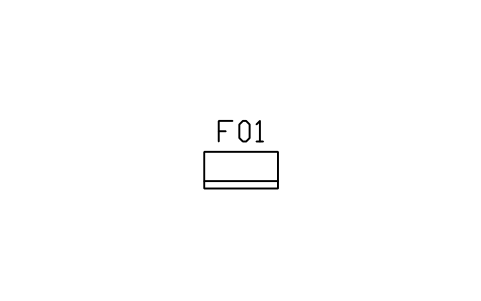

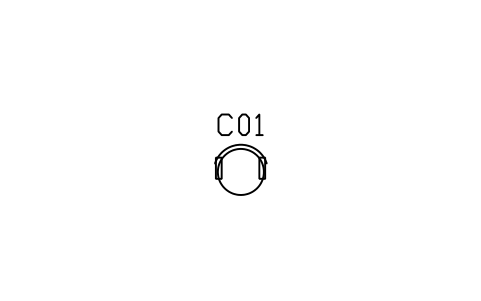

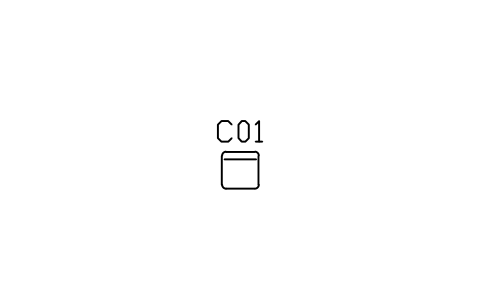

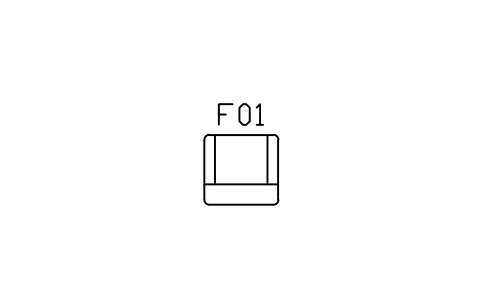

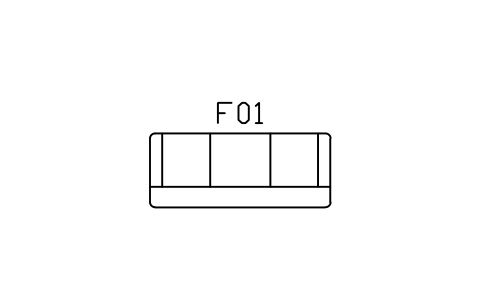

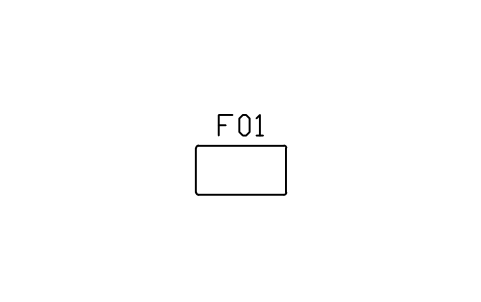

Armchair, 900 · Banquet table, round with ten chairs · Bar counter with four stools · Bedside table, 450 · Bunk bed, 900 x 2000 · Bed, double, 1400 x 2000 · Bed, king, 1800 x 2000 · Bed, queen, 1600 x 2000 · Bed, single, 900 x 2000 · Bench seat, indoor, 1200 · Bookcase, 900 · Dining chair · Chest of drawers, 900 · Coffee table, 1100 x 600 · Conference table, oval, 8 chairs · Console table, 1200 · Cot / crib · Desk with chair, 1400 · Desk, L-shaped, with chair · Dining table, oval with six chairs · Dining table with six chairs · Dining table, 1600 x 900 · Dining table, round, four chairs · Filing cabinet, 4 drawers · Fireplace · Office chair · Ottoman / pouf, round · Piano, upright, with stool · Reception desk, 2400 · Recliner armchair, footrest out · Sideboard, 1800 · Side table, round, 500 · Sofa, two seater, 1600 · Sofa, three seater, 2200 · Sofa with chaise longue, 2200 · Sofa, corner, left · Stool · Meeting table, round, four chairs · Round table with six chairs · TV unit, 1600 · 1 more

Frequently asked questions

Are these symbols to a drawing standard?
No. There is no binding standard for architectural plan symbols. They follow common conventions and can be changed to match your office standard.
Which units are the blocks in?
Millimetres, at real size. Insert them at scale 1 in a model space that is in millimetres; if your drawing is in metres or inches, scale the blocks on insertion (0.001 or 0.03937).
Can I use the symbols in commercial projects?
Yes. They are free to use and modify in your own projects, including commercial ones. They are provided as is, without warranty. Please do not redistribute or resell the library; see the library terms.
Can I change a symbol or add attributes?
Yes. Open the DWG, edit a block with BEDIT to change it or add attributes, and save. To update drawings that already contain the block, run ATTSYNC or replace the block. Make a backup first: attribute values can be lost if ATTSYNC is used carelessly.
Are the floor, wallpaper and material patterns hatches?
No, they are blocks made of thin lines. Insert one, scale it to the area you want to show and copy it to cover more (ARRAY), or use it as a legend sample next to your finish schedule. For large areas the hatch patterns of your CAD program are the better choice.
Should I download this library or one of the smaller topic libraries (furniture, doors and windows, bathroom and kitchen, stairs, walls and roofs)?
This one has everything in a single file. If you need only one topic, the topic library holds the same blocks in a smaller file, and the furniture library adds front elevations of the furniture.
Where do I find a ready-made set of these symbols for AutoCAD?
AutoCAD itself ships only a small set of sample blocks, so a full symbol set has to come from a library. Download the ZIP on this page and open the DWG: every symbol is a block. Insert one with INSERT (Blocks palette, Libraries tab, then pick the DWG) or drag it from DesignCenter (ADCENTER). You can also download a single symbol on its own.
