Star-delta
A star-delta starter for a 15 kW motor: line, star and delta contactors, a motor with six terminals, an on-delay timer that changes over from star to delta, and interlock contacts so that star and delta can never be on together.
Free to use and modify in your own projects, including commercial ones. The ZIP holds the sample drawing, a template, a plot style table and a README; no add-in needed. The data in the drawing is made up, so it is not for design or construction. Provided as is, without warranty. Library terms (CXL-1.0)
Version 1.0 · updated October 21, 2026
This sample uses these resources
The symbols are blocks from our own libraries, with their attributes filled in. The sheet and its title block come from our ISO A3 title block template. Download them to draw your own diagrams.
Layers, styles and sheet setup are the same for every drawing in the series; they are described on the series page: Motor control circuit diagram
Title block fields
The attributes of the title block. Double-click it to fill them in, or write them for a whole set of drawings with BlockSync.
| Attribute | Field on the sheet | Value in this sample |
|---|---|---|
| COMPANY | COMPANY | CADXChange |
| PROJECT | PROJECT | Pump Station Motor Control |
| AREA | AREA | Pump station |
| SYSTEM | SYSTEM | 400 V / 230 V |
| CLIENT | CLIENT | Sample |
| TITLE | DRAWING TITLE | Motor starter, star-delta |
| DRAWING_NO | DRAWING NO. | E-103 |
| CONTRACT_NO | CONTRACT NO. | — |
| REV | REV | A |
| DRAWN | DRAWN | — |
| CHECKED | CHECKED | — |
| APPROVED | APPROVED | — |
| DATE | DATE | 2026-10-21 |
| SCALE | SCALE | NTS |
| SHEET | SHEET | 1 |
| SHEET_OF | OF | 1 |
Revision table: R1 to R4, each with REV, DATE, DESCRIPTION and BY (16 attributes, empty in this sample).
Blocks in the drawing
The equipment list of the drawing: block name, symbol and how many times it is placed. BlockSync exports the same list from your own drawings.
| Symbol | Block | Placed |
|---|---|---|
 Junction | IEC_JUNCTION | 17 |
 Contactor, 3-pole | IEC_CONTACTOR_3P | 3 |
 Relay / contactor coil | IEC_COIL | 3 |
 Terminal | IEC_TERMINAL | 2 |
 Auxiliary contact, NC | IEC_AUX_CONTACT_NC | 2 |
 Circuit-breaker, 3-pole | IEC_CIRCUIT_BREAKER_3P | 1 |
 Thermal overload relay, 3P | IEC_THERMAL_RELAY_3P | 1 |
 Motor, three-phase | IEC_MOTOR_3PH | 1 |
 Earth (ground) | IEC_EARTH | 1 |
 Fuse | IEC_FUSE | 1 |
 Thermal overload contact, NC | IEC_THERMAL_CONTACT_NC | 1 |
 Push-button, NC | IEC_PUSHBUTTON_NC | 1 |
 Push-button, NO | IEC_PUSHBUTTON_NO | 1 |
 Auxiliary contact, NO | IEC_AUX_CONTACT_NO | 1 |

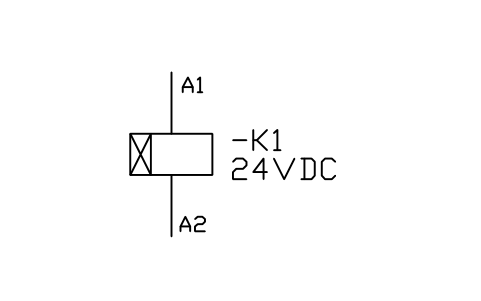

 Coil, slow-operating relay | IEC_COIL_SLOW_OPERATE | 1 |

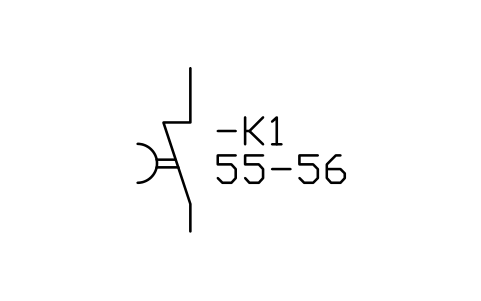

 Break contact, opening delay | IEC_CONTACT_NC_TDO | 1 |

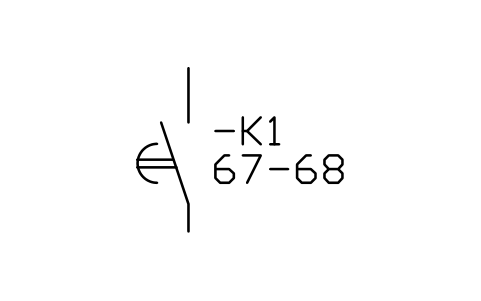

 Make contact, closing delay | IEC_CONTACT_NO_TDC | 1 |
Equipment schedule
One row per placed symbol, read from the attributes of the blocks in the drawing: what is shown on the sheet, and the schedule attributes that were filled in but are not shown. BlockSync exports these same attributes from your own drawings.
| Tag | Description | Shown on the sheet | Filled in, not shown |
|---|---|---|---|
| Q1 | Circuit-breaker, 3-poleIEC_CIRCUIT_BREAKER_3P | RATING_A = C32 | POLES = 3CURVE = CBREAKING_KA = 10VOLTAGE = 400 V |
| KM1 | Contactor, 3-poleIEC_CONTACTOR_3P | RATING_A = 32 A | POLES = 3UTILIZATION = AC-3COIL_VOLTAGE = 230 V AC |
| FR1 | Thermal overload relay, 3PIEC_THERMAL_RELAY_3P | SETTING_A = 11-17 A | CLASS = 10POLES = 3 |
| KM3 | Contactor, 3-poleIEC_CONTACTOR_3P | RATING_A = 32 A | POLES = 3UTILIZATION = AC-3COIL_VOLTAGE = 230 V AC |
| M1 | Motor, three-phaseIEC_MOTOR_3PH | POWER_KW = 15 kW | VOLTAGE = 400 VCURRENT = 14.8 ASPEED_RPM = 1455FREQUENCY = 50 Hz |
| PE1 | Earth (ground)IEC_EARTH | EARTH_TYPE = PE | |
| KM2 | Contactor, 3-poleIEC_CONTACTOR_3P | RATING_A = 18 A | POLES = 3UTILIZATION = AC-3COIL_VOLTAGE = 230 V AC |
| X2 | TerminalIEC_TERMINAL | TERMINAL_NO = 1 | |
| F2 | FuseIEC_FUSE | RATING_A = 4 A | VOLTAGE = 230 VCLASS = gGBREAKING_KA = 50 |
| X2 | TerminalIEC_TERMINAL | TERMINAL_NO = 2 | |
| FR1 | Thermal overload contact, NCIEC_THERMAL_CONTACT_NC | CONTACT_NO = 95-96 | RATING_A = 6 |
| SB1 | Push-button, NCIEC_PUSHBUTTON_NC | LEGEND = STOP | CONTACT_NO = 1 NCCOLOR = Red |
| SB2 | Push-button, NOIEC_PUSHBUTTON_NO | LEGEND = START | CONTACT_NO = 1 NOCOLOR = Green |
| KM1 | Auxiliary contact, NOIEC_AUX_CONTACT_NO | CONTACT_NO = 13-14 | RATING_A = 10OPERATING_DEVICE = KM1 |
| KM1 | Relay / contactor coilIEC_COIL | POWER_W = 8 | |
| KT1 | Coil, slow-operating relayIEC_COIL_SLOW_OPERATE | ||
| KT1 | Break contact, opening delayIEC_CONTACT_NC_TDO | CONTACT_NO = 55-56 | |
| KM3 | Auxiliary contact, NCIEC_AUX_CONTACT_NC | CONTACT_NO = 21-22 | RATING_A = 10OPERATING_DEVICE = KM3 |
| KM2 | Relay / contactor coilIEC_COIL | POWER_W = 8 | |
| KT1 | Make contact, closing delayIEC_CONTACT_NO_TDC | CONTACT_NO = 67-68 | |
| KM2 | Auxiliary contact, NCIEC_AUX_CONTACT_NC | CONTACT_NO = 21-22 | RATING_A = 10OPERATING_DEVICE = KM2 |
| KM3 | Relay / contactor coilIEC_COIL | POWER_W = 8 |
Manufacturer, model and remarks are left empty on every block, ready for your data. The values are examples.
