Free landscape plan symbols for AutoCAD (DWG): plants, paving, outdoor furniture and garden structures

37 landscape plan symbols at real size in millimetres: deciduous trees, conifers and palms in three crown sizes, round shrubs, hedges, groundcover and ornamental grass, brick and slab paving, decking and gravel, outdoor furniture, a swimming pool, a pond and a fountain, and garden structures such as a pergola, a gazebo, a shed, fences, a gate and a retaining wall. Plants carry botanical name, common name, size and height as attributes, so a planting schedule can be counted straight from the drawings.

Download ZIP

Free to use and modify in your own projects, including commercial ones. The ZIP holds one plain DWG file in AutoCAD 2018 format and a README; no add-in needed. Provided as is, without warranty.

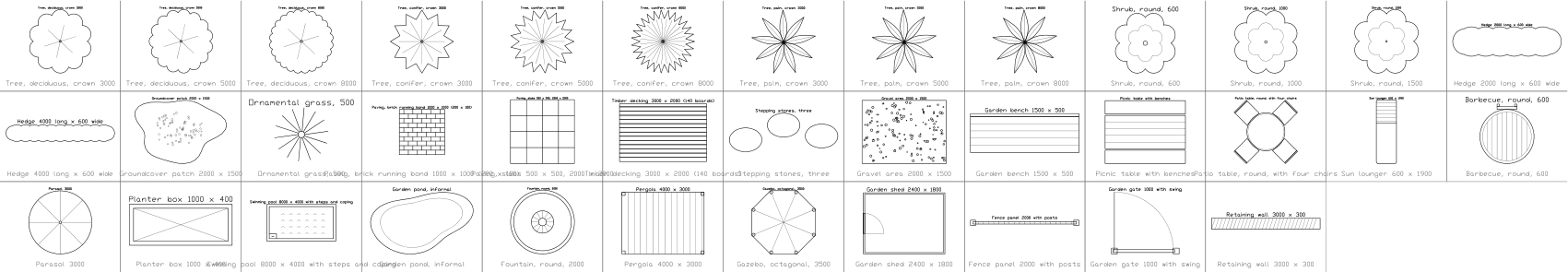

Catalog sheet of the 37 landscape plan symbols in the DWG library

All 37 symbols

37 of 37 symbols

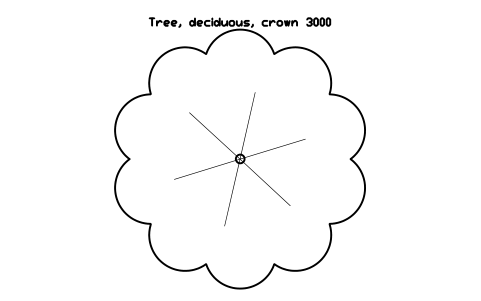

  • Preview of the Tree, deciduous, crown 3000 symbol, block LAN_TREE_DECIDUOUS_3000

    Tree, deciduous, crown 3000

    LAN_TREE_DECIDUOUS_3000

    Attributes

    TAGDESIGNATIONBOTANICAL_NAMECOMMON_NAMESIZEHEIGHTQTYREMARKSDESC

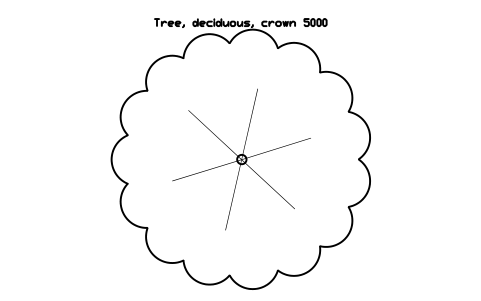

  • Preview of the Tree, deciduous, crown 5000 symbol, block LAN_TREE_DECIDUOUS_5000

    Tree, deciduous, crown 5000

    LAN_TREE_DECIDUOUS_5000

    Attributes

    TAGDESIGNATIONBOTANICAL_NAMECOMMON_NAMESIZEHEIGHTQTYREMARKSDESC

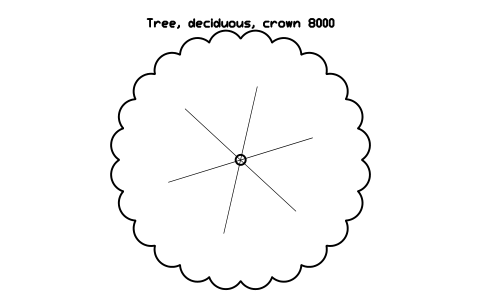

  • Preview of the Tree, deciduous, crown 8000 symbol, block LAN_TREE_DECIDUOUS_8000

    Tree, deciduous, crown 8000

    LAN_TREE_DECIDUOUS_8000

    Attributes

    TAGDESIGNATIONBOTANICAL_NAMECOMMON_NAMESIZEHEIGHTQTYREMARKSDESC

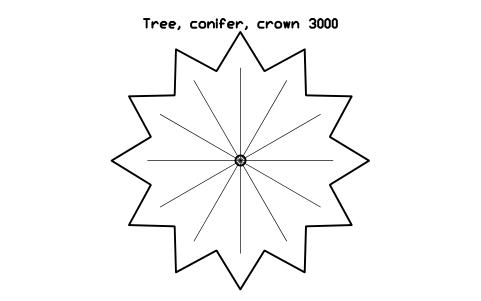

  • Preview of the Tree, conifer, crown 3000 symbol, block LAN_TREE_CONIFER_3000

    Tree, conifer, crown 3000

    LAN_TREE_CONIFER_3000

    Attributes

    TAGDESIGNATIONBOTANICAL_NAMECOMMON_NAMESIZEHEIGHTQTYREMARKSDESC

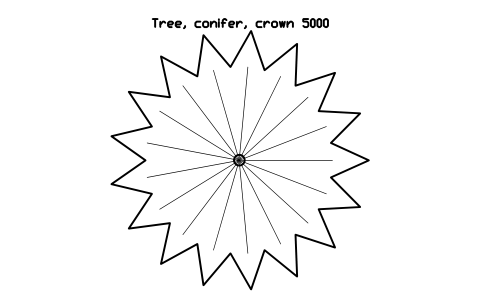

  • Preview of the Tree, conifer, crown 5000 symbol, block LAN_TREE_CONIFER_5000

    Tree, conifer, crown 5000

    LAN_TREE_CONIFER_5000

    Attributes

    TAGDESIGNATIONBOTANICAL_NAMECOMMON_NAMESIZEHEIGHTQTYREMARKSDESC

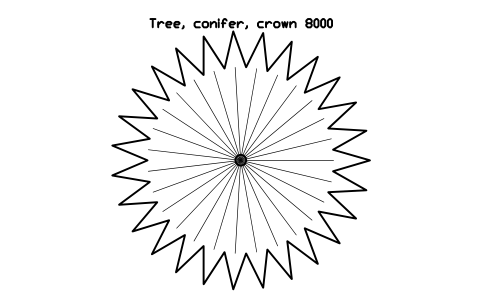

  • Preview of the Tree, conifer, crown 8000 symbol, block LAN_TREE_CONIFER_8000

    Tree, conifer, crown 8000

    LAN_TREE_CONIFER_8000

    Attributes

    TAGDESIGNATIONBOTANICAL_NAMECOMMON_NAMESIZEHEIGHTQTYREMARKSDESC

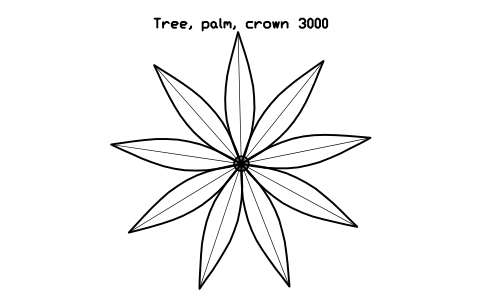

  • Preview of the Tree, palm, crown 3000 symbol, block LAN_TREE_PALM_3000

    Tree, palm, crown 3000

    LAN_TREE_PALM_3000

    Attributes

    TAGDESIGNATIONBOTANICAL_NAMECOMMON_NAMESIZEHEIGHTQTYREMARKSDESC

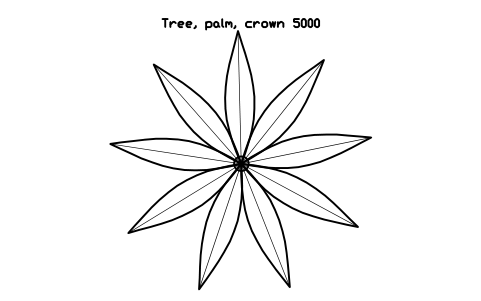

  • Preview of the Tree, palm, crown 5000 symbol, block LAN_TREE_PALM_5000

    Tree, palm, crown 5000

    LAN_TREE_PALM_5000

    Attributes

    TAGDESIGNATIONBOTANICAL_NAMECOMMON_NAMESIZEHEIGHTQTYREMARKSDESC

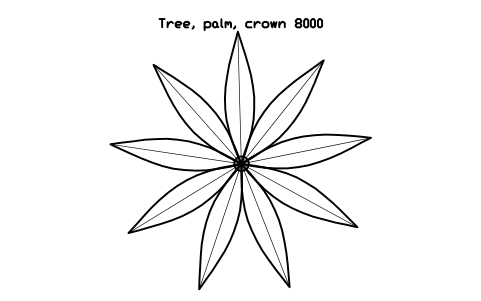

  • Preview of the Tree, palm, crown 8000 symbol, block LAN_TREE_PALM_8000

    Tree, palm, crown 8000

    LAN_TREE_PALM_8000

    Attributes

    TAGDESIGNATIONBOTANICAL_NAMECOMMON_NAMESIZEHEIGHTQTYREMARKSDESC

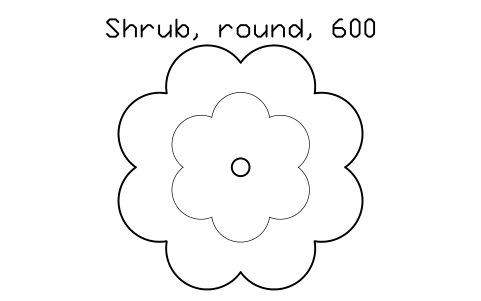

  • Preview of the Shrub, round, 600 symbol, block LAN_SHRUB_600

    Shrub, round, 600

    LAN_SHRUB_600

    Attributes

    TAGDESIGNATIONBOTANICAL_NAMECOMMON_NAMESIZEHEIGHTQTYREMARKSDESC

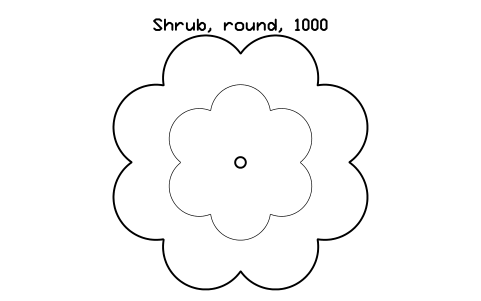

  • Preview of the Shrub, round, 1000 symbol, block LAN_SHRUB_1000

    Shrub, round, 1000

    LAN_SHRUB_1000

    Attributes

    TAGDESIGNATIONBOTANICAL_NAMECOMMON_NAMESIZEHEIGHTQTYREMARKSDESC

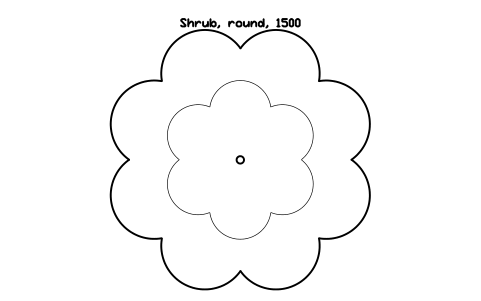

  • Preview of the Shrub, round, 1500 symbol, block LAN_SHRUB_1500

    Shrub, round, 1500

    LAN_SHRUB_1500

    Attributes

    TAGDESIGNATIONBOTANICAL_NAMECOMMON_NAMESIZEHEIGHTQTYREMARKSDESC

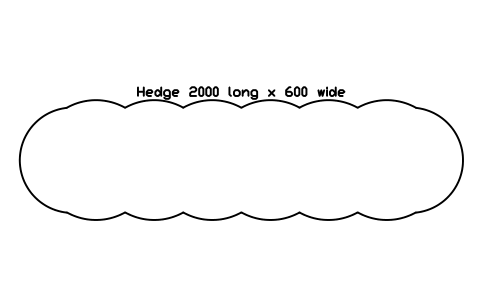

  • Preview of the Hedge 2000 long x 600 wide symbol, block LAN_HEDGE_2000

    Hedge 2000 long x 600 wide

    LAN_HEDGE_2000

    Attributes

    TAGDESIGNATIONBOTANICAL_NAMECOMMON_NAMESIZEHEIGHTQTYREMARKSDESC

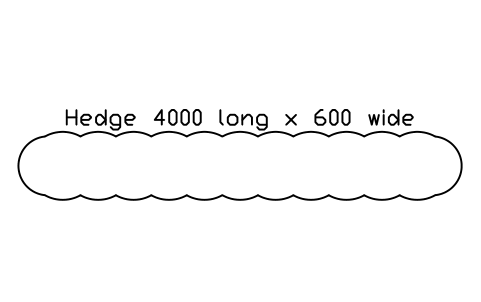

  • Preview of the Hedge 4000 long x 600 wide symbol, block LAN_HEDGE_4000

    Hedge 4000 long x 600 wide

    LAN_HEDGE_4000

    Attributes

    TAGDESIGNATIONBOTANICAL_NAMECOMMON_NAMESIZEHEIGHTQTYREMARKSDESC

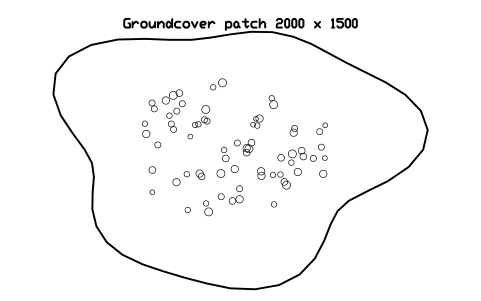

  • Preview of the Groundcover patch 2000 x 1500 symbol, block LAN_GROUNDCOVER_2000X1500

    Groundcover patch 2000 x 1500

    LAN_GROUNDCOVER_2000X1500

    Attributes

    TAGDESIGNATIONBOTANICAL_NAMECOMMON_NAMESIZEHEIGHTQTYREMARKSDESC

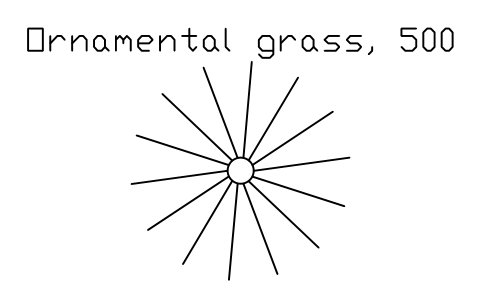

  • Preview of the Ornamental grass, 500 symbol, block LAN_GRASS_TUFT_500

    Ornamental grass, 500

    LAN_GRASS_TUFT_500

    Attributes

    TAGDESIGNATIONBOTANICAL_NAMECOMMON_NAMESIZEHEIGHTQTYREMARKSDESC

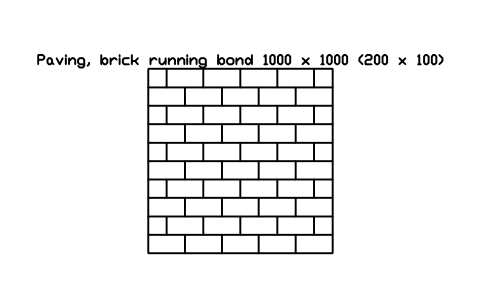

  • Preview of the Paving, brick running bond 1000 x 1000 (200 x 100) symbol, block LAN_PAVING_BRICK_1000

    Paving, brick running bond 1000 x 1000 (200 x 100)

    LAN_PAVING_BRICK_1000

    Attributes

    TAGDESIGNATIONSIZEMATERIALFINISHMANUFACTURERQTYREMARKSDESC

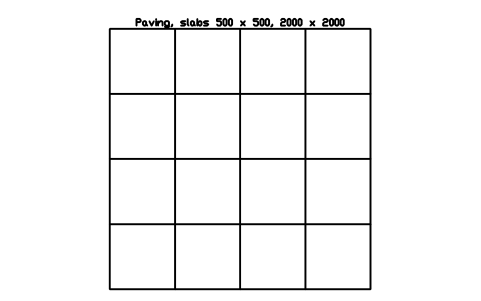

  • Preview of the Paving, slabs 500 x 500, 2000 x 2000 symbol, block LAN_PAVING_SLABS_2000

    Paving, slabs 500 x 500, 2000 x 2000

    LAN_PAVING_SLABS_2000

    Attributes

    TAGDESIGNATIONSIZEMATERIALFINISHMANUFACTURERQTYREMARKSDESC

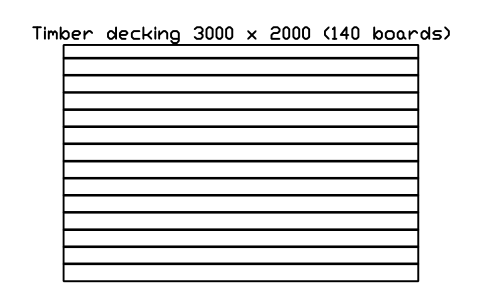

  • Preview of the Timber decking 3000 x 2000 (140 boards) symbol, block LAN_DECKING_3000X2000

    Timber decking 3000 x 2000 (140 boards)

    LAN_DECKING_3000X2000

    Attributes

    TAGDESIGNATIONSIZEMATERIALFINISHMANUFACTURERQTYREMARKSDESC

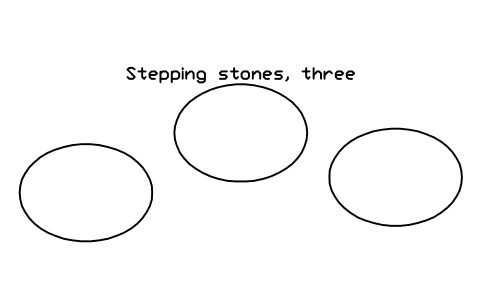

  • Preview of the Stepping stones, three symbol, block LAN_STEPPING_STONES

    Stepping stones, three

    LAN_STEPPING_STONES

    Attributes

    TAGDESIGNATIONSIZEMATERIALFINISHMANUFACTURERQTYREMARKSDESC

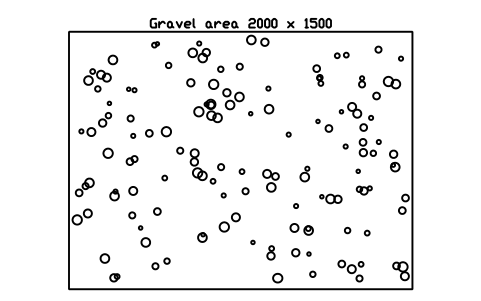

  • Preview of the Gravel area 2000 x 1500 symbol, block LAN_GRAVEL_2000X1500

    Gravel area 2000 x 1500

    LAN_GRAVEL_2000X1500

    Attributes

    TAGDESIGNATIONSIZEMATERIALFINISHMANUFACTURERQTYREMARKSDESC

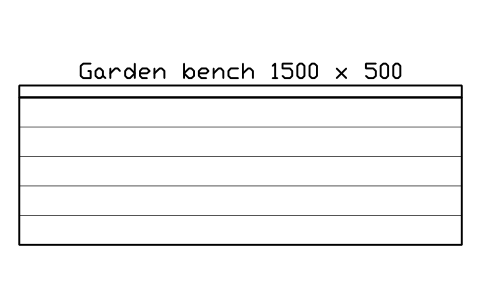

  • Preview of the Garden bench 1500 x 500 symbol, block LAN_BENCH_1500

    Garden bench 1500 x 500

    LAN_BENCH_1500

    Attributes

    TAGDESIGNATIONSIZEMATERIALFINISHMANUFACTURERQTYREMARKSDESC

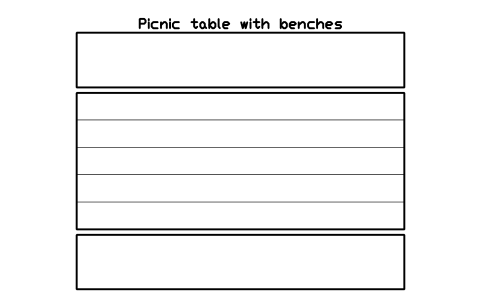

  • Preview of the Picnic table with benches symbol, block LAN_PICNIC_TABLE

    Picnic table with benches

    LAN_PICNIC_TABLE

    Attributes

    TAGDESIGNATIONSIZEMATERIALFINISHMANUFACTURERQTYREMARKSDESC

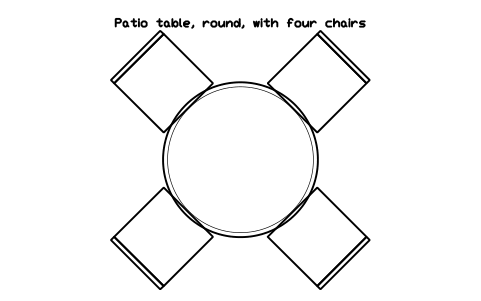

  • Preview of the Patio table, round, with four chairs symbol, block LAN_PATIO_SET_4

    Patio table, round, with four chairs

    LAN_PATIO_SET_4

    Attributes

    TAGDESIGNATIONSIZEMATERIALFINISHMANUFACTURERQTYREMARKSDESC

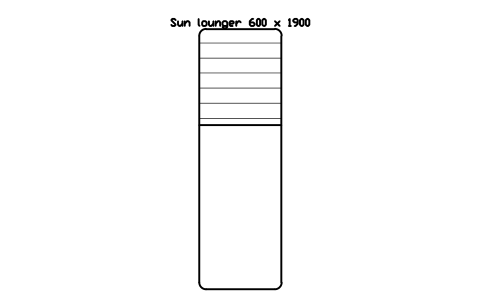

  • Preview of the Sun lounger 600 x 1900 symbol, block LAN_SUN_LOUNGER

    Sun lounger 600 x 1900

    LAN_SUN_LOUNGER

    Attributes

    TAGDESIGNATIONSIZEMATERIALFINISHMANUFACTURERQTYREMARKSDESC

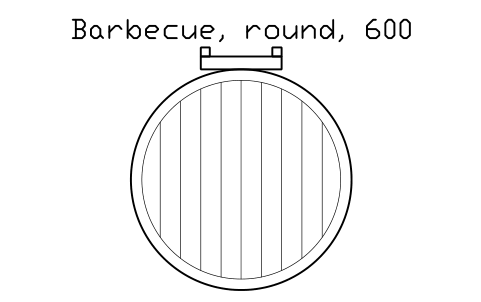

  • Preview of the Barbecue, round, 600 symbol, block LAN_BBQ_600

    Barbecue, round, 600

    LAN_BBQ_600

    Attributes

    TAGDESIGNATIONSIZEMATERIALFINISHMANUFACTURERQTYREMARKSDESC

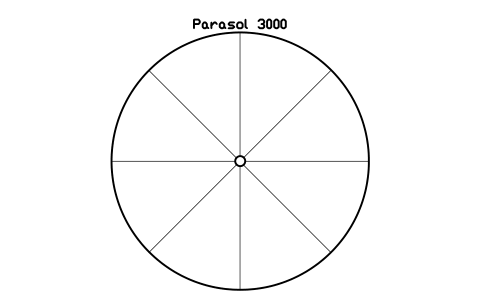

  • Preview of the Parasol 3000 symbol, block LAN_PARASOL_3000

    Parasol 3000

    LAN_PARASOL_3000

    Attributes

    TAGDESIGNATIONSIZEMATERIALFINISHMANUFACTURERQTYREMARKSDESC

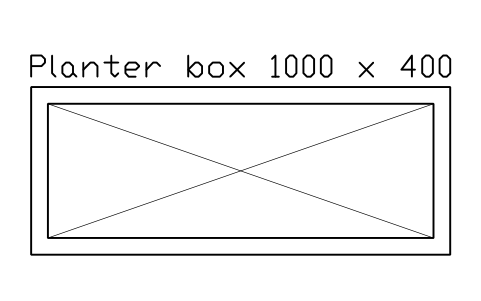

  • Preview of the Planter box 1000 x 400 symbol, block LAN_PLANTER_1000X400

    Planter box 1000 x 400

    LAN_PLANTER_1000X400

    Attributes

    TAGDESIGNATIONSIZEMATERIALFINISHMANUFACTURERQTYREMARKSDESC

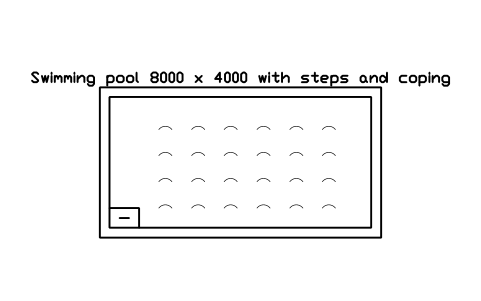

  • Preview of the Swimming pool 8000 x 4000 with steps and coping symbol, block LAN_POOL_8000X4000

    Swimming pool 8000 x 4000 with steps and coping

    LAN_POOL_8000X4000

    Attributes

    TAGDESIGNATIONSIZEMATERIALFINISHMANUFACTURERQTYREMARKSDESC

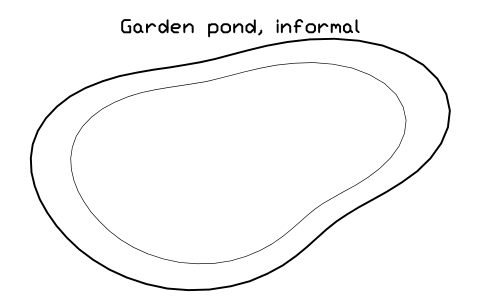

  • Preview of the Garden pond, informal symbol, block LAN_POND

    Garden pond, informal

    LAN_POND

    Attributes

    TAGDESIGNATIONSIZEMATERIALFINISHMANUFACTURERQTYREMARKSDESC

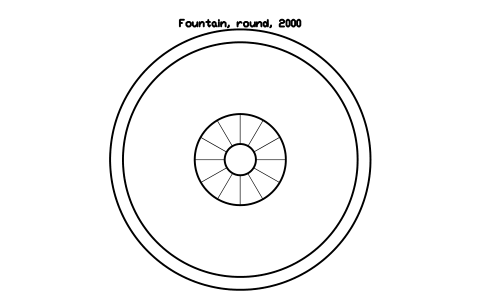

  • Preview of the Fountain, round, 2000 symbol, block LAN_FOUNTAIN_2000

    Fountain, round, 2000

    LAN_FOUNTAIN_2000

    Attributes

    TAGDESIGNATIONSIZEMATERIALFINISHMANUFACTURERQTYREMARKSDESC

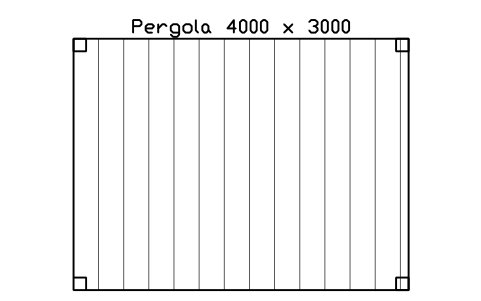

  • Preview of the Pergola 4000 x 3000 symbol, block LAN_PERGOLA_4000X3000

    Pergola 4000 x 3000

    LAN_PERGOLA_4000X3000

    Attributes

    TAGDESIGNATIONSIZEMATERIALFINISHMANUFACTURERQTYREMARKSDESC

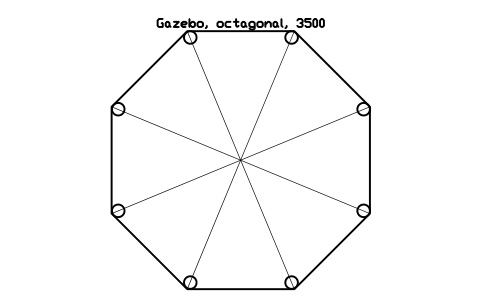

  • Preview of the Gazebo, octagonal, 3500 symbol, block LAN_GAZEBO_3500

    Gazebo, octagonal, 3500

    LAN_GAZEBO_3500

    Attributes

    TAGDESIGNATIONSIZEMATERIALFINISHMANUFACTURERQTYREMARKSDESC

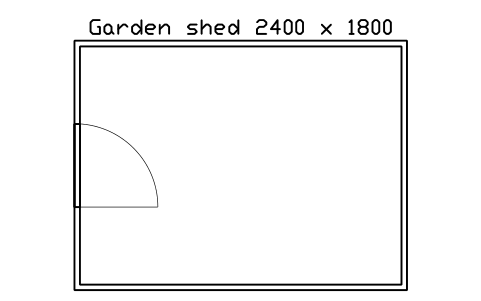

  • Preview of the Garden shed 2400 x 1800 symbol, block LAN_SHED_2400X1800

    Garden shed 2400 x 1800

    LAN_SHED_2400X1800

    Attributes

    TAGDESIGNATIONSIZEMATERIALFINISHMANUFACTURERQTYREMARKSDESC

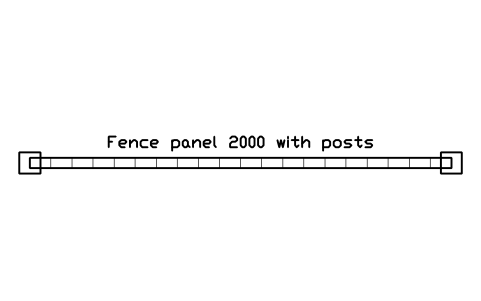

  • Preview of the Fence panel 2000 with posts symbol, block LAN_FENCE_2000

    Fence panel 2000 with posts

    LAN_FENCE_2000

    Attributes

    TAGDESIGNATIONSIZEMATERIALFINISHMANUFACTURERQTYREMARKSDESC

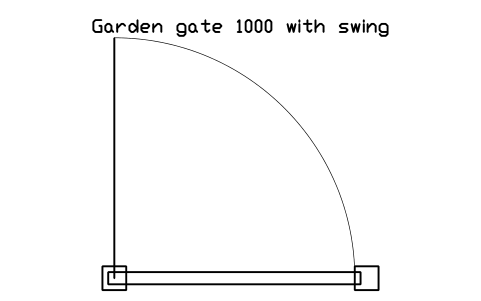

  • Preview of the Garden gate 1000 with swing symbol, block LAN_GATE_1000

    Garden gate 1000 with swing

    LAN_GATE_1000

    Attributes

    TAGDESIGNATIONSIZEMATERIALFINISHMANUFACTURERQTYREMARKSDESC

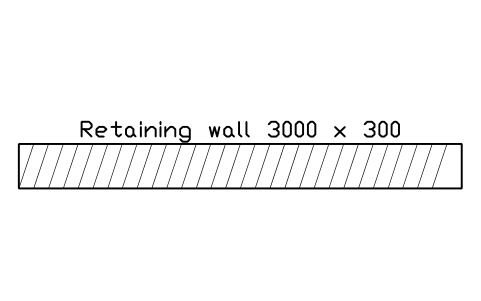

  • Preview of the Retaining wall 3000 x 300 symbol, block LAN_RETAINING_WALL_3000

    Retaining wall 3000 x 300

    LAN_RETAINING_WALL_3000

    Attributes

    TAGDESIGNATIONSIZEMATERIALFINISHMANUFACTURERQTYREMARKSDESC

Attributes for parts lists

Every block has a visible DESIGNATION attribute (for example Tree, deciduous, crown 5000) above the symbol. Plants have the attributes BOTANICAL_NAME, COMMON_NAME, SIZE, HEIGHT, QTY and REMARKS; the other blocks have SIZE, MATERIAL, FINISH, MANUFACTURER, QTY and REMARKS.

Export the blocks of all drawings to Excel with BlockSync to count the plants by species and size, build a planting schedule with a pivot table, and write corrections back in one run, with preview and backup.

How to use the library

  1. Unzip the file and open the DWG. Copy the symbols you need into your plan, or drag the blocks in from DesignCenter (ADCENTER).
  2. The blocks are drawn at real size in millimetres, 1 drawing unit = 1 mm, with the origin at the centre. Plants are drawn at their crown or spread diameter: insert them at scale 1, or scale the block to the size of your planting plan.
  3. Trees have a trunk circle and thin branch lines, conifers a star-shaped crown, palms radial fronds, and shrubs and hedges a scalloped edge, so the plant types can be told apart on a plan.
  4. Paving, decking and gravel blocks are patterns of a typical size: copy or array them over the area, or draw the area boundary and keep the block as a sample of the pattern.

About the symbols

Plant symbols show the crown or spread at the size in their name; set the real size in the SIZE and HEIGHT attributes. Outdoor furniture, the pool, the pond and the structures have typical sizes that you adjust to your design.

The symbols are our own drawings in a common plan style, not a national drawing standard. Landscape drawing conventions differ between offices and countries, so match the line weights and colours to your own template.

Frequently asked questions

Can I change the size of a tree?
Yes. Scale the block, or edit it with BEDIT, and update the SIZE attribute. The blocks are drawn at three crown sizes, 3, 5 and 8 m, which cover most plans.
Can I use the symbols on a plan in metres?
Yes. The blocks are drawn in millimetres, so in a drawing in metres insert them with a scale factor of 0.001.
Can I use the symbols in commercial projects?
Yes. They are free to use and modify in your own projects, including commercial ones. They are provided as is, without warranty.
How do I get a planting schedule from my drawings?
Export the plant blocks of all drawings to Excel with BlockSync: one row per block with the botanical name, size and quantity. Total them with a pivot table to get a planting schedule.
Can I change a symbol or add attributes?
Yes. Open the DWG, edit a block with BEDIT to change it or add attributes, and save. To update drawings that already contain the block, run ATTSYNC or replace the block. Make a backup first: attribute values can be lost if ATTSYNC is used carelessly.
