Free swimming pool, spa and outdoor living blocks for AutoCAD (DWG): pools, loungers, outdoor kitchens

About the sizes

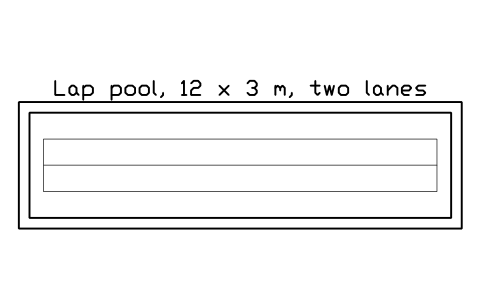

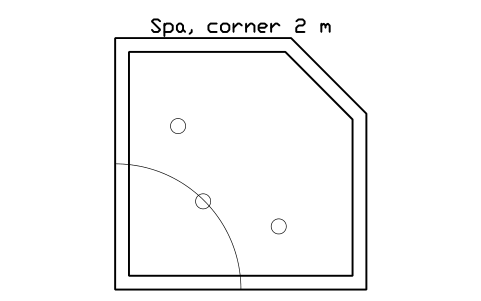

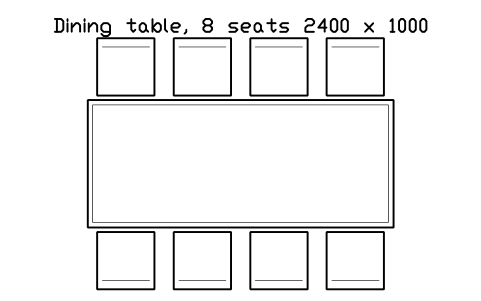

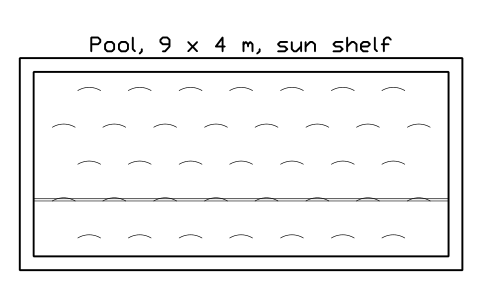

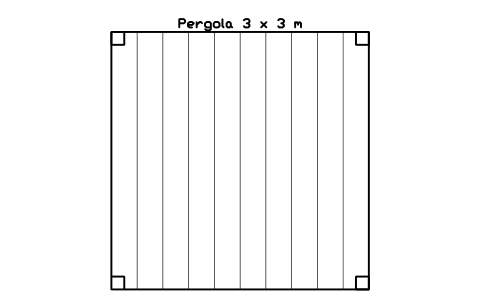

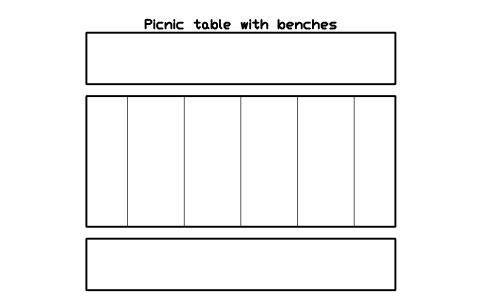

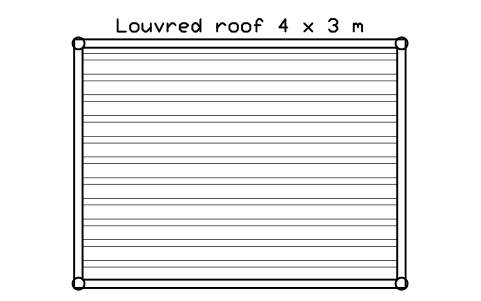

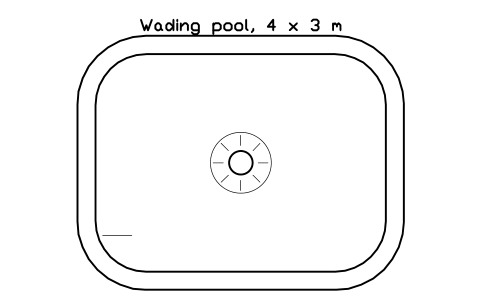

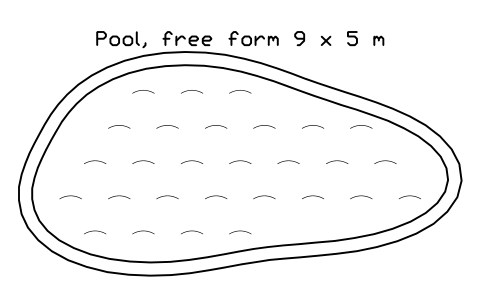

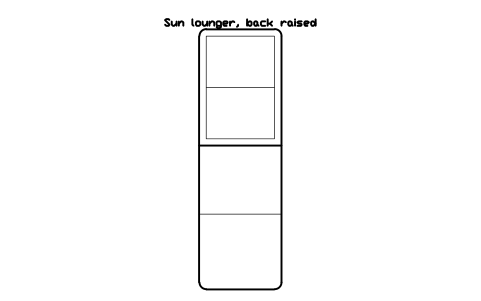

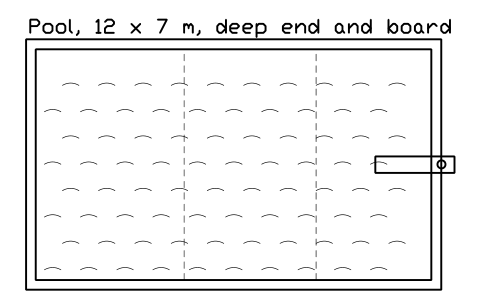

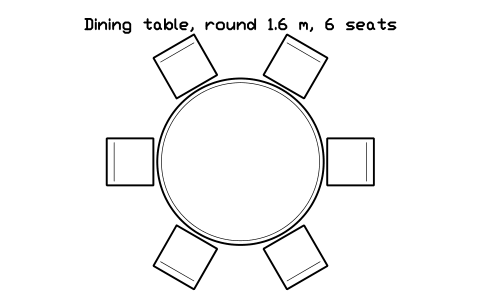

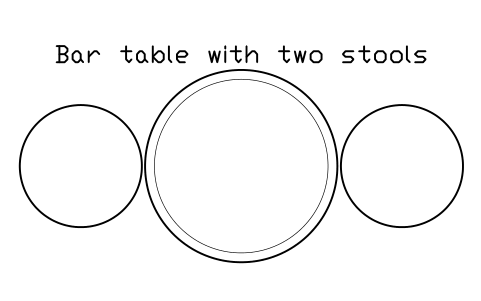

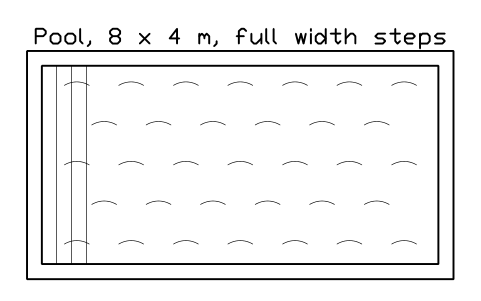

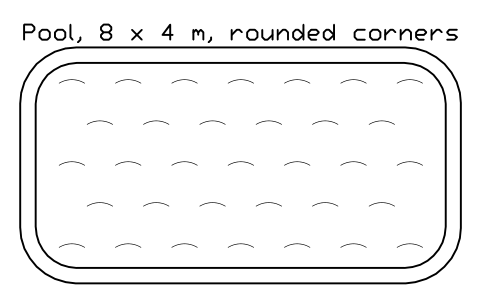

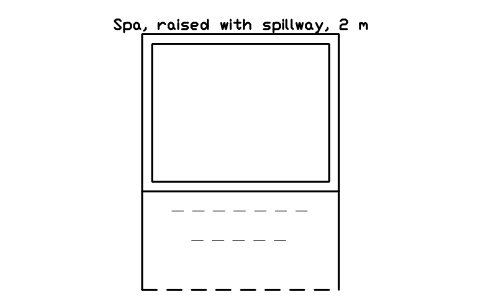

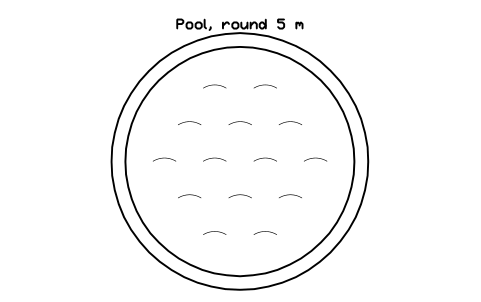

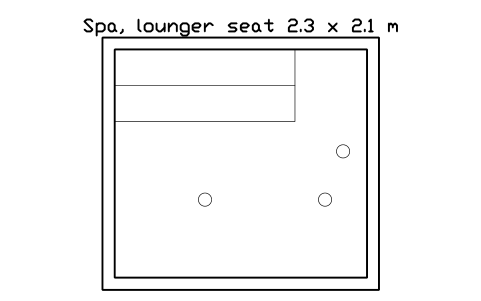

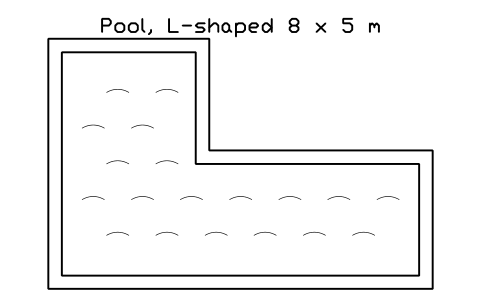

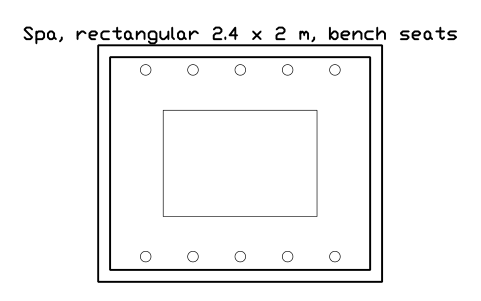

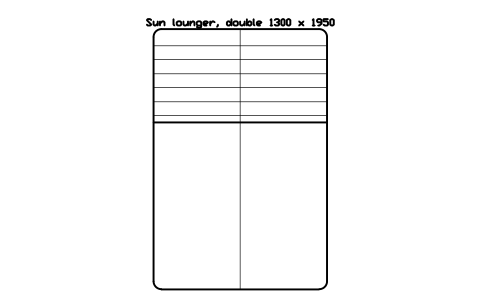

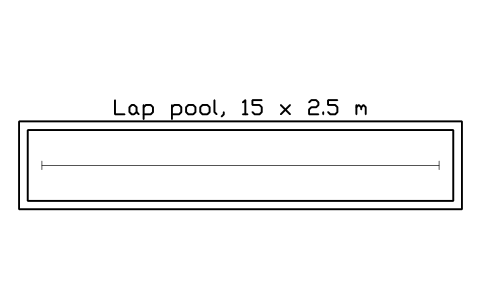

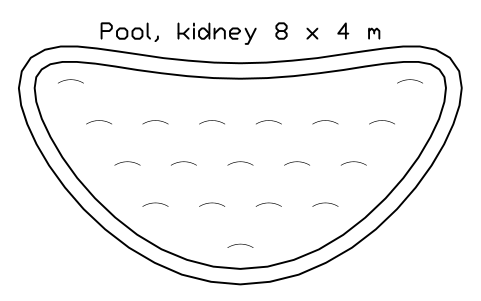

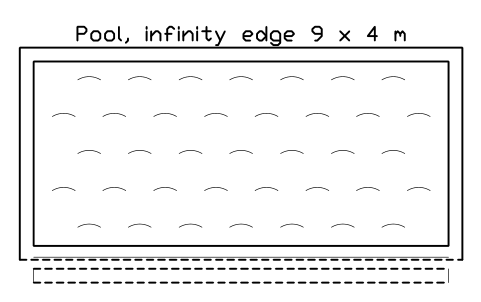

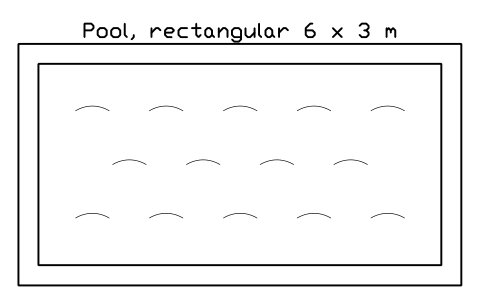

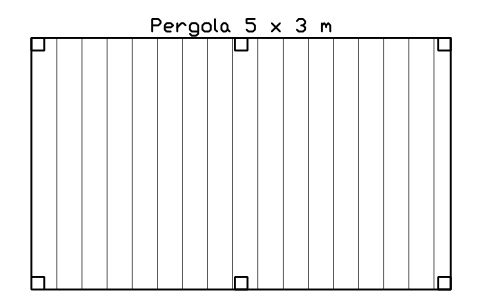

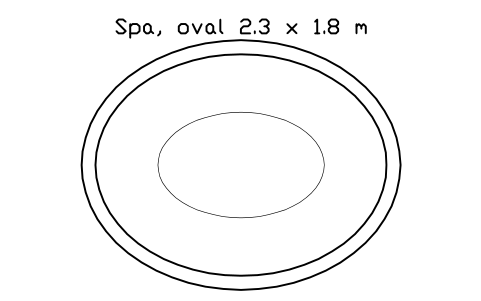

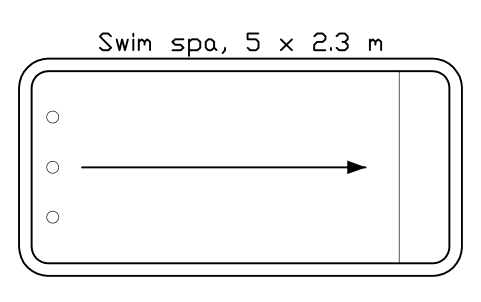

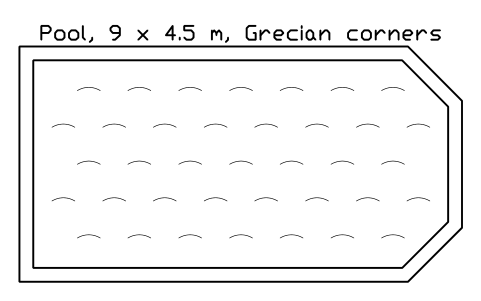

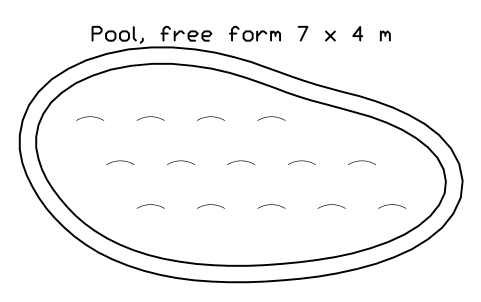

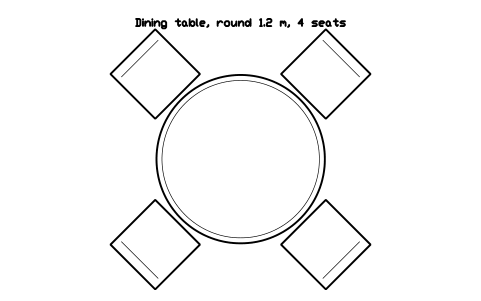

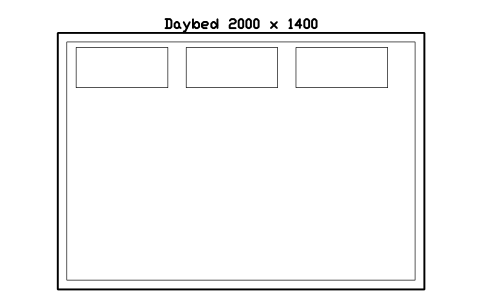

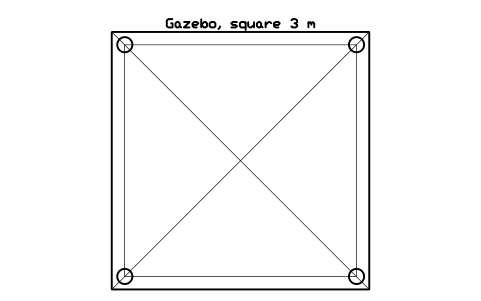

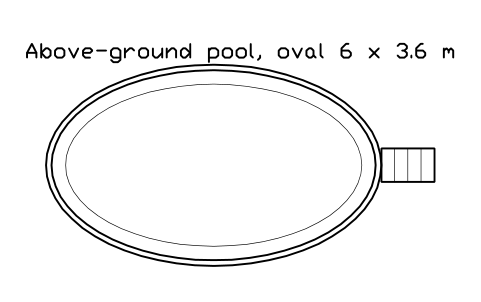

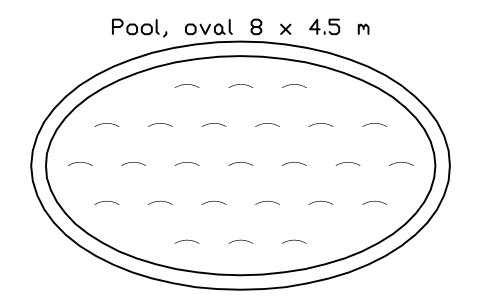

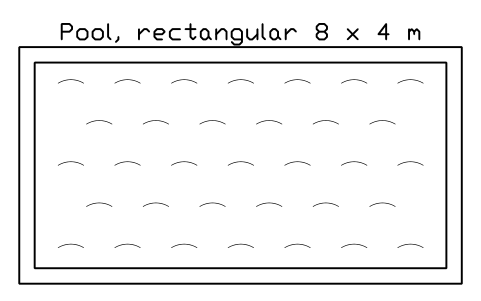

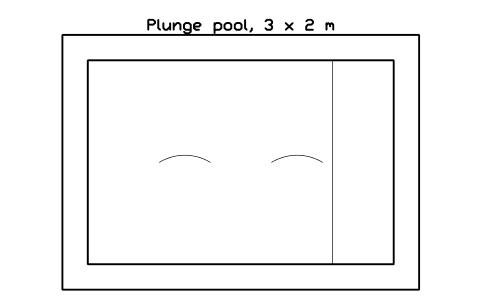

Pools, spas and garden furniture are not standardised, so the blocks use the sizes that builders and suppliers commonly list: pools 6 x 3 to 12 x 6 m, lap pools 2.5 or 3 m wide, spas about 2 to 2.4 m, loungers 600 x 1900 mm, dining tables for 6 or 8, pergolas 3 x 3 and 5 x 3 m. Check the sizes against your supplier's data sheets before you order.

The blocks are our own drawings, not copies of any catalogue, and the library is not certified. They are meant to plan the arrangement and count items, not to prove that a design meets pool safety, barrier, electrical, drainage or planning rules. Take fence heights, gate latches, setbacks, electrical zones around water and drainage from the rules that apply to your site.

Frequently asked questions

Which items are in the library?

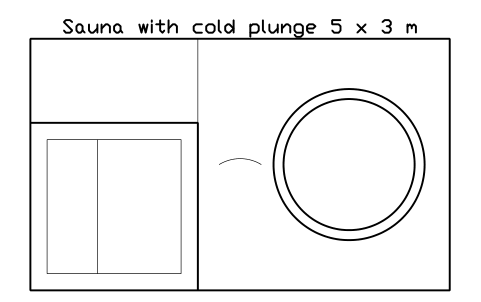

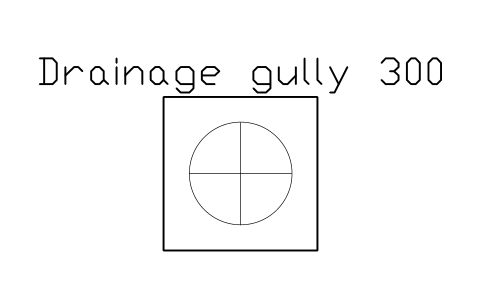

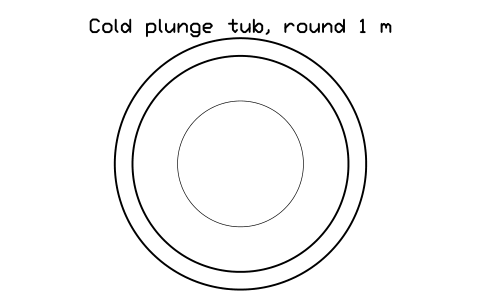

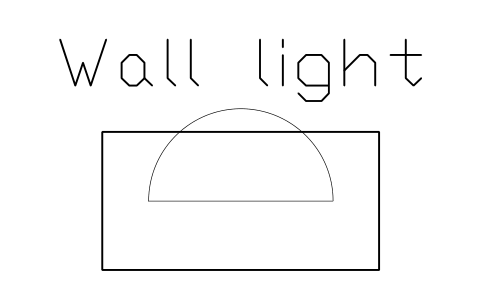

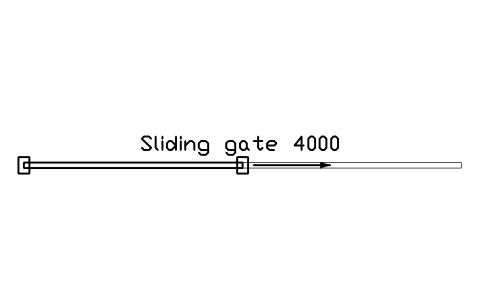

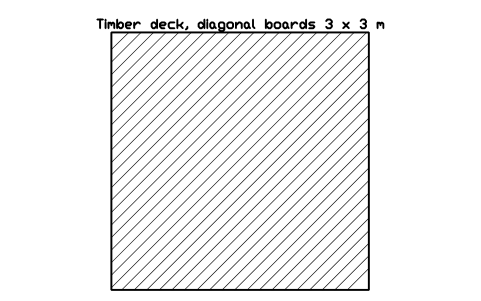

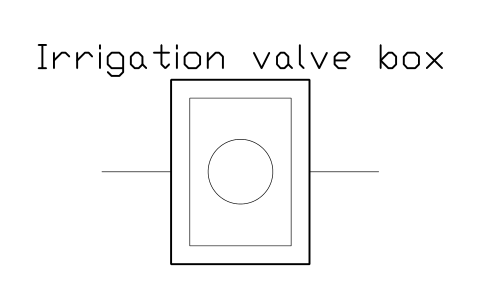

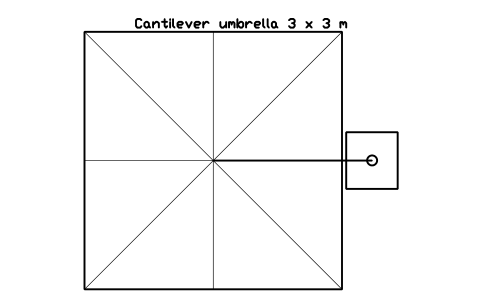

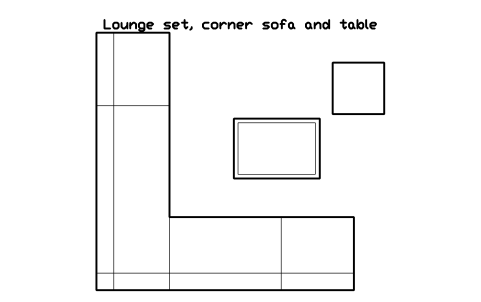

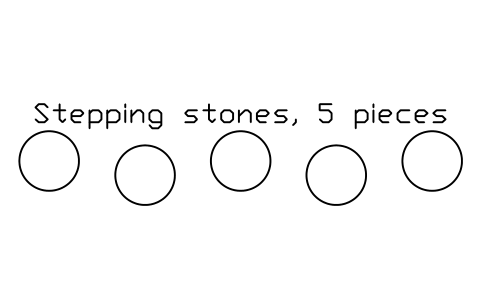

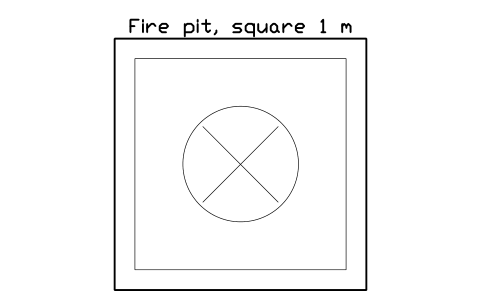

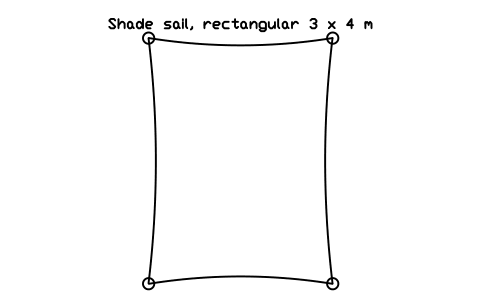

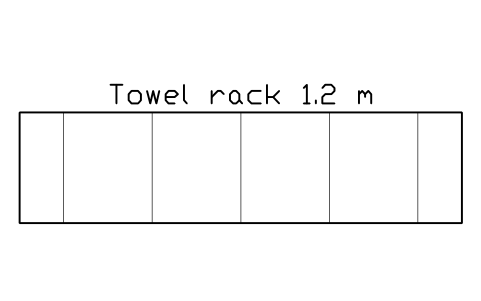

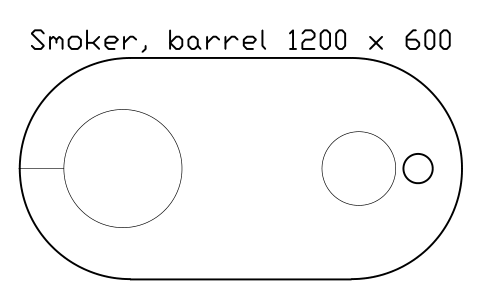

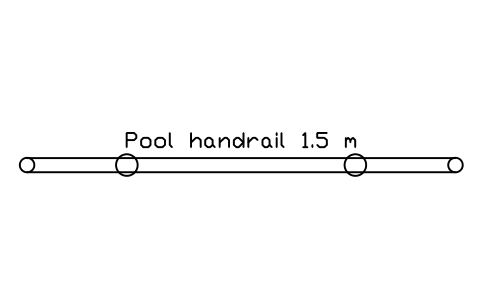

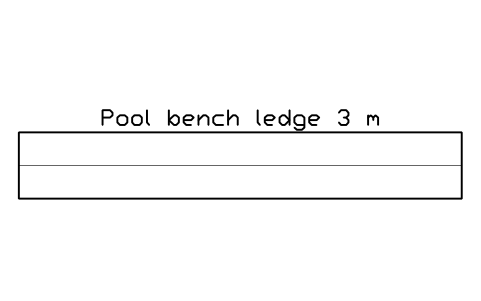

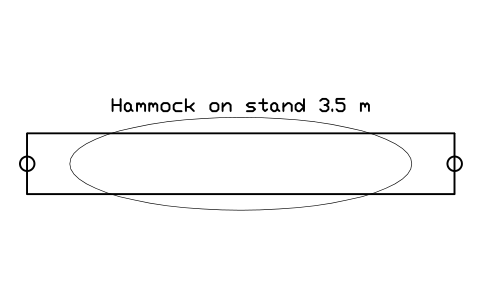

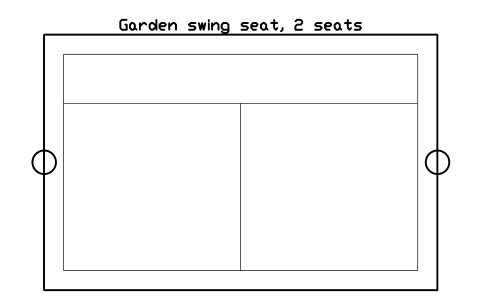

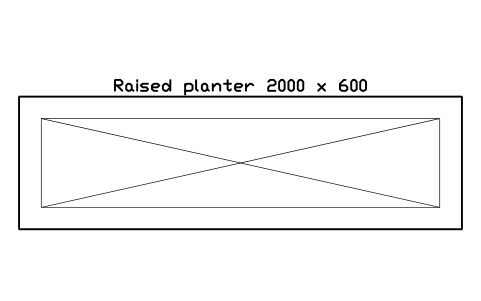

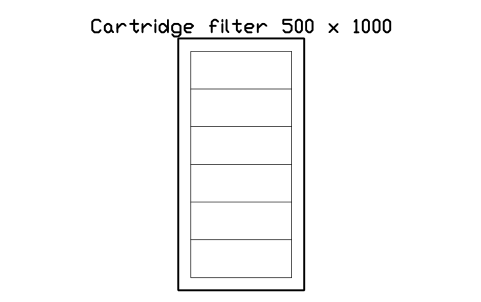

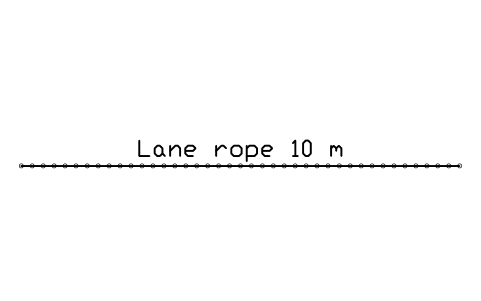

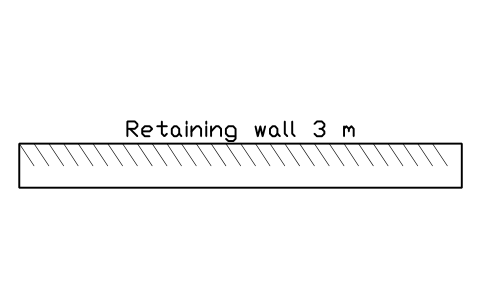

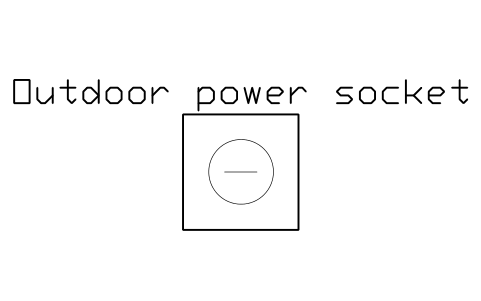

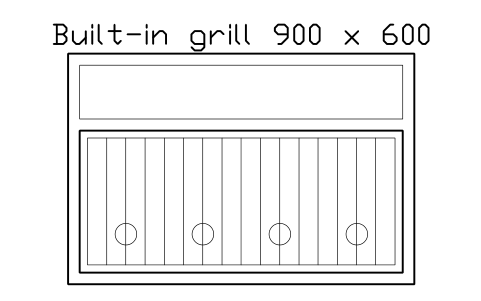

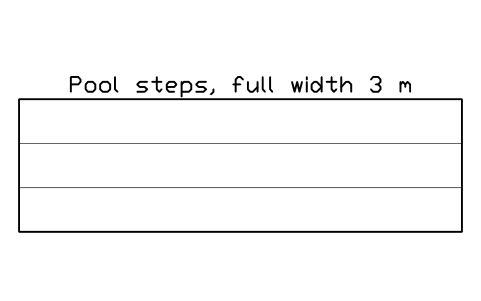

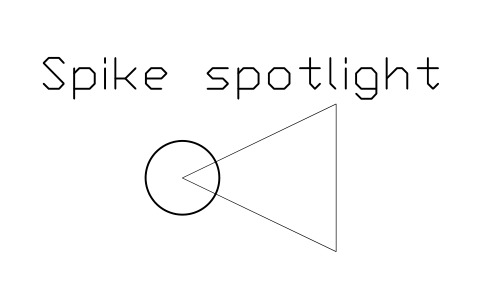

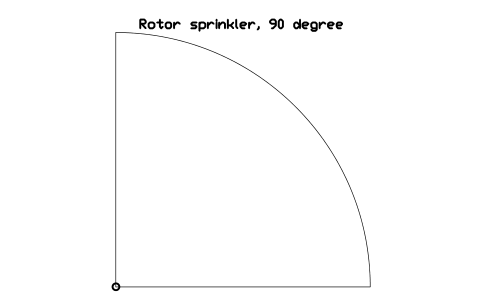

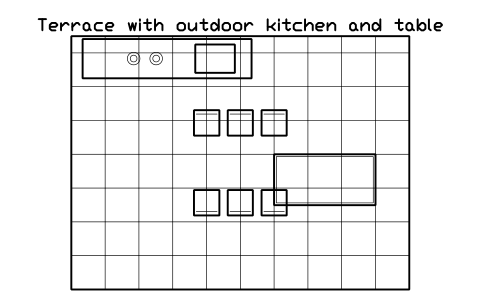

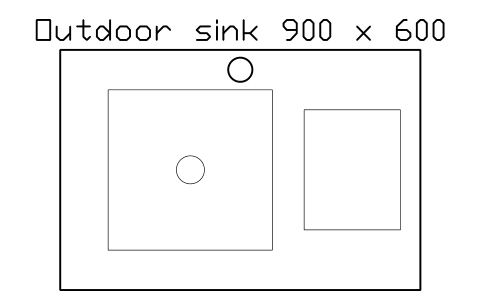

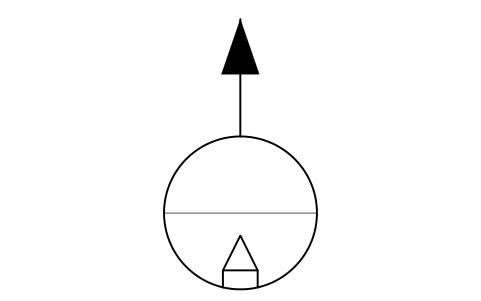

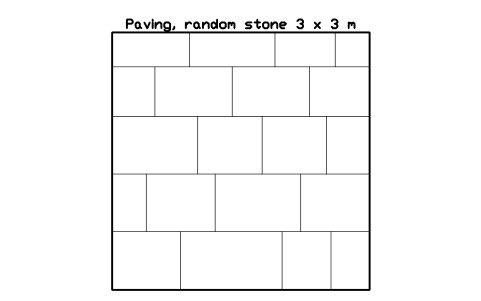

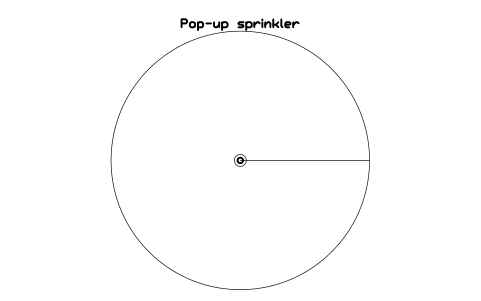

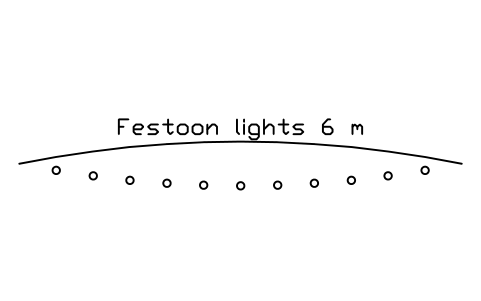

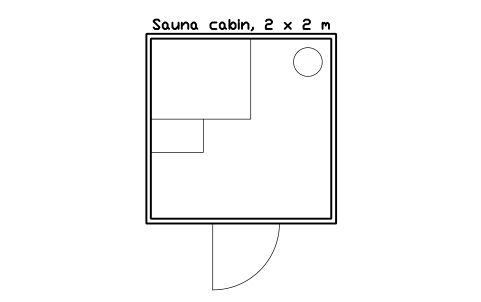

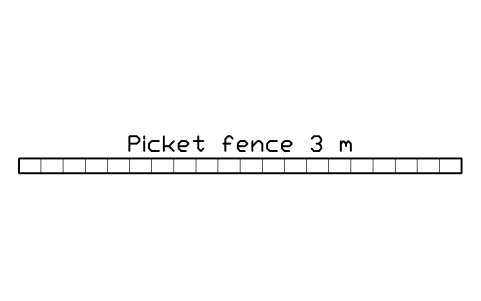

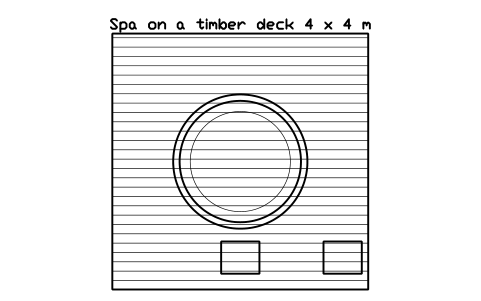

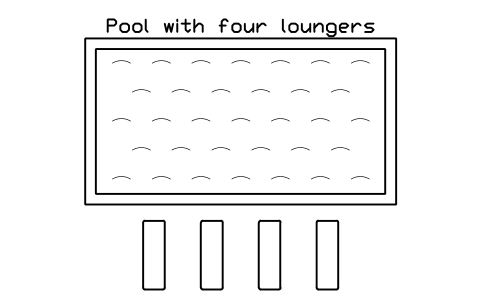

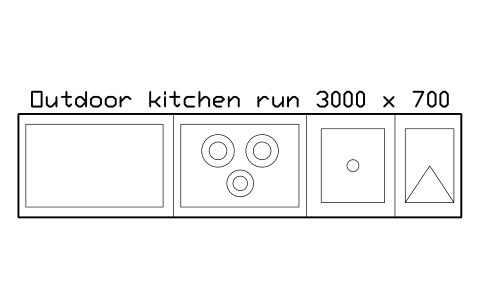

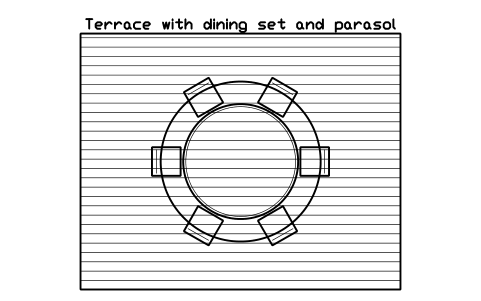

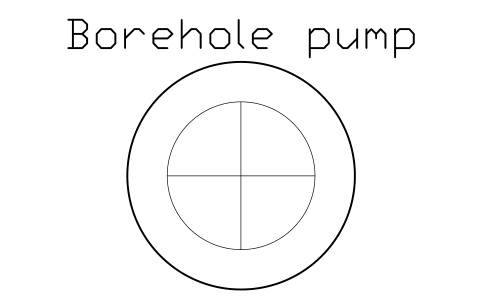

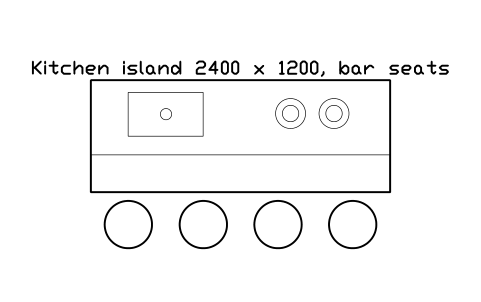

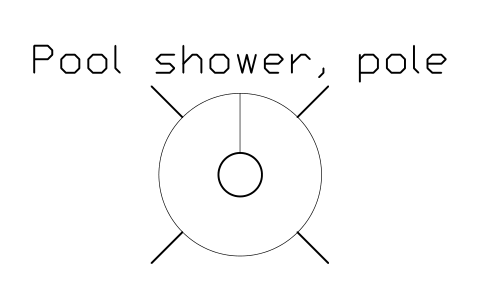

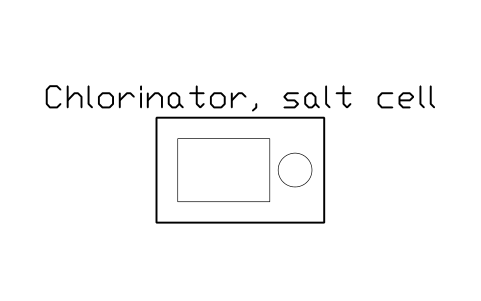

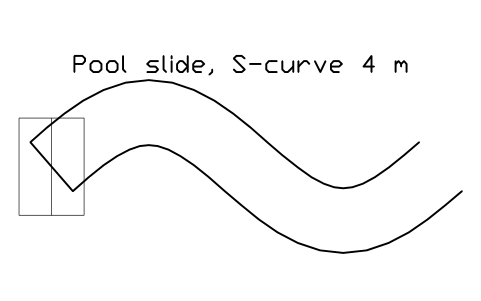

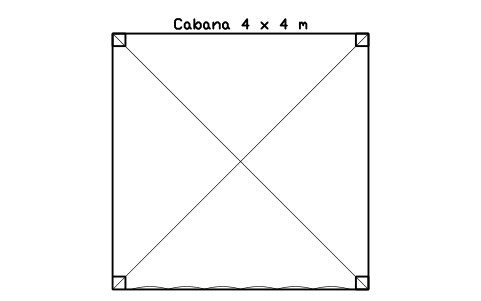

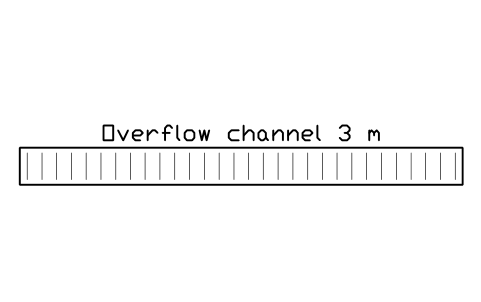

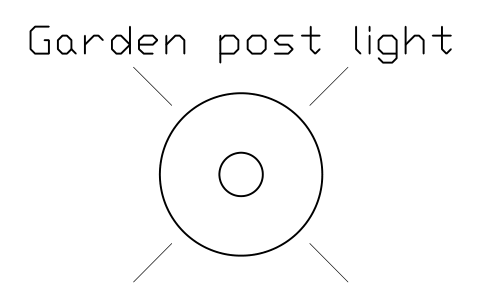

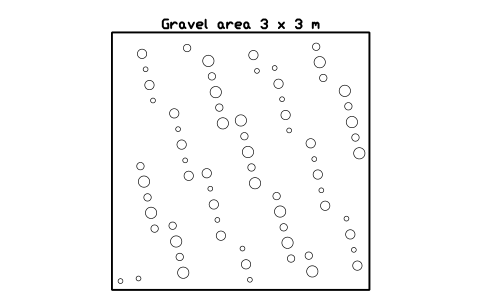

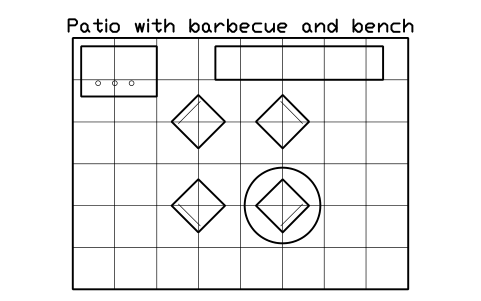

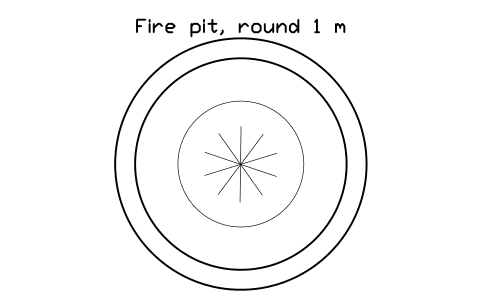

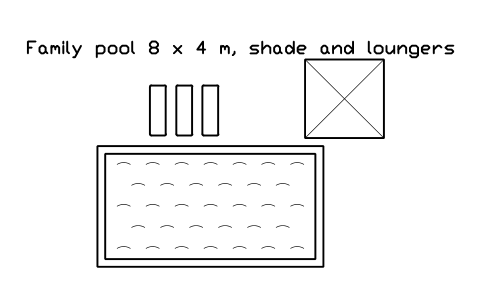

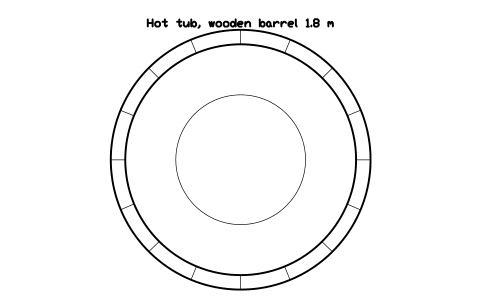

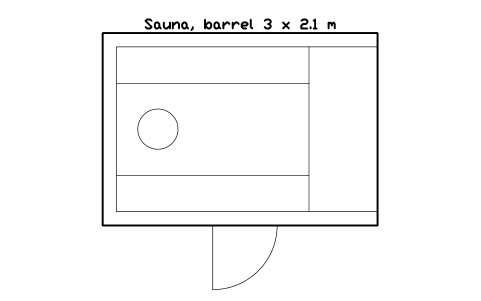

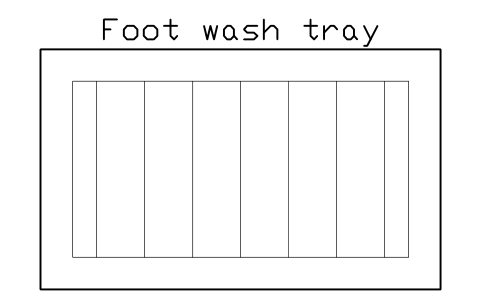

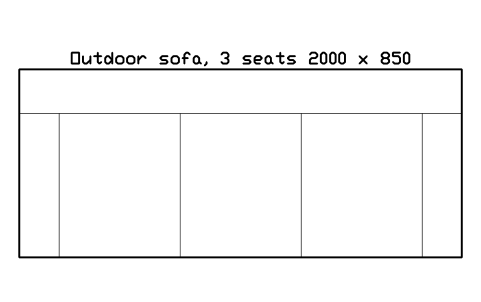

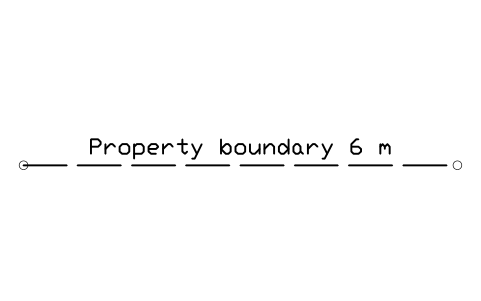

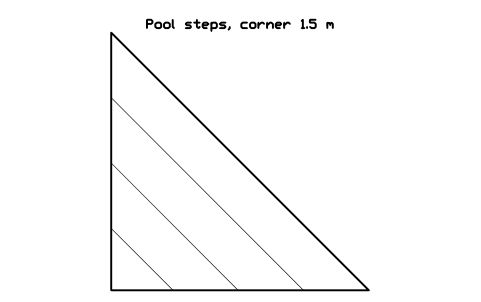

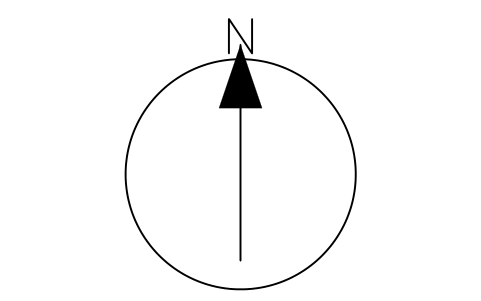

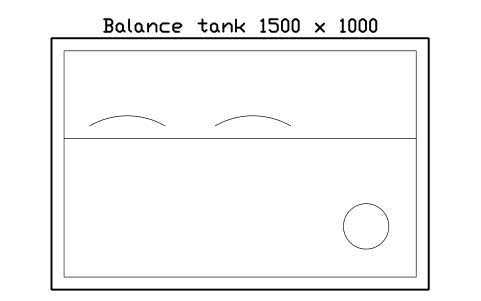

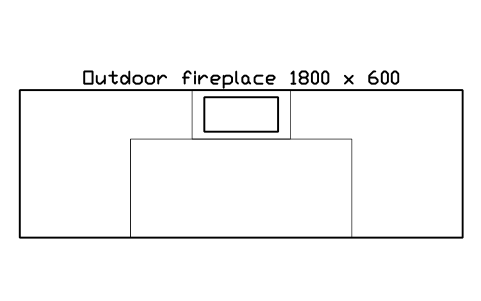

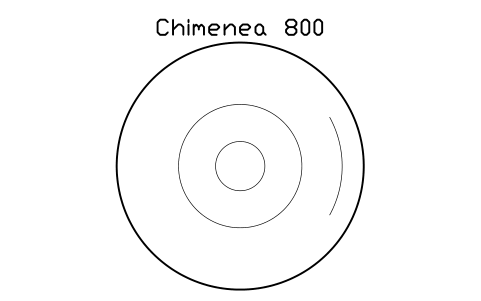

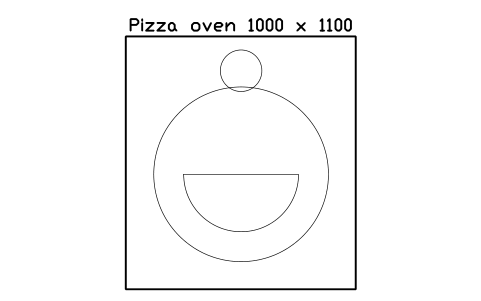

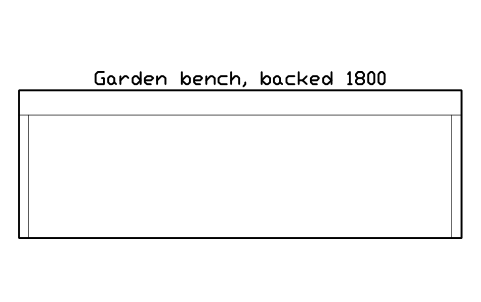

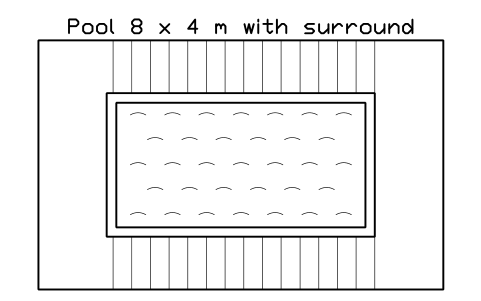

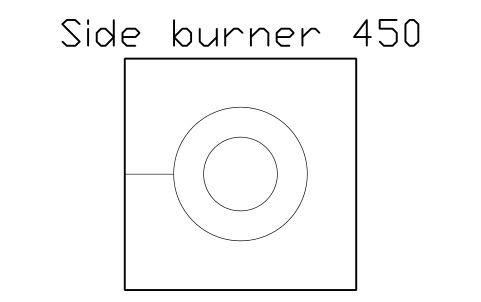

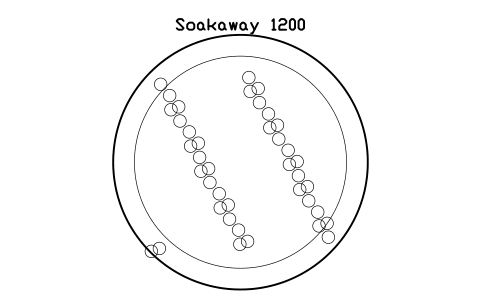

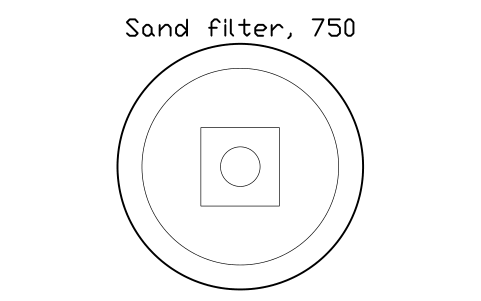

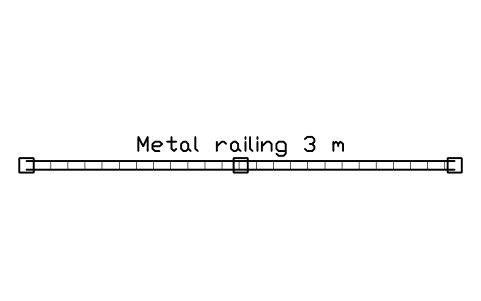

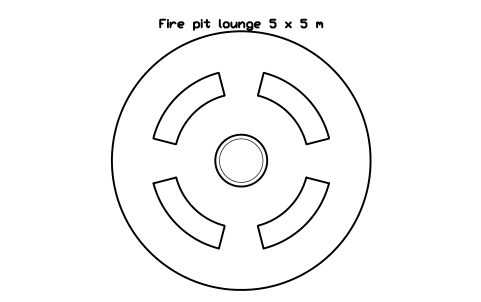

Swimming pools, spas, hot tubs and saunas, pool edge and equipment, loungers and shade, outdoor dining and lounge, outdoor kitchen and fire, decks and paving, fences and gates, garden services and lighting, ten pool and terrace layouts and 7 markers. Trees and plants are in the landscape plan library, indoor-style furniture in the home library, walls, doors and windows in the architectural plan library.

Can I get a schedule of pool equipment from the drawing?

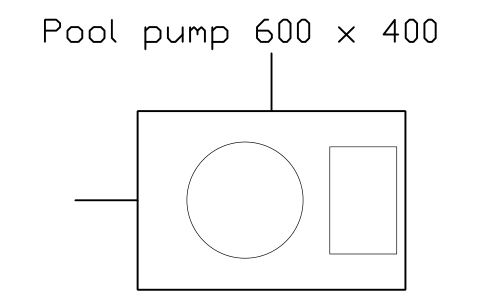

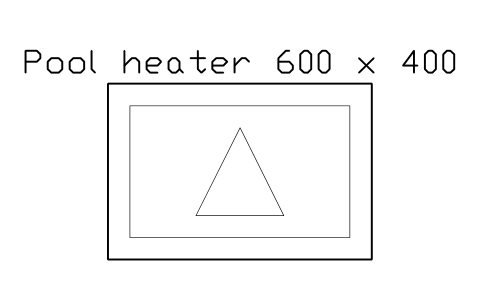

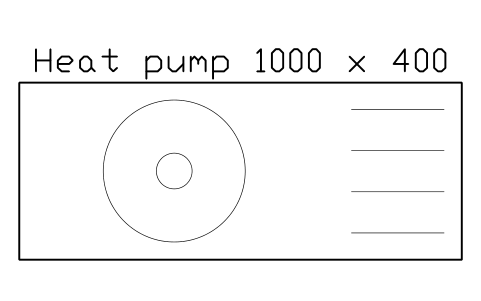

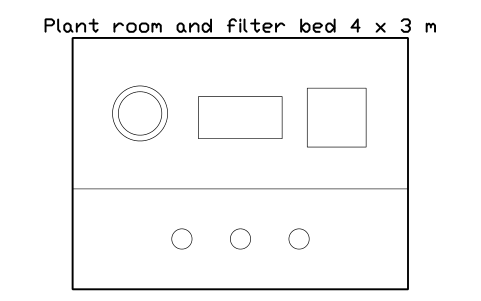

Yes. Pools carry DEPTH_MM and VOLUME_M3 and equipment carries POWER_KW, FLOW_M3H and SUPPLY as invisible attributes. Fill them in the attribute editor, export the blocks with BlockSync and add up the electrical load of the plant room. The sample values are placeholders, not manufacturer data.

Can I use the symbols in commercial projects?

Yes. They are free to use and modify in your own projects, including commercial ones. They are provided as is, without warranty.

Does it show that a pool design meets safety rules?

No. The blocks help you draw and count; they do not check anything. Barrier height, self-closing gates, depth marks, electrical zones around the water and drainage depend on your site and your local rules, so take them from the rules that apply.

Can I change a symbol or add attributes?

Yes. Open the DWG, edit a block with BEDIT to change it or add attributes, and save. To update drawings that already contain the block, run ATTSYNC or replace the block. Make a backup first: attribute values can be lost if ATTSYNC is used carelessly.

Where do I find a ready-made set of these symbols for AutoCAD?

AutoCAD itself ships only a small set of sample blocks, so a full symbol set has to come from a library. Download the ZIP on this page and open the DWG: every symbol is a block. Insert one with INSERT (Blocks palette, Libraries tab, then pick the DWG) or drag it from DesignCenter (ADCENTER). You can also download a single symbol on its own.
