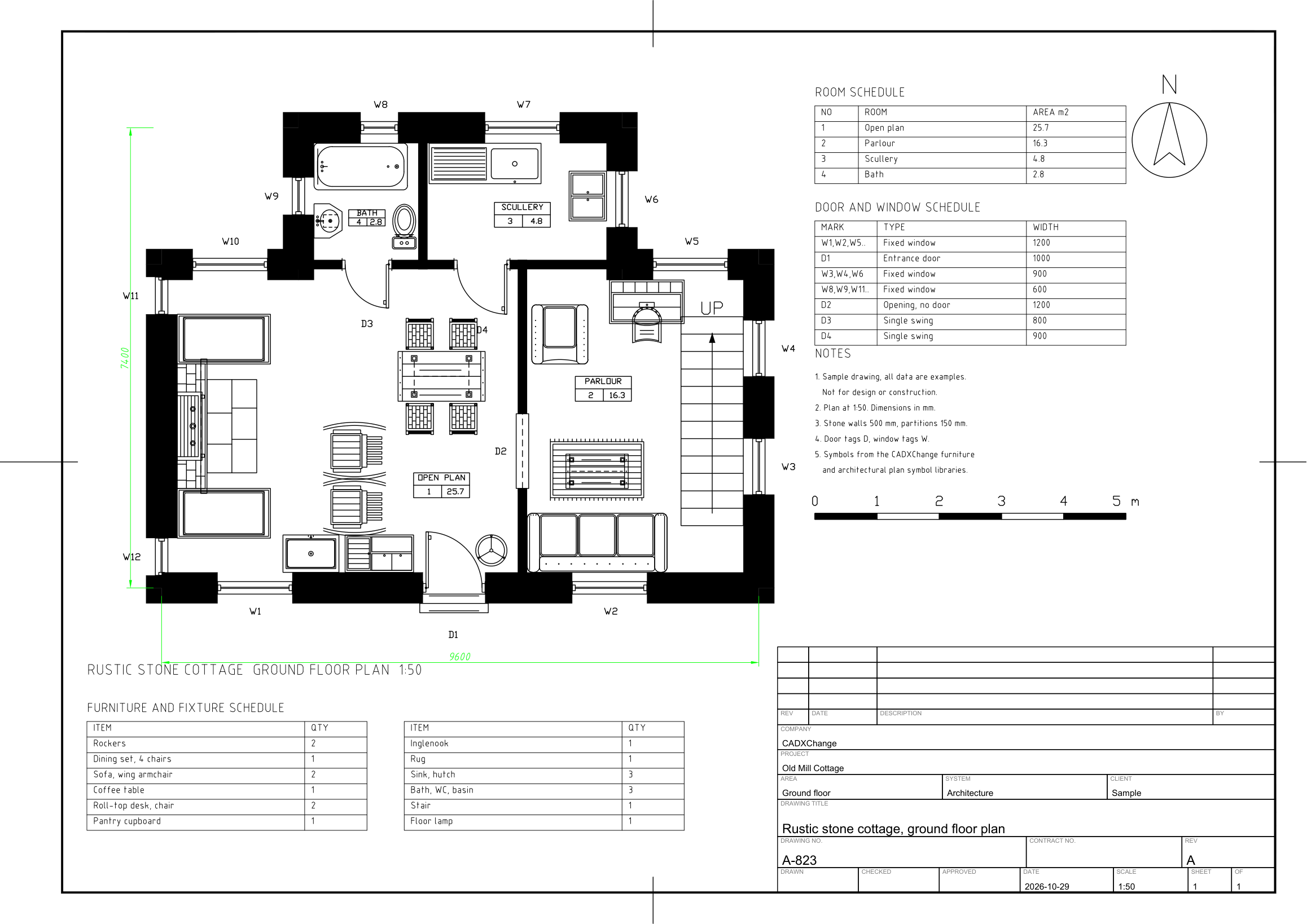

Stone cottage with inglenook
T-shaped cottage with thick walls, an inglenook, a parlour, a kitchen and dining room, a scullery in a rear outshut, a bath and a stair.
Free to use and modify in your own projects, including commercial ones. The ZIP holds the sample drawing, a template, a plot style table and a README; no add-in needed. The data in the drawing is made up, so it is not for design or construction. Provided as is, without warranty. Library terms (CXL-1.0)
This sample uses these resources
The symbols are blocks from our own libraries, with their attributes filled in. The sheet and its title block come from our ISO A3 title block template. Download them to draw your own diagrams.
Title block templates (ISO A3 and more)Sheet frame and title block of this sample
Architectural plan symbols14 of its symbols are used here
Rustic and farmhouse furniture plan symbols14 of its symbols are used here
Door and window symbols7 of its symbols are used here
Drawing marks, site, services and accessibility symbols3 of its symbols are used here
Bathroom and kitchen symbols3 of its symbols are used here
Stairs, walls, roofs and structure symbols1 of its symbols are used here
Layers, styles and sheet setup are the same for every drawing in the series; they are described on the series page: Rustic home floor plans
Title block fields
The attributes of the title block. Double-click it to fill them in, or write them for a whole set of drawings with BlockSync.
| Attribute | Field on the sheet | Value in this sample |
|---|---|---|
| COMPANY | COMPANY | CADXChange |
| PROJECT | PROJECT | Old Mill Cottage |
| AREA | AREA | Ground floor |
| SYSTEM | SYSTEM | Architecture |
| CLIENT | CLIENT | Sample |
| TITLE | DRAWING TITLE | Rustic stone cottage, ground floor plan |
| DRAWING_NO | DRAWING NO. | A-823 |
| CONTRACT_NO | CONTRACT NO. | — |
| REV | REV | A |
| DRAWN | DRAWN | — |
| CHECKED | CHECKED | — |
| APPROVED | APPROVED | — |
| DATE | DATE | 2026-10-29 |
| SCALE | SCALE | 1:50 |
| SHEET | SHEET | 1 |
| SHEET_OF | OF | 1 |
Revision table: R1 to R4, each with REV, DATE, DESCRIPTION and BY (16 attributes, empty in this sample).
Blocks in the drawing
The equipment list of the drawing: block name, symbol and how many times it is placed. BlockSync exports the same list from your own drawings.
| Symbol | Block | Placed |
|---|---|---|
 Window, fixed, 1200 | ARCH_WINDOW_FIXED | 5 |
 Window, fixed, 600 | ARCH_WINDOW_FIXED_600 | 4 |
 Room tag | ARCH_TAG_ROOM | 4 |
 Window, fixed, 900 | ARCH_WINDOW_FIXED_900 | 3 |
 Rocking chair, spindle back | RUS_ROCKER | 2 |
 Door, entrance with step, 1000 | ARCH_DOOR_ENTRANCE | 1 |
 Opening, no door, 1200 | ARCH_DOOR_OPENING_1200 | 1 |
 Door, single swing, 800 | ARCH_DOOR_SINGLE_800 | 1 |
 Door, single swing, 900 | ARCH_DOOR_SINGLE | 1 |
 Inglenook fireplace with benches, 3600 | RUS_INGLENOOK | 1 |
 Dining table 1400, four chairs | RUS_DINING_SET_4 | 1 |
 Farmhouse sink, apron front, 900 x 600 | RUS_SINK_FARM_900 | 1 |
 Hoosier cabinet, 1100 x 600 | RUS_HOOSIER | 1 |
 Floor lamp, tripod, 500 | RUS_LAMP_FLOOR | 1 |
 Stair, straight flight | ARCH_STAIR_STRAIGHT | 1 |
 Rag rug, 1500 x 900 | RUS_RUG_RAG_1500 | 1 |
 Sofa, slipcovered, three seater | RUS_SOFA_3 | 1 |
 Coffee table, plank top, 1000 x 550 | RUS_COFFEE_1000 | 1 |
 Wing chair, 900 | RUS_ARMCHAIR_WING | 1 |
 Roll-top desk, 1200 x 700 | RUS_DESK_ROLLTOP | 1 |
 Dining chair, Windsor spindle back | RUS_CHAIR_WINDSOR | 1 |
 Bathtub, rectangular, 1500 | ARCH_BATH_1500 | 1 |
 WC, floor-mounted, close-coupled | ARCH_WC | 1 |
 Wash basin, pedestal, 550 | ARCH_BASIN_PEDESTAL | 1 |
 Sink with drainboard, 1800 x 650 | RUS_SINK_DRAINBOARD | 1 |
 Pantry cabinet, tall, 800 x 600 | RUS_PANTRY_TALL | 1 |
 North arrow | ARCH_NORTH_ARROW | 1 |
 Scale bar, 5 m | ARCH_SCALE_BAR | 1 |
Equipment schedule
One row per placed symbol, read from the attributes of the blocks in the drawing: what is shown on the sheet, and the schedule attributes that were filled in but are not shown. BlockSync exports these same attributes from your own drawings.
| Tag | Description | Shown on the sheet | Filled in, not shown |
|---|---|---|---|
| W1 | Window, fixed, 1200ARCH_WINDOW_FIXED | WIDTH_MM = 1200HEIGHT_MM = 1350GLAZING = Double, low-E | |
| D1 | Door, entrance with step, 1000ARCH_DOOR_ENTRANCE | WIDTH_MM = 1000HEIGHT_MM = 2100DOOR_TYPE = Entrance doorMATERIAL = TimberFIRE_RATING = NoneFINISH = PaintedHARDWARE_SET = HS-1 | |
| W2 | Window, fixed, 1200ARCH_WINDOW_FIXED | WIDTH_MM = 1200HEIGHT_MM = 1350GLAZING = Double, low-E | |
| W3 | Window, fixed, 900ARCH_WINDOW_FIXED_900 | WIDTH_MM = 900HEIGHT_MM = 1350GLAZING = Double, low-E | |
| W4 | Window, fixed, 900ARCH_WINDOW_FIXED_900 | WIDTH_MM = 900HEIGHT_MM = 1350GLAZING = Double, low-E | |
| W5 | Window, fixed, 1200ARCH_WINDOW_FIXED | WIDTH_MM = 1200HEIGHT_MM = 1350GLAZING = Double, low-E | |
| W6 | Window, fixed, 900ARCH_WINDOW_FIXED_900 | WIDTH_MM = 900HEIGHT_MM = 1350GLAZING = Double, low-E | |
| W7 | Window, fixed, 1200ARCH_WINDOW_FIXED | WIDTH_MM = 1200HEIGHT_MM = 1350GLAZING = Double, low-E | |
| W8 | Window, fixed, 600ARCH_WINDOW_FIXED_600 | WIDTH_MM = 600HEIGHT_MM = 1350GLAZING = Double, low-E | |
| W9 | Window, fixed, 600ARCH_WINDOW_FIXED_600 | WIDTH_MM = 600HEIGHT_MM = 1350GLAZING = Double, low-E | |
| W10 | Window, fixed, 1200ARCH_WINDOW_FIXED | WIDTH_MM = 1200HEIGHT_MM = 1350GLAZING = Double, low-E | |
| W11 | Window, fixed, 600ARCH_WINDOW_FIXED_600 | WIDTH_MM = 600HEIGHT_MM = 1350GLAZING = Double, low-E | |
| W12 | Window, fixed, 600ARCH_WINDOW_FIXED_600 | WIDTH_MM = 600HEIGHT_MM = 1350GLAZING = Double, low-E | |
| D2 | Opening, no door, 1200ARCH_DOOR_OPENING_1200 | WIDTH_MM = 1200HEIGHT_MM = 2100DOOR_TYPE = Opening, no doorMATERIAL = TimberFIRE_RATING = NoneFINISH = PaintedHARDWARE_SET = HS-1 | |
| D3 | Door, single swing, 800ARCH_DOOR_SINGLE_800 | WIDTH_MM = 800HEIGHT_MM = 2100DOOR_TYPE = Single swingMATERIAL = TimberFIRE_RATING = NoneFINISH = PaintedHARDWARE_SET = HS-1 | |
| D4 | Door, single swing, 900ARCH_DOOR_SINGLE | WIDTH_MM = 900HEIGHT_MM = 2100DOOR_TYPE = Single swingMATERIAL = TimberFIRE_RATING = NoneFINISH = PaintedHARDWARE_SET = HS-1 |
Manufacturer, model and remarks are left empty on every block, ready for your data. The values are examples.
More drawings in this series

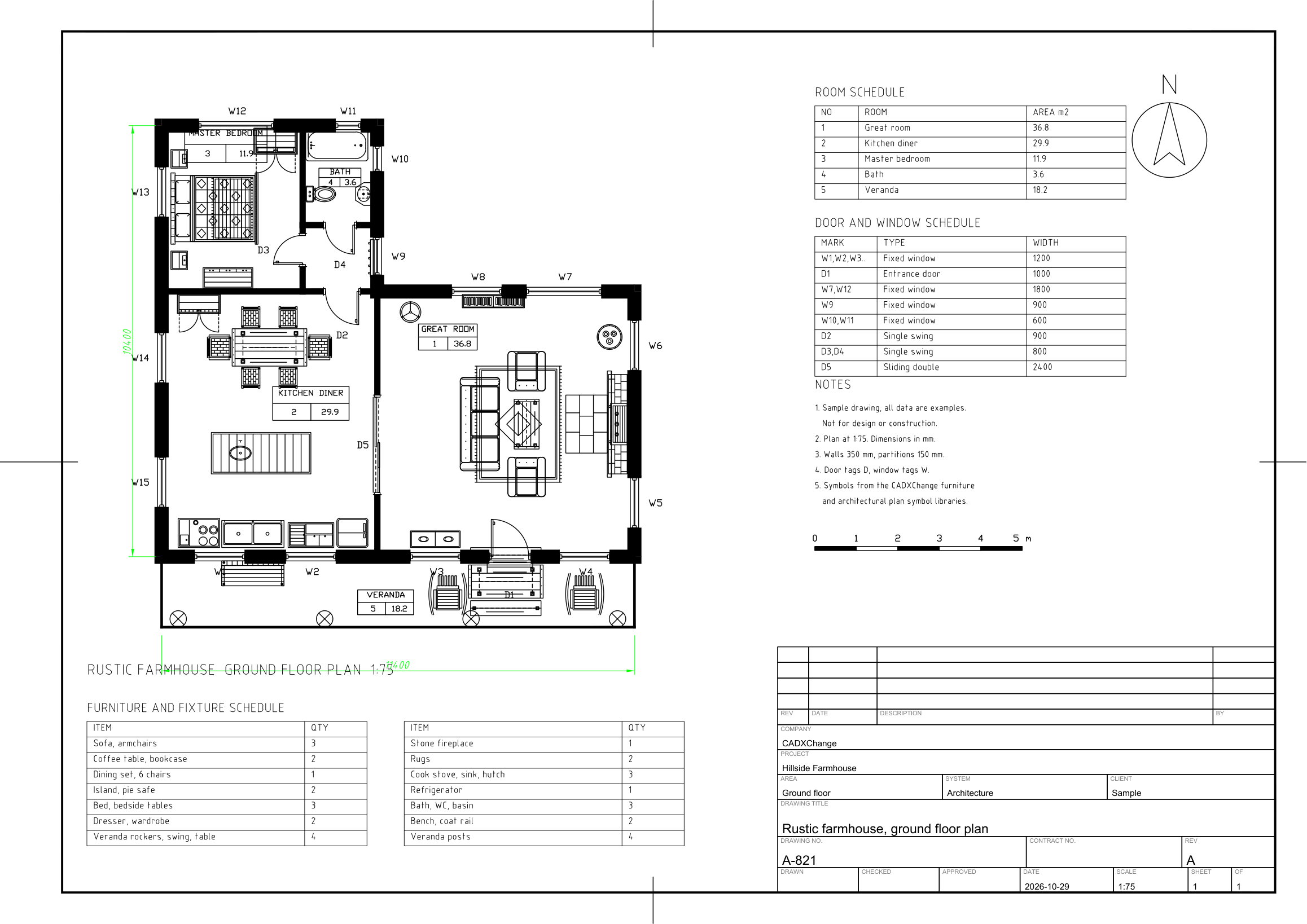

Rustic L-shaped farmhouse with verandaGround floor with a front veranda, a great room with a stove, a kitchen with a farmhouse table, a master bedroom, bath and study.
