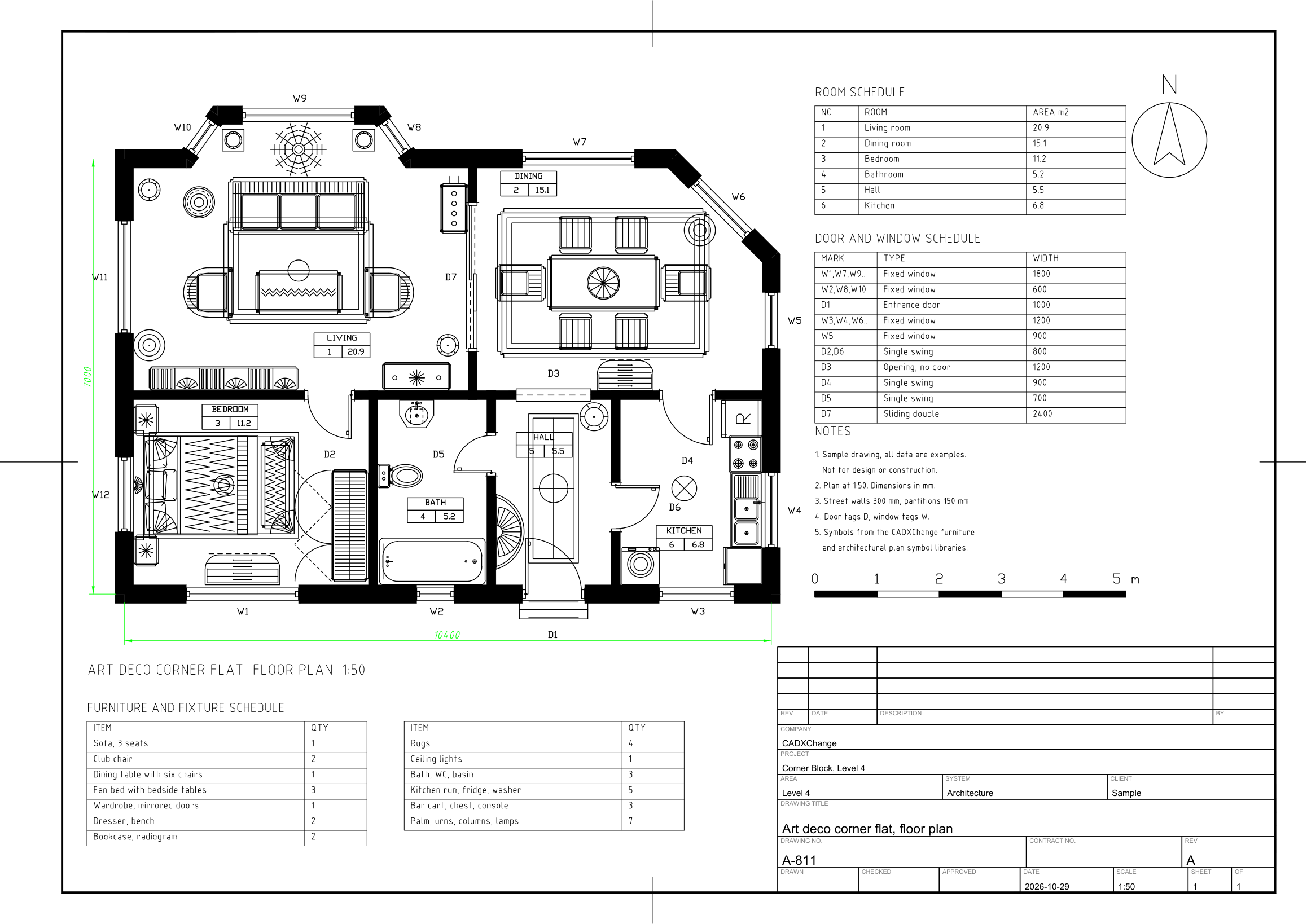

Art deco corner flat
Flat with a chamfered corner living room, dining room, hall, kitchen, bedroom and bath; furnished, with room, door and furniture schedules.
Free to use and modify in your own projects, including commercial ones. The ZIP holds the sample drawing, a template, a plot style table and a README; no add-in needed. The data in the drawing is made up, so it is not for design or construction. Provided as is, without warranty. Library terms (CXL-1.0)
This sample uses these resources
The symbols are blocks from our own libraries, with their attributes filled in. The sheet and its title block come from our ISO A3 title block template. Download them to draw your own diagrams.
Title block templates (ISO A3 and more)Sheet frame and title block of this sample
Art deco furniture plan symbols24 of its symbols are used here
Architectural plan symbols22 of its symbols are used here
Door and window symbols10 of its symbols are used here
Bathroom and kitchen symbols8 of its symbols are used here
Drawing marks, site, services and accessibility symbols3 of its symbols are used here
Layers, styles and sheet setup are the same for every drawing in the series; they are described on the series page: Art deco home floor plans
Title block fields
The attributes of the title block. Double-click it to fill them in, or write them for a whole set of drawings with BlockSync.
| Attribute | Field on the sheet | Value in this sample |
|---|---|---|
| COMPANY | COMPANY | CADXChange |
| PROJECT | PROJECT | Corner Block, Level 4 |
| AREA | AREA | Level 4 |
| SYSTEM | SYSTEM | Architecture |
| CLIENT | CLIENT | Sample |
| TITLE | DRAWING TITLE | Art deco corner flat, floor plan |
| DRAWING_NO | DRAWING NO. | A-811 |
| CONTRACT_NO | CONTRACT NO. | — |
| REV | REV | A |
| DRAWN | DRAWN | — |
| CHECKED | CHECKED | — |
| APPROVED | APPROVED | — |
| DATE | DATE | 2026-10-29 |
| SCALE | SCALE | 1:50 |
| SHEET | SHEET | 1 |
| SHEET_OF | OF | 1 |
Revision table: R1 to R4, each with REV, DATE, DESCRIPTION and BY (16 attributes, empty in this sample).
Blocks in the drawing
The equipment list of the drawing: block name, symbol and how many times it is placed. BlockSync exports the same list from your own drawings.
| Symbol | Block | Placed |
|---|---|---|
 Room tag | ARCH_TAG_ROOM | 6 |
 Window, fixed, 1800 | ARCH_WINDOW_FIXED_1800 | 4 |

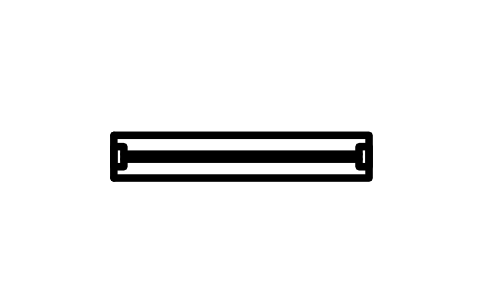

 Window, fixed, 1200 | ARCH_WINDOW_FIXED | 4 |

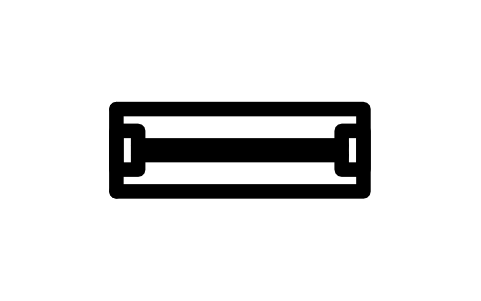

 Window, fixed, 600 | ARCH_WINDOW_FIXED_600 | 3 |

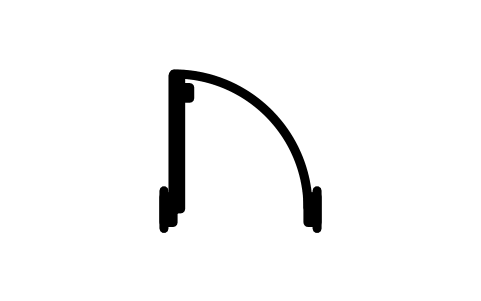

 Door, single swing, 800 | ARCH_DOOR_SINGLE_800 | 2 |
 Bedside table, stepped, fan drawer, 500 | DEC_NIGHT_STEP | 2 |
 Club chair, barrel, channel back | DEC_CLUB_800 | 2 |
 Urn, floor, 500 | DEC_URN_FLOOR | 2 |
 Floor lamp, torchiere, 350 | DEC_TORCHIERE | 2 |
 Pedestal, fluted column, 350 | DEC_COLUMN_PED | 2 |
 Door, entrance with step, 1000 | ARCH_DOOR_ENTRANCE | 1 |
 Window, fixed, 900 | ARCH_WINDOW_FIXED_900 | 1 |

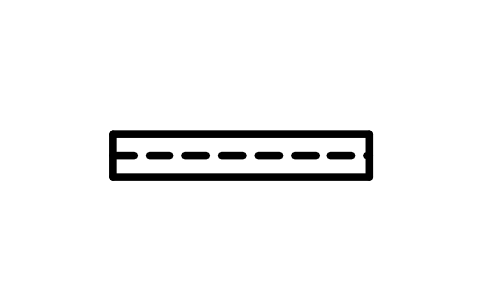

 Opening, no door, 1200 | ARCH_DOOR_OPENING_1200 | 1 |
 Door, single swing, 900 | ARCH_DOOR_SINGLE | 1 |
 Door, single swing, 700 | ARCH_DOOR_SINGLE_700 | 1 |

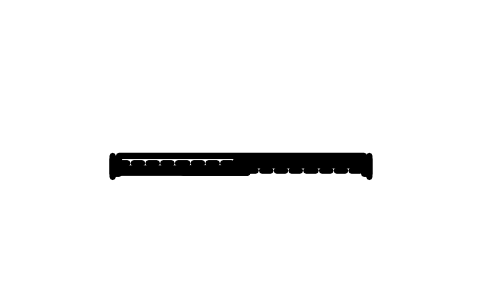

 Door, sliding double, 2400 | ARCH_DOOR_SLIDING_DOUBLE | 1 |
 Rug, fan corners, 1700 x 2400 | DEC_RUG_FAN_1700 | 1 |
 Bed, fan headboard, queen, 1600 x 2000 | DEC_BED_FAN_1600 | 1 |
 Bed end bench, stepped, 1400 x 450 | DEC_BED_BENCH | 1 |
 Wardrobe, mirrored doors, 1800 x 600 | DEC_WARDROBE_1800 | 1 |
 Dresser, waterfall, 1200 x 480 | DEC_DRESSER_1200 | 1 |

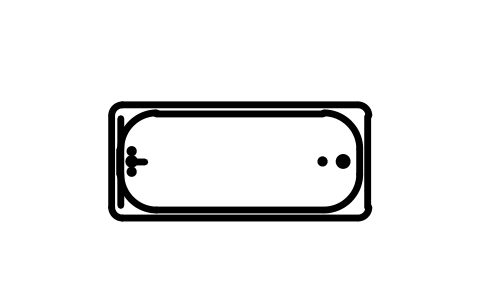

 Bathtub, rectangular, 1700 | ARCH_BATH | 1 |

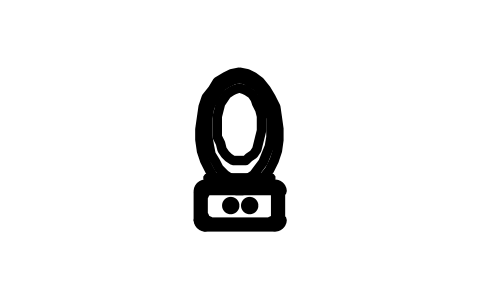

 WC, floor-mounted, close-coupled | ARCH_WC | 1 |
 Wash basin, pedestal, 550 | ARCH_BASIN_PEDESTAL | 1 |
 Rug, runner, stepped, 800 x 2400 | DEC_RUG_RUNNER | 1 |
 Console table, demi-lune, 1200 x 450 | DEC_CONSOLE_DEMI | 1 |
 Coat stand, round, 450 | DEC_COAT_STAND | 1 |

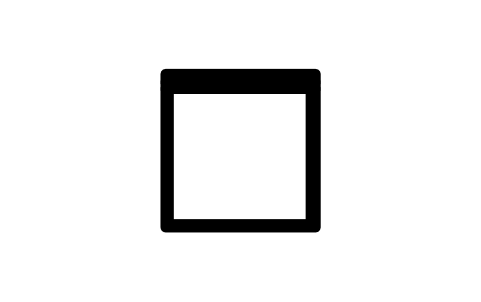

 Base cabinet, 600 | ARCH_CABINET_BASE | 1 |

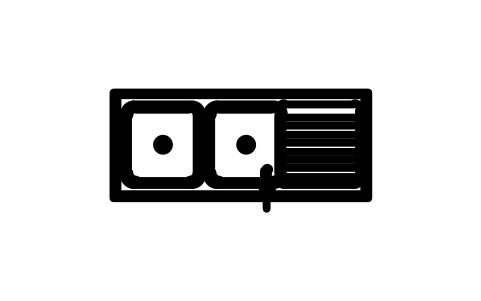

 Kitchen sink, double bowl, 1200 | ARCH_SINK_DOUBLE | 1 |

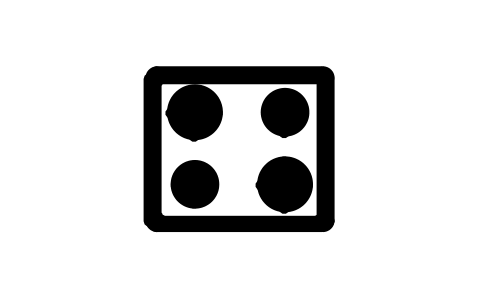

 Hob, four burners, 600 | ARCH_HOB | 1 |

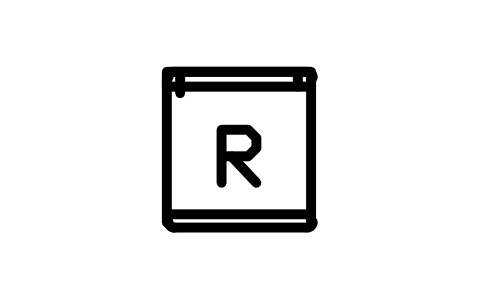

 Refrigerator, 600 x 650 | ARCH_FRIDGE | 1 |

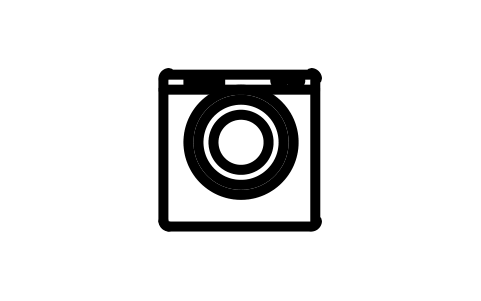

 Washing machine, 600 | ARCH_WASHER | 1 |

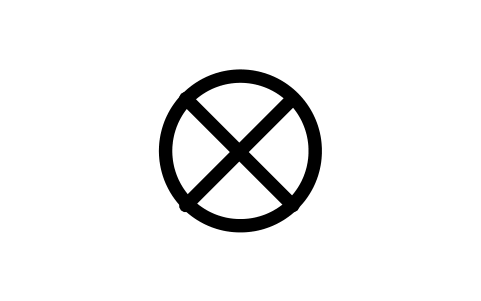

 Light, ceiling | ARCH_LIGHT_CEILING | 1 |
 Rug, stepped border, 1700 x 2400 | DEC_RUG_STEP_1700 | 1 |
 Sofa, channel back, three seater | DEC_SOFA_3 | 1 |
 Coffee table, chevron, 1400 x 700 | DEC_COFFEE_RECT_1400 | 1 |
 Side table, round, stepped base, 500 | DEC_SIDE_ROUND_500 | 1 |
 Bookcase, stepped, 2400 x 380 | DEC_BOOKCASE_2400 | 1 |
 Radiogram cabinet, 1100 x 450 | DEC_RADIOGRAM | 1 |
 Bar cart, stepped, 800 x 450 | DEC_BAR_CART | 1 |
 Palm in urn, 900 | DEC_PALM_URN_900 | 1 |
 Rug, stepped border, 2400 x 3400 | DEC_RUG_STEP_2400 | 1 |
 Dining table 1800, six channel chairs | DEC_SET_6 | 1 |
 Chest of drawers, waterfall, 900 x 480 | DEC_CHEST_900 | 1 |
 North arrow | ARCH_NORTH_ARROW | 1 |
 Scale bar, 5 m | ARCH_SCALE_BAR | 1 |
Equipment schedule
One row per placed symbol, read from the attributes of the blocks in the drawing: what is shown on the sheet, and the schedule attributes that were filled in but are not shown. BlockSync exports these same attributes from your own drawings.
| Tag | Description | Shown on the sheet | Filled in, not shown |
|---|---|---|---|
| W1 | Window, fixed, 1800ARCH_WINDOW_FIXED_1800 | WIDTH_MM = 1800HEIGHT_MM = 1350GLAZING = Double, low-E | |
| W2 | Window, fixed, 600ARCH_WINDOW_FIXED_600 | WIDTH_MM = 600HEIGHT_MM = 1350GLAZING = Double, low-E | |
| D1 | Door, entrance with step, 1000ARCH_DOOR_ENTRANCE | WIDTH_MM = 1000HEIGHT_MM = 2100DOOR_TYPE = Entrance doorMATERIAL = TimberFIRE_RATING = NoneFINISH = PaintedHARDWARE_SET = HS-1 | |
| W3 | Window, fixed, 1200ARCH_WINDOW_FIXED | WIDTH_MM = 1200HEIGHT_MM = 1350GLAZING = Double, low-E | |
| W4 | Window, fixed, 1200ARCH_WINDOW_FIXED | WIDTH_MM = 1200HEIGHT_MM = 1350GLAZING = Double, low-E | |
| W5 | Window, fixed, 900ARCH_WINDOW_FIXED_900 | WIDTH_MM = 900HEIGHT_MM = 1350GLAZING = Double, low-E | |
| W6 | Window, fixed, 1200ARCH_WINDOW_FIXED | WIDTH_MM = 1200HEIGHT_MM = 1350GLAZING = Double, low-E | |
| W7 | Window, fixed, 1800ARCH_WINDOW_FIXED_1800 | WIDTH_MM = 1800HEIGHT_MM = 1350GLAZING = Double, low-E | |
| W8 | Window, fixed, 600ARCH_WINDOW_FIXED_600 | WIDTH_MM = 600HEIGHT_MM = 1350GLAZING = Double, low-E | |
| W9 | Window, fixed, 1800ARCH_WINDOW_FIXED_1800 | WIDTH_MM = 1800HEIGHT_MM = 1350GLAZING = Double, low-E | |
| W10 | Window, fixed, 600ARCH_WINDOW_FIXED_600 | WIDTH_MM = 600HEIGHT_MM = 1350GLAZING = Double, low-E | |
| W11 | Window, fixed, 1800ARCH_WINDOW_FIXED_1800 | WIDTH_MM = 1800HEIGHT_MM = 1350GLAZING = Double, low-E | |
| W12 | Window, fixed, 1200ARCH_WINDOW_FIXED | WIDTH_MM = 1200HEIGHT_MM = 1350GLAZING = Double, low-E | |
| D2 | Door, single swing, 800ARCH_DOOR_SINGLE_800 | WIDTH_MM = 800HEIGHT_MM = 2100DOOR_TYPE = Single swingMATERIAL = TimberFIRE_RATING = NoneFINISH = PaintedHARDWARE_SET = HS-1 | |
| D3 | Opening, no door, 1200ARCH_DOOR_OPENING_1200 | WIDTH_MM = 1200HEIGHT_MM = 2100DOOR_TYPE = Opening, no doorMATERIAL = TimberFIRE_RATING = NoneFINISH = PaintedHARDWARE_SET = HS-1 | |
| D4 | Door, single swing, 900ARCH_DOOR_SINGLE | WIDTH_MM = 900HEIGHT_MM = 2100DOOR_TYPE = Single swingMATERIAL = TimberFIRE_RATING = NoneFINISH = PaintedHARDWARE_SET = HS-1 | |
| D5 | Door, single swing, 700ARCH_DOOR_SINGLE_700 | WIDTH_MM = 700HEIGHT_MM = 2100DOOR_TYPE = Single swingMATERIAL = TimberFIRE_RATING = NoneFINISH = PaintedHARDWARE_SET = HS-1 | |
| D6 | Door, single swing, 800ARCH_DOOR_SINGLE_800 | WIDTH_MM = 800HEIGHT_MM = 2100DOOR_TYPE = Single swingMATERIAL = TimberFIRE_RATING = NoneFINISH = PaintedHARDWARE_SET = HS-1 | |
| D7 | Door, sliding double, 2400ARCH_DOOR_SLIDING_DOUBLE | WIDTH_MM = 2400HEIGHT_MM = 2100DOOR_TYPE = Sliding doubleMATERIAL = TimberFIRE_RATING = NoneFINISH = PaintedHARDWARE_SET = HS-1 |
Manufacturer, model and remarks are left empty on every block, ready for your data. The values are examples.
More drawings in this series

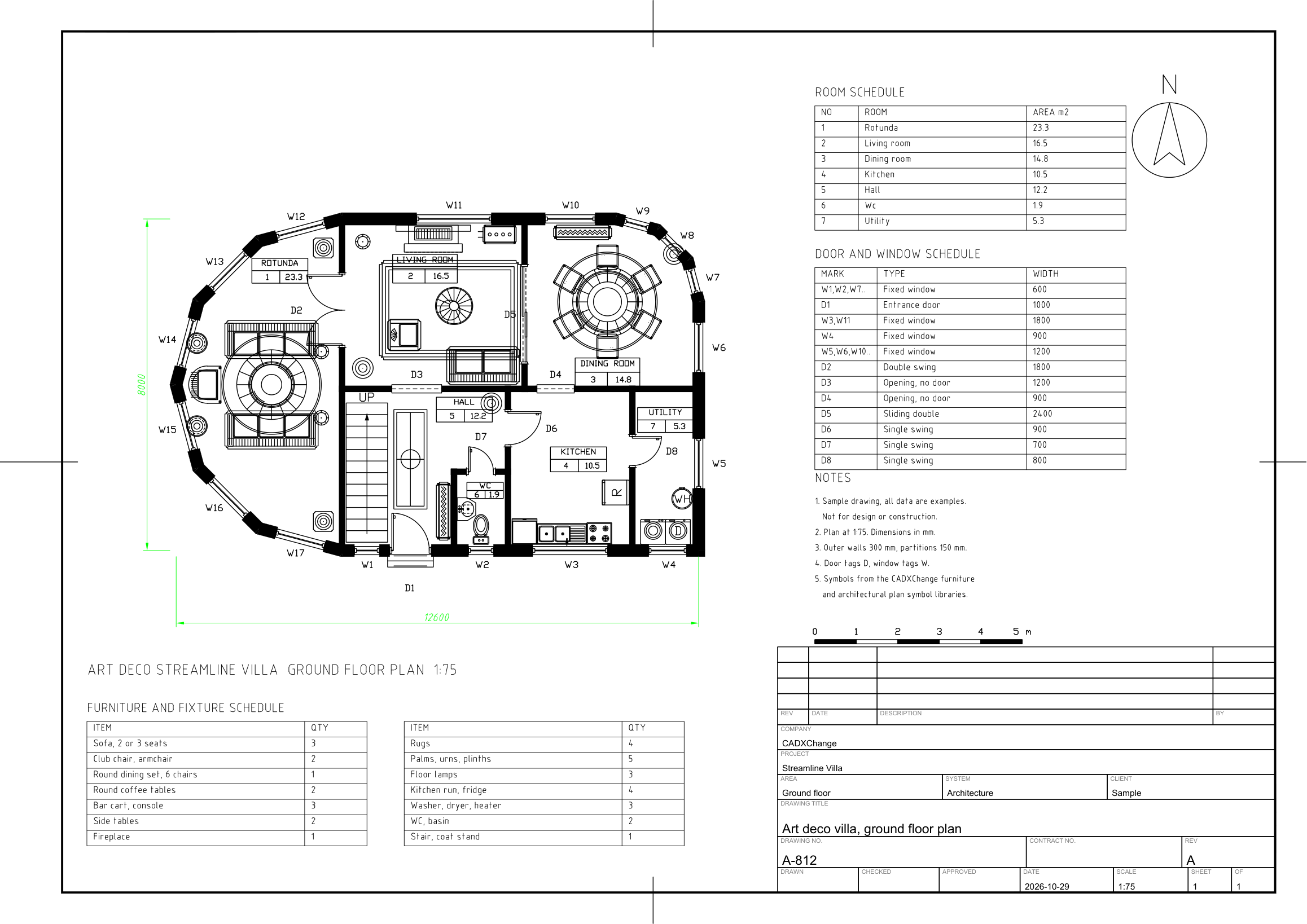

Art deco villa with rotunda loungeGround floor with a faceted rotunda lounge, a curved corner, a hall with a straight stair, living and dining rooms, kitchen, utility and WC.

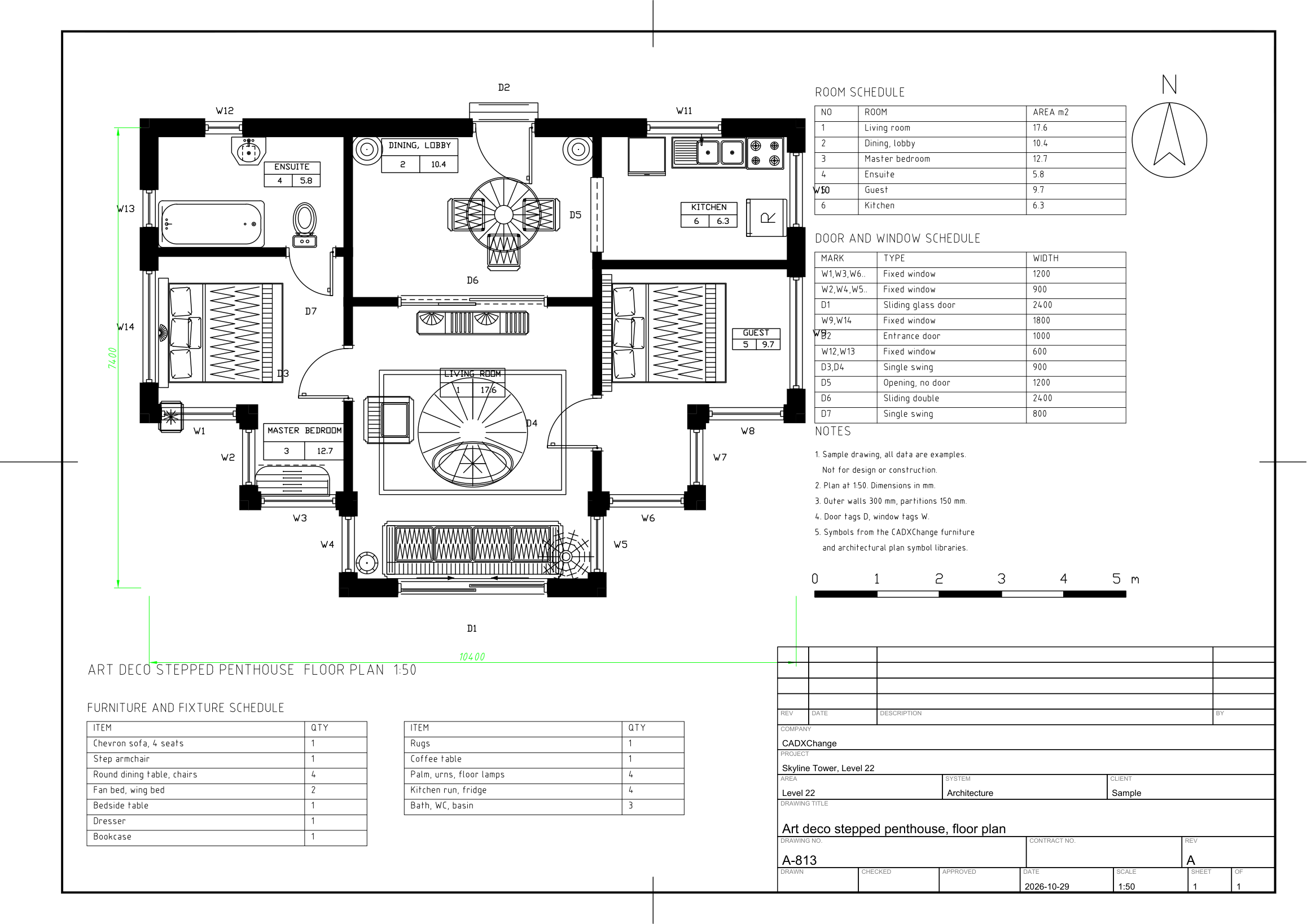

Art deco stepped penthousePenthouse with a stepped south front: living room, dining and lobby, kitchen, master and guest bedrooms and an ensuite.
