Art deco stepped penthouse
Penthouse with a stepped south front: living room, dining and lobby, kitchen, master and guest bedrooms and an ensuite.
Free to use and modify in your own projects, including commercial ones. The ZIP holds the sample drawing, a template, a plot style table and a README; no add-in needed. The data in the drawing is made up, so it is not for design or construction. Provided as is, without warranty. Library terms (CXL-1.0)
This sample uses these resources
The symbols are blocks from our own libraries, with their attributes filled in. The sheet and its title block come from our ISO A3 title block template. Download them to draw your own diagrams.
Title block templates (ISO A3 and more)Sheet frame and title block of this sample
Architectural plan symbols20 of its symbols are used here
Art deco furniture plan symbols14 of its symbols are used here
Door and window symbols10 of its symbols are used here
Bathroom and kitchen symbols7 of its symbols are used here
Drawing marks, site, services and accessibility symbols3 of its symbols are used here
Layers, styles and sheet setup are the same for every drawing in the series; they are described on the series page: Art deco home floor plans
Title block fields
The attributes of the title block. Double-click it to fill them in, or write them for a whole set of drawings with BlockSync.
| Attribute | Field on the sheet | Value in this sample |
|---|---|---|
| COMPANY | COMPANY | CADXChange |
| PROJECT | PROJECT | Skyline Tower, Level 22 |
| AREA | AREA | Level 22 |
| SYSTEM | SYSTEM | Architecture |
| CLIENT | CLIENT | Sample |
| TITLE | DRAWING TITLE | Art deco stepped penthouse, floor plan |
| DRAWING_NO | DRAWING NO. | A-813 |
| CONTRACT_NO | CONTRACT NO. | — |
| REV | REV | A |
| DRAWN | DRAWN | — |
| CHECKED | CHECKED | — |
| APPROVED | APPROVED | — |
| DATE | DATE | 2026-10-29 |
| SCALE | SCALE | 1:50 |
| SHEET | SHEET | 1 |
| SHEET_OF | OF | 1 |
Revision table: R1 to R4, each with REV, DATE, DESCRIPTION and BY (16 attributes, empty in this sample).
Blocks in the drawing
The equipment list of the drawing: block name, symbol and how many times it is placed. BlockSync exports the same list from your own drawings.
| Symbol | Block | Placed |
|---|---|---|
 Window, fixed, 1200 | ARCH_WINDOW_FIXED | 6 |
 Room tag | ARCH_TAG_ROOM | 6 |
 Window, fixed, 900 | ARCH_WINDOW_FIXED_900 | 4 |
 Dining chair, chevron seat, stepped back | DEC_CHAIR_CHEVRON | 3 |
 Window, fixed, 1800 | ARCH_WINDOW_FIXED_1800 | 2 |
 Window, fixed, 600 | ARCH_WINDOW_FIXED_600 | 2 |
 Door, single swing, 900 | ARCH_DOOR_SINGLE | 2 |
 Urn, floor, 500 | DEC_URN_FLOOR | 2 |

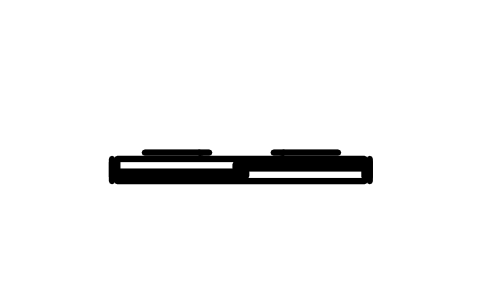

 Door, sliding glass patio, 2400 | ARCH_DOOR_SLIDING_GLASS | 1 |
 Door, entrance with step, 1000 | ARCH_DOOR_ENTRANCE | 1 |
 Opening, no door, 1200 | ARCH_DOOR_OPENING_1200 | 1 |
 Door, sliding double, 2400 | ARCH_DOOR_SLIDING_DOUBLE | 1 |
 Door, single swing, 800 | ARCH_DOOR_SINGLE_800 | 1 |
 Rug, sunburst, 2000 x 3000 | DEC_RUG_SUN_2000 | 1 |
 Sofa, chevron seats, four seater | DEC_SOFA_CHEVRON_4 | 1 |
 Coffee table, oval, sunburst, 1300 x 700 | DEC_COFFEE_OVAL | 1 |
 Armchair, stepped arms, channel back | DEC_ARMCHAIR_STEP | 1 |
 Bookcase, stepped, 1800 x 380 | DEC_BOOKCASE_1800 | 1 |
 Floor lamp, torchiere, 350 | DEC_TORCHIERE | 1 |
 Palm in urn, 900 | DEC_PALM_URN_900 | 1 |
 Dining table, round, sunburst, 1200 | DEC_DINING_ROUND_1200 | 1 |
 Bed, fan headboard, queen, 1600 x 2000 | DEC_BED_FAN_1600 | 1 |
 Bedside table, stepped, fan drawer, 500 | DEC_NIGHT_STEP | 1 |
 Dresser, waterfall, 1200 x 480 | DEC_DRESSER_1200 | 1 |
 Bathtub, rectangular, 1700 | ARCH_BATH | 1 |
 WC, floor-mounted, close-coupled | ARCH_WC | 1 |
 Wash basin, pedestal, 550 | ARCH_BASIN_PEDESTAL | 1 |
 Bed, channel head, queen, 1600 x 2000 | DEC_BED_WING_1600 | 1 |
 Base cabinet, 600 | ARCH_CABINET_BASE | 1 |
 Kitchen sink, double bowl, 1200 | ARCH_SINK_DOUBLE | 1 |
 Hob, four burners, 600 | ARCH_HOB | 1 |
 Refrigerator, 600 x 650 | ARCH_FRIDGE | 1 |
 North arrow | ARCH_NORTH_ARROW | 1 |
 Scale bar, 5 m | ARCH_SCALE_BAR | 1 |
Equipment schedule
One row per placed symbol, read from the attributes of the blocks in the drawing: what is shown on the sheet, and the schedule attributes that were filled in but are not shown. BlockSync exports these same attributes from your own drawings.
| Tag | Description | Shown on the sheet | Filled in, not shown |
|---|---|---|---|
| W1 | Window, fixed, 1200ARCH_WINDOW_FIXED | WIDTH_MM = 1200HEIGHT_MM = 1350GLAZING = Double, low-E | |
| W2 | Window, fixed, 900ARCH_WINDOW_FIXED_900 | WIDTH_MM = 900HEIGHT_MM = 1350GLAZING = Double, low-E | |
| W3 | Window, fixed, 1200ARCH_WINDOW_FIXED | WIDTH_MM = 1200HEIGHT_MM = 1350GLAZING = Double, low-E | |
| W4 | Window, fixed, 900ARCH_WINDOW_FIXED_900 | WIDTH_MM = 900HEIGHT_MM = 1350GLAZING = Double, low-E | |
| D1 | Door, sliding glass patio, 2400ARCH_DOOR_SLIDING_GLASS | WIDTH_MM = 2400HEIGHT_MM = 2100DOOR_TYPE = Sliding glass doorMATERIAL = TimberFIRE_RATING = NoneFINISH = PaintedHARDWARE_SET = HS-1 | |
| W5 | Window, fixed, 900ARCH_WINDOW_FIXED_900 | WIDTH_MM = 900HEIGHT_MM = 1350GLAZING = Double, low-E | |
| W6 | Window, fixed, 1200ARCH_WINDOW_FIXED | WIDTH_MM = 1200HEIGHT_MM = 1350GLAZING = Double, low-E | |
| W7 | Window, fixed, 900ARCH_WINDOW_FIXED_900 | WIDTH_MM = 900HEIGHT_MM = 1350GLAZING = Double, low-E | |
| W8 | Window, fixed, 1200ARCH_WINDOW_FIXED | WIDTH_MM = 1200HEIGHT_MM = 1350GLAZING = Double, low-E | |
| W9 | Window, fixed, 1800ARCH_WINDOW_FIXED_1800 | WIDTH_MM = 1800HEIGHT_MM = 1350GLAZING = Double, low-E | |
| W10 | Window, fixed, 1200ARCH_WINDOW_FIXED | WIDTH_MM = 1200HEIGHT_MM = 1350GLAZING = Double, low-E | |
| W11 | Window, fixed, 1200ARCH_WINDOW_FIXED | WIDTH_MM = 1200HEIGHT_MM = 1350GLAZING = Double, low-E | |
| D2 | Door, entrance with step, 1000ARCH_DOOR_ENTRANCE | WIDTH_MM = 1000HEIGHT_MM = 2100DOOR_TYPE = Entrance doorMATERIAL = TimberFIRE_RATING = NoneFINISH = PaintedHARDWARE_SET = HS-1 | |
| W12 | Window, fixed, 600ARCH_WINDOW_FIXED_600 | WIDTH_MM = 600HEIGHT_MM = 1350GLAZING = Double, low-E | |
| W13 | Window, fixed, 600ARCH_WINDOW_FIXED_600 | WIDTH_MM = 600HEIGHT_MM = 1350GLAZING = Double, low-E | |
| W14 | Window, fixed, 1800ARCH_WINDOW_FIXED_1800 | WIDTH_MM = 1800HEIGHT_MM = 1350GLAZING = Double, low-E | |
| D3 | Door, single swing, 900ARCH_DOOR_SINGLE | WIDTH_MM = 900HEIGHT_MM = 2100DOOR_TYPE = Single swingMATERIAL = TimberFIRE_RATING = NoneFINISH = PaintedHARDWARE_SET = HS-1 | |
| D4 | Door, single swing, 900ARCH_DOOR_SINGLE | WIDTH_MM = 900HEIGHT_MM = 2100DOOR_TYPE = Single swingMATERIAL = TimberFIRE_RATING = NoneFINISH = PaintedHARDWARE_SET = HS-1 | |
| D5 | Opening, no door, 1200ARCH_DOOR_OPENING_1200 | WIDTH_MM = 1200HEIGHT_MM = 2100DOOR_TYPE = Opening, no doorMATERIAL = TimberFIRE_RATING = NoneFINISH = PaintedHARDWARE_SET = HS-1 | |
| D6 | Door, sliding double, 2400ARCH_DOOR_SLIDING_DOUBLE | WIDTH_MM = 2400HEIGHT_MM = 2100DOOR_TYPE = Sliding doubleMATERIAL = TimberFIRE_RATING = NoneFINISH = PaintedHARDWARE_SET = HS-1 | |
| D7 | Door, single swing, 800ARCH_DOOR_SINGLE_800 | WIDTH_MM = 800HEIGHT_MM = 2100DOOR_TYPE = Single swingMATERIAL = TimberFIRE_RATING = NoneFINISH = PaintedHARDWARE_SET = HS-1 |
Manufacturer, model and remarks are left empty on every block, ready for your data. The values are examples.
